320.03E11.09GRN

Description
tactile switches tactile PB grn cap spst-NO 0.025a 50v
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size316KB,3 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Environmental Compliance
Download Datasheet Parametric View All

320.03E11.09GRN Overview

tactile switches tactile PB grn cap spst-NO 0.025a 50v

320.03E11.09GRN Parametric

Parameter NameAttribute value
ManufactureE-Switch
Product CategoryTactile Switches
RoHSYes
Operating Force1.3 N
ActuDome
Current Rating25 mA
Voltage Rating DC50 V
Contact FormSPST
Mounting StyleThrough Hole
Stem Heigh8.5 mm
PackagingBulk
Operating Temperature Range- 20 C to + 70 C
Termination StyleSolder Pi
Travel0.6 mm

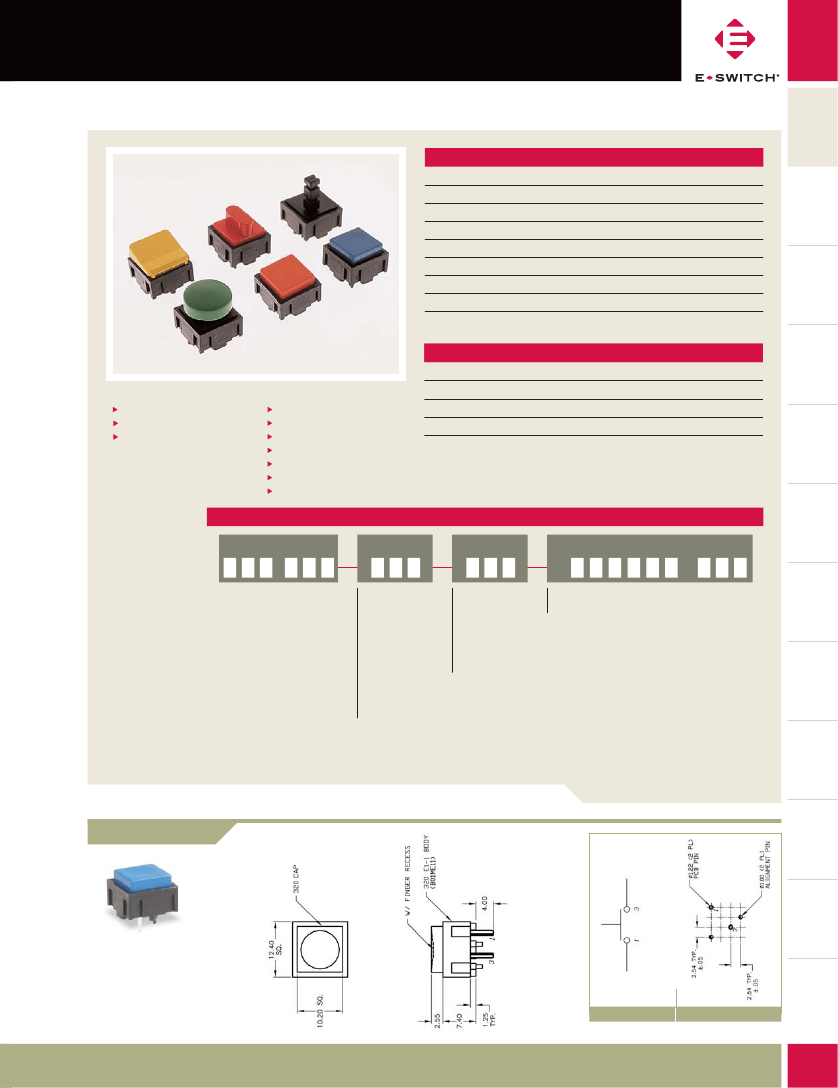

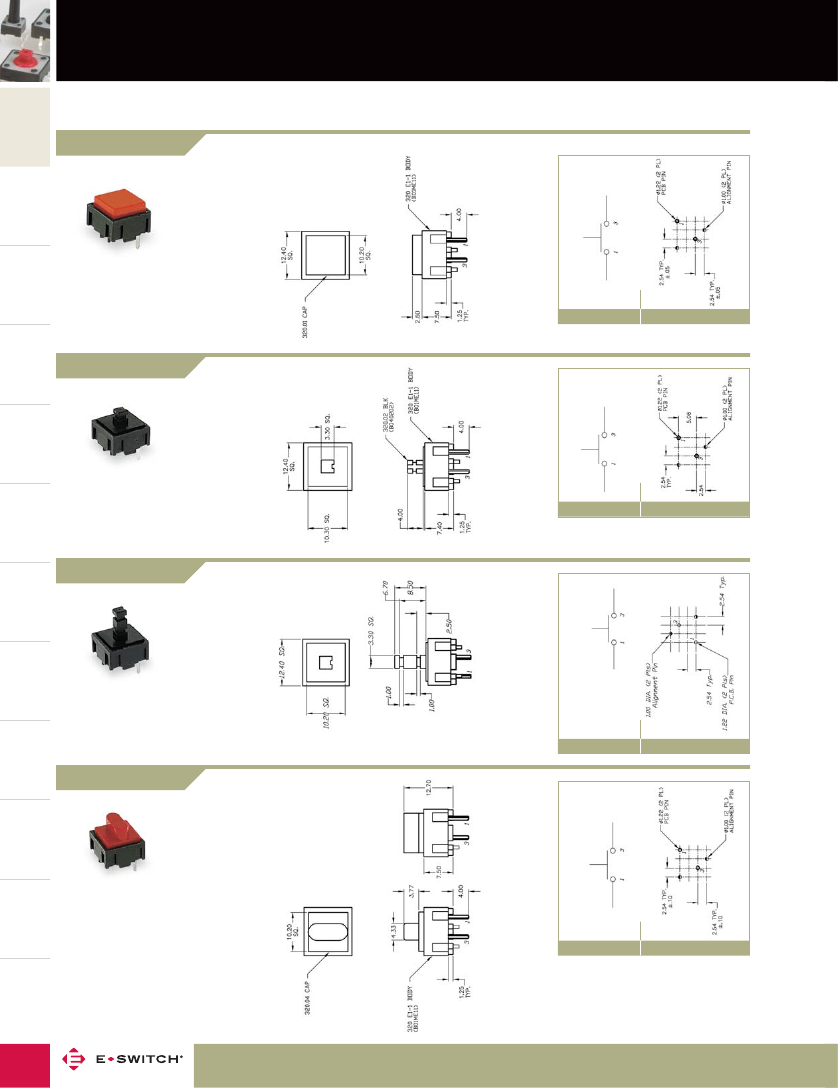

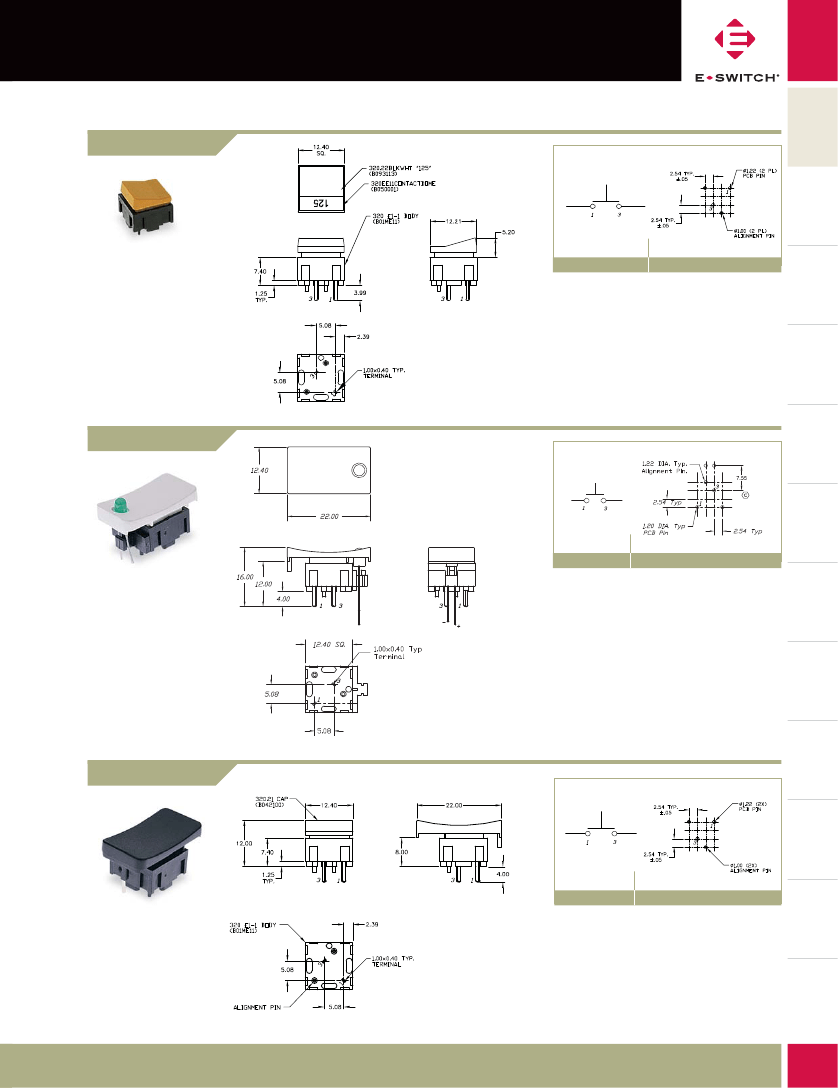

SERIES 320 SWITCHES
SPECIFICATIONS
Life Expectancy:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Actuation Force:
Travel:
1,000,000 cycles min.
50mΩ, max. initial @ 2-4 VDC, 100mA
1,000MΩ min.
>500 VAC rms at sea level
135 ± 50 gf
.6mm Typ.
PUSHBUTTON
SWITCHES
CAP
COLOR
See Cap Section
*Note: Assembled using the 320.02
plungered cap.
SCHEMATIC
P.C. MOUNTING
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
KEYLOCK
SWITCHES
DIP
SWITCHES
Specifications subject to change without notice.
Operating Temperature: -20°C to 70°C
MATERIALS
Housing:
Nylon 4/6
ABS or Polycarbonate
Gold over stainless steel
Silver plated copper alloy
FEATURES & BENEFITS
Multiple cap & color options
High reliability dome technology
Excellent tactile feedback
APPLICATIONS/MARKETS
Telecommunications
Networking
Computers/servers
Performance audio
Instrumentation
Low power on/off designs
External hard drives and modems
Cover/Cap:
Dome Contact:
Terminals/Contacts:
HOW TO ORDER
CAP STYLE
CIRCUIT
CAP COLOR
ADDITIONAL CAP
(Fits over cap styles 320.02 & 320.03 only.)
320
320.01
320.02
320.03
320.04
320.22
320.08*
320.09*
320.094*
320.2
320.21
E11 (SPST)
BLK = Black
GRY = Grey
YEL = Yellow
BLU = Blue
GRN = Green
WHT= White
RED = Red
Example Ordering Number
320.08_ E1-1_ YEL
320
www.e-switch.com
info
@
e-switch.com
SNAP-ACTION
SWITCHES
.
SLIDE
SWITCHES
ROCKER
SWITCHES
TOGGLE
SWITCHES
NAVIGATION
SWITCHES
Contact Rating:
25mA @ 50 VDC
TACT
SWITCHES
TACT SWITCHES
45
