Gemini Series Switches
The TE Connectivity extensive Gemini A and Gemini AE Series offer one and two poles with multi–circuit
configurations, including: momentary function, locking toggle to avoid unwanted switching as well as bat
and flat toggles in different lengths. The Gemini AE Series meets IP67 requirements. Terminals are epoxy
sealed to prevent the entry of flux, solvent and other contaminants. Gemini A & Gemini AE Switches are
available with solder lug, PC, wire wrap, vertical, bracketed and angle-mount PC terminal choices.
The Gemini series offers engineers many different combinations of toggle or rocker switches for their
applications.
FEATuRES
Toggles
•
Gold, gold over silver or silver contacts
•
Epoxy sealed terminals
•
Stainless steel frame with brass
tin plated solder support
•
Hardware included
•
Boot seals available
•
AE meets IP67 requirements
Rockers
•
Multiple actuator colors available
•
G and Q contacts UL recognition
•
AE meets IP67 requirements
APPlicATionS
These devices are well suited for designs requiring
human interface via toggle or rocker-style switch,
including:
•
Industrial equipment
•
Audio-visual equipment
•
Outdoor concert and lighting equipment
•
Medical
•
Instrumentation
•
Communication equipment
te.com/products/switches
TE Connectivity
Gemini Series Switches
Typical Performance characteristics
contact configuration : 1, 2, 3, and 4 pole
contact Timing : Break before make
contact Rating max. :
Gold : 0.4VA @20V AC or DC
Gold over Silver : A @ 125VAC or 28VDC resistive
5
0.4VA @ 20V AC or DC or
2A @ 250VAC resistive
Silver : 5A @ 125VAC or 28VDC resistive
Electrical life : 6000 cycles
contact Resistance, initial : 10 mOhms max. at 2–4 VDC 100 mA
insulation Resistance : 1,000 MOhms
dielectric Strength : 1,000 Vrms @ sea level
Actuator Travel :
2° for D and E function
2
18° for F and G function
Gemini A
Flat Toggle
Gemini AE
Short Toggle
iP67
Wire lug
Printed circuit
Environmental Specification
operating Temperature : -30 to +85°C
Storage Temperature : -30 to +85°C
Solder Heat Resistance : Wave solder capable to 265°C
Terminal Seal : Single pole: epoxy
Standard Toggle
material Specifications
contacts :
Contacts B : Copper alloy finish gold over nickel
Contacts G : Copper alloy finish gold over silver
Contacts Q : Copper alloy finish silver
Actuator : Brass alloy finish nickel
Terminals :
Contacts B : Copper alloy finish gold over nickel
Contacts G : Copper alloy finish gold over silver
Contacts Q : Copper alloy finish silver
case : Thermoplastic
Bushing : Brass alloy finish nickel
internal Actuator : Phenolic
Spring : Music wire
Support Bracket : Brass tin plated
Seal : Epoxy
Vertical Right Angle
Right Angle
Standard Paddle
Beveled
Frame
large Rocker
Snap-in
Vertical Support
color code:
Terminal
Actuator
ingress Protection
other Features

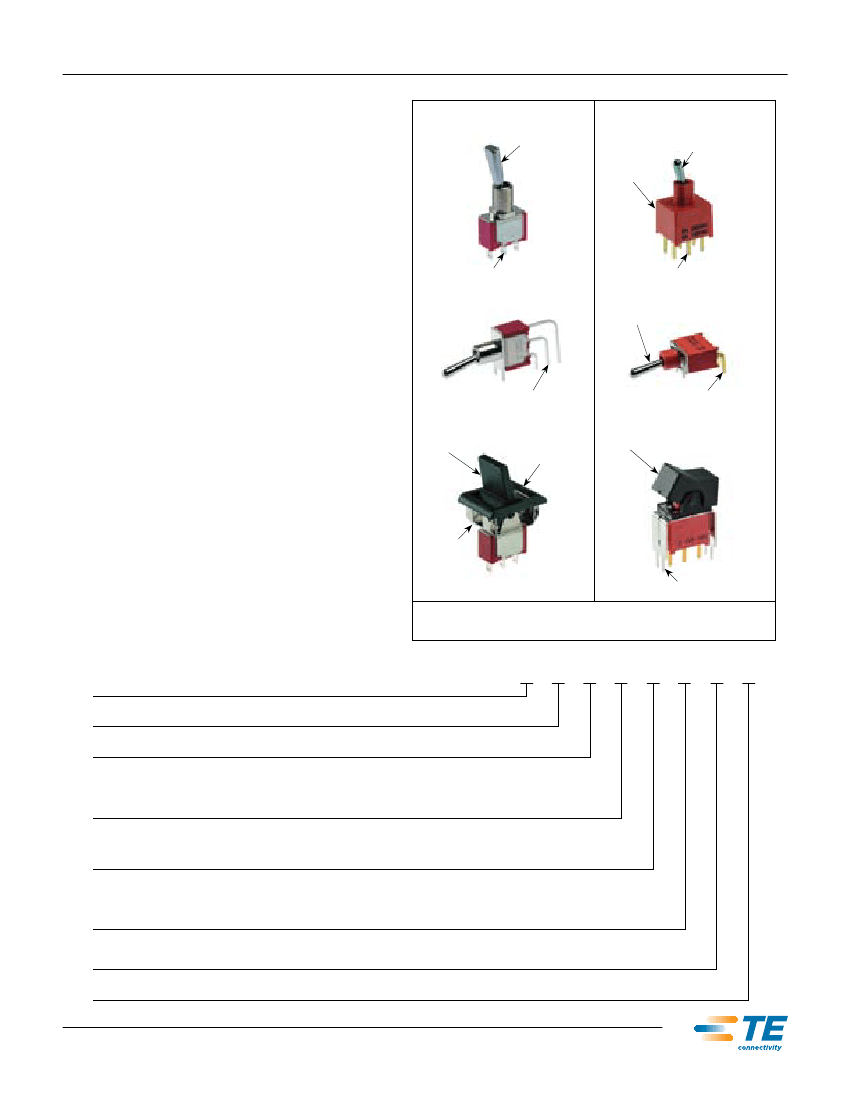

Gemini A Toggle Product Key
Type
A
1
Gemini A Series Toggles
2
Typical Product Key
A
1
01
P3
Z
Q
04
Number of Poles
Single pole
Double pole
Double pole only
11
ON-ON-ON
13
ON-ON-(ON)
15
(ON)-ON-(ON)
T
T1
L
D
D9
H
L1
L2
Function
Single and double pole
01
ON-ON
03
ON-OFF-ON
05
(ON)-OFF-(ON)
07
08
ON-OFF-(ON)
ON-(ON)
Toggles
S
K
K1
Bat long
Locking
Locking
M
P3
Bat short
Flatted (with bushing
code Y only)
Large toggle & bushing (15/32)
Large toggle & bushing (15/32)
Lever
Y
Y9
Lever
Lever
Bushing
blank
Toggles K1 &/ P3: 1/4-40 threaded .35 (8. 9) long
Toggles K, T, T1: unthreaded .28 (7.1) long
CW
1/4-40 threaded .37 (9.4) long, environmental seals
(toggles codes S & M only)
1/4-40 threaded .28 (7.1) long
unthreaded .28 (7.1) long
1/4-40 threaded .3 (7.6) long
1/4-40 threaded .35 (8.9) long
unthreaded .35 (8.9) long
Terminations
A
AV2
B
Right angle
Vertical right angle
C
V30
G
Printed circuit
Vertical support
V40
W
Q
Vertical support
Wire wrap
W4
Z
Wire wrap
Wire lug
Contacts
Gold
Gold over silver
Silver
Material
04
RoHS Compliant
te.com/products/switches
TE Connectivity
Gemini Series Switches
GEmini A SERiES ToGGlES
Product Key
A101KZQ04
A101MD9AB04
A101MD9AQ04
A101MD9AV2B04
A101MDZQ04
A101MYZQ04
A101SCWZQ04
A101SD9AB04
A101SD9V30B04
A101SHZQ04
A101SYCB04
A101SYCQ04
A101SYZB04
A101SYZQ04
A101TCQ04
A101TZQ04
A103KZQ04
A103MD9AV2B04
A103SYCQ04
A103SYWB04
A103SYWQ04
A103SYZB04
A105MD9AB04
A105SYCQ04
A105SYZQ04
A105TZQ04
A107SYCQ04
A107SYZQ04
A108SYZQ04
A201KAB04
A201KZQ04
A201MD9AB04
A201MD9AQ04
A201MD9AV2Q04
A201SYCB04
A201SYCQ04
A201SYZB04
A201SYZQ04
A201TZQ04
A203KZQ04
A203MD9AB04
A203SYCQ04
A203SYZQ04
A203TZQ04
A205SYCQ04
A205SYZQ04
A207SYZQ04
A208SYZQ04
A211SYZQ04
Poles
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Function
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-OFF-ON
ON-OFF-ON
ON-OFF-ON
ON-OFF-ON
ON-OFF-ON
ON-OFF-ON
(ON)-OFF-(ON)
(ON)-OFF-(ON)
(ON)-OFF-(ON)
(ON)-OFF-(ON)
ON-OFF-(ON)
ON-OFF-(ON)
ON-(ON)
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-OFF-ON
ON-OFF-ON
ON-OFF-ON
ON-OFF-ON
ON-OFF-ON
(ON)-OFF-(ON)
(ON)-OFF-(ON)
ON-OFF-(ON)
ON-(ON)
ON-ON-ON
Toggles
Locking
Bat Short
Bat Short
Bat Short
Bat Short
Bat Short
Bat Long
Bat Long
Bat Long
Bat Long
Bat Long
Bat Long
Bat Long
Bat Long
Lg. Tgl. & Bushing
Lg. Tgl. & Bushing
Locking
Bat Short
Bat Long
Bat Long
Bat Long
Bat Long
Bat Short
Bat Long
Bat Long
Lg. Tgl. & Bushing
Bat Long
Bat Long
Bat Long
Locking
Locking
Bat Short
Bat Short
Bat Short
Bat Long
Bat Long
Bat Long
Bat Long
Lg. Tgl. & Bushing
Locking
Bat Short
Bat Long
Bat Long
Lg. Tgl. & Bushing
Bat Long
Bat Long
Bat Long
Bat Long
Bat Long
Bushing
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
1/4-40 Threaded .28 (7.1)
1/4-40 Threaded .35 (8.9)
1/4-40 threaded .37 (9.4)
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
1/4-40 threaded .3 (7.6)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
Unthreaded .28 (7.1)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
Unthreaded .28 (7.1)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
Unthreaded .28 (7.1)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
Unthreaded .28 (7.1)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
1/4-40 Threaded .35 (8.9)
Terminations
Wire Lug
Right Angle
Right Angle
Vertical Right Angle
Wire Lug
Wire Lug
Wire Lug
Right Angle
Vertical Support
Wire Lug
Printed Circuit
Printed Circuit
Wire Lug
Wire Lug
Printed Circuit
Wire Lug
Wire Lug
Vertical Right Angle
Printed Circuit
Wire Wrap
Right Angle
Wire Lug
Right Angle
Printed Circuit
Wire Lug
Wire Lug
Printed Circuit
Wire Lug
Wire Lug
Right Angle
Wire Lug
Right Angle
Right Angle
Vertical Right Angle
Printed Circuit
Printed Circuit
Wire Lug
Wire Lug
Wire Lug
Wire Lug
Right Angle
Printed Circuit
Wire Lug
Wire Lug
Printed Circuit
Wire Lug
Wire Lug
Wire Lug
Wire Lug
Contacts
Silver
Gold
Silver
Gold
Silver
Silver
Silver
Gold
Gold
Silver
Gold
Silver
Gold
Silver
Silver
Silver
Silver
Gold
Silver
Gold
Silver
Gold
Gold
Silver
Silver
Silver
Silver
Silver
Silver
Gold
Silver
Gold
Silver
Silver
Gold
Silver
Gold
Silver
Silver
Silver
Gold
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Material
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
Part Number
1825136-7
1-1825136-2
1-1825136-4
1-1825136-5
2-1825136-2
2-1825136-4
3-1825136-1
3-1825136-2
3-1825136-6
4-1825136-0
4-1825136-4
4-1825136-5
4-1825136-8
4-1825136-9
5-1825136-4
5-1825136-5
1825137-1
1825137-5
1-1825137-6
1-1825137-7
1-1825137-8
1-1825137-9
2-1825137-4
3-1825137-7
3-1825137-9
4-1825137-2
5-1825137-1
5-1825137-2
6-1825136-4
1825138-1
1825138-3
1825138-6
1825138-7
1825138-9
2-1825138-4
2-1825138-5
2-1825138-7
2-1825138-8
3-1825138-1
1825139-1
1825139-2
1825139-9
1-1825139-0
1-1825139-2
1-1825139-7
1-1825139-8
2-1825139-4
3-1825138-8
3-1825139-9
te.com/products/switches
TE Connectivity
Gemini Series Switches
Gemini AE Toggle Product Key
Type
AE
1
Gemini AE Series Toggle
Single pole
2
Double pole
Double pole only
11
ON-ON-ON
13
ON-ON-(ON)
15
(ON)-ON-(ON)
Typical Product Key
AE
1
01
S
D1
C
Q
04
Number of Poles
Function
Single and double pole
01
ON-ON
03
ON-OFF-ON
05
(ON)-OFF-(ON)
07
08
ON-OFF-(ON)
ON-(ON)
Toggles
S
Bat long
Unthreaded
Right angle
Vertical right angle
Gold
RoHS Compliant
C
V30
G
Printed circuit
Vertical support
Gold over silver
V40
W
Q
Vertical support
Wire wrap
silver
W4
Z
Wire wrap
Wire lug
M
Bat short
Bushing
D1
A
AV2
B
Terminations
Contacts
Material
04
GEmini AE SERiES ToGGlES
Product Key
AE101MD1AB04
AE101MD1AQ04
AE101MD1AV2B04
AE101MD1CB04
AE101SD1AB04
AE101SD1CB04
AE103MD1AV2B04
AE103SD1CB04
AE105SD1CB04
AE201SD1AV2B04
AE201SD1CB04
AE201SD1CQ04
AE203SD1AV2B04
AE203SD1AV2Q04
AE203SD1CB04
Poles
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
Function
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-OFF-ON
ON-OFF-ON
ON-OFF-ON
ON-ON
ON-ON
ON-ON
ON-OFF-ON
ON-OFF-ON
ON-OFF-ON
Toggles
Bat Short
Bat Short
Bat Short
Bat Short
Bat Long
Bat Long
Bat Short
Bat Long
Bat Long
Bat Long
Bat Long
Bat Long
Bat Long
Bat Long
Bat Long
Bushing
Unthreaded
Unthreaded
Unthreaded
Unthreaded
Unthreaded
Unthreaded
Unthreaded
Unthreaded
Unthreaded
Unthreaded
Unthreaded
Unthreaded
Unthreaded
Unthreaded
Unthreaded
Terminations
Right Angle
Right Angle
Vertical Right Angle
Printed Circuit
Right Angle
Printed Circuit
Vertical Right Angle
Printed Circuit
Printed Circuit
Vertical Right Angle
Printed Circuit
Printed Circuit
Vertical Right Angle
Vertical Right Angle
Printed Circuit
Contacts
Gold
Gold over Silver
Gold
Gold
Gold
Gold
Gold
Gold
Gold
Gold
Gold
Silver
Gold
Silver
Gold
Material
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
Part Number
1825142-1
1825142-4
1825142-5
1825142-8
1-1825142-5
2-1825142-0
2-1825142-5
3-1825142-0
3-1825142-9
1825143-9
1-1825143-0
1-1825143-1
1-1825143-7
1-1825143-8
1-1825143-9
Gemini A Rocker Paddle Product Key
Type
A
1
Rocker/Paddle Switch
Single pole
ON-ON
ON-OFF-ON
2
05
07
Double pole
(ON)-OFF-(ON)
ON-OFF-(ON)
08
11
ON-(ON)
ON-ON-ON
13
ON-ON-(ON)
Typical Product Key
A
1
01
J1
A
Q
0
04
Number of Poles
Function
01
03
Actuator
Rocker
J1
Small
J3
Large
J50
Snap-in
Rocker
J51
Snap-in w/beveled frame
J52
Snap-in w/beveled frame & LED
Paddle
J2
Small
J4
Large
J60
Snap-in
Paddle
J61
Snap-in w/beveled frame
J62
Snap-in w/beveled frame & LED
Terminals
A
AV2
B
0
1
0
1
Right angle
Vertical right angle
Gold
Black (std.)
Brown
Black (std.)
Brown
RoHS Compliant
C
V3
G
2
3
2
3
Printed circuit
Vertical with support bracket .620 (15.75)
Gold over silver
Red
Orange
Red
Orange
Q
4
5
4
5
silver
Yellow
Green
Yellow
Green
6
8
6
8
Blue
Gray
Blue
Gray
9
White
Z
Z3
Wire lug
Quick connect
Contacts
Actuator color
Beveled frame color
9
White
Material
04
te.com/products/switches
TE Connectivity
Gemini Series Switches
GEmini A SERiES RocKER/PAddlE
Product Key
A101J1AV2Q004
A101J1ZQ004
A101J51ZQ0004
A103J51ZQ0004
A105J1ZQ004
A105J3ZQ004
A105J51ZQ0004
A107J51ZQ0004
A108J51ZQ0004
A201J1AQ004
A201J1AV2Q004
A201J50ZQ004
A201J51ZQ0004
A201J61ZQ0004
A203J51ZQ0004
A203J61ZQ0004
A205J51ZQ0004
A205J61ZQ0004
Poles
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
Function
ON-ON
ON-ON
ON-ON
ON-OFF-ON
(ON)-OFF-(ON)
(ON)-OFF-(ON)
(ON)-OFF-(ON)
ON-OFF-(ON)
ON-(ON)
ON-ON
ON-ON
ON-ON
ON-ON
ON-ON
ON-OFF-ON
ON-OFF-ON
(ON)-OFF-(ON)
(ON)-OFF-(ON)
Actuator
Small
Small
Snap-in
Snap-in, Frame
Small
Large
Snap-in, Frame
Snap-in, Frame
Snap-in, Frame
Small
Small
Snap-in
Snap-in, Frame
Snap-in, Frame
Snap-in, Frame
Snap-in, Frame
Snap-in, Frame
Snap-in, Frame
Terminals
Vertical Right Angle
Wire Lug
Wire Lug
Wire Lug
Wire Lug
Wire Lug
Wire Lug
Wire Lug
Wire Lug
Right Angle
Vertical Right Angle
Wire Lug
Wire Lug
Wire Lug
Wire Lug
Wire Lug
Wire Lug
Wire Lug
Contacts
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Silver
Act. Color
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Fr. Color
N/A
N/A
Black
Black
N/A
N/A
Black
Black
Black
N/A
N/A
N/A
Black
Black
Black
Black
Black
Black
Material
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
Part Number
1-1571986-1
1-1571986-7
3-1571986-4
4-1571986-5
5-1571986-3
5-1571986-9
6-1571986-1
6-1571986-5
6-1571986-9
1571987-2
1571987-4
1-1571987-4
1-1571987-5
1-1571987-9
2-1571987-6
2-1571987-7
3-1571987-3
3-1571987-4
Gemini AE Rocker Paddle Product Key
Type
AE
1
Rocker/Paddle Switch
2
07
08
Typical Product Key
AE
1
01
J1
A
Q
0
04
Number of Poles
Single pole
Double pole
Function
01
05
ON-ON
(ON)-OFF-(ON)
ON-OFF-(ON)
ON-(ON)
Actuator
Rocker
J1
Standard
J50
Small
Paddle
J2
Standard
J60
Small
V3
V4
W
G
2
W4
Z
Z3
Q
Terminals
A
AV2
C
B
0
Right angle
Vertical right angle
Printed circuit
Vertical with support bracket
Vertical with support bracket
Wire wrap
Wire wrap
Wire lug
Quick connect
Contacts
Gold
Gold over silver
Silver
Actuator color
Black (std.)
Red
Material
04
RoHS Compliant
GEmini AE SERiES RocKER/PAddlE
Product Key
AE101J1AQ004
AE101J1AV2Q004
AE101J1V3B004
AE105J1V3B004
AE201J1AV2Q004
AE201J1V3B004
Poles
1
1
1
1
2
2
Function
ON-ON
ON-ON
ON-ON
(ON)-OFF-(ON)
ON-ON
ON-ON
Actuator
Standard
Standard
Standard
Standard
Standard
Standard
Terminals
Right Angle
Vertical Right Angle
Br. .620 (15.75)
Br. .620 (15.75)
Vertical Right Angle
Br. .620 (15.75)
Contacts
Silver
Silver
Gold
Gold
Silver
Gold
Act. Color
Black
Black
Black
Black
Black
Black
Material
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
RoHS Compliant
Part Number
1571988-2
1571988-4
1571988-5
1-1571988-0
1571989-2
1571989-3
te.com/products/switches
京公网安备 11010802033920号
EEWORLD
