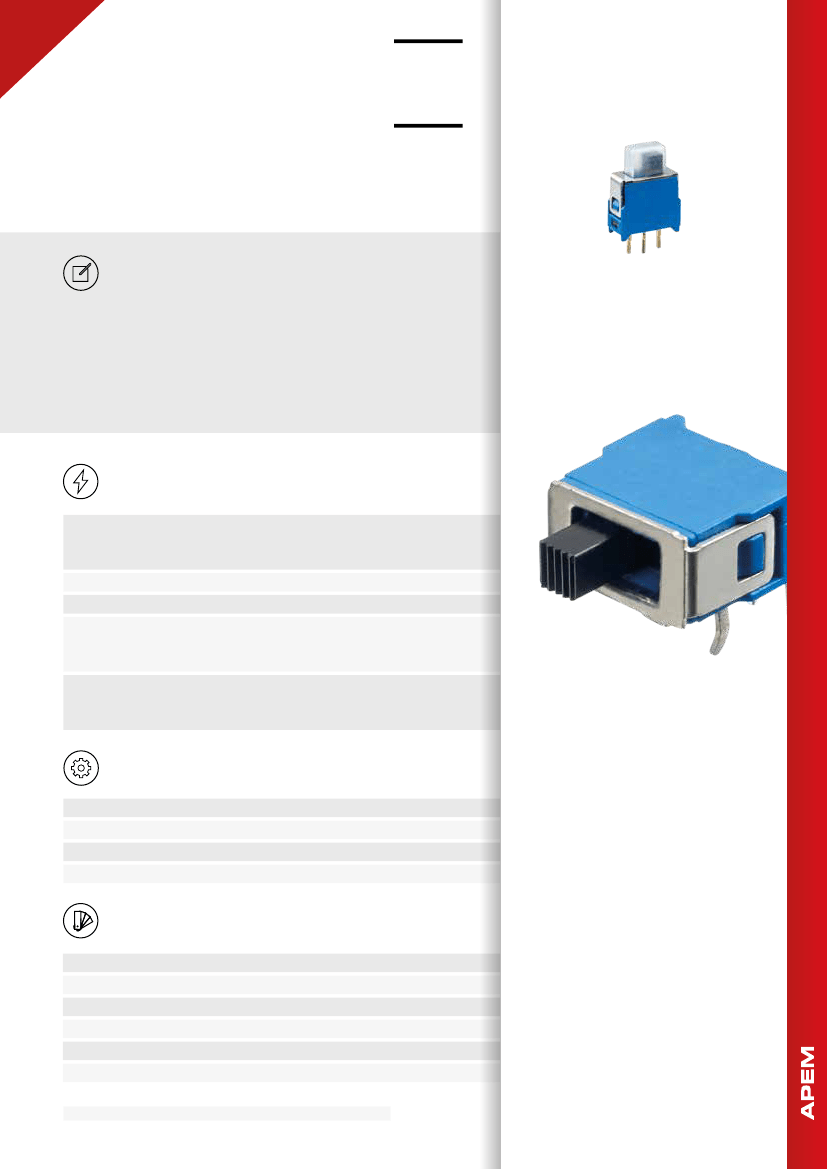

TG series
Subminiature slide switches
DISTINCTIVE FEATURES
Single piece case
Epoxy sealed terminals
Washable version available
Wide variety of contact materials
Same PCB layout as TL, TP and TR subminiature series
ELECTRICAL SPECIFICATIONS
• Current/voltage rating with resistive load :
- Gold plated contacts : 0.4 VA 20V max. AC or DC
- Silver plated contacts : 0.5 A 48V max. AC or DC
• Contact resistance : 20 mΩ max.
• Insulation resistance : 1,000 MΩ min. at 500 VDC
• Dielectric strength :
1,000 Vrms 50 Hz min. between terminals and frame
500 Vrms 50 Hz min. between terminals
• Electrical life at full load :
2 position switches : 60,000 cycles
3 position switches : 30,000 cycles
GENERAL SPECIFICATIONS
• Travel : 2.60 mm (.102)
• Wave soldering : 260 °C (500 °F) - 5 sec. max.
• Operating temperature : -30 °C to +85 °C (-22 °F to +185 °F)
• Cleaning : solvents or water + detergent
MATERIALS
• Case : flame retardant thermoplastic
• Actuator : thermoplastic
• Ground plate and bracket : brass, tin plated
• Contacts and terminals : see next page
• Rubber seal : silicone, transparent
• Terminal seal : epoxy
APEM products may be recycled at end-of-life for the re-claiming of valuable metal components.
The company reserves the right to change specifications without notice.
1
PANEL SWITCHES
PCB
03
TG series
Subminiature slide switches
BUILD YOUR PART NUMBER
BASIC PART NUMBER
TG
SERIES
NUMBER OF POLES
ELECTRICAL FUNCTIONS
TERMINALS
3
Single pole
6
9
ON
ON
-
OFF
ON
ON
P0
Y0
W0
MW
Straight PC
Straight PC,
bracket mounting
Right angle,
horizontal mounting
Wire-wrap
OPTIONS
CONTACT AND TERMINAL MATERIALS
ACTUATORS
MODEL
0
1
3
8
9
Brass, gold plated (std)
Brass, silver plated
Brass, gold plated
(1.27 µ gold)
Contact brass, gold
plated + tin plated
terminals
Contact brass, gold
plated (1.27 µ gold) + tin
plated term.
00
10
High (standard)
Flush
00
50
Standard
Washable
ABOUT THIS SERIES
On the following pages, you will find successively basic part numbers of switches and options in the same order as in above chart.
Notice :
please note that not all combinations of above numbers are available. Refer to the following pages for further information.
3

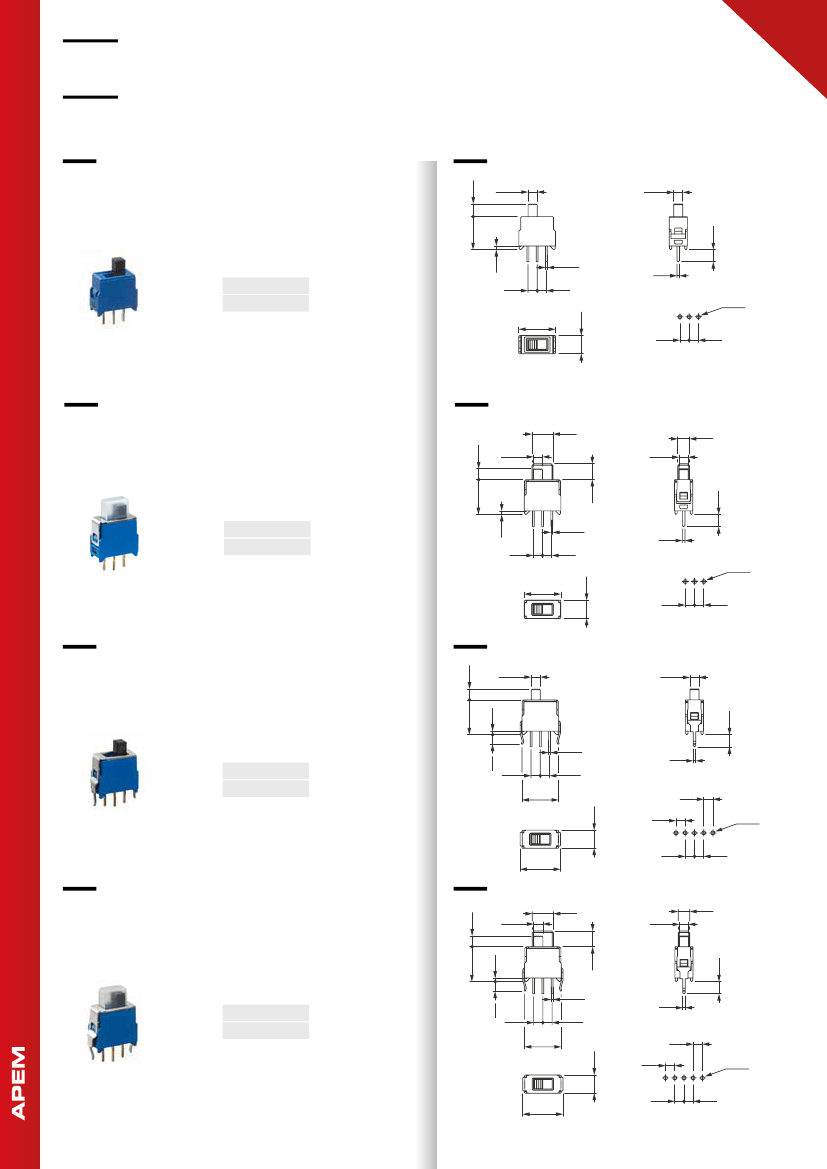

PANEL SWITCHES
PCB
TG series
Subminiature slide switches
Shown with standard actuator

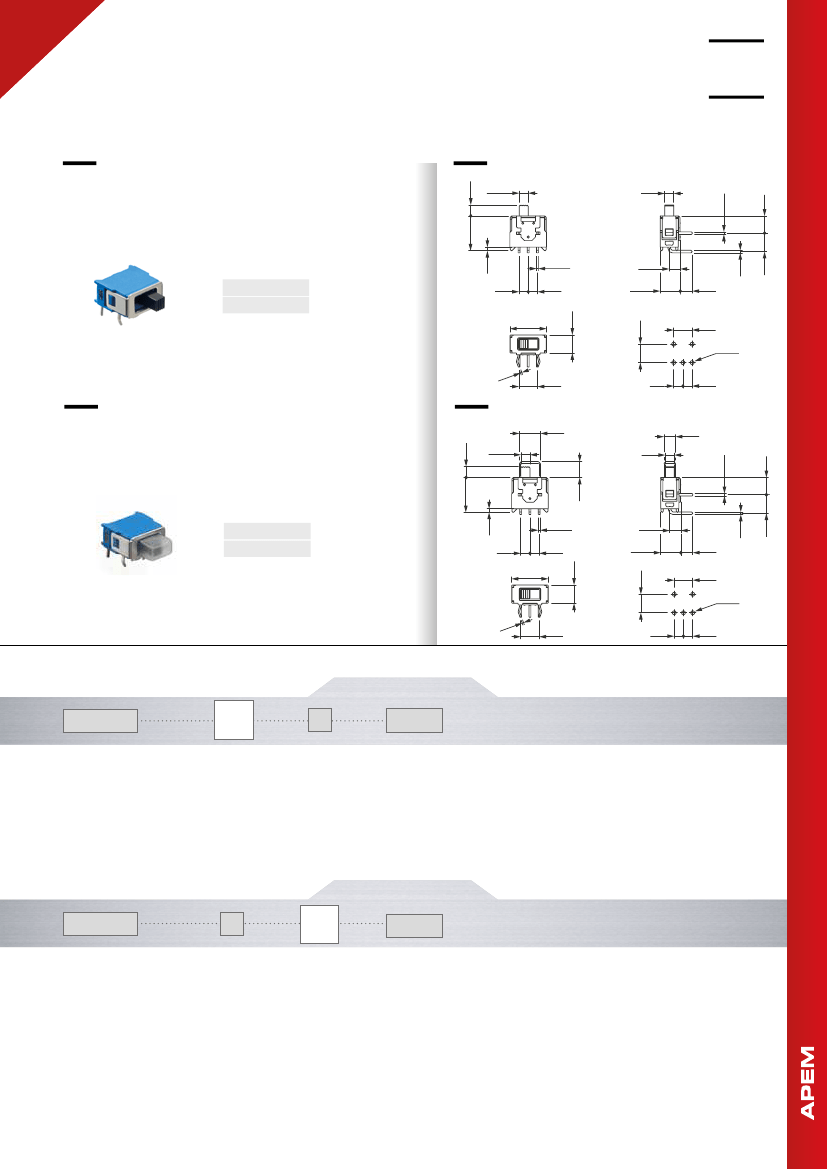

RIGHT ANGLE TERMINALS
HORIZONTAL MOUNTING - STANDARD MODEL
3.00
(.118)
2.50
(.098)
2.50
(.098)
0.70
(.027)
4.75
(.187)
9.60
(.378)
1.00
(.039)
TG36W0••00
TG39W0••00
ON
ON
-
OFF
ON
ON
2.54
(.100)
2.54
(.100)
5.55
(.218)
3.30
(.129)
5.00
(.196)
5.08
(.200)
10.10
(.397)
5.08
(.200)
Ø1.10
(.043 DIA)
2.54
(.100)
2.54
(.100)
0.40 )
5
(.01
5.08
(.200)
3.00
(.118)
9.60
(.378)
1.00
(.039)
TG39W0••50
ON
OFF
ON
2.54
(.100)
10.10
(.397)
2.54
(.100)
5.00
(.196)
5.55
(.218)
3.30
(.129)
5.08
(.200)
5.08
(.200)
Ø1.10
(.043 DIA)
2.54
(.100)
2.54
(.100)
0.40 )
5
(.01
5.08
(.200)
CONTACT AND TERMINAL
MATERIALS
BASIC P/N
00 or 50
To order a product, replace first
•
of the part number with one of the following codes.
0
1
3
8
9
Brass, gold plated (standard)
Brass, silver plated
Brass, gold plated (1.27 µ gold)
Contact brass, gold plated + tin plated terminals
Contact brass, gold plated (1.27 µ gold) + tin plated terminals
ACTUATORS
BASIC P/N
00 or 50
To order a product, replace second
•
of the part number with one of the following codes.
00
10
High actuator (standard)
Flush actuator
0.70
(.027)
TG36W0••50
ON
-
ON
5.08
(.200)
0.50
(.019)
4.30
(.169)
3.05
(.120)
0.70
(.027)
4.75
(.187)
RIGHT ANGLE TERMINALS
HORIZONTAL MOUNTING - WASHABLE MODEL
5.80
(.228)
2.50
(.098)
2.50
(.098)
3.20
(.125)
0.70
(.027)
5.08
(.200)
0.50
(.019)
3.05
(.120)
5
