286XCXC010120VAC: DescriptionON-DELAY RELAY, 3PDT, MOMENTARY, 2337.5mW (COIL), 10A (CONTACT), 28VDC (CONTACT), 1-10s, SOCKET MOUNT; CategoryMechanical and electronic products relay; File Size91KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric Compare View All

286XCXC010120VAC Overview

ON-DELAY RELAY, 3PDT, MOMENTARY, 2337.5mW (COIL), 10A (CONTACT), 28VDC (CONTACT), 1-10s, SOCKET MOUNT

286XCXC010120VAC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	RELAY FUNCTION SPDT AND DPDT ALSO AVAILABLE, COIL OPERATE VOLTAGE(AC): 102 V, QUICK CONNECT TERMINALS ALSO AVAILABLE
Maximum adjustable time delay	10 s
Minimum adjustable time delay	1 s
body width	35.6 mm
body height	73.4 mm
Body length or diameter	38.4 mm
Coil current (AC) maximum value	0.019 A
Coil power	2337.5 mW
Maximum coil voltage (AC)	120 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	10A@240VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	286
Installation features	SOCKET MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	38.4mm x 35.6mm x 73.4mm
Guideline	UL
Relay action	MOMENTARY
Relay function	3PDT
Relay type	ON-DELAY RELAY
surface mount	NO
Terminal surface	NOT SPECIFIED
Termination type	SNAP-ON
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

Item # 286XCXC-010-120VAC, 286/287 Series - Squre Base Time Delay Relays

The 286 on delay and 287 off delay are square base, bladed versions of time delay relays. Both AC and DC versions are available. On delays can have up to three

poles. The timing circuit is a fully encapsulated precision RC (resistor – capacitor) network typically used in applications where oscillators are not desired. Fixed time

and externally adjustable versions are available. The package on this series is typically socket mounted. It can also be panel mounted allowing direct connections to

terminals with quick-connects or soldering.

For Additional Configuration please contact the manufacturer.

·

SPECIFICATIONS

·

TIMING

·

CONTACTS

·

COIL

·

DIELECTRIC STRENGTH

·

TEMPERATURE

·

LIFE

EXPECTANCY

·

MISCELLANEOUS

SPECIFICATIONS

Series

286

Contact Arrangement

XCX (3PDT) - (3 form C)

Mounting Options

Plug-in

Timing Range

1.0 - 10 s

Adjustment Options

Adjustment knob

Operating Voltage

120 VAC

TIMING

Functions Available

On-delay

Time Range

Up to 300 seconds

Timing Adjustment

Knob

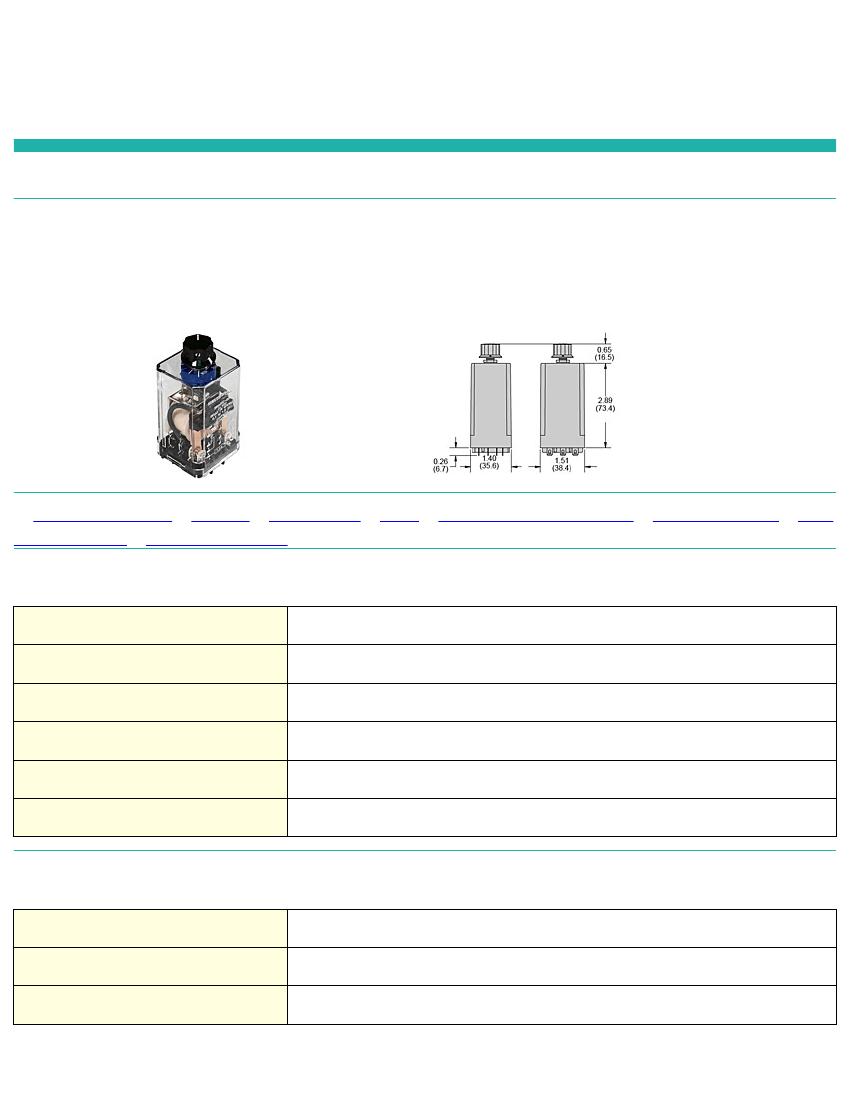

7/31/2013 | Page 1 of 3

286XCXC010120VAC Related Products

	286XCXC010120VAC	286XCXC-010-120VAC
Description	ON-DELAY RELAY, 3PDT, MOMENTARY, 2337.5mW (COIL), 10A (CONTACT), 28VDC (CONTACT), 1-10s, SOCKET MOUNT	On-Delay Relay, 3PDT, Momentary, 2337.5mW (Coil), 10A (Contact), 28VDC (Contact), 1s Adj Min, 10s Adj Max, AC Input, AC/DC Output, Socket Mount
Reach Compliance Code	unknow	unknow
Other features	RELAY FUNCTION SPDT AND DPDT ALSO AVAILABLE, COIL OPERATE VOLTAGE(AC): 102 V, QUICK CONNECT TERMINALS ALSO AVAILABLE	RELAY FUNCTION SPDT AND DPDT ALSO AVAILABLE, COIL OPERATE VOLTAGE(AC): 102 V, QUICK CONNECT TERMINALS ALSO AVAILABLE
Maximum adjustable time delay	10 s	10 s
Minimum adjustable time delay	1 s	1 s
body width	35.6 mm	35.6 mm
body height	73.4 mm	73.4 mm
Body length or diameter	38.4 mm	38.4 mm
Coil current (AC) maximum value	0.019 A	0.019 A
Coil power	2337.5 mW	2337.5 mW
Maximum coil voltage (AC)	120 V	120 V
Coil/Input Power Type	AC	AC
Contact (AC) maximum rated R load	10A@240VAC	10A@240VAC
Maximum contact current (AC)	10 A	10 A
Maximum contact current (DC)	10 A	10 A
Contact (DC) maximum rated R load	10A@28VDC	10A@28VDC
Maximum contact voltage (AC)	240 V	240 V
Maximum contact voltage (DC)	28 V	28 V
Contact/Output Power Type	AC/DC	AC/DC
Electrical life	100000 Cycle(s)	100000 Cycle(s)
Manufacturer's serial number	286	286
Installation features	SOCKET MOUNT	SOCKET MOUNT
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
physical size	38.4mm x 35.6mm x 73.4mm	38.4mm x 35.6mm x 73.4mm
Relay action	MOMENTARY	MOMENTARY
Relay function	3PDT	3PDT
Relay type	ON-DELAY RELAY	ON-DELAY RELAY
surface mount	NO	NO
Termination type	SNAP-ON	SNAP-ON
Base Number Matches	1	1
