PS Series 850 nm and 1300 nm Surface Emitting LEDs

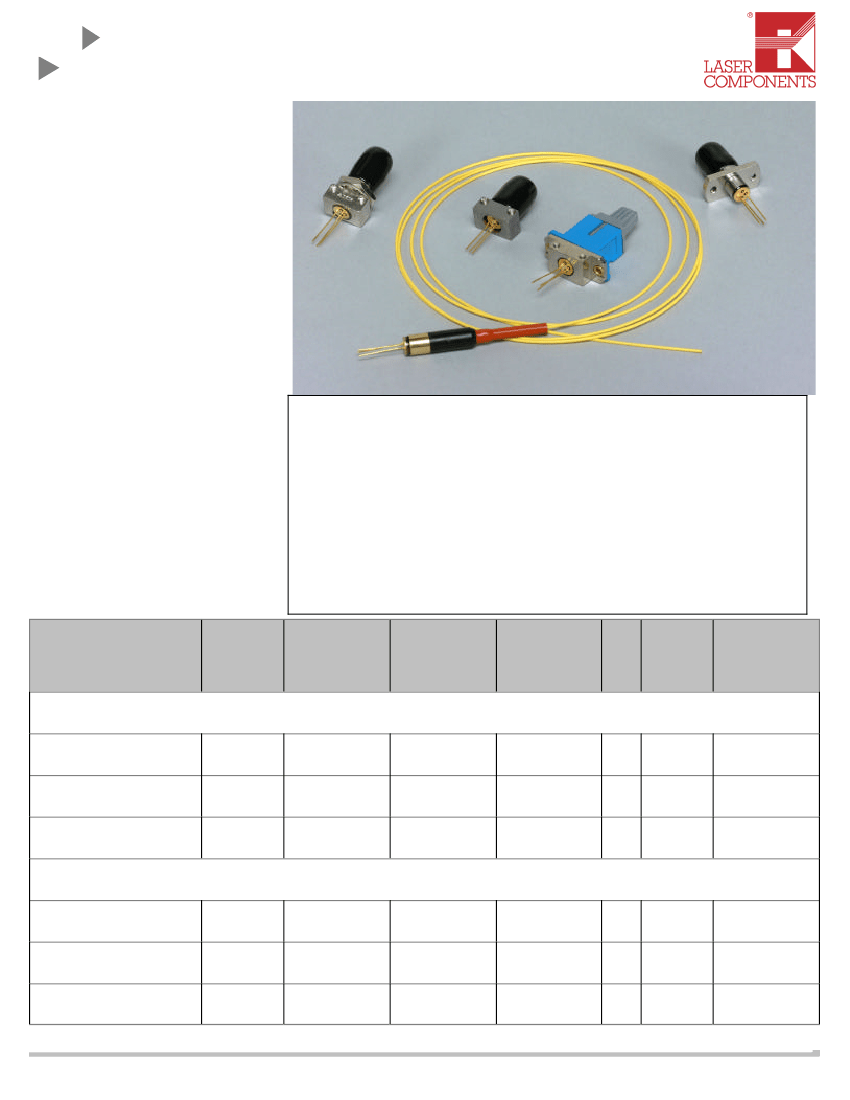

PD-LD Inc. offers a variety of
standard Surface Emitting LED’s
(SLEDs) in ready to use fiber coupled
packages. Packaging options include
Receptacle style housings such as ST,
FC and SC as well as fiber pigtailed co-
axial assemblies. SLEDs are typically
used with multi-mode optical fiber and
may be specified for coupling to 50um ,
62.5um or 100um core optical fibers.
Units built with fiber
pigtails are
available terminated with optical
connectors. Specialty fiber sizes may
be available upon request.
Th e SLED product offering
includes both 850nm and 1310nm
devices. These units produce broad
spectrum, incoherent light and have
wide spectral widths. Such SLED’s may
be modulated from DC to 150 MHz or
operated in continuous wave mode.
These devices may be operated in
both analog or digital applications. It is
typical to drive the SLED’s with up to
100mA forward current. Such devices
do not require internal monitor
photodiodes which simplifies drive
circuit designs. The robust nature of
these units allow for operation
Features 850nm SLEDs
•
High reliability GaAlAs Diode
•
Compact, robust receptacle & coax
•
5 to 30 uW into MMF
Features 1310nm SLEDs
•
InGaAs Diodes systems
•
Wide Spectral Width, 160nm
•
Ideal for Networking Applications
•
DC to 200MHz o
peration
Operating Cur-
rent (mA)
Typ.
Max
Fiber Type
Core/Cladding
(um)
Fiber Coupled
Power (uW)
Min
Typ
fiber-coupled package
PD-LD Part Number
Wavelength
Typ.
(nm)
Pin-
Out
Spectral
Width
FWHM
(nm)
Rise/
Fall Time
Max.
(nsec)
850nm GaAlAs SLED (Iop=100mA @ 25C, 1.8V)
PS85K015SC22-Q-0
PS85K035300A-0-0-01
PS86M025FC12-Z-0
850
850
860
100
100
60
110
110
80
50/125
62.5/125
50/125
15
35
25
20
40
45
D
D
A
35
35
50
6.0
6.0
7.0
1310nm InGaAs SLED (Iop=100mA @25 C, 1.8V)
PS13L030300A-0-0-01
PS13L015SC22-Q-0
PS13T030FC12-Q-0
1
Examples
1310
1310
1310
100
100
100
110
110
110
62.5/125
50/125
50/125
30
15
30
35
20
35
D
D
D
160
160
160
3.0
3.0
3.0
only; most device/packaging combinations available.
Changes to specifications may be made without notice.
07-05 PS Series.Rev A
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
PD
Inc
LD
SLED PIN-OUT
PS Series 850 nm and 1300 nm Surface Emitting LEDs
SLED
Pin-Out
“85K”,
“13L” , “13T”
SLED Anode
SLED Cath-
ode
Case Ground
“85M”
SLED Cath-
ode
Case Ground
SLED Anode
3
1
Pin #1
Pin #2
Pin #3
2
Ordering Information
Pigtailed Devices
Receptacle Devices
PXWWWPPPFCCB-0-V-LL
X = S for SLED
WWW=Wavelength and Pin-out
S85K, S85M= 850nm SLED
S13L, S13T= 1300nm SLED
PXWWWPPPRRRF-O-V
PPP = Fiber-Coupled Power
005
= 5uW
015
= 15uW
008
= 8uW
020
= 20uW
010
= 10uW
030
= 30uW
0.1=
0.1mW
0.5=
0.5mW
RRR=Receptacle Type
O=Orientation
FC1=FC Panel mount
0=N/A
FC2=FC Board mount
A=Bracket Shipped Loose (pigtailed unit
SC1=SC Panel mount only Specify orientation as required
SC2=SCPanel/board mount
ST7=ST low profile(7.9mm)
V=Version
ST8=ST high profile(10.4mm) 0=Standard
Unique Codes for specific requirements
LL = Length in meters
(01,02,0.5 ect.) (pigtailed devices only)
CC = Connector Type
(pigtailed devices only)
ST
= ST/PC
SC
= SCPC
SA=SC/APC
FC
= FC/PC
FA
= FC/APC
FU
= FC/UPC
OO
= No Connector
F=
1=
2=
3=
4=
9=
Fiber Type
9/125 SMF
50/125 MMF
62.5/125 MMF
100/140 MMF
Customer Supplied
B=
A
=
B
=
C
=
Bracket Type
None
Panel Mount
Board Mount
1
Examples
only; most device/packaging combinations available.
Changes to specifications may be made without notice.
07-05 PS Series.Rev A
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
PD
Inc
LD
PS Series 850 nm and 1300 nm Surface Emitting LEDs

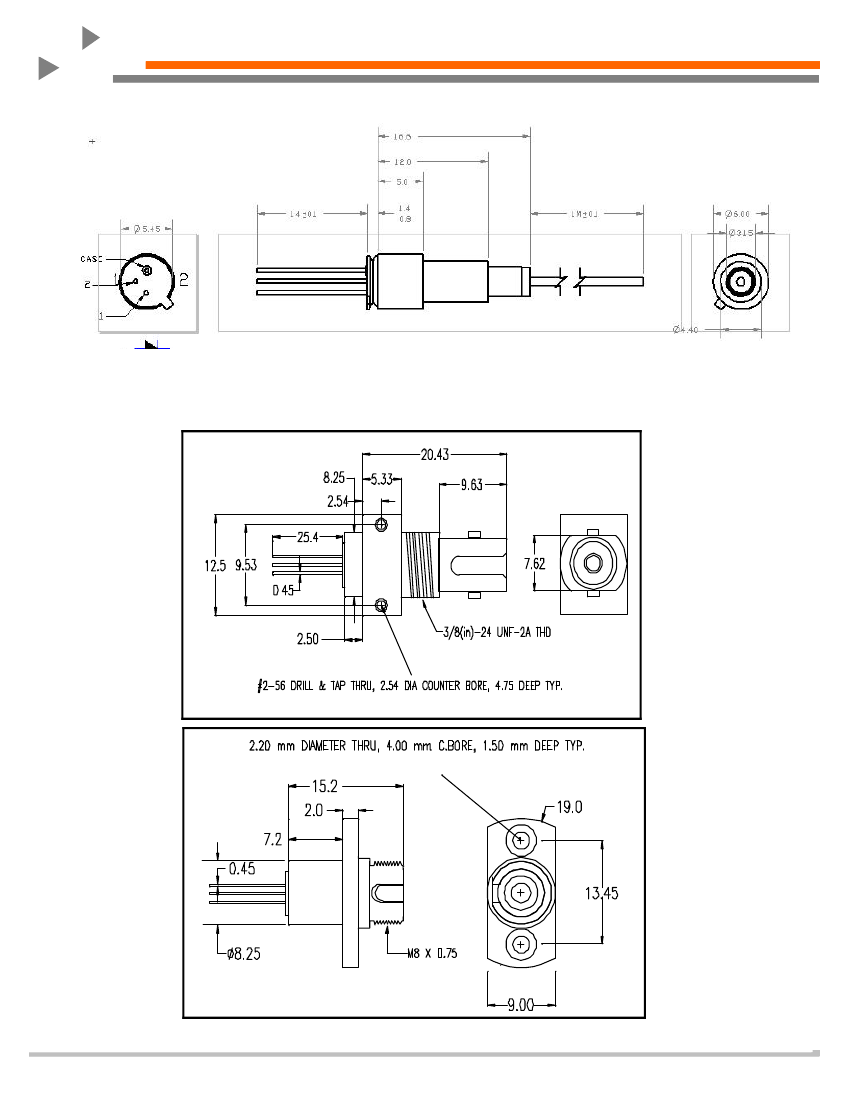

Mechanical Dimensions for Receptacle Packages
ST Receptacle Height
Low Profile 7.9mm
High Profile 10.4mm
1
Examples
only; most device/packaging combinations available.
Changes to specifications may be made without notice.
07-05 PS Series.Rev A
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
PD
Inc
LD
PS Series 850 nm and 1300 nm Surface Emitting LEDs

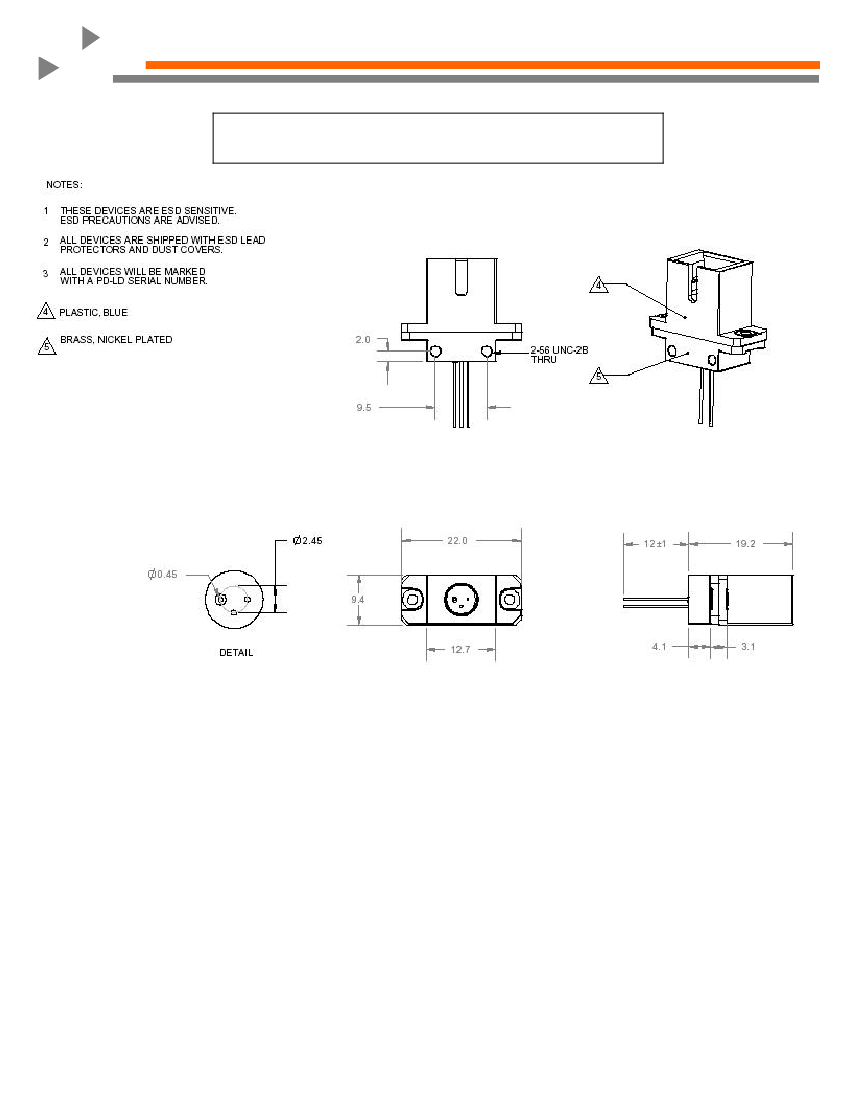

SC Receptacle Mounted 3 lead SLED
1
Examples
only; most device/packaging combinations available.
Changes to specifications may be made without notice.
07-05 PS Series.Rev A
www.lasercomponents.com
Issue:
05/06
/ V1 / HW /
pd_ld/ ps-series.pdf
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
