G series
Slide switches • telecom grade

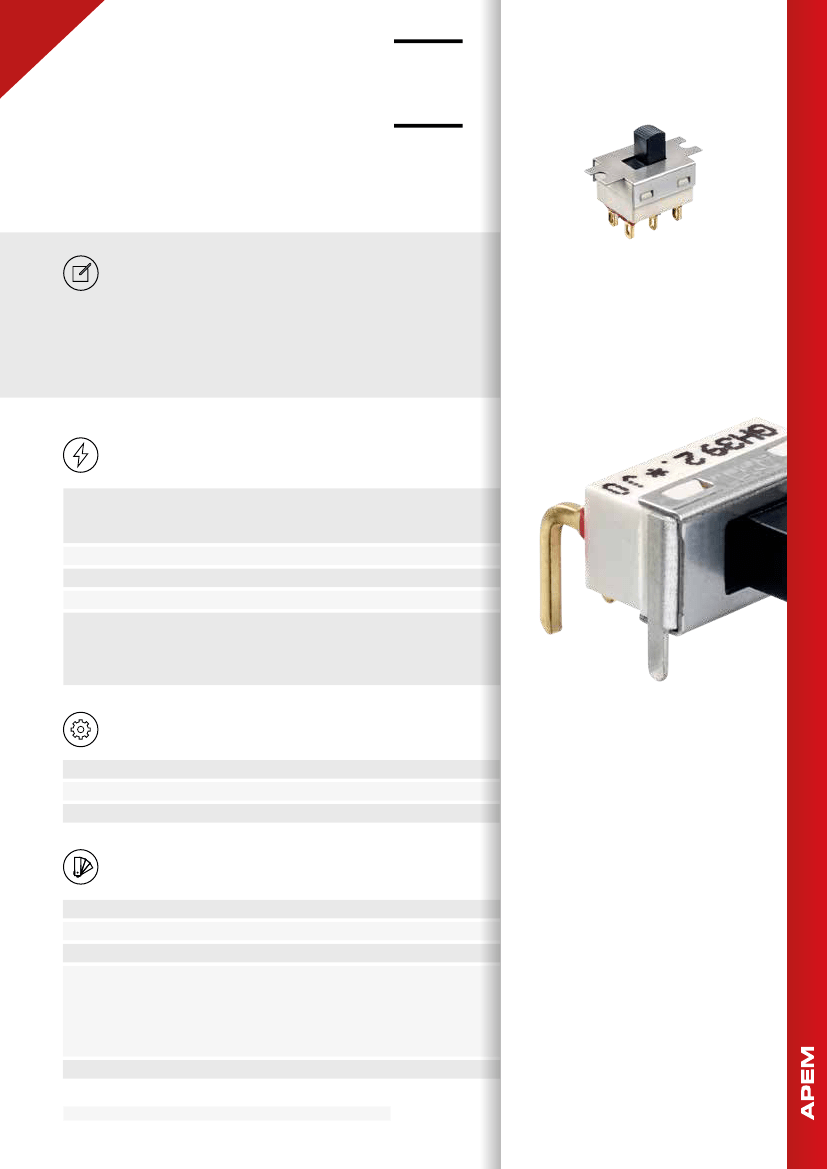

DISTINCTIVE FEATURES
Panel and PC mount models
6 actuator lengths
Wide variety of contact materials
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
- silver contacts (codes 1 or 2) : 3 A 30 VDC
- gold plated brass contacts (code 0) : 0.4 VA 20 VAC or DC max.
• Initial contact resistance : 10 mΩ
• Insulation resistance : 1,000 MΩ min.
• Dielectric strength : 1,000 Vrms 50 Hz min.
• Electrical life with resistive load :
- silver contacts (codes 1 or 2) : 2 positions : 40,000 cycles;
3 positions : 20,000 cycles
- gold plated brass contacts (code 0) : 60,000 cycles (0,4VA max.)
GENERAL SPECIFICATIONS
• Travel : 2.20 mm (.086), except on model
GN3...
: 2.60 mm (.102)
• Operating temperature : -30 °C to +85 °C (-22 °F to +185 °F)
• Recommended soldering : 300 °C (572 °F) 5 sec. max.
MATERIALS
• Case : PES
• Actuator : polyamide, glass filled
• Cover : stainless steel
• Contacts
0
: brass, gold plated
1
: silver
2
: silver, gold plated
5
: special contact, lower rating, minimum quantity : consult factory
• Terminal seal : epoxy
APEM products may be recycled at end-of-life for the re-claiming of valuable metal components.
The company reserves the right to change specifications without notice.
1
PANEL SWITCHES
PCB
3
G series
Slide switches • telecom grade
BUILD YOUR PART NUMBER
BASIC PART NUMBER
G
SERIES
ACTUATORS
NUMBER OF POLES
ELECTRICAL FUNCTIONS
TERMINALS
C
H
L
B
E
N
3.50 mm (.137)
5.10 mm (.200)
Standard
6.40 mm (.251)
7.65 mm (.301)
9.10 mm (.358)
9.50 mm (.374)
3
4
Single pole
Double pole
6
9
ON
ON
-
OFF
ON
ON
S0
P0
W0
WW
Y0
Y4
Solder lugs
Straight PC
Right angle,
horizontal
Right angle,
vertical
Straight PC with
short bracket
Straight PC with
tall bracket
Types L, B and E for
single pole models only.
OPTIONS
CONTACT AND TERMINAL MATERIALS
SPECIAL OPTIONS 1
SPECIAL OPTIONS 2
0
1
2
5
Brass, gold plated
Silver
Silver, gold plated
Special contact,
lower rating
00
10
11
12
Standard model
Switch without
ground plate
10.35 mm (.407)
PC terminals
Same as 11, without
ground plate
00
01
10
11
No epoxy seal
Epoxy sealed
terminals
Extended terminals
Same as 10, with
epoxy seal
ABOUT THIS SERIES
On the following pages, you will find successively basic part numbers of switches and options in the same order as in above chart.
Notice :
please note that not all combinations of above numbers are available. Refer to the following pages for further information.
3
PANEL SWITCHES
PCB
PCB SWITCHES
G series
Slide switches • telecom grade
Shown with standard actuator (type H)

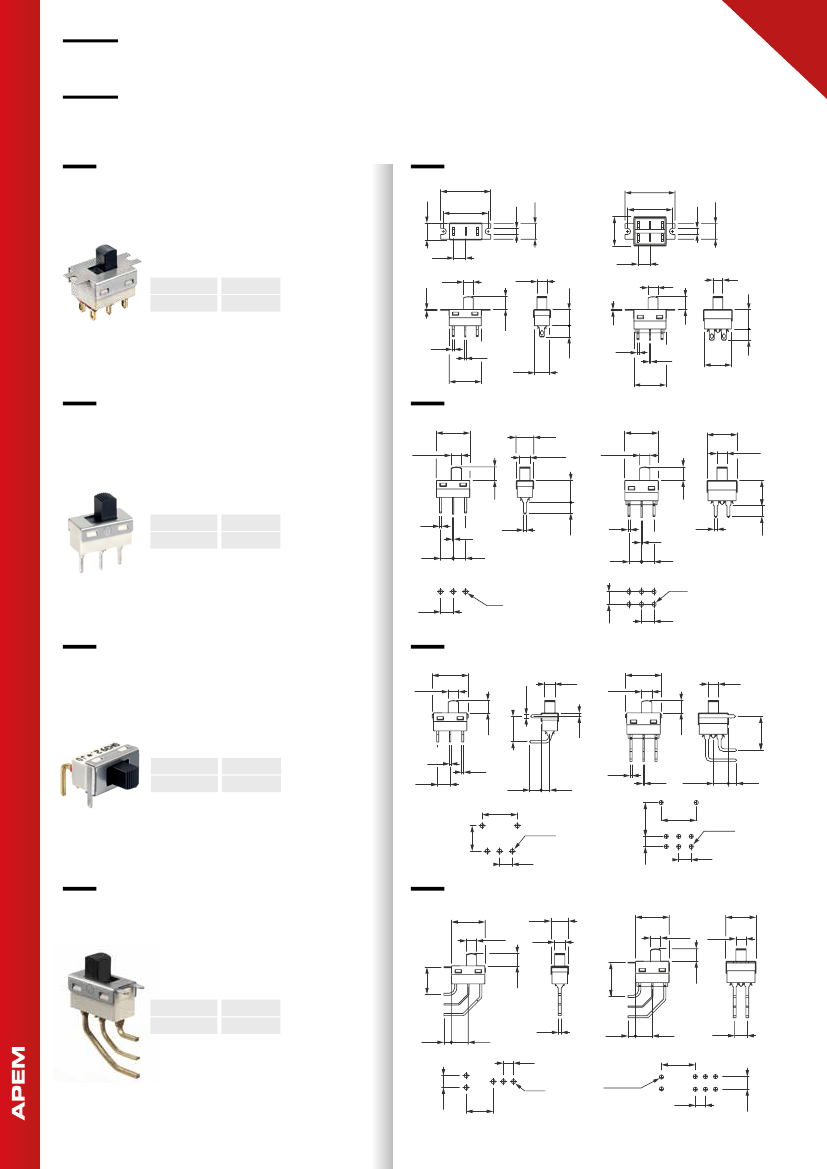

SOLDER LUG TERMINALS
6.65
(.261)
19.50
(.767)
6.10
(.240)
17.53
(.690)
19.50
(.767)
2.40
(.094)
2.40
(.094)
6.10
(.240)
3.85
(.151)
7.60
(.299)
0.30
(.011)
0.50
(.019)
12.70
(.500)
10.55
(.415)
17.53
(.690)
4.70
(.185)
11.40
(.448)
Single pole
Double pole
4.70
(.185)
3.85
(.151)
6.35
(.250)
3.85
(.151)
GH39S0
GH49S0
ON
OFF
ON
0.30
(.011)
GH36S0
GH46S0
ON
-
ON
3.85
(.151)
4.20
(.165)
12.70
(.500)
5.80
(.228)
STRAIGHT PC TERMINALS
3.85
(.151)
12.70
(.500)
6.65
(.261)
3.85
(.151)
3.85
(.151)
12.70
(.500)
11.40
(.448)
3.85
(.151)
8.25
(.324)
Single pole
Double pole
4.00
(.157)
GH39P0
GH49P0
ON
OFF
ON
0.50
(.019)
4.70
(.185)
0.50
(.019)
4.70
(.185)
4.70
(.185)
4.70
(.185)
4.70
(.185)
Ø1.60
(.062 DIA)
4.75
(.187)
Ø1.60
(.062 DIA)
4.70
(.185)
RIGHT ANGLE TERMINALS - HORIZONTAL
13.60
(.535)
1.17
(.046)
3.85
(.151)
3.85
(.151)
13.60
(.535)
3.85
(.151)
3.85
(.151)
4.70
(.185)
9.53
(.375)
1.30
(.051)
4.70
(.185)
Single pole
Double pole
GH36W0
GH39W0
GH46W0
GH49W0
ON
ON
-
OFF
ON
ON
0.50
(.019)
4.70
(.185)
0.80
(.031)
4.30
(.169)
13.20
(.519)
Ø1.60
(.062 DIA)
4.70
(.185)
3.30
(.129)
0.80
(.031)
0.50
(.019)
5.70
(.224)
12.70
(.500)
13.20
(.519)
Ø1.60
(.062 DIA)
4.70
(.185)
9.53
(.375)
RIGHT ANGLE TERMINALS - VERTICAL
3.81
(.150)
12.70
(.500)
3.85
(.151)
6.65
(.261)
3.85
(.151)
12.70
(.500)
3.85
(.151)
3.85
(.151)
11.40
(.448)
10.16
(.400)
4.70
(.185)
Single pole
Double pole
GH36WW
GH39WW
GH46WW
GH49WW
ON
ON
-
OFF
ON
ON
2.80
(.110)
6.35
(.250)
1.10
(.043)
12.70
(.500)
2.80
(.110)
6.35
(.250)
12.70
(.500)
4.70
(.185)
4.75
(.187)
3.81
(.150)
Ø1.60
(.062 DIA)
4.45
(.175)
10.16
(.400)
Ø1.60
(.062 DIA)
4
4.75
(.187)
3.81
(.150)
12.70
(.500)
3.10
(.122)
4.00
(.157)
GH36P0
GH46P0
ON
-
ON
0.80
(.031)
5.10
(.200)
1.10
(.043)
5.10
(.200)
0.80
(.031)
1.10
(.043)
9.50
(.374)
4.40
(.173)
0.80
(.031)
5.10
(.200)
0.50
(.019)
0.80
(.031)
5.10
(.200)
G series
Slide switches • telecom grade

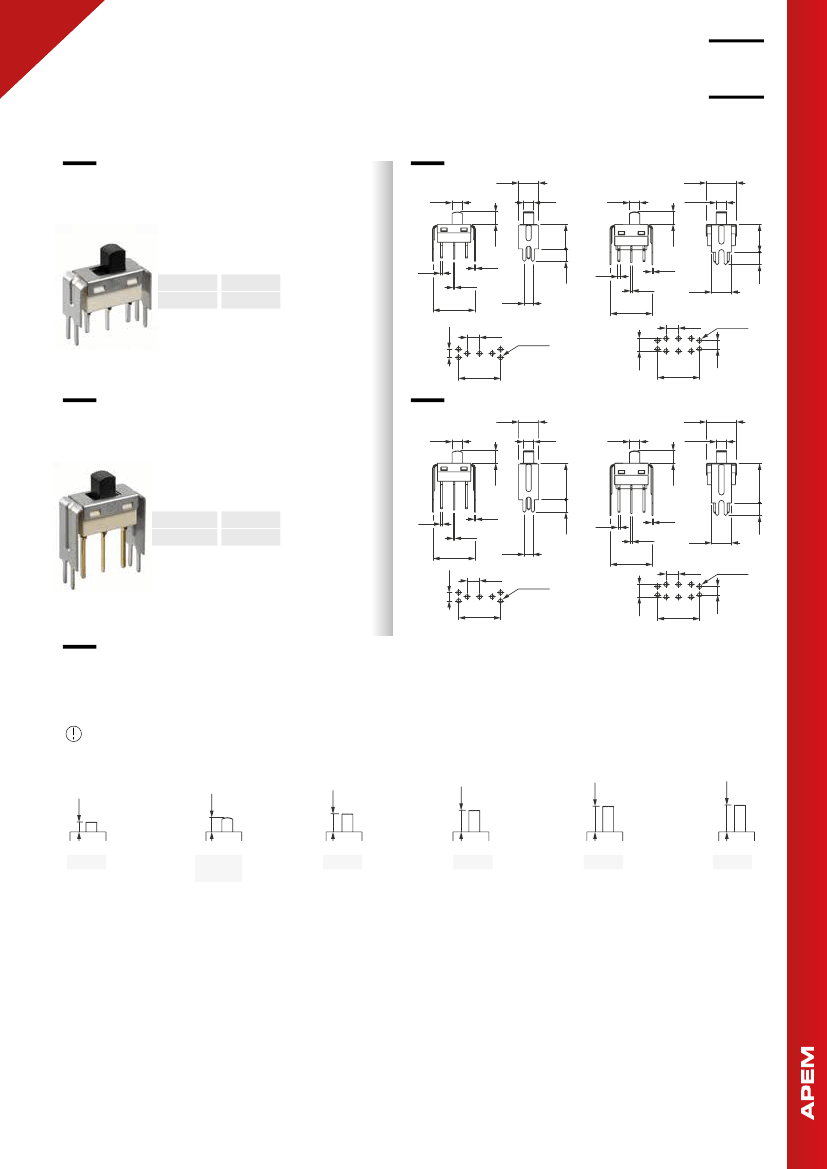

STRAIGHT PC TERMINALS
SHORT BRACKET : Y0
7.50
(.295)
3.85
(.151)
Shown with standard actuator (type H)
11.40
(.448)
3.85
(.151)
3.85
(.151)
3.85
(.151)
9.20
(.362)
4.70
(.185)
4.70
(.185)
GH36Y0
GH39Y0
GH46Y0
GH49Y0
ON
ON
-
OFF
ON
ON
15.75
(.620)
3.18
(.125)
0.50
(.019)
15.75
(.620)
7.50
(.295)
3.18
(.125)
4.70
(.185)
4.70
(.185)
Ø1.60
(.062 DIA)
4.75
(.187)
3.18
(.125)
Ø1.60
(.062 DIA)
15.75
(.620)
15.75
(.620)
STRAIGHT PC TERMINALS
TALL BRACKET : Y4
7.50
(.295)
3.85
(.151)
3.85
(.151)
3.85
(.151)
11.40
(.448)
3.85
(.151)
4.70
(.185)
13.65
(.537)
4.70
(.185)
Single pole
Double pole
GH39Y4
GH49Y4
ON
OFF
ON
15.75
(.620)
3.18
(.125)
3.18
(.125)
4.70
(.185)
0.50
(.019)
15.75
(.620)
7.50
(.295)
4.70
(.185)
Ø1.60
(.062 DIA)
Ø1.60
(.062 DIA)
15.75
(.620)
3.18
(.125)

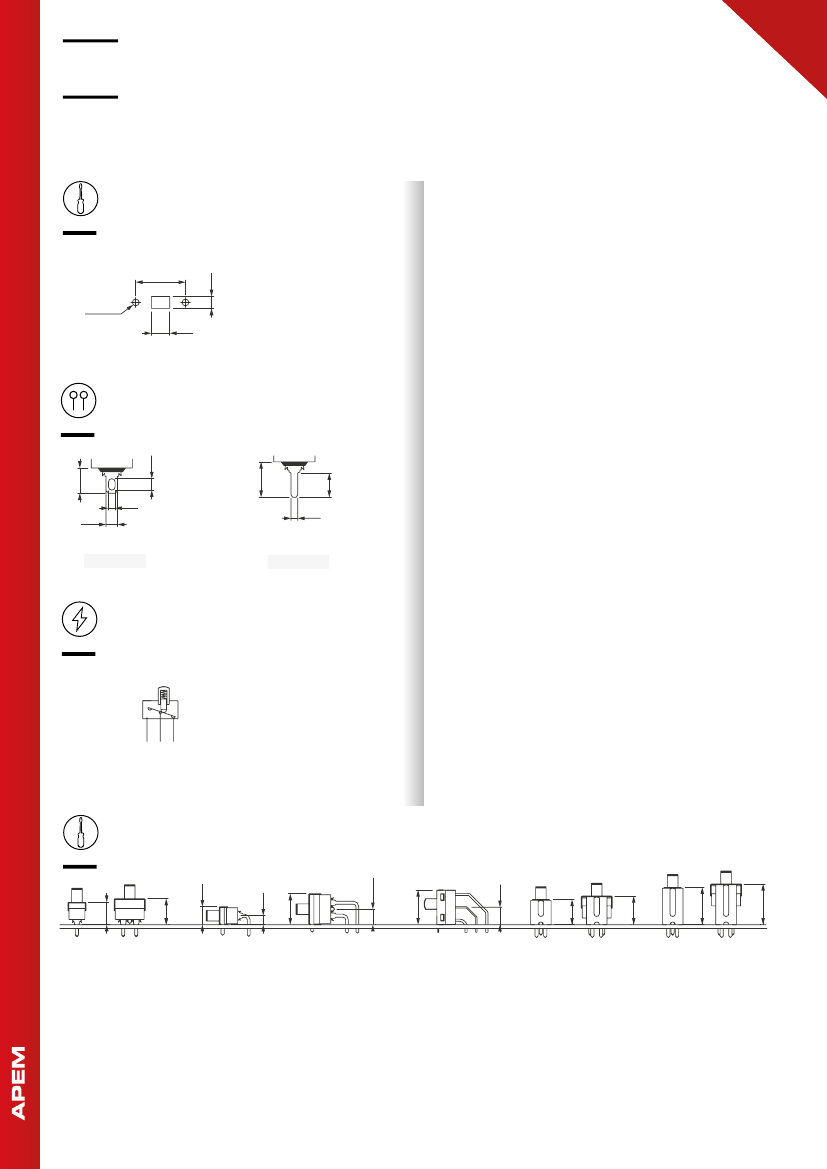

ACTUATORS
For a different actuator, replace second digit (H) of basic part number with one of the following codes.
Dimensions below are for solder lug (S0) and straight terminals (P0) models.
For other models (WO - WW - Y0 - Y4), height is less 0.4 mm (.015).
7.65
(.301)
9.10
(.358)
9.50
(.374)
3.50
(.137)
5.10
(.200)
6.40
(.251)
C
H
Standard
L
*
B
*
E
4.75
(.187)
15.75
(.620)
*
N
*
For single pole only
4.70
(.185)
0.50
(.019)
4.70
(.185)
GH36Y4
GH46Y4
ON
-
ON
0.80
(.031)
0.40
(.015)
0.80
(.031)
0.40
(.015)
14.90
(.586)
4.70
(.185)
0.50
(.019)
4.70
(.185)
Single pole
Double pole
0.80
(.031)
0.40
(.015)
0.80
(.031)
0.40
(.015)
10.46
(.411)
5
PANEL SWITCHES
PCB
