PM13B022

Description
slide switches slide spdt
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size80KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

PM13B022 Online Shopping

Suppliers Part Number Price MOQ In stock
PM13B022 - - View Buy Now

PM13B022 Overview

slide switches slide spdt

PM13B022 Parametric

Parameter NameAttribute value
ManufactureApem
Product CategorySlide Switches
RoHSYes
Contact FormDPDT
Switch FunctiON - ON
Contact Current Rating3 A at 250 V
Voltage Rating AC250 V
Termination StyleSolder Terminal
ActuExtended, T
Mounting StylePanel
Contact PlatingSilve
Contact MaterialPhosphor Bronze
Mounting AngleVertical
Operating Temperature Range- 20 C to + 60 C
Factory Pack Quantity25
Travel4.9 mm
TypeSlide Switch
PM Series
Standard Size Slide Switches
SPECIFICATIONS
Contact rating:
6 Amps at 125 VAC, 3 Amps at 250 VAC
Initial contact resistance:
30 milliohms max.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
FEATURES
Wash-through open frame construction.
UL & CSA recognized.
Threaded mounting holes standard - M3X0.5.
Panel mounting.
Insulation resistance:
100 megohms min. at 500 VDC
Dielectric strength:
1000 VAC for 1 minute (min.)
Electrical life:
10,000 cycles min.
Operating temperature range:
-20°C to +60°C
Actuation force:
500g ± 200g
Solder heat resistance:
260°C max. for 3 seconds
Solvent washing permissible
MATERIALS
Contacts:
Silver plated phosphor bronze
Terminals:
Tin plated brass
Base:
Phenolic laminated sheet
Actuator:
Nylon, type 6/6
Frame:
Zinc plated steel

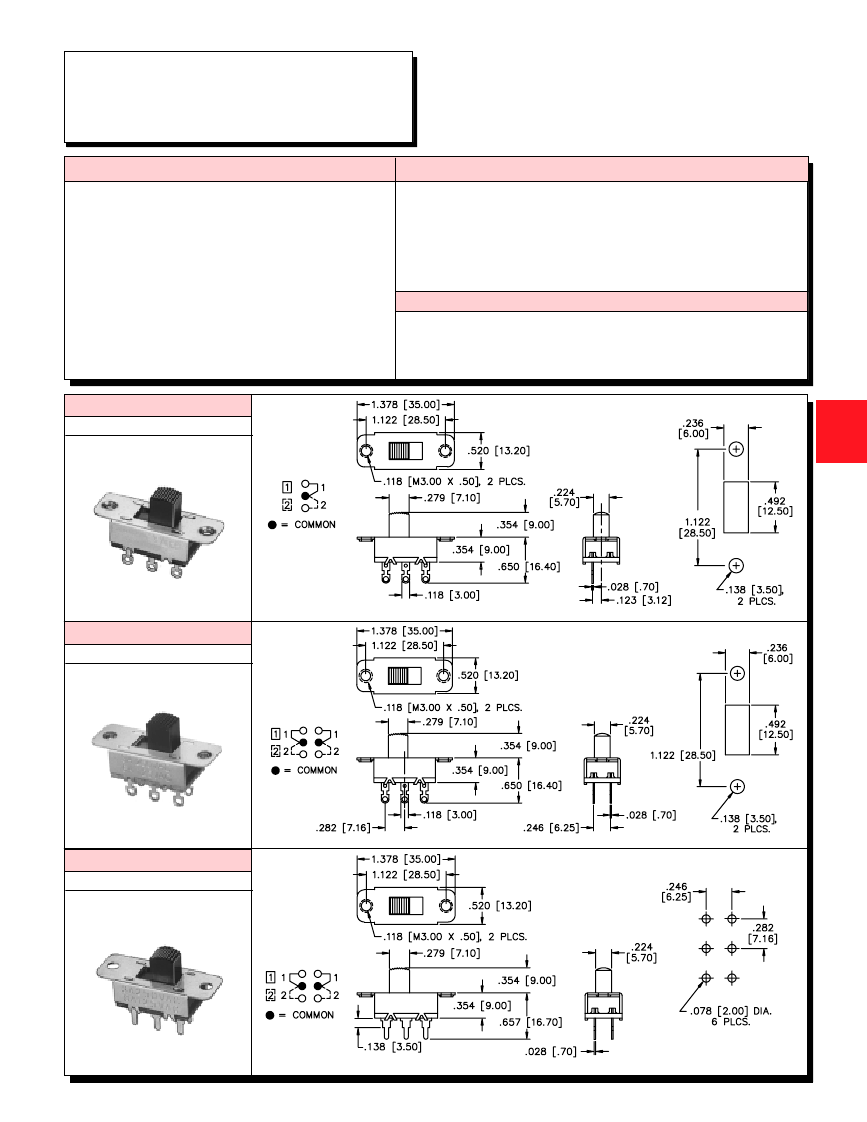

MODEL NO.
PM13B012
1P2T
.193 (4.90) TRAVEL/THROW
O
SCHEMATIC
MODEL NO.
PM13B022
MECHANICAL OUTLINE
.193 (4.90) TRAVEL/THROW
PANEL CUTOUT
2P2T
SCHEMATIC
MODEL NO.
PM13B022P
MECHANICAL OUTLINE
.193 (4.90) TRAVEL/THROW
P. C. BOARD LAYOUT
2P2T
SCHEMATIC
MECHANICAL OUTLINE
PANEL CUTOUT
O47
APEM
, PO BOX 8288, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com
