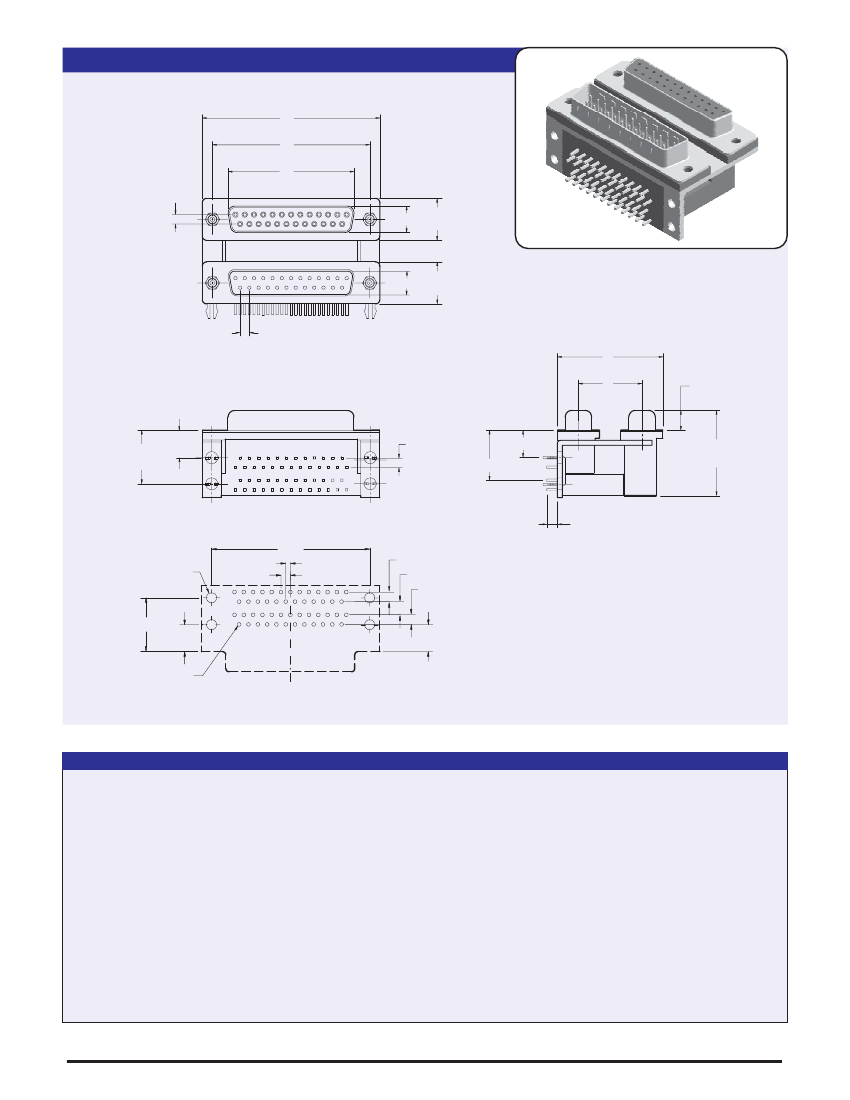

D Subminiature Connector, 15 Contact(s), Female and Female, Solder Terminal, Receptacle-receptacle
| Parameter Name | Attribute value |
| Objectid | 1921563913 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | OTHER STACKING CONNECTOR: 15 CONTACTS, 2/A SHELL SIZE |
| Board mount options | BOARD LOCK |
| body width | 1.244 inch |
| subject depth | 0.77 inch |
| body length | 1.543 inch |
| Body/casing type | RECEPTACLE-PLUG |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact point gender | FEMALE AND FEMALE |
| contact mode | STAGGERED |
| Contact resistance | 20 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 2100VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | WHITE |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER |
| MIL compliance | NO |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | M2.6 |
| Installation option 2 | THREADED HOLE |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD AND PANEL |
| Number of connectors | TWO |
| PCB row number | 2+2 |
| Number of rows loaded | 2+2 |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.84/3.92 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 3 A |
| Guideline | CUL; UL |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 2/A |
| Terminal length | 0.126 inch |
| Terminal pitch | 2.77 mm |
| Termination type | SOLDER |
| Total number of contacts | 30 |
| UL Flammability Code | 94V-0 |
