2412-014-099-220 datasheet, PDF

2412-014-099-220: DescriptionCard Edge Connector, 14 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech; CategoryThe connector The connector; File Size1MB，9 Pages; ManufacturerCorex Intervest Inc

Download Datasheet Parametric View All

2412-014-099-220 Overview

Card Edge Connector, 14 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech

Parameter Name	Attribute value
Objectid	1166244385
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PKG REEL & TOP CONTACT
Board mount options	SOLDER HOLDING POSTS
body width	0.079 inch
subject depth	0.161 inch
body length	0.784 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	200VAC V
maximum insertion force	ZIF N
insulator material	GLASS FILLED NYLON
Plug contact pitch	0.039 inch
Installation option 1	LOCKING MECH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
Evacuation force-minimum value	ZIF N

Index

2400

2403

2412

2415

2418

2421

2424

2427

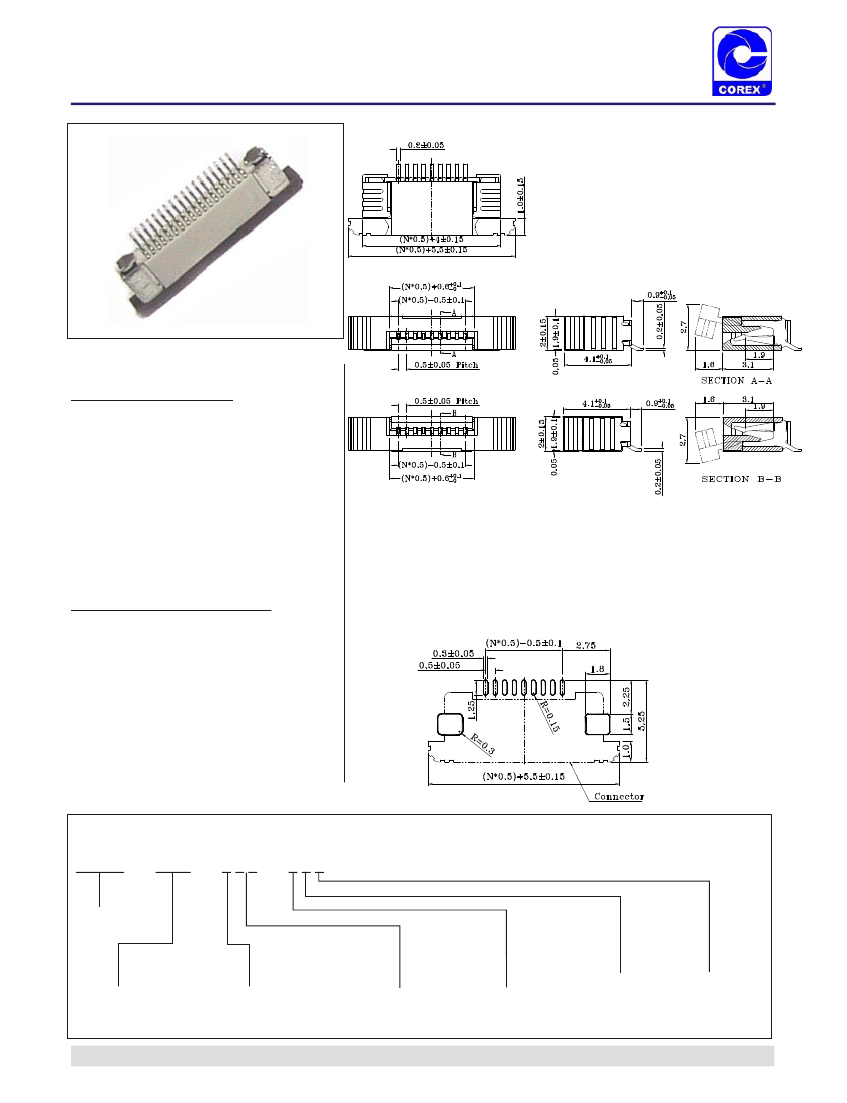

ZIF FPC connector, 0.5mm pitch, SMT, horizontal

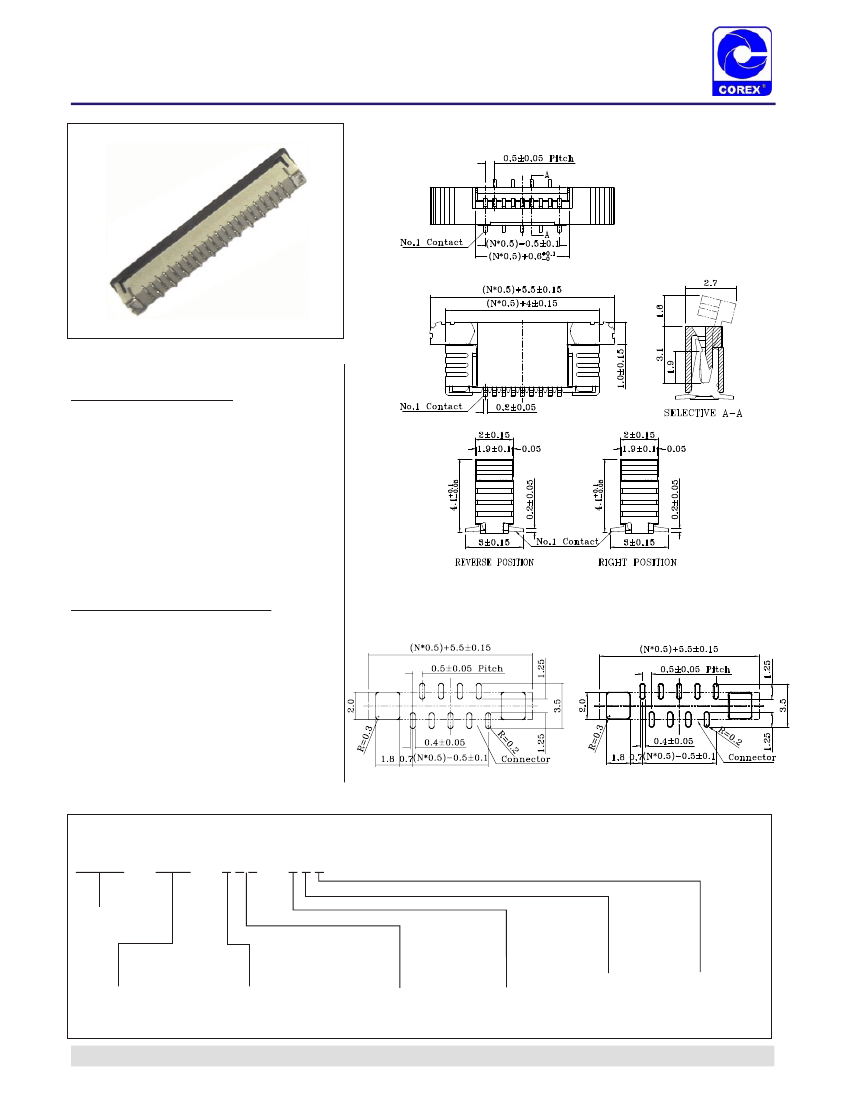

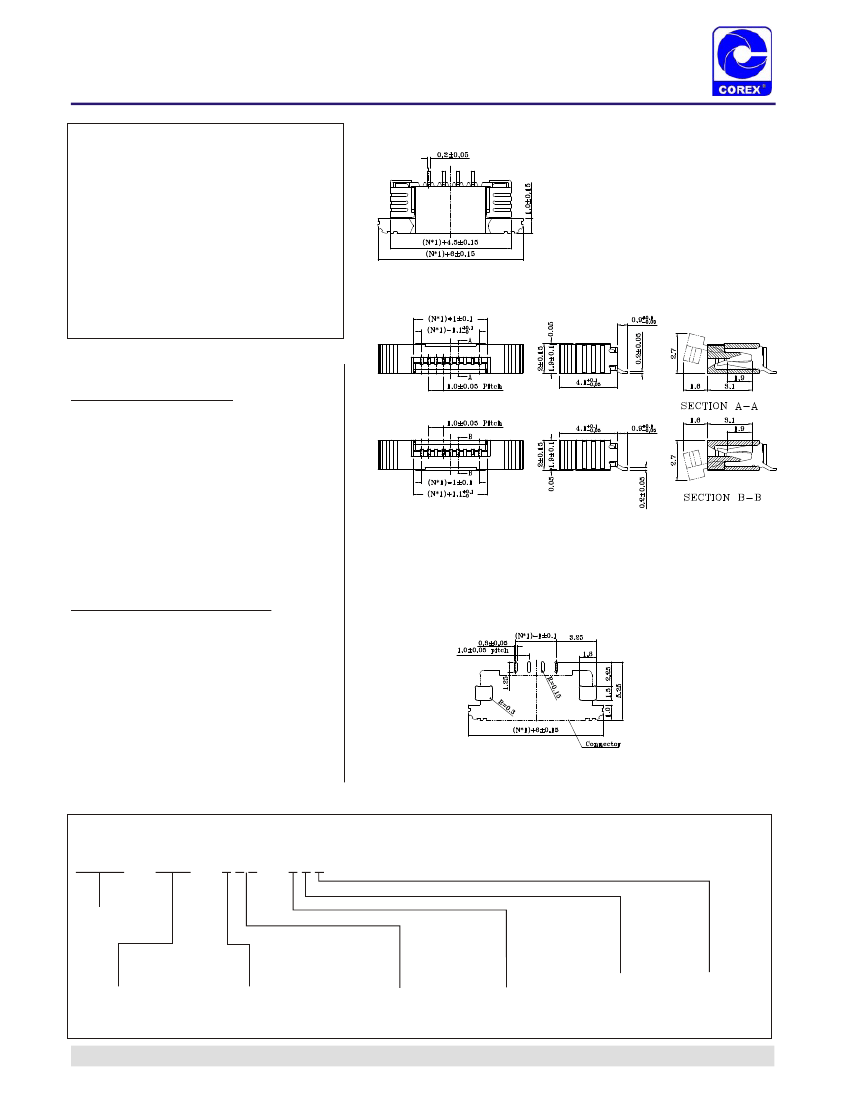

ZIF FPC connector, 0.5mm pitch,SMT, vertical

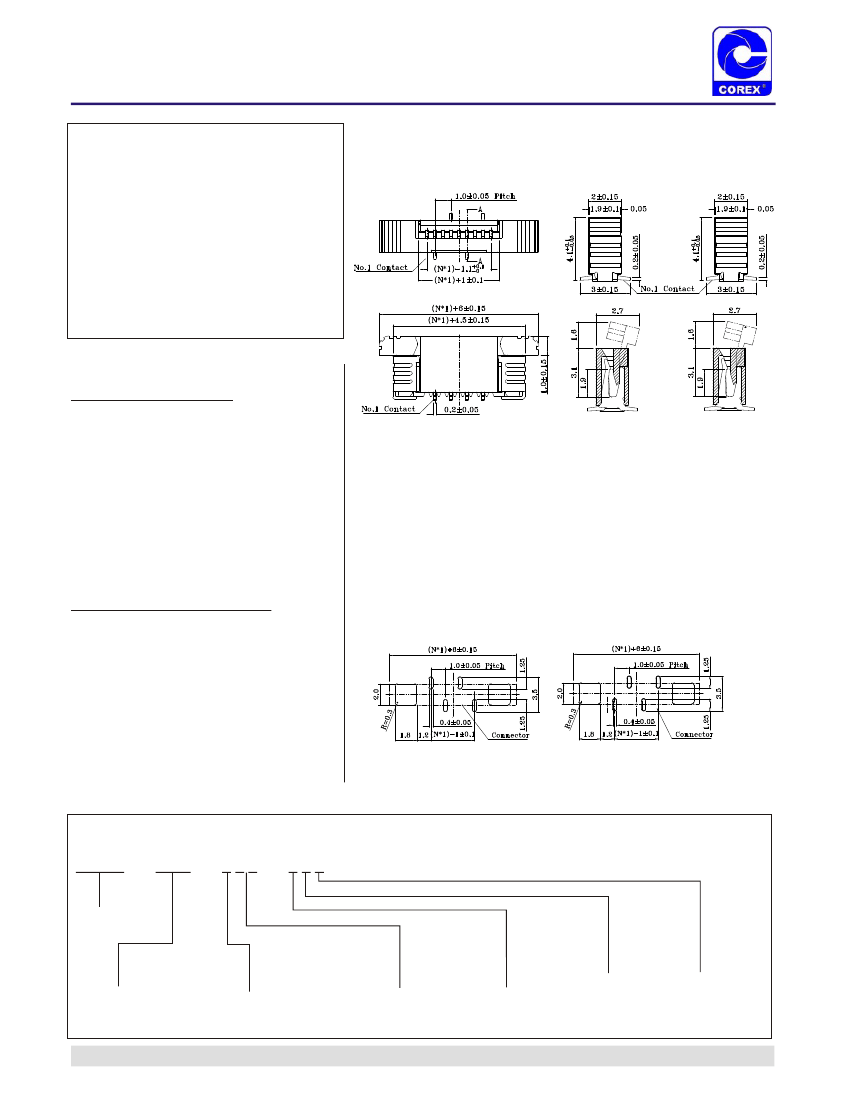

ZIF for FPC connector, 1.0mm pitch, SMT, horizontal

ZIF for FPC connector, 1.0mm pitch,SMT, vertical

ZIF for FPC connector, 1.0mm pitch, DIP, horizontal

ZIF for FPC connector, 1.1mm pitch, DIP, vertical

NON-ZIF for FPC connector, 1.0mm pitch,DIP, horizontal

NON-ZIF for FPC connector, 1.0mm pitch, DIP, vertical
