DI & DM SERIES
SPST STANDARD DIP SWITCHES
GENERAL SPECIFICATIONS
ELECTRICALS
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
FEATURES
High reliability.
Self-cleaning contacts.
Multi- positions.
Process compatible with tape seal.
Dual in-line .100" x .300" term. spacing.
Electrical life
Contact rating, non-switching
Contact rating, switching
Contact resistance at current 100 mA
Insulation resistance at 100 VDC
Dielectric strength
Capacitance
MECHANICALS, THERMALS
Mechanical life
Operating force
Vibration
Shock
Operating temperature range
2000 cycles min. per switch @ 24 VDC, 25 mA
100 mA at 50 VDC
25 mA at 24 VDC
50 m½ max. initial - 100 m½ max. after life test
100 M½ minimum
500 VAC for 1 minute
5 pf. max. between adjacent terminals
2000 cycles min. per switch
1000 grams max.
10-55 Hz.per MIL-STD-202F METHOD 201A
50 G (peak value) for 11 msec. per MIL-STD-202F, METHOD 213B
-40°C to 85°C
SOLDERING & CLEANING RECOMMENDATIONS*
Hand soldering
320°C max. for 2 seconds max.(30 watt iron max.)
Wave soldering
260°C max. for 5 seconds max.
Cleaning (with tape seal)
Spray wash from top side only.
*
Note: keep switches in “OFF” position during soldering and cleaning for best results
MATERIALS
Base & Cover
Actuators
Contacts
Terminals
Term. Sealing
Tape seal
P
DI: UL94V-O, glass fiber filled PBT, black
DM: UL94V-O, glass fiber filled PPS, black
UL94V-O, Nylon, white
Gold over nickel plated copper alloy
DI: Tin/lead plated brass. DM: Gold over nickel plated copper alloy.
Molded-in
Kapton
PACKAGING
DIP switches are shipped in standard IC tubes with all actuators in the "OFF" position.
Tape & reel packaging per EIA available for DMR models (see next page).

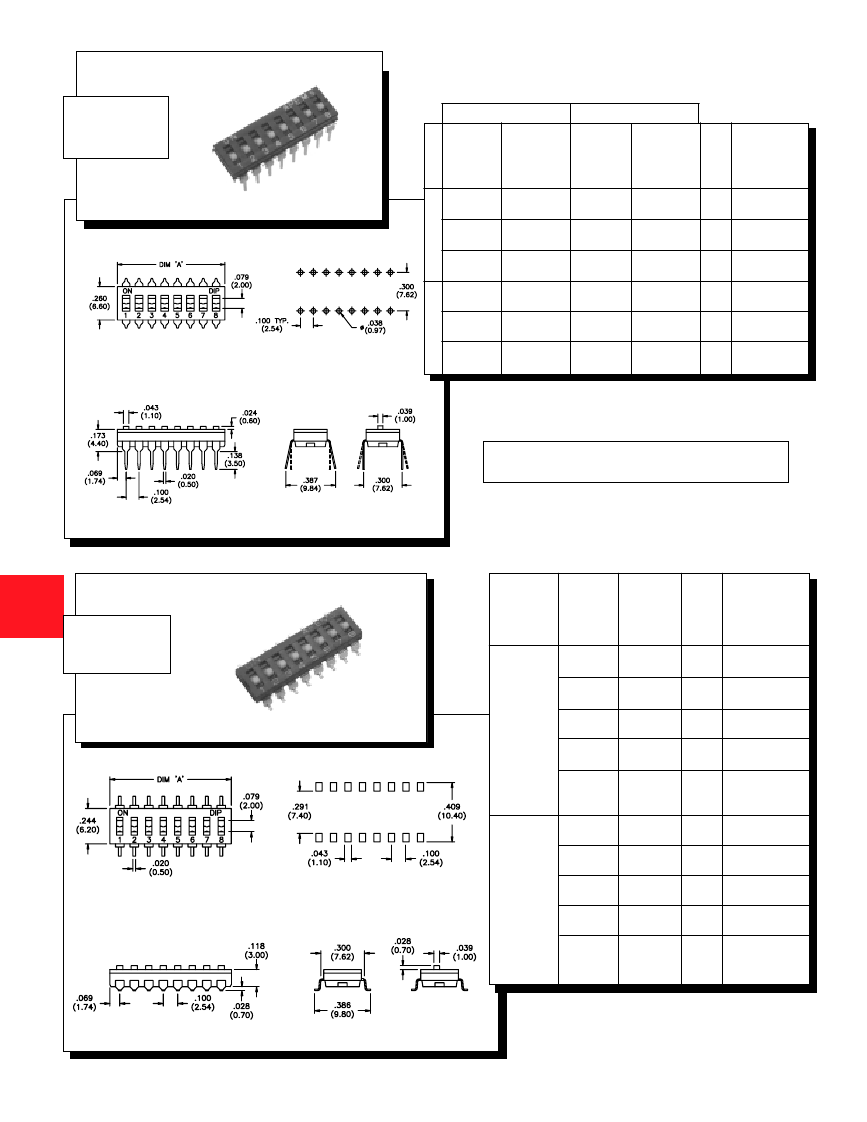

SWITCH
CROSS
SECTIONS
Double
contact system
SCHEMATIC (TYPICAL)
DI & DM
See tabulations on following pages for
number of positions available (10 shown)
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com
P2
Tin/lead plated brass terminals
Gold plated terminals available on request
Actuator
DI Series
Machine
Insertable
Squared terminals
MODEL
NO.
with no
tape seal
DI01H
DI02H
DI04H
DI06H
DI08H
DI10H
DIR01H
DIR02H
DIR04H
DIR06H
DIR08H
DIR10H
MODEL
NO.
with
tape seal
n/a
n/a
n/a
n/a
n/a
n/a
n/a
DIR02HT
DIR04HT
DIR06HT
DIR08HT
DIR10HT
Spread terminals
MODEL
NO.
with no
tape seal
DI01S
DI02S
DI04S
DI06S
DI08S
DI10S
DIR01S
DIR02S
DIR04S
DIR06S
DIR08S
DIR10S
MODEL
NO.
with
tape seal
n/a
n/a
n/a
n/a
n/a
n/a
DIR01ST
DIR02ST
DIR04ST
DIR06ST
DIR08ST
DIR10ST
No.
'A' Dim.
of
+.008/-.000"
Pos. (+0.2/-0.0mm)
1
2
4
6
8
10
1
2
4
6
8
10
.137
.237
.437
.637
.837
1.037
.137
.237
.437
.637
.837
1.037
(3,48)
(6,02)
(11.10)
(16,18)
(21,26)
(26,34)
(3,48)
(6,02)
(11,10)
(16,18)
(21,26)
(26,34)
Raised
Auto-insertable using equipment from Amistar, Dynapert,
Panasert, Northeastern Tool, Universal and others.
n/a = not available.
P
DM Series
Surface
Mount
Actuator
Style
Raised
Actuator
MODEL
NO.
with no
tape seal
DM01
DM02
DM03
DM04
DM05
DM06
DM07
DM08
DM09
DM10
DM12
DMR01
DMR02
DMR03
DMR04
DMR05
DMR06
DMR07
DMR08
DMR09
DMR10
DMR12
MODEL
NO.
with
tape seal
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
DMR02T
DMR03T
DMR04T
DMR05T
DMR06T
DMR07T
DMR08T
DMR09T
DMR10T
DMR12T
'A' Dimension
No. of +.008/-.000"
Pos. (+0.2/-0.0mm)
1
2
3
4
5
6
7
8
9
10
12
1
2
3
4
5
6
7
8
9
10
12
.137
.237
.337
.437
.537
.637
.737
.837
.937
1.037
1.237
.137
.237
.337
.437
.537
.637
.737
.837
.937
1.037
1.237
(3,48)
(6,02)
(8,56)
(11,10)
(13,64)
(16,18)
(18,72)
(21,26)
(23,80)
(26,34)
(31.42)
(3,48)
(6,02)
(8,56)
(11,10)
(13,64)
(16,18)
(18,72)
(21,26)
(23,80)
(26,34)
(31.42)
Recessed
Actuator
For tape & reel packaging on DMR models only, add 'TR'
to model number - example: DMR08TTR. Note- tape &
reel packaging is available only with tape seal models.
900 switches per reel.
