PLK & PLR SERIES
Professional keylock or rotary switches
NEW RANGE
• Miniature & subminiature
• 2 to 12 positions
• 1 to 4 poles
PLK - PLR SERIES
PROFESSIONAL KEYLOCK OR ROTARY SWITCHES
Distinctive features
PLK SERIES - KEYLOCK SWITCHES
• Tapered lock face
• 2 or 3 positions
• Single or double pole
• Indexing : 90° (single pole) or 60° (double pole)
• Up to 200 different keys
• Double entry keys (can be inserted into the lock either
way up)
• 5 disc lock type
• Miniature size, occupy small panel area
• Rear projection less than 30 mm from panel
• Easily assembled through front of panel
• Option : sealed terminals
• Models with straight lock face available on request
PLR SERIES - MINIATURE ROTARY SWITCHES
• 2 to 12 positions
• 1 to 4 poles
• Indexing : 30° on standard models,
60° or 90° optional
• Models with continuous rotation
• Adjustable stop to restrict number of position
• Shorting (make before break) or non shorting (break
before make) contacts
• Solder lugs or PCB pins
• Options available :
- no bush version
- rear drive version
- sealed terminations
PLRT SERIES - SUBMINIATURE ROTARY SWITCHES
• Standard TO-5 housing
• 2 to 8 positions
• Single or double pole
• 45° indexing
• Continuous rotation available on 8-position models
• Actuator : spindle
• Option : protective cover
• Models with screwdriver slot available on request
Dimensions
: First dimensions are in mm while inches are shown as bracketted numbers.
Tolerance
: The general tolerance for dimensions in this brochure is +/- 0,3 (.012).
Dimensions, specifications and data shown in this brochure are subject to change without notice.
2
A P E M

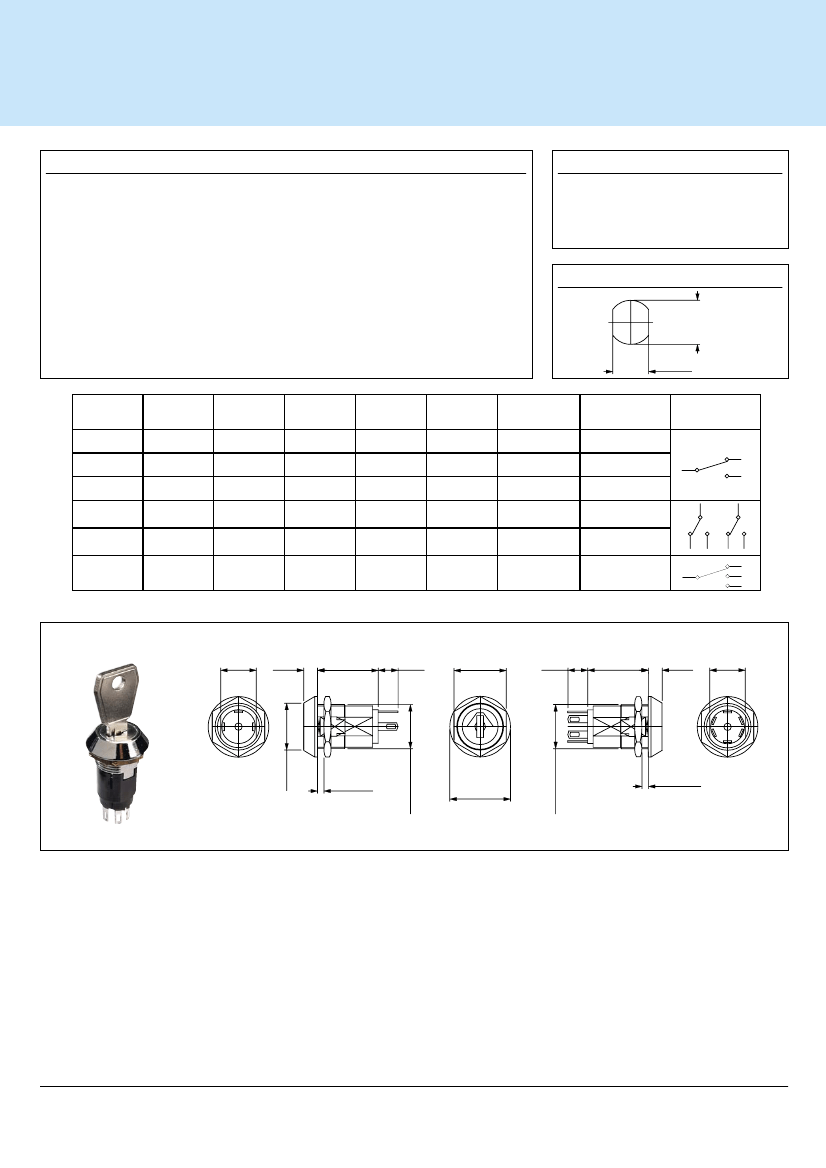

PLK SERIES
PROFESSIONAL KEYLOCK SWITCHES
Tapered lock face
GENERAL SPECIFICATIONS
MATERIALS
• Max. current/voltage rating (resistive) : 0,5A 30VDC
• Life : 10.000 cycles
• Initial contact resistance : 20 mΩ max.
• Insulation resistance : 100 MΩ min.
• Dielectric strength : 750 Vrms.
• Operating temperature : -20°C to +65°C
• Lock type : 5 disc
• Standard hardware supplied : 1 hex nut
• Case : polyester, glass filled
• Bushing : zinc alloy, chrome
plated
• Contacts : brass, silver plated
PANEL CUT
-
OUT
Ø16.00
(.629 DIA)
13.00mini
(.511MIN)
Movement
90°
90°
90°
60°
60°
180°
Number
of positions
2
2
2
2
2
3
Number
of poles
1
1
1
2
2
1
Key withdra-
Indexing
wal position
1-4
1-4
1
1-3
1
1-4-7
90°
90°
90°
60°
60°
90°
Number
of keys
2
2
2
2
2
2
Key sets
same
200 different
same
same
same
200 different
MODEL NO
PLKB3220
Switching
diagram
2
PLKB3221
PLKB3120
PLKB4220
PLKB4120
PLKB8321
1
3
1
4
2
3
5
2
6
1
3
OFF
Dimensions
12.90
(.507)
5.00
(.196)
22.00
(.866)
7.20
(.283)
19.00
(.748)
7.20
(.283)
22.00
(.866)
5.00
(.196)
12.90
(.507)
1
1
2
Ø16.00x1.00SI
(.629 DIAx1.00IS)
Ø16.00x1.00SI
(.629 DIAx1.00IS)
Ø17.00
(.669 DIA)
4.50 Maxi
(.177 MAX)
Ø22.00
(.866 DIA)
4.50 Maxi
(.177 MAX)
4
6
2
3
5
3
A P E M
3

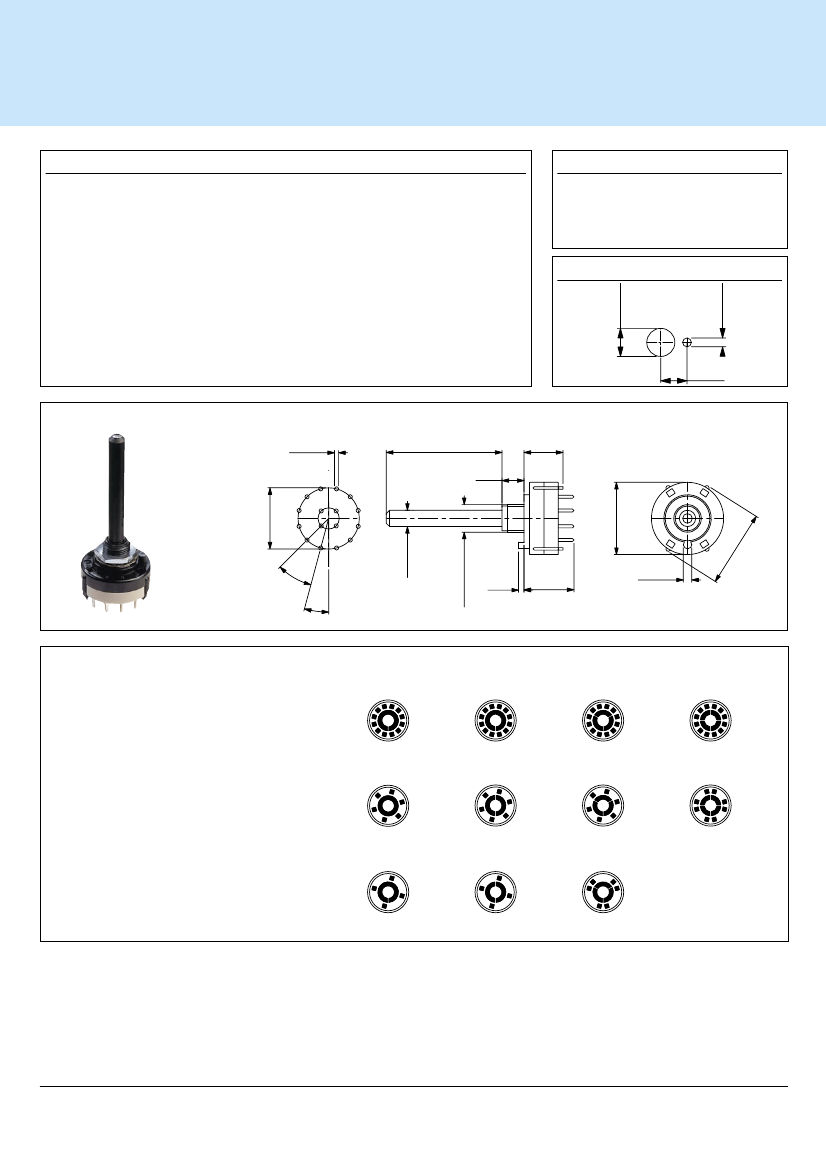

PLR SERIES
PROFESSIONAL MINIATURE ROTARY SWITCHES
GENERAL SPECIFICATIONS
MATERIALS
• Max. voltage (resistive) : 250V AC/DC
• Max. current : 150mA
• Initial contact resistance : 20 mΩ max.
• Insulation resistance: 1.000 MΩ min.
• Dielectric stregth : 1.000 Vrms
• Life : 10.000 cycles
• Operating torque : 8,6 Ncm
±2
• End stop torque : 1,13 Ncm min.
• Fixing torque : 1,1 Ncm max.
• Operating temperature : -30°C to +85°C
• Standard hardware supplied : 1 hex nut and 1 locking ring
Special accessories (buttons) : see page 7
• Moulded parts : PA 6/6, glass
filled
• Contacts : brass, gold or silver
plated, depending on version
PANEL CUT
-
OUT
Ø10.20
(.401 DIA)
Ø 3.20
(.125 DIA)
9.50
(.374)
9
Dimensions
Ø1.50
(.059 DIA)
42.00
(1.653)
8.00
(.314)
6
5
Ø22.20
(.874 DIA)
4
3
2
1
30
.00
°
14.10
(.555)
7
8
Ø26.20
(1.031 DIA)
8
10
11
A
Ø5.90
(.232 DIA )
12
Ø10.00X0.75SI
(.393 DIA X0.75IS)
2.00
(.078)
18.10
(.712)
Ø3.05
(.120 DIA)
15.00°
Available configurations (top view)
6
5
4
7
8
9
10
11
5
4
3
2
1
12
6
7
8
9
10
11
5
4
3
2
1
12
6
7
8
9
10
11
5
4
3
2
1
12
6
7
8
9
10
11
30° INDEXING (standard)
(models listed opposite)
3
2
1
12
1 pole, 12 pos.
6
7
8
9
10
11
2 poles, 6 pos.
6
5
4
3
2
1
12
7
8
9
10
11
3 poles, 4 pos.
6
5
4
3
2
1
12
7
8
9
10
11
4 poles, 3 pos.
6
5
4
3
2
1
12
7
8
9
10
11
60° INDEXING
(on request)
5
4
3
2
1
12
1 pole, 6 pos.
6
7
8
9
10
11
2 poles, 3 pos.
6
5
4
3
2
1
12
7
8
9
10
11
3 poles, 2 pos.
6
5
4
3
2
1
12
7
8
9
10
11
4 poles, 2 pos.
90° INDEXING
(on request)
5
4
3
2
1
12
1 pole, 4 pos.
2 poles, 2 pos.
3 poles, 2 pos.
4
A P E M
3
4
11
(1. Ø 27
09 .90
8D
IA
)
D
10
6
7
B
C
9
2
5
PLR SERIES
PROFESSIONAL MINIATURE ROTARY SWITCHES
Models with 30° indexing
• Metric type
• Spindle diameter : 6 mm
• Spindle length : 42 mm
• Bushing : L 8 mm, M10 x 0,75
Contact
material
Silver plated
Gold plated
Silver plated
Gold plated
Silver plated
Gold plated
Silver plated
Gold plated
Silver plated
Gold plated
Silver plated
Gold plated
Silver plated
Gold plated
Silver plated
Gold plated
Silver plated
Gold plated
Silver plated
Gold plated
Silver plated
Gold plated
Silver plated
Gold plated
Preferred
DESCRIPTION
Shorting
Non-shorting
1 pole, 12 positions
Solder lugs
PCB pins
1 pole, 12 positions, continuous rotation
Solder lugs
PCB pins
2 poles, 6 positions
Solder lugs
PCB pins
2 poles, 6 positions, continuous rotation
Solder lugs
PCB pins
3 poles, 4 positions
Solder lugs
PCB pins
4 poles, 3 positions
Solder lugs
PCB pins
PLR3262
PLR3731
PLR3282
PLR3735
PLR3252
PLR3725
PLR3272
PLR3727
PLR3261
PLR3730
PLR3281
PLR3734
PLR3251
PLR3734
PLR3271
PLR3720
PLR3334
PLR3755
PLR3339
PLR3756
PLR3338
PLR3759
PLR3333
PLR3760
PLR3260
PLR3729
PLR3280
PLR3733
PLR3250
PLR3716
PLR3270
PLR3693
PLR3258
PLR3753
PLR3278
PLR3754
PLR3248
PLR3757
PLR3268
PLR3758
PLR3259
PLR3728
PLR3279
PLR3732
PLR3249
PLR3723
PLR3269
PLR3726
