GXO-U113L/A44.23680MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GXO-U113L/A44.23680MHZ

GXO-U113L/A44.23680MHZ: DescriptionHCMOS/LSTTL Output Clock Oscillator; CategoryPassive components oscillator; File Size59KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GXO-U113L/A44.23680MHZ Overview

HCMOS/LSTTL Output Clock Oscillator

GXO-U113L/A44.23680MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1236719930
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	44.2368 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	10 LS TTL, 15 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.15,94
physical size	6.2mm x 3.7mm x 1.5mm
longest rise time	7 ns
Maximum slew rate	17 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

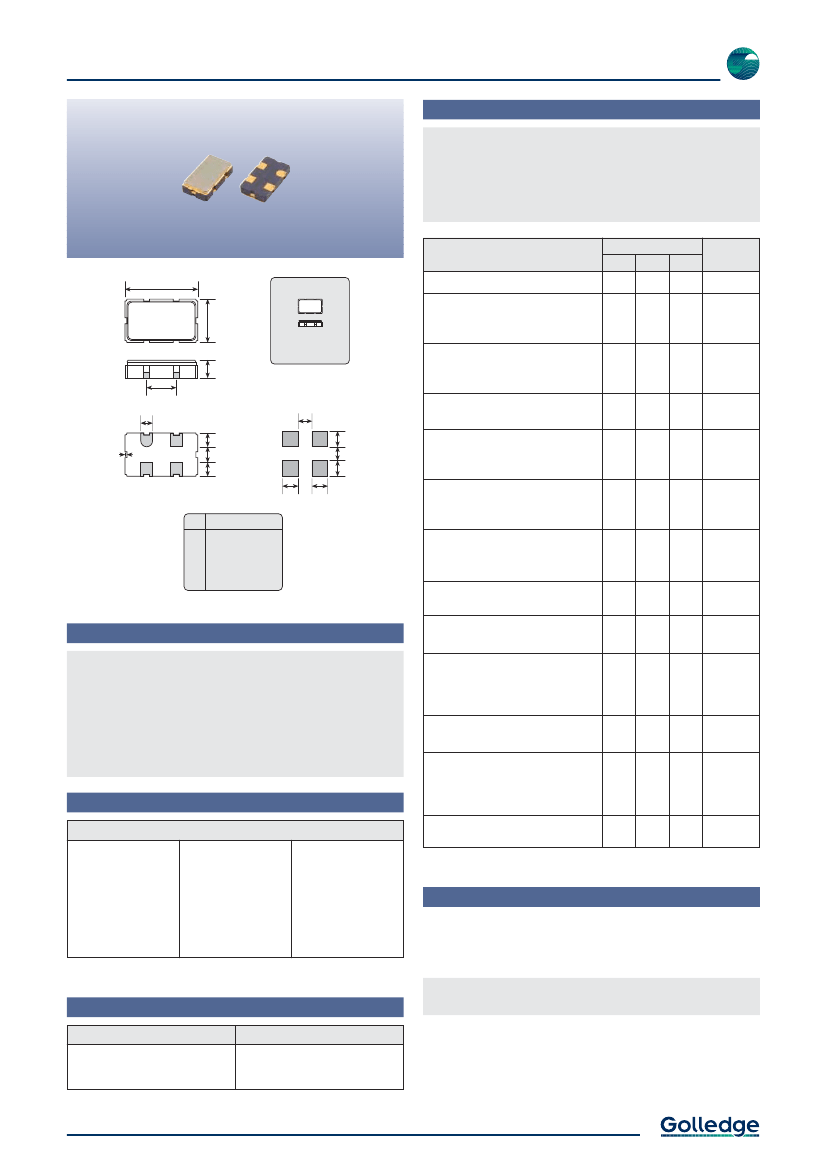

3.3V & 5V CMOS Oscillator

Specifications

GXO-U113

GXO-U113S: 5.0V supply, E/D, low supply current

GXO-U113H: 5.0V supply, E/D high drive

GXO-U113L: 3.3V supply, E/D with power saving

Parameters

6.20

(max)

Variant

1.8 ~ 50.0MHz

±100ppm

±50ppm

±25ppm

Option

Codes

Frequency range:

Frequency stability:

3.70

(max)

1.50

(max)

2.54

1.00

0.15

1.10

1.50

1.10

ACTUAL SIZE

SOLDER PAD LAYOUT

1.10

1.40

1.10

1.40

Operating temperature range:

-10 to +70°C

-40 to +85°C

Storage temperature range:

-55 to +125°C

Supply voltage (V

+5.0V (±10%)

+3.3V (±10%)

Supply current (mA max):

1.8 ~ 32.0MHz

>32.0 ~ 50.0MHz

Logic levels:

‘0’ level = 10%V

max

‘1’ level = 90%V

min

Scale 3:1

Start up time:

5ms max (<32MHz)

10ms max (>32MHz)

Waveform symmetry:

40:60 max @ 50%V

Driving ability:

10 LSTTL

15pF HCMOS

10 TTL

50pF HCMOS

10ns max

7ns max

1.40

TOP VIEW

PAD

CONNECTION

Enable/Disable

Ground

Output

Supply

Features

Ceramic package with metal lid

High drive capability - up to 50pF

Enable / disable tristate function

3.3V option with power saving function

Rise / fall time:

Standard Frequencies

Frequencies in MHz

1.84320

2.00000

3.68640

4.00000

5.00000

8.00000

10.00000

12.00000

14.31818

16.00000

18.43200

20.00000

24.00000

24.57600

25.00000

27.00000

29.49120

30.00000

32.00000

33.86880

36.86400

40.00000

44.23680

44.73600

48.00000

49.15200

50.00000

Enable / disable function:

Tristate (control via pad 1)

100ns / 100ns max

10ms / 150ns max

Stand-by current (power-saving):

10µA

Standard.

Optional - Please specify required code(s) when ordering

Ordering Information

Product name + variant + option codes (if any) + frequency

eg:

GXO-U113H 40.0MHz

5V, ±100ppm -10+70°C

GXO-U113L/BI 40.0MHz

3.3V, ±50ppm -40+85°C

Option code X (eg GXO-U113H/X) denotes a custom spec.

Available on T&R - 2k pcs per reel.

Refer to our website for T&R and soldering details.

Other frequencies available. Please consult our sales office.

Enable / Disable Function

Input (pad 1)

Open

‘1’ level

‘0’ level

Output (pad 3)

Enabled

High Impedance

Tel:

+44 1460 256 100

01 Feb 2002

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
