I533-1Q2-30.000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> I533-1Q2-30.000

I533-1Q2-30.000: DescriptionClipped Sine Output Oscillator,; CategoryPassive components oscillator; File Size50KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

I533-1Q2-30.000 Overview

Clipped Sine Output Oscillator,

I533-1Q2-30.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1290987147
Reach Compliance Code	compliant
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	30 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
Package body material	CERAMIC
Encapsulate equivalent code	LCC4,.12X.2,150/91
physical size	5.0mm x 3.2mm x 1.5mm
Filter level	MIL-STD-202; MIL-STD-883
Maximum slew rate	2 mA
Maximum supply voltage	2.835 V
Minimum supply voltage	2.565 V
Nominal supply voltage	2.7 V
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

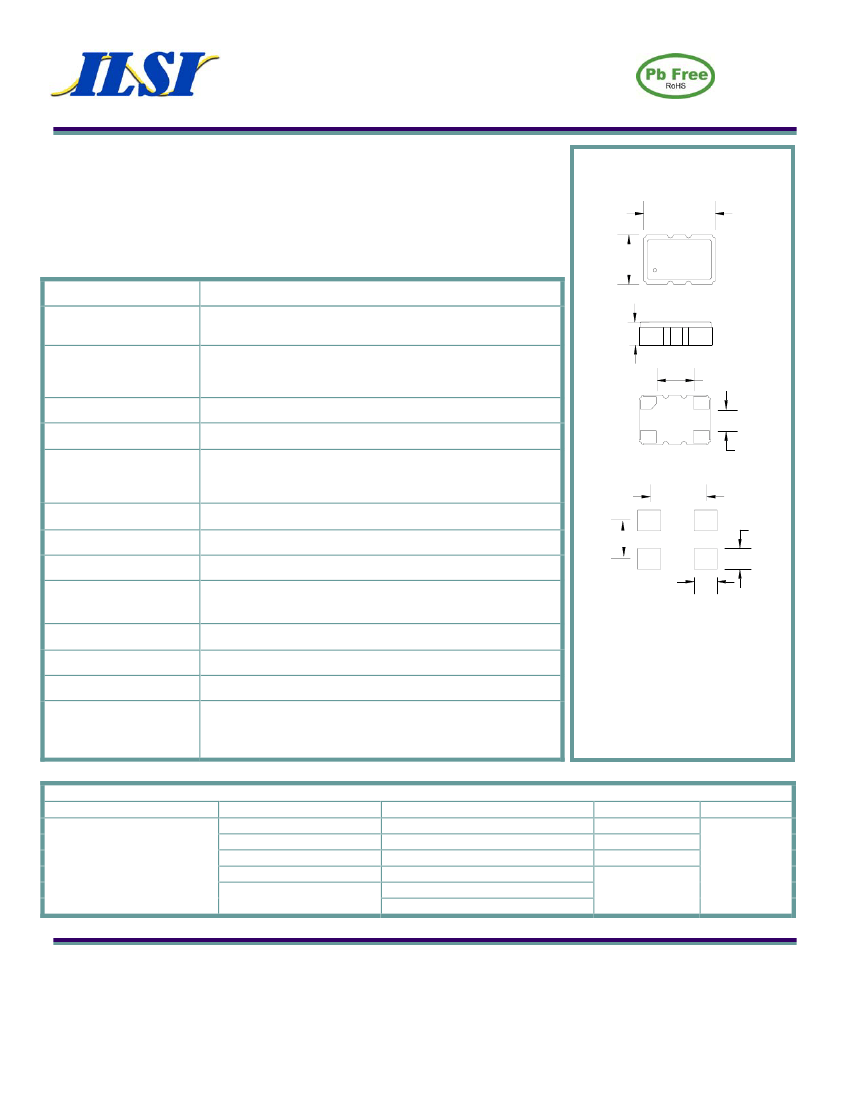

3.2

mm x 5 mm Ceramic Package SMD TCXO

I533/I534/I733/I734 Series

Product Features:

Low Jitter, Non-PLL Based Output

Available in Both Clipped Sinewave and

HCMOS Output Levels

Compatible with Leadfree Processing

Applications:

Server & Storage

Sonet /SDH

802.11 / Wifi

T1/E1, T3/E3

Fibre Channel

3.2

5.0

Frequency

Output Level

Clipped Sinewave

HCMOS

Output Load

Clipped Sinewave

HCMOS

Duty Cycle (HCMOS)

Rise / Fall Time

(HCMOS)

Frequency Stability

Vs Temperature

Vs Voltage

Vs Load(5%)

Frequency Tolerance @

Aging

Supply Voltage

Current

8.000 Mhz to 30 Mhz

0.8 V p-p Min.

‘0’=0.5 VDC Max., ‘1’=0.8Vcc Min.

20K Ohms / 10 pF

15pF

50% ±10%

10 nS Max.

1.5

2.6

1.4

See Frequency Stability Table

0.3 ppm Max.

±.0.2

ppm Max.

1.0 ppm

1 ppm / Year Max.

See Supply Voltage Table , tolerance

2.0 mA Max. (Clipped Sinewave)

6.0 mA Max. (HCMOS)

2.5

4.0

1.35

1.6

Voltage Control

(I733/I734)

Operating

Storage

Phase Noise

1.5 VDC

1.0 VDC,

5.0 ppm Min.

See Operating Temperature Table

-40

C to +85

-86 dBc/Hz @ 10 Hz

-115 dBc/Hz @ 100 Hz

-138 dBc/Hz @ 1KHz

-146 dBc/Hz @ 10 Khz

Connection

Control Voltage or N.C.

GND

Output

Vcc

Dimension Units: mm

Package

I533 (Clipped Sinewave TCXO)

I534 (HCMOS TCXO)

I733 (Clipped Sinewave TCVCXO)

I734 (HCMOS TCVCXO)

Part Number Guide

Operating Temperature

7 = 0° C to +50° C

1 = 0° C to +70° C

3 = -20° C to +70° C

2 = -40° C to +85° C

Sample Part Number: I537-1Q3-20.000 Mhz

FrequencyStability vs Temperature

Supply Voltage

**N =

±1.0

ppm

**O =

±1.5

ppm

**P =

±2.0

ppm

Q =

±2.5

ppm

R =

±3.0

ppm

J =

±5.0

ppm

3 = 3.3 V

7 = 3.0 V

2 = 2.7 V

Frequency

- 20.000 MHz

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 4) and GND (pin 2) to minimize power supply noise.

** Not available for all temperature ranges.

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

06/09_B

Specifications subject to change without notice

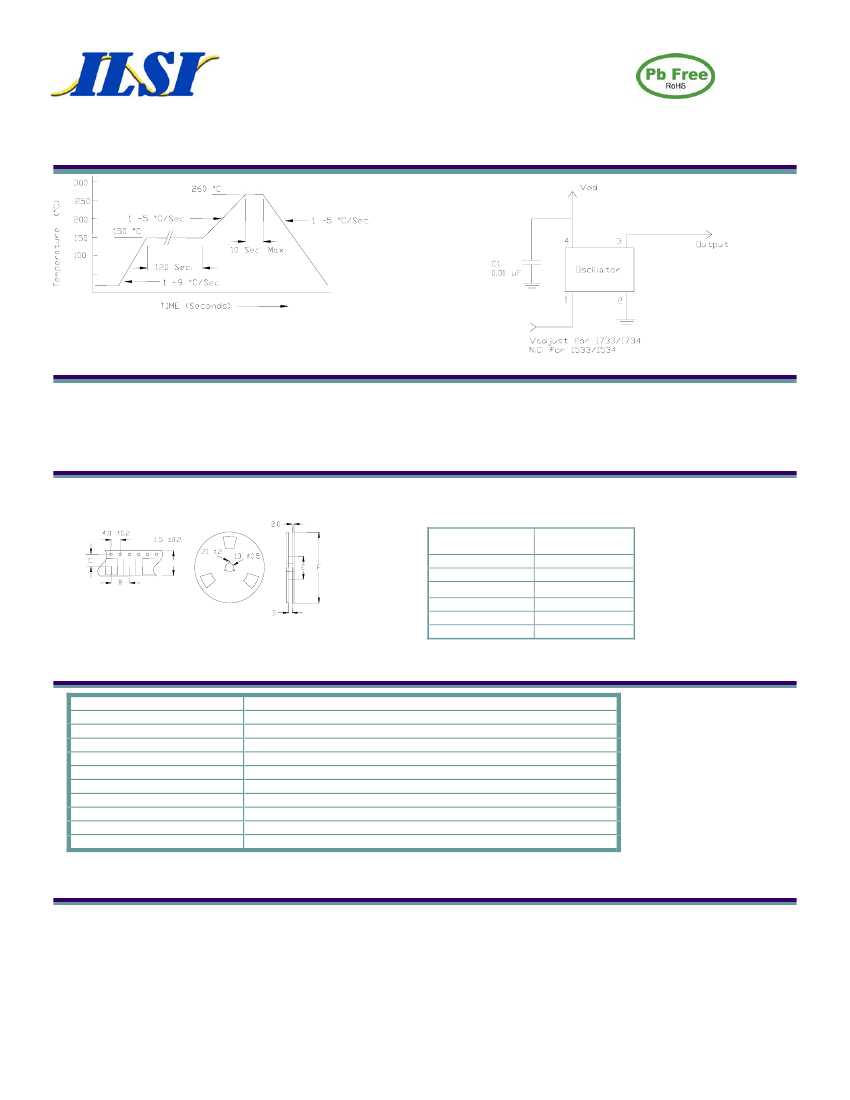

Page 1
