B13PS-TB datasheet, PDF - EEWORLD Datasheet

B13PS-TB: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerJST

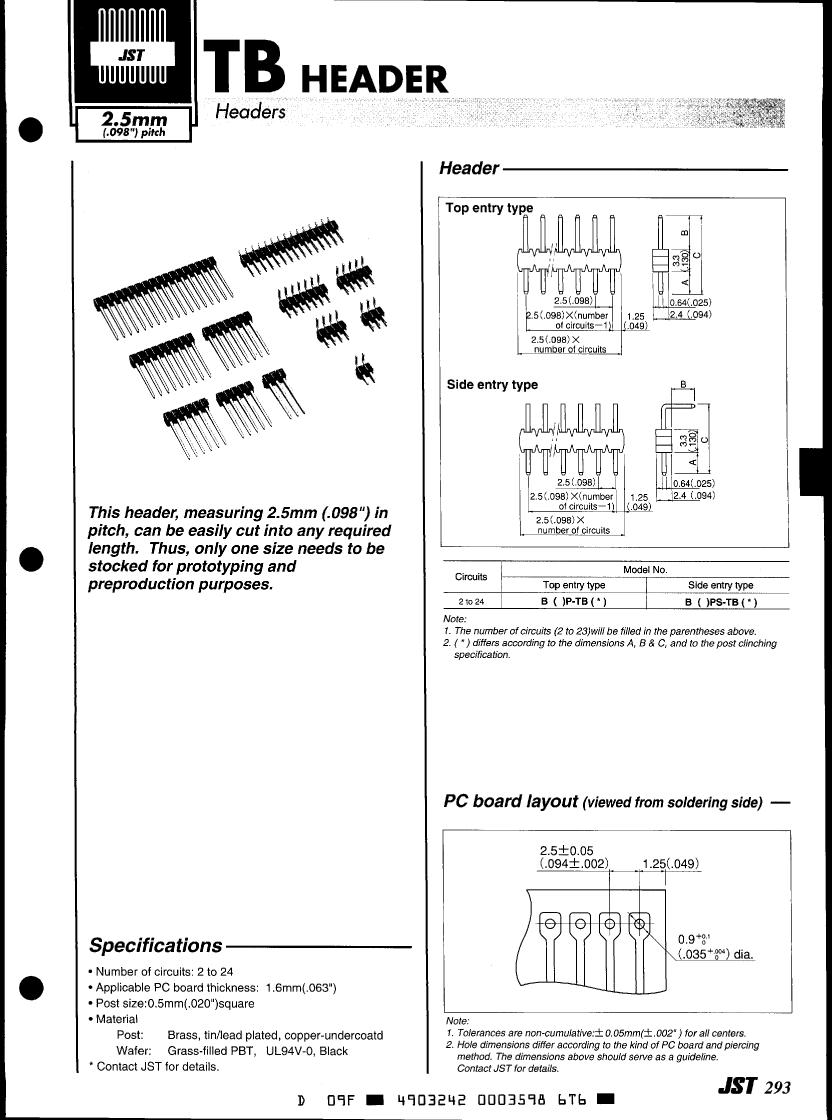

Download Datasheet Parametric View All

B13PS-TB Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

Parameter Name	Attribute value
Objectid	301987220
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.75
body width	0.094 inch
subject depth	0.13 inch
body length	1.28 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON CU
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	TB
Plug contact pitch	0.098 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	13
