A165L-JAM-12-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> A165L-JAM-12-2

A165L-JAM-12-2: Descriptionilluminated pushbutton switches dpdt mom rect 12v BL ip65 incd lamp illum; CategoryTopical application Mechanical and electrical/engineering/automation; File Size3MB，29 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

A165L-JAM-12-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A165L-JAM-12-2	-	-	View	Buy Now

A165L-JAM-12-2 Overview

illuminated pushbutton switches dpdt mom rect 12v BL ip65 incd lamp illum

A165L-JAM-12-2 Parametric

Parameter Name	Attribute value
Manufacture	Om
Product Category	Illuminated Pushbutton Switches
RoHS	Yes
Contact Form	DPDT
Switch Functi	ON - (OFF)
Current Rating	5 A
Voltage Rating AC	250 V
Voltage Rating DC	30 V
Mounting Style	Through Hole
Illuminati	LED
Illumination Col	Blue Incandesce
Termination Style	Solder Pi
Actu	Rectangul
Factory Pack Quantity	1

Preview

Download Datasheet

View All

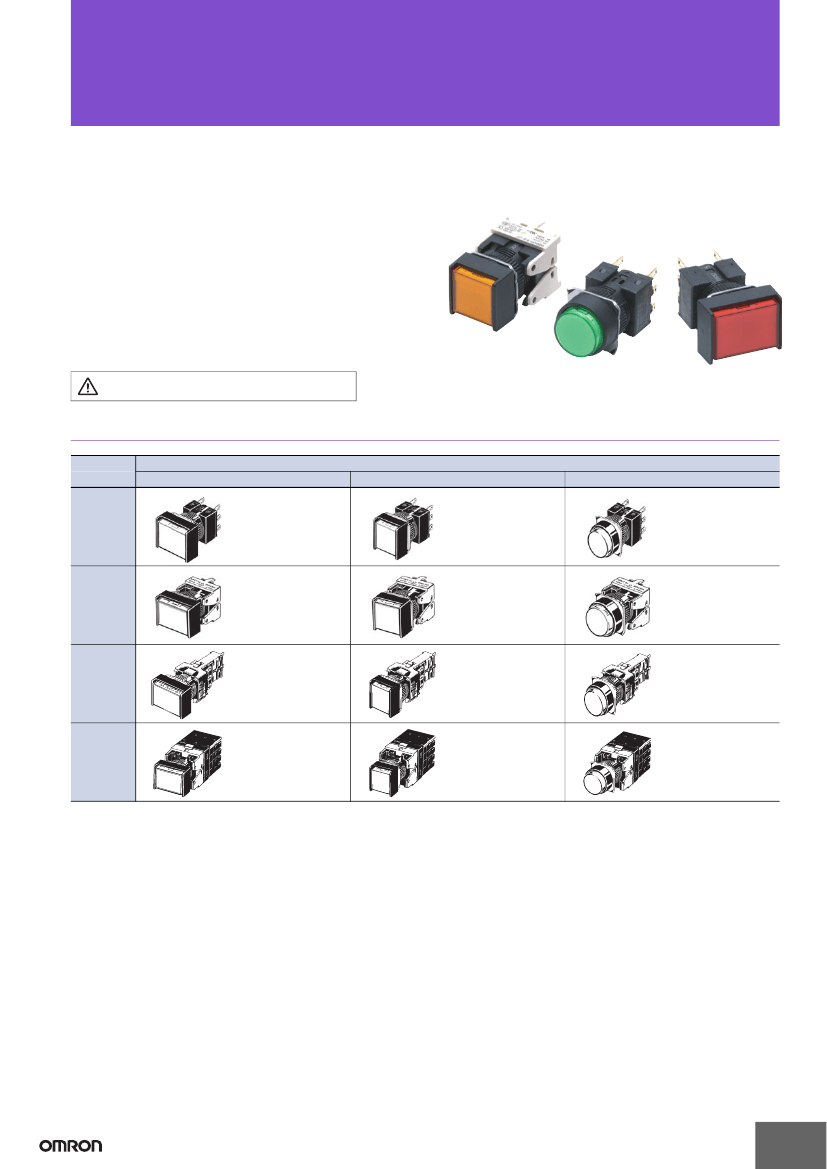

Pushbutton Switch (Detachable) (Lighted/Non-Lighted) (Cylindrical 16-dia.)

A16

CSM_A16_DS_E_8_1

Separate Construction with

Cylindrical 16-dia. Body

• Miniature design of 28.5 mm, the smallest class in the industry.

• Detachable Switch Unit.

• The same contacts can be used for both standard loads and

microloads.

• Easy-to-wire terminal arrangement.

• Certified for EN 60947-5-1.

Refer to

Safety Precautions for All Pushbutton Switches

and

Safety Precautions

on page 24.

List of Models

Rectangular

Model

Square

Round

Solder

terminals

A16@-J Series

A16@-A Series

A16@-T Series

PCB

terminals

A16@-J Series

A16@-A Series

A16@-T Series

Voltage-

reduction

lighting

solder

terminals

A16@-J Series

A16@-A Series

A16@-T Series

Screw-less

clamp

models

A16@-J Series

A16@-A Series

A16@-T Series
