T496D157M010AHE7007280 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T496D157M010AHE7007280

T496D157M010AHE7007280: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 150uF, Surface Mount, 2917, CHIP; CategoryPassive components capacitor; File Size863KB，18 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T496D157M010AHE7007280 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 150uF, Surface Mount, 2917, CHIP

T496D157M010AHE7007280 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1079715360
package instruction	, 2917
Reach Compliance Code	not_compliant
Country Of Origin	Mexico
ECCN code	EAR99
YTEOL	6.92
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance	150 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	700 mΩ
high	2.8 mm
JESD-609 code	e0
leakage current	0.015 mA
length	7.3 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 13 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	185 mA
size code	2917
surface mount	YES
Delta tangent	0.08
Terminal surface	Tin/Lead (Sn90Pb10)
Terminal shape	J BEND
width	4.3 mm

Preview

Download Datasheet

View All

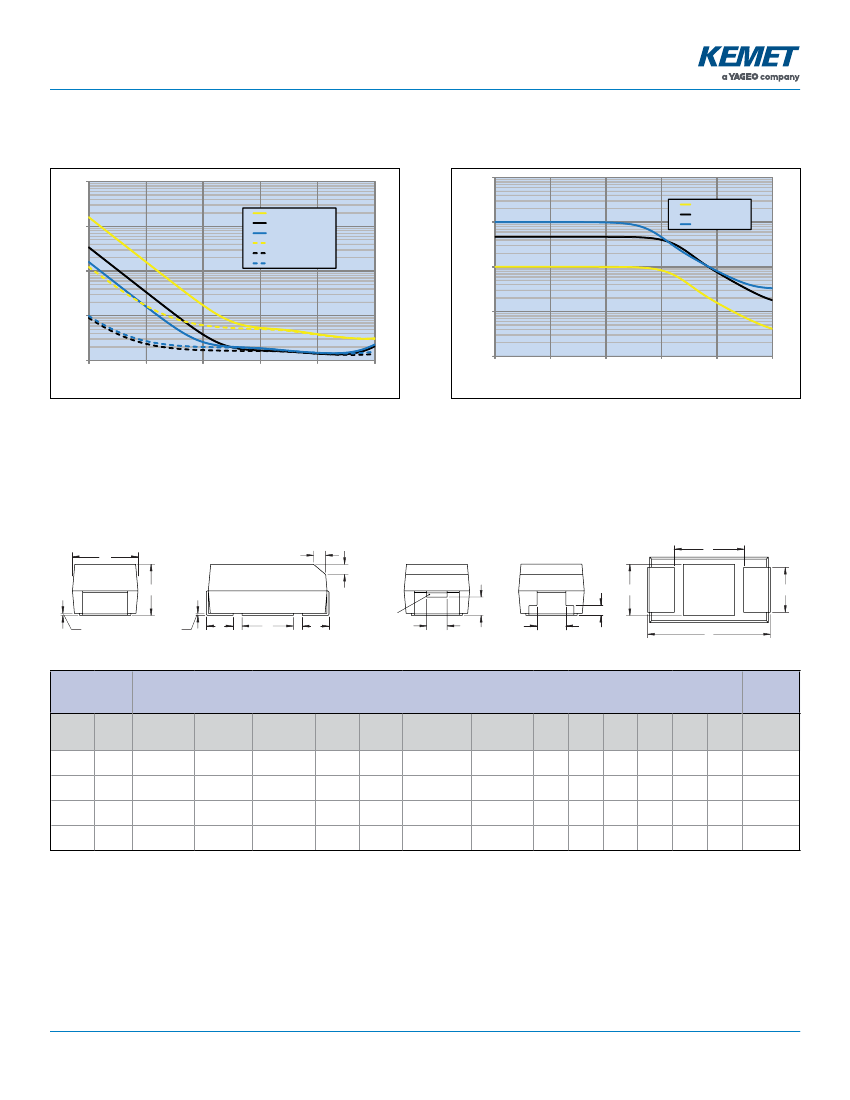

Tantalum Surface Mount Capacitors – Fused

T496 Fused MnO

Overview

The T496 tantalum chip capacitors offer a "fail safe" design.

The built-in fuse element offers excellent protection from

damaging short circuit conditions in applications where

damaging high fault currents exist. Protection from costly

circuit damage due to reversed installation is offered with

this device. This series is classified as MSL (Moisture

Sensitivity Level) 1 under J STD 020: unlimited floor life time

at ≤ 30°C/85% RH.

Benefits

• Meets or exceeds EIA Standard 535BAAC

• Patented fuse assembly

• Optional gold-plated terminations

• Built-in fuse protects against short circuit mode

• 100% surge current test on C, D, and X sizes

• Halogen-free epoxy

• Capacitance values of 0.15 to 330 μF

• Tolerances of ±10% and ±20%

• Voltage rating of 4 – 50 VDC

• Fuse activation, 25°C: within 1 second at fault currents

of 4 amps and higher

• Continuous current capability: 0.75 amps

• Post actuation resistance, 25°C: 10 MΩ, minimum

• Test tabs on side of case bypass the capacitor element to

allow direct testing of the fuse assembly

• RoHS compliant and lead-free terminations

• Operating temperature range of −55°C to +125°C

Applications

Typical applications include decoupling and filtering in computing and telecommunications end applications, such as high-

end servers requiring built-in fuse capability.

Environmental Compliance

RoHS compliant when ordered with 100% Sn solder.

• Halogen-free

• Epoxy compliant with UL94 V–0

• Molded Epoxy complies for outgassing testing under ASTM E 595.

Built Into Tomorrow

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

T2010_T496 • 10/14/2021
