L Series
Miniature Slide Switches
Features/Benefits
•
Positive detent
•
Enclosed housing
•
Maintained and momentary functions
•
PC and panel mounting
•
RoHS compliant
Typical Applications
•
Communications equipment
•
Lighting devices
Models Available
Specifications
CONTACT RATING: Q contact material (LX0X, LX1X Models): 4 AMPS
@ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC; 0.5 AMP @
125 V DC (UL). See page I-23 for additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m
Ω
typ. initial
@ 2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: -30ºC to +65ºC
STORAGE TEMPERATURE: -30ºC to +85ºC
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Materials
HOUSING: 6/6 nylon (UL94V-2), black.
ACTUATOR: 6/6 nylon (UL94V-2), black.
‘13’ actuator, natural (standard).
CONTACTS: Q contact material: Copper, silver plated. See page
I-23 for additional contact materials.
TERMINALS: Q contact material: Copper, silver plated. See page
I-23 for additional contact materials.
CONTACT SPRING: Music wire or stainless steel.
TERMINAL SEAL: Epoxy.
NOTE:
Any models supplied with Q, B or G contact material are RoHS compliant.
I
Slide
Build-A-Switch

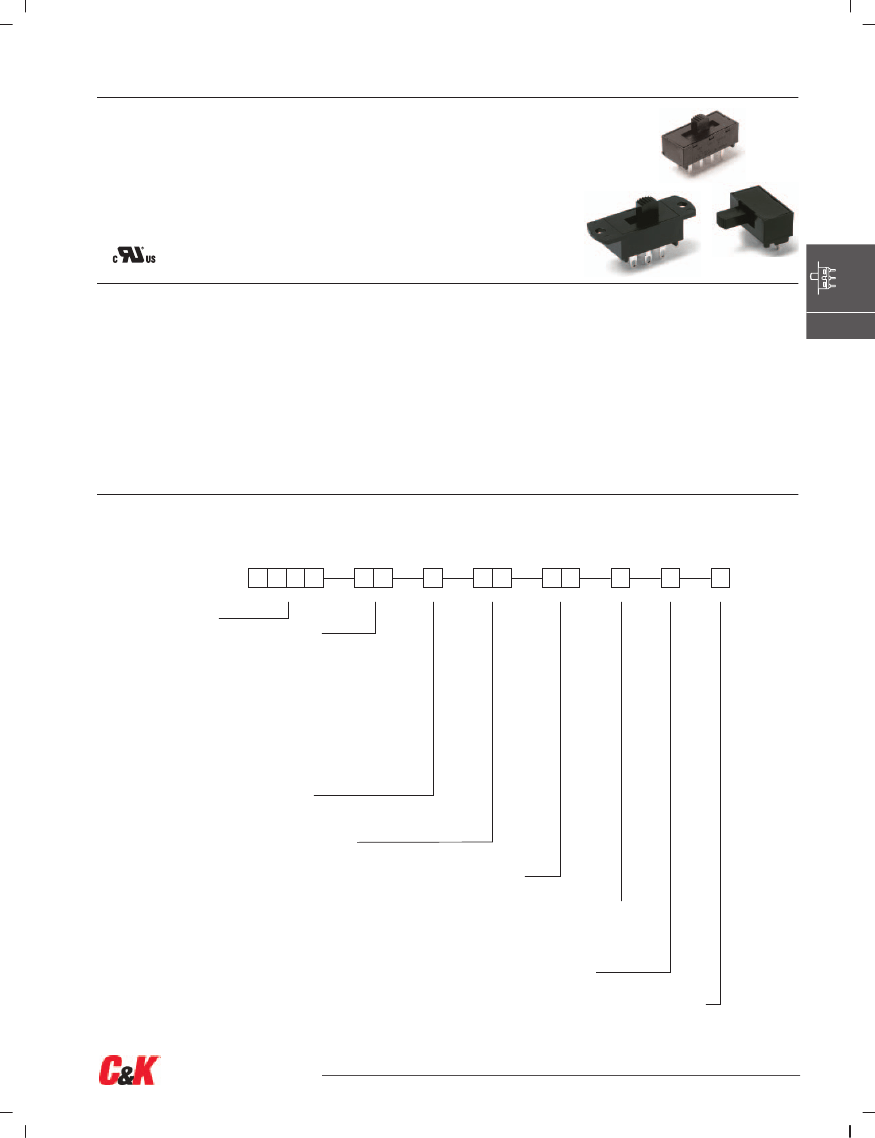

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages I-20 through I-24. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
L202
DPDT
L203
DP3T
L101
SPST
L102
SPDT
L103
SP3T
L104
SP4T
L112
SPDT, mom.
L113
SP3T, mom. to one end
L123
SP3T, mom. to both ends
L201
DPST
L204
DP4T
L212
DPDT, mom.
Actuator
01
.200" high
02
.335" high
03
.375" high
05
.312" high
11
.100" high
12
Screwdriver slot
13
Plunger without cap
14
Plunger with .200" dia. cap
15
Plunger with .310" dia. cap
17
Plunger with .458" dia. cap
19
Plunger with .590" dia. cap
Detent
1
With detent
2
Without detent
Mounting Style
MS
PC Thru-hole
MA
Right angle, PC thru-hole
ML
Right angle, PC thru-hole
MV
Right angle, PC thru-hole
SS
Panel with mounting ears
TS
Panel with integral mounting ears
Terminations
02
PC Thru-hole
01
Solder lug with notch
03
Solder lug with hole
04
PC Thru-hole
10
PC Thru-hole
06
Wire wrap
12
PC Thru-hole
Contact Material
Q
Silver
B
Gold
G
Gold over silver
Seal
NONE
No seal
E
Epoxy seal
Cap Color
2
Black
NONE
No cap
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
I–19
www.ck-components.com
L Series
Miniature Slide Switches

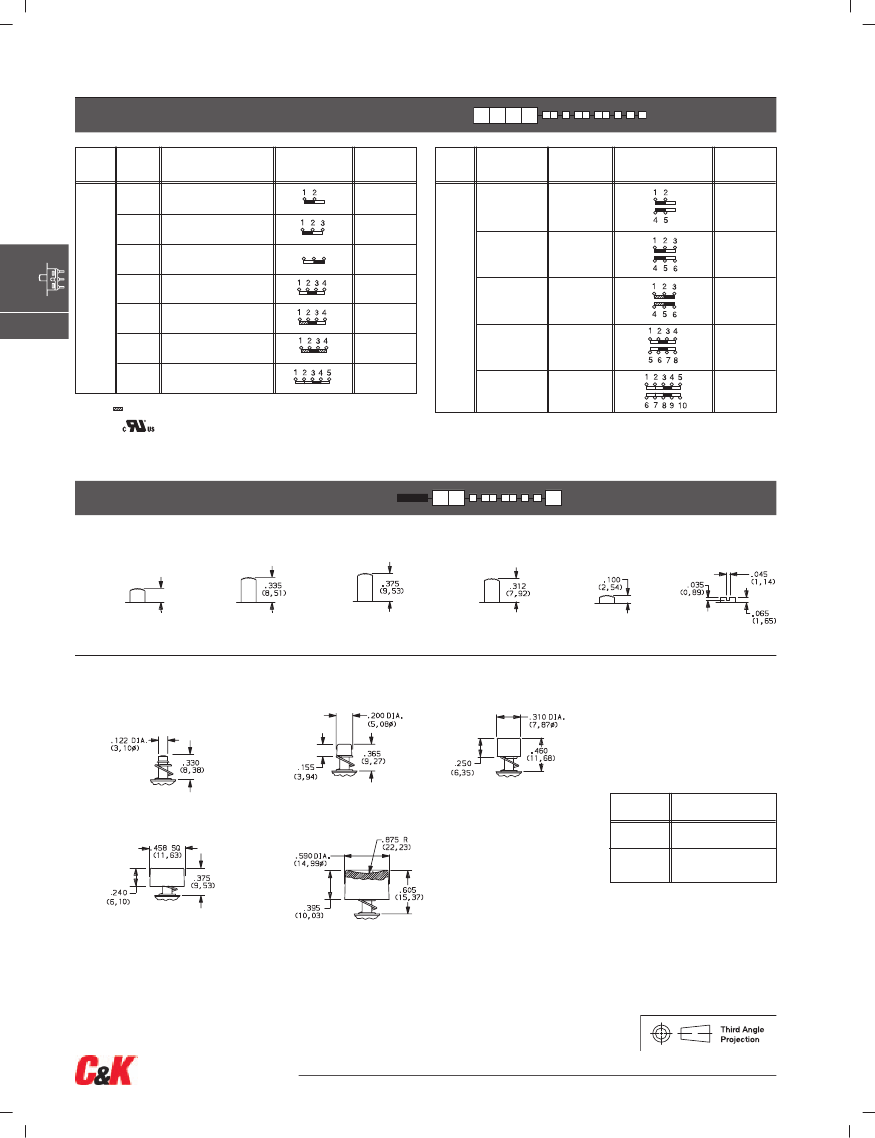

SWITCH AND LOCK FUNCTION
NO.
POLES
MODEL
NO.
AVAILABLE
MOUNTING
STYLES
ML, MS, SS
NO.
POLES
MODEL
NO.
SWITCH
FUNCTION
AVAILABLE
MOUNTING
STYLES
SWITCH FUNCTION
SPST
SCHEMATIC
SCHEMATIC
L101
L102
L112
SP
L201
DPST
MA, MS, SS
SPDT
1 2 3
ML, MS, SS
SPDT-MOM.
ML, MS,MV, SS
L202
DPDT
MA, MS, SS
L103
L113
L123
L104
SP3T
MA, MS, TS
DP
L212
DPDT-MOM.
MV
I
Slide
SP3T-MOM. to one end
MA, MS, TS
SP3T-MOM. to both ends
MA, MS, TS
L203
DP3T
MS, TS
SP4T
MS
L204
NOTE:
All models
and MOM. in table indicates momentary action.
with all options when ordered with ‘G’ or ‘Q’ contact material.
DP4T
MS
Contacts make on side actuator thrown.
CAP COLOR
ACTUATOR
ACTUATOR
ACTUATOR OPTIONS FOR ‘MS, MA, ML, SS, & TS’ MOUNTING STYLES
01
.200" HIGH
02
.200
5,08
.335" HIGH
03
.375" HIGH
05
.312" HIGH
11
.100" HIGH
12
SCREWDRIVER SLOT
NOTE:
No actuator color option code is required. Standard actuator color is
black, other colors and heights available, consult Customer Service Center.
See pages I-20 and I-22 for available mounting styles.
ACTUATOR OPTIONS FOR ‘MV’ MOUNTING STYLE
13
PLUNGER WITHOUT CAP
14
PLUNGER WITH CAP
15
PLUNGER WITH CAP
Cap part number 7089
Cap part number 8018
OPTION
CODE
ACTUATOR CAP
COLORS
BLACK
17
PLUNGER WITH CAP
19
PLUNGER WITH CAP
2
NONE
01-13 ACTUATORS
Other colors available,
consult Customer Service Center.
Cap part number 7982
Cap part number 8940
ACTUATOR CAPS
Caps supplied are not installed standard. To order actuator options ‘14 thru 19,’ select
desired cap color from chart and place option code in last box of ordering format. Leave box
empty for all other actuator options. Caps may also be ordered separately and user installed,
see pages I-23 and I-24. Specify the four digit part number and desired cap color. For
switches without caps, order ‘13’ or ‘23’ actuator option. Cap finish: gloss (excluding square
cap part number 7982, finish: matte).
SPLASH CAPS
New protective splash caps for PC mounted slide
switches are available separately and reusable.
They provide splash protection during soldering and
cleaning processes. To order specify correct part
number, see page I-24.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
I–20
www.ck-components.com
L Series
Miniature Slide Switches
DETENT
1
2
WITH DETENT
Standard with all maintained models: L101, L102, L103, L104, L113, L201, L202, L203 and L204.
WITHOUT DETENT
Standard with all momentary models: L112, L123, and L212.

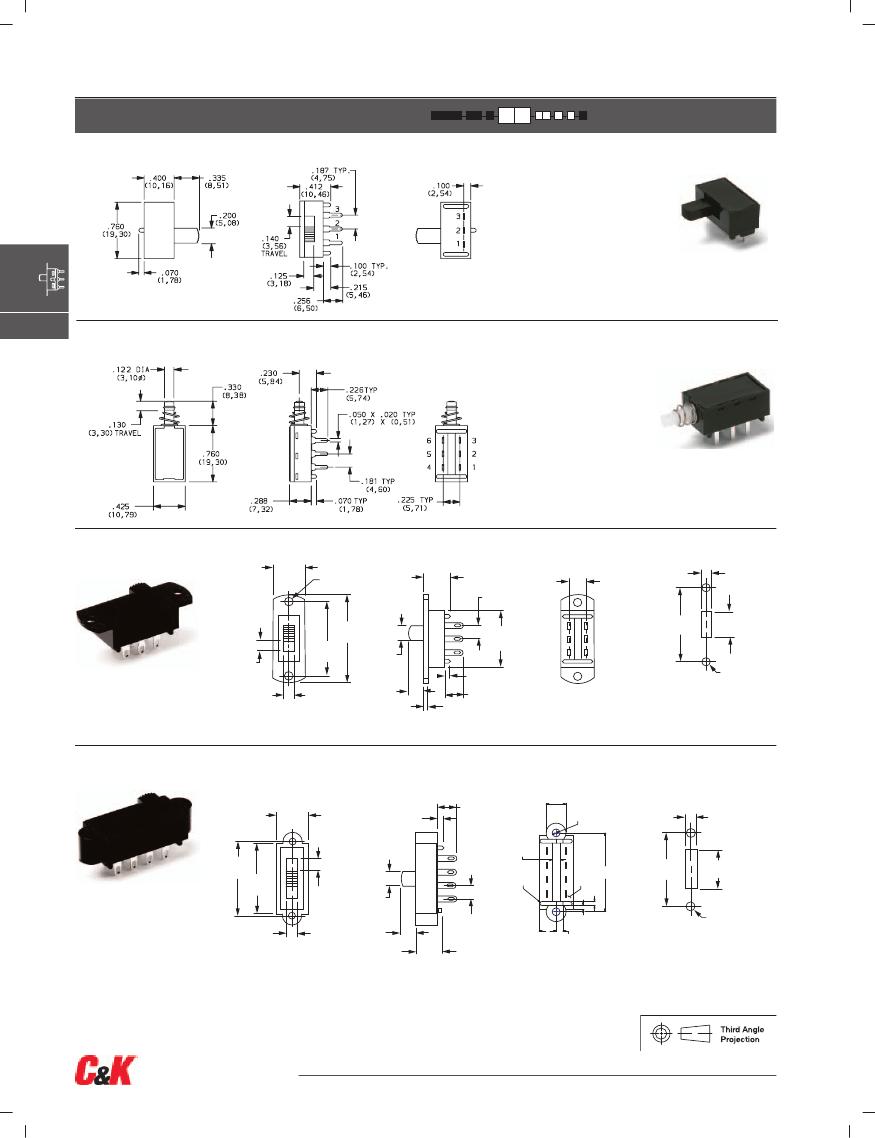

MOUNTING STYLE
MS
PC THRU-HOLE, 2 POSITION MODELS
.200
(5,08)
.150 TRAVEL
(3,81)
.752
(19,10)
.200
(5,08)
.070 TYP
.125 TYP
(1,78)
(3,18)
.288
(7,32)
.050 X .020 TYP
(1,27) X (0,51)
6
5
4
.181 TYP
(4,60)
.221 TYP
(5,61)
.225 TYP
(5,71)
3
2
1.181
TYP
(4,60)
.425
(10,79)
AVAILABLE WITH:
.225 TYP
(5,70)
Models:
L101, L102, L112, L103, L113 L123,
L201, L202, L203, L104 and L204
Terminations:
02, 06, 10 and 12
Actuators:
01, 02, 03, 05, 11 and 12
PC MOUNTING
For mounting information, see
TERMINATIONS section, page I-23.
Splash caps are available separately
and reusable, see page I-24.
I
Slide

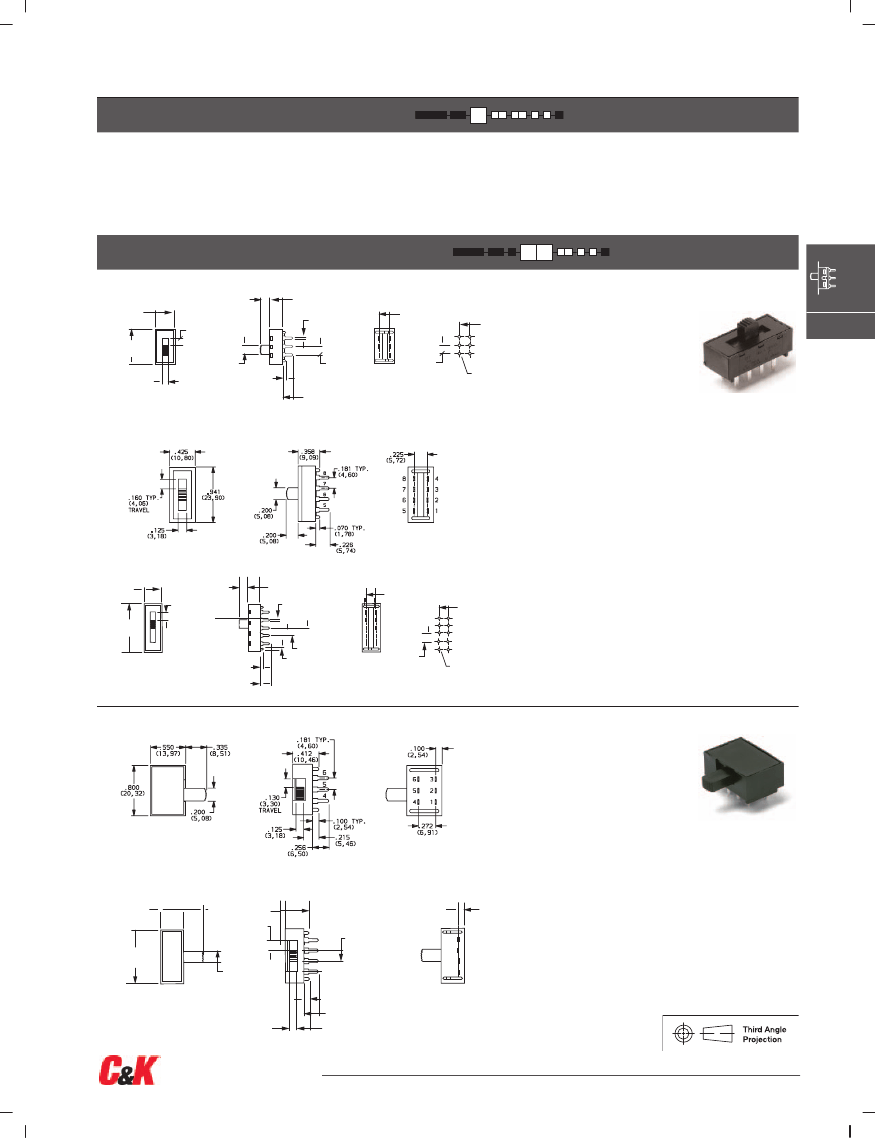

TERMINAL NOS. FOR
REFERENCE ONLY
.065 DIA
(1,65) TYP
L203011MS02Q
PC THRU-HOLE, 3 POSITION MODELS
DP3T
PC THRU HOLE, 4 POSITION MODELS
.425
(10,79)
.200
(5,08)
.170 TRAVEL
(4,32) TYP
.288
(7,32)
.050 X .020 TYP
(1,27) X (0,51)
10
9
8
7
6
.225 TYP
(5,71)
5
4
3
2
1
.181 TYP
(4,60)
TERMINAL NOS. FOR
REFERENCE ONLY
.225 TYP
(5,70)
1.122
(28,50)
.181 TYP
(4,60)
.070 TYP
(1,78)
.232 TYP
(5,89)
.050 TYP
(1,27)
.065 DIA
(1,65) TYP
MA
RIGHT ANGLE, PC THRU-HOLE
AVAILABLE WITH:
Models:
L103, L201, L202, L113 and L123
Terminations:
04
Actuators:
02 and 12
PC MOUNTING
For mounting information, see
TERMINATIONS section, page I-23.
Splash caps are available separately
and reusable, see page I-24.
L202021MA04Q
Horizontal Actuation
RIGHT ANGLE, PC, SP-3 POSITION MODELS
DPDT
.400
(10,16)
.335
(8,51)
.412
(10,46)
.140
(4,06)
TRAVEL
.100 TYP
(2,54)
.181 TYP
(4,60)
4
3
2
1
0.941
(23,90)
.200
(5,08)
4
3
2
1
TERM. NOS. FOR
REFERENCE ONLY
.100 TYP
(2,54)
.256
(6,50)
.215
(5,46)
0.125
(3,18)
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
I–21
www.ck-components.com
L Series
Miniature Slide Switches
MOUNTING STYLE
ML
RIGHT ANGLE, PC THRU-HOLE
AVAILABLE WITH:
Models:
L101, L102, L112
Terminations:
04
Actuators:
01, 02, 05, 11 and 12
PC MOUNTING
For mounting information, see
TERMINATIONS section, page I-23.
Splash caps are available separately
and reusable, see page I-24.
L102021ML04Q
Horizontal Actuation
SPDT
I
Slide
MV
RIGHT ANGLE, PC THRU-HOLE
AVAILABLE WITH:
Models:
L112 and L212
Terminations:
02, 06, 10 and 12
Actuators: 13 thru 19
PC MOUNTING
For mounting information, see
TERMINATIONS section, page I-23.
Splash caps are available separately
and reusable, see page I-24.
L212132MV02Q
DPDT
SS
PANEL WITH MOUNTING EARS
.425
(10,60)
ø .100
(2,54)
.358
(9,09)
.181 TYP
(4,60)
1.200
(30,48)
1.000
(25,40)
6
5
.200
(5,08)
.200
(5,08)
4
.070 TYP
(1,78)
.240
.050 (6,10)
(1,27)
.760
(19,30)
PANEL MOUNTING
.225
(5,72)
.135
(3,43)
6
5
4
3
2
1
1.000
(25,40)
.360
(9,14)
L202011SS03Q
.150
(3,81)
TRAVEL
.110 DIA
(2,79ø) TYP
DPDT
.125
(3,18)
AVAILABLE WITH:
Models:
L101, L102, L112, L201 and L202
Terminations:
01, 02, 03, 06, 10, 12
Actuators:
01, 02, 03, 05, 11 and 12
TS
PANEL WITH INTEGRAL MOUNTING EARS
ø
.425
(10,80)
.070 TYP
(1,78)
.240
(6,10)
0.250
(6,35)
ø 0.100 TYP
(2,54)
PANEL MOUNTING
.135
(3,43)
0.100
(2,54)
1.000
(25,40)
.941
(23,90)
7
6
.160 TYP
(4,06)
TRAVEL
.200
(5,08)
5
.181
(4,60)
TYP
.200
(5,08)
.358
(9,09)
CAVITY I.D.
0.0625 HIGH X
0.010 RAISED
L203011TS03Q
2X 0.050
(1,27)
FULL R
TYP.
1.000
(25,40)
1.000
(25,40)
.530
(13,46)
DP3T
.125
(3,18)
2X 0.218
(5,53)
2X 0.050
(1,27)
0.080
(2,03)
AVAILABLE WITH:
.110 DIA
(2,79ø)
Models:
L103, L113, L123 and L203
Terminations:
01, 02, 03, 06, 10, 12
Actuators:
01, 02, 03, 05, 11 and 12
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
I–22
www.ck-components.com
L Series
Miniature Slide Switches

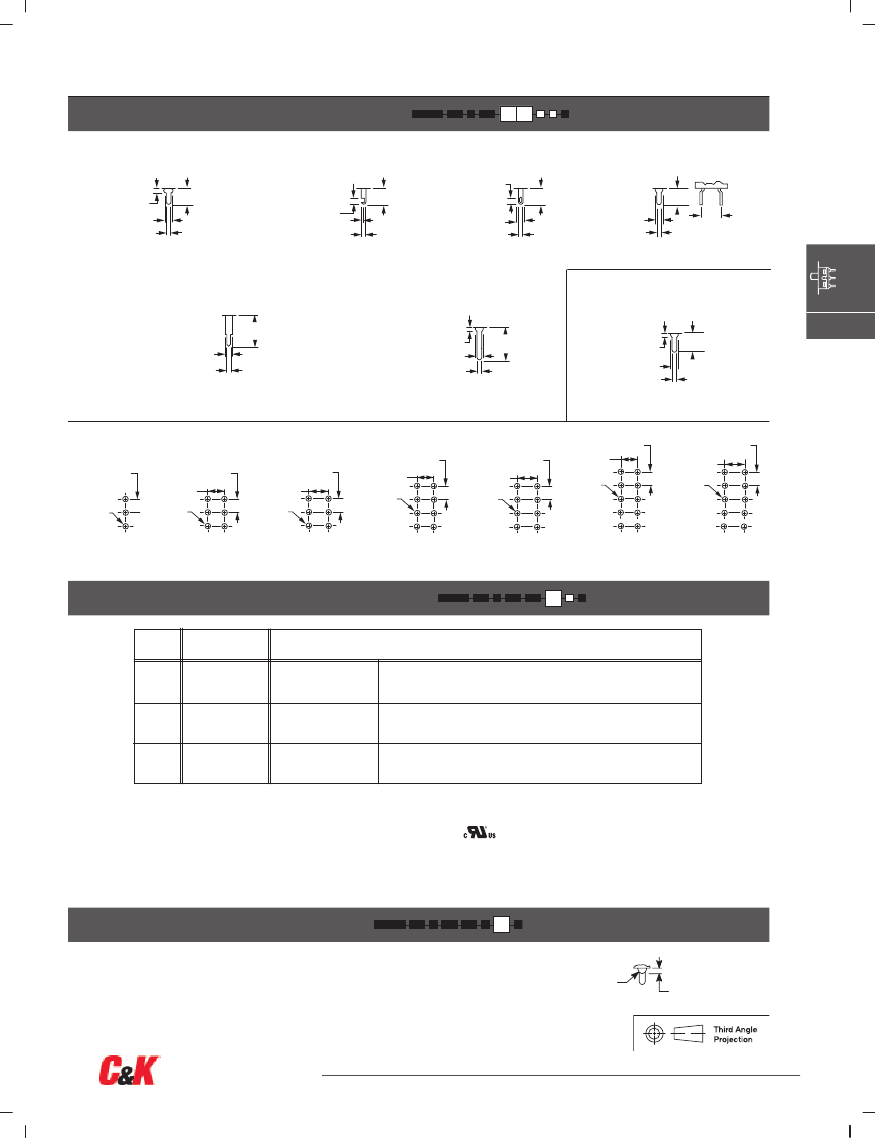

TERMINATIONS
‘MS, MV, SS & TS’ Mounting Styles Only
02
PC THRU-HOLE
.226
(5,74)
01
SOLDER LUG WITH NOTCH
.240
(6,10)
.062
(1,57)
.028
(0,71)
03
SOLDER LUG WITH HOLE
.085
(2,16)
.240
(6,10)
10
PC THRU-HOLE
.226
(5,74)
.060
(1,52)
.080
(2,03)
.050
(1,27)
.020 THK.
(0,51)
.080
(2,03)
.020 THK.
(0,51)
.080
(2,03)
.046
(1,17)
.020 THK.
(0,51)
.080
(2,03)
.272
(6,91)
.050
(1,27)
.020 THK.
(0,51)
‘MA & ML’ Mounting Styles Only
12
PC THRU-HOLE
.419
(10,64)
.080
(2,03)
06
WIRE WRAP
04
.445
(11,30)
.050
(1,27)
PC THRU-HOLE
.050
(1,27)
.065
(1,65)
.080
(2,03)
.085
(2,16)
.080
(2,03)
.256
(6,50)
I
Slide
.020 THK.
(0,51)
.020 THK.
(0,51)
.050
(1,27)
.020 THK.
(0,51)
.187 TYP.
(4,75)
.065 DIA
(1,65ø
TYP.
All models with ‘04’
terminations and
‘ML’ mounting style.
.181 TYP.
(4,60)
.225
(5,72)
.065 DIA
(1,65ø)
TYP.
All 2 position models,
except ‘04’ and ‘10’
terminations.
.181 TYP.
(4,60)
.272
(6,91)
.065 DIA
(1,65ø)
TYP.
All 2 position models
with ‘04’ and ‘10’
terminations.
.181 TYP.
(4,60)
.225
(5,72)
.065 DIA
(1,65ø)
TYP.
.181 TYP.
(4,60)
.272
(6,91)
.065 DIA
(1,65ø)
TYP.
.181 TYP.
(4,60)
.225
(5,72)
.065 DIA
(1,65ø)
TYP.
.181 TYP.
(4,60)
.272
(6,91)
.065 DIA
(1,65ø)
TYP.
All 3 position models
except ‘04’ and ‘10’
terminations.
All 3 position models,
with ‘10’ termination.
All 4 position models,
except ‘04’ and ‘10’
terminations.
All 4 position models,
with ‘10’ terminations.
CONTACT MATERIAL
OPTION
CODE
CONTACT
MATERIAL
LOW LEVEL/DRY
CIRCUIT
RATINGS
LX0X, LX1X MODELS: 4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC;
0.5 AMP @ 125 V DC (UL).
LX6X MODELS: 4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC
(UL).
Q
SILVER
2
B
GOLD
1
POWER
0.4 VA MAX. @20 V AC OR DC max.
LX0X, LX1X MODELS: 0.4 VA MAX. @ 20 V AC or DC MAX. or 4 AMPS @
125 V AC or 28 V DC; 2 AMPS @ 250 V AC; 0.5 AMP @ 125 V DC (UL).
LX6X MODELS: 0.4 VA MAX. @ 20 V AC or DC MAX. or 4 AMPS @ 125 V AC or
28 V DC; 2 AMPS @ 250 V AC (UL).
G
GOLD OVER
SILVER
3
LOW LEVEL/DRY
CIRCUIT OR POWER
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
1
2
3
CONTACTS & TERMINALS: Copper, with gold plate over nickel plate.
CONTACTS & TERMINALS: Copper, silver plated (standard with all termination options).
CONTACTS & TERMINALS: Copper, with gold plate over nickel plate over silver plate.
NOTE:
Any models supplied with Q, B or G contact material are RoHS compliant.
All models
with all options when ordered with ‘G’ or ‘Q’ contact material.
NOTE:
‘G’ contact material is equivalent to both ‘B’ and ‘Q’ contact materials.
SEAL
NONE
NO SEAL
E
EPOXY SEAL
EPOXY
.075 MAX.
(1,91)
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
I–23
www.ck-components.com
京公网安备 11010802033920号
EEWORLD
