L112152MV02Q2

Description
slide switches spdt ON-(ON) R/A
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size284KB,6 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

L112152MV02Q2 Online Shopping

Suppliers Part Number Price MOQ In stock
L112152MV02Q2 - - View Buy Now

L112152MV02Q2 Overview

slide switches spdt ON-(ON) R/A

L112152MV02Q2 Parametric

Parameter NameAttribute value
ManufactureC&K Components
Product CategorySlide Switches
RoHSYes
Contact FormSPDT
Switch FunctiON - (ON)
Contact Current Rating4 A at 125 V
Voltage Rating AC125 V
Termination StyleSolder Pi
ActuWithout C
Mounting StyleThrough Hole
Contact PlatingSilve
PackagingBulk
Flammability RatingUL 94 V-2
Mounting AngleRigh
Operating Temperature Range- 10 C to + 60 C
Factory Pack Quantity1
Travel3.3 mm
TypeSlide Switch

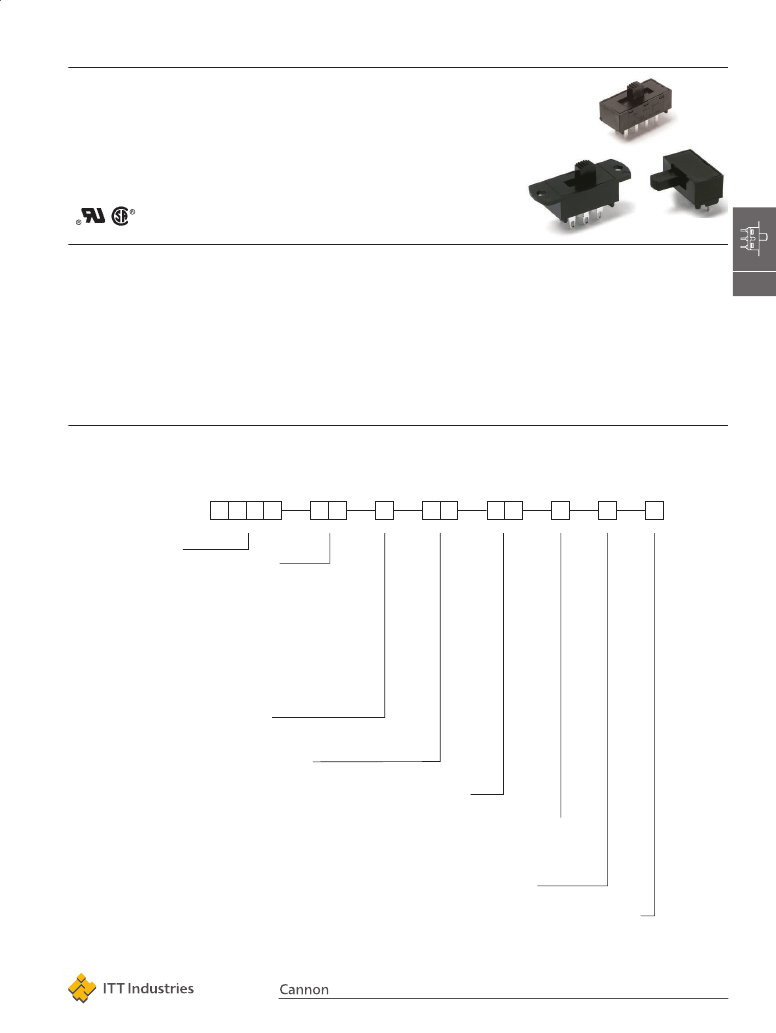

C&K L Series
Miniature Slide Switches
Features/Benefits
Positive detent
Enclosed housing
Maintained and momentary functions
PC and panel mounting
Typical Applications
Communications equipment
Lighting devices
Models Available
Specifications
CONTACT RATING: Q contact material (LX0X, LX1X Models): 4 AMPS
@ 125 V AC or 28 V DC; 2 AMPS @ 250 V AC; 0.5 AMP @
125 V DC (UL/CSA). See page I-23 for additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m
typ. initial
@ 2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Materials
HOUSING: 6/6 nylon (UL94V-2), black.
ACTUATOR: 6/6 nylon (UL94V-2), black.
‘13’ actuator, natural (standard).
CONTACTS: Q contact material: Copper, silver plated. See page
I-23 for additional contact materials.
TERMINALS: Q contact material: Copper, silver plated. See page
I-23 for additional contact materials.
CONTACT SPRING: Music wire or stainless steel.
TERMINAL SEAL: Epoxy.
I
Slide
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages I-20 thru I-23. For additional options not shown in catalog, consult Customer Service Center.

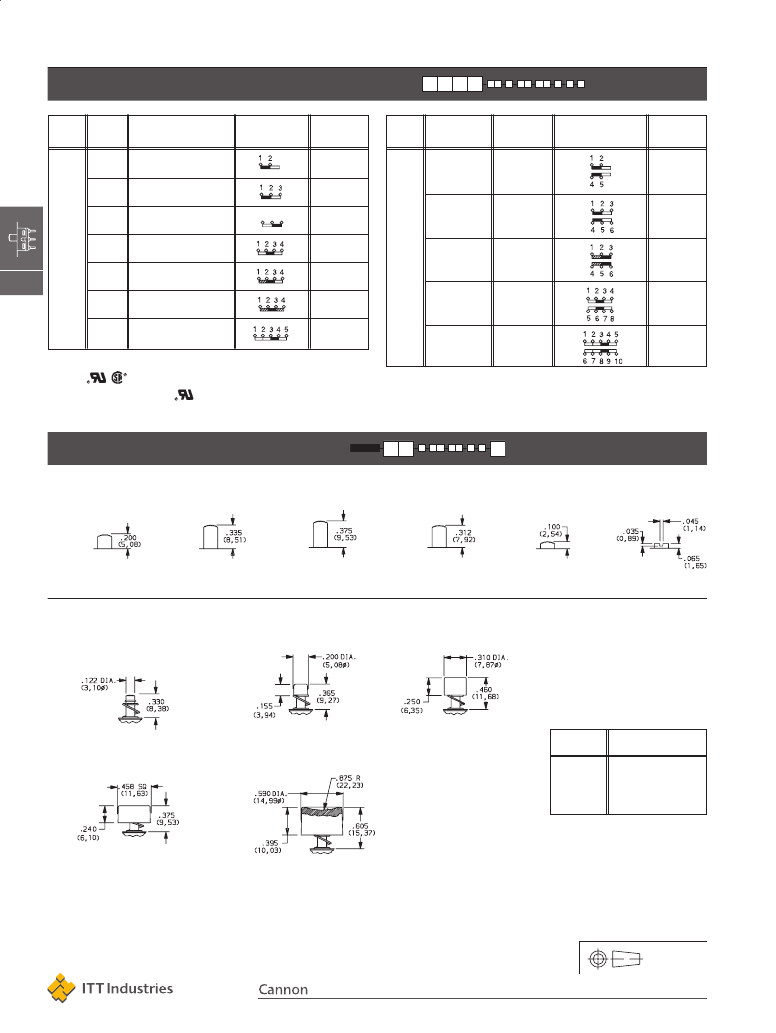

Switch Function
L202
(STD.) DPDT
L203
(STD.) DP3T
L101
SPST
L102
SPDT
L103
SP3T
L104
SP4T
L112
SPDT, mom.
L113
SP3T, mom. to one end
L123
SP3T, mom. to both ends
L201
DPST
L204
DP4T
L212
DPDT, mom.

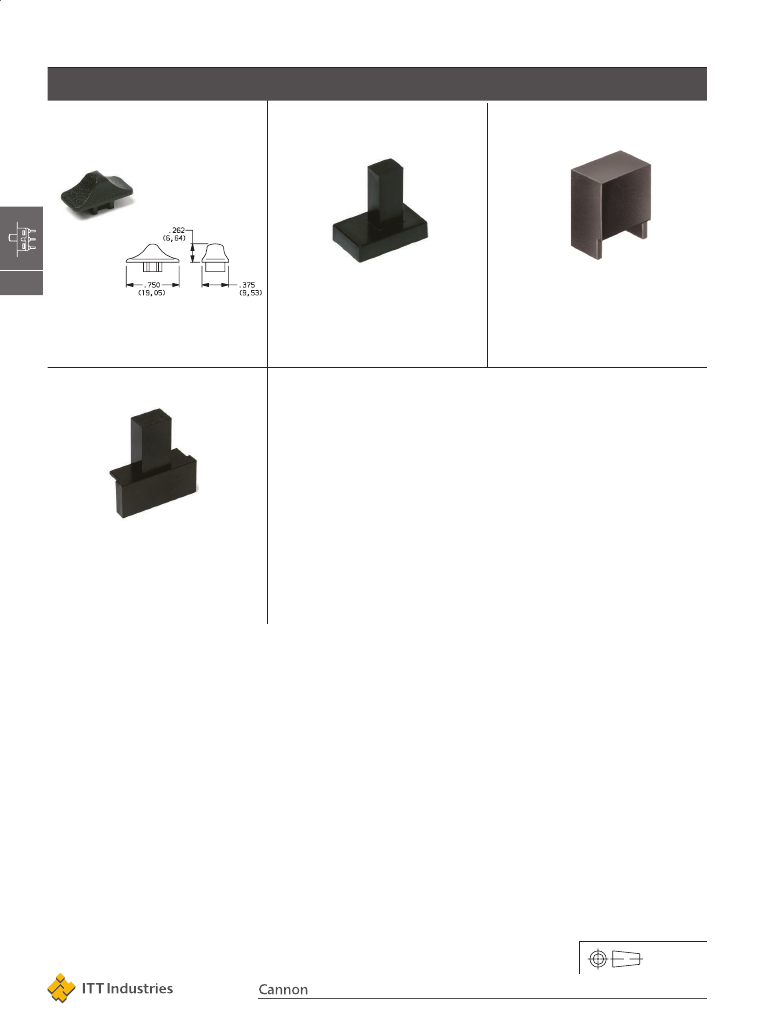

Actuator
01
(STD.) .200" high
02
.335" high
03
.375" high
05
.312" high
11
.100" high
12
Screwdriver slot
13
Plunger without cap
14
Plunger with .200" dia. cap
15
Plunger with .310" dia. cap
17
Plunger with .458" dia. cap
19
Plunger with .590" dia. cap
Detent
1
(STD.) With detent
2
Without detent

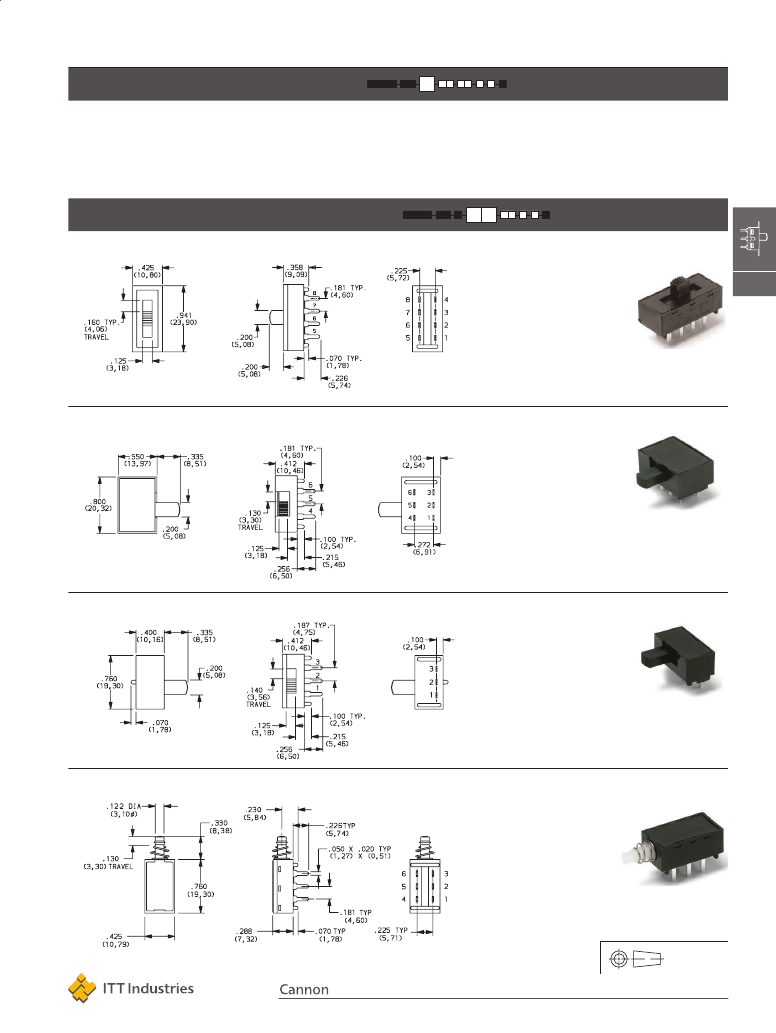

Mounting Style
MS
(STD.) PC Thru-hole
MA
Right angle, PC thru-hole
ML
Right angle, PC thru-hole
MV
Right angle, PC thru-hole
SS
Panel with mounting ears
TS
Panel with integral mounting ears
Terminations
02
(STD.) PC Thru-hole
01
Solder lug with notch
03
Solder lug with hole
04
PC Thru-hole
10
PC Thru-hole
06
Wire wrap
12
PC Thru-hole
WC
Wire lead
Contact Material
Q
(STD.) Silver
B
Gold
G
Gold over silver
Seal
NONE
(STD.) No seal
E
Epoxy seal

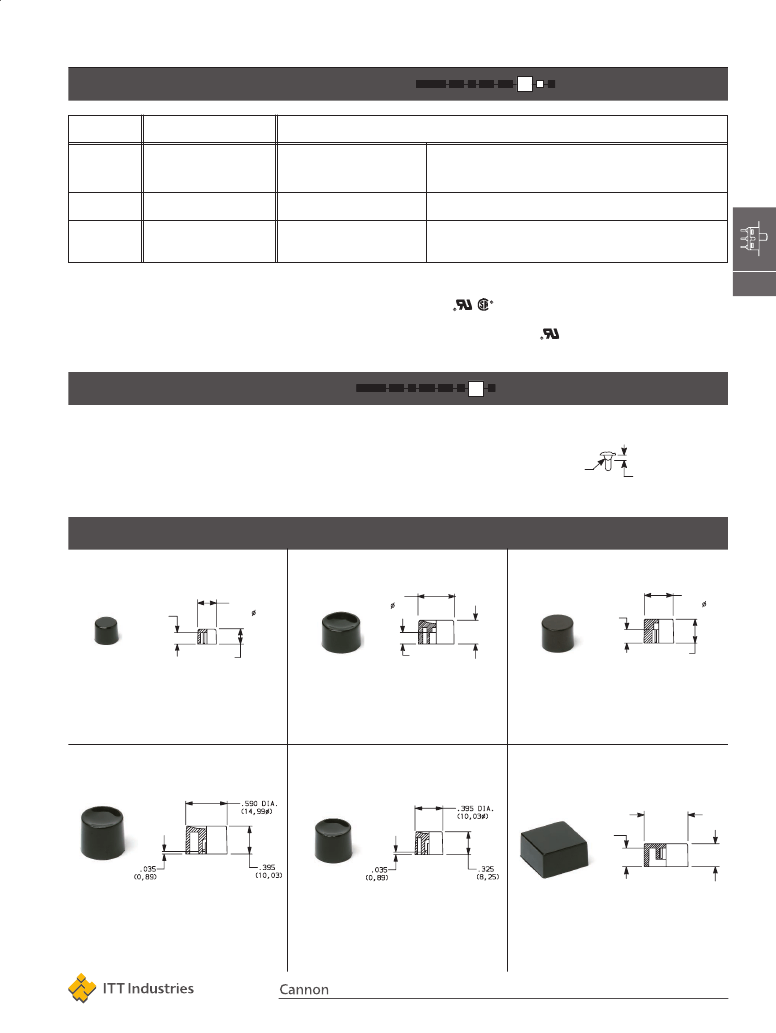

Cap Color
2
(STD.) Black
NONE
No cap
3
Red
Dimensions are shown: IN (mm)
Dimensions subject to change
I-19
www.ittcannon.com
