YB215CWCKW01/CUL-5C-JB datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> YB215CWCKW01/CUL-5C-JB

Preview

YB215CWCKW01/CUL-5C-JB: Descriptionilluminated pushbutton switches spdt, red led clear/white lens; CategoryTopical application Mechanical and electrical/engineering/automation; File Size3MB，11 Pages; ManufacturerNKK; Websitehttps://www.nkkswitches.com.cn; Environmental Compliance

Download Datasheet Parametric View All

YB215CWCKW01/CUL-5C-JB Overview

illuminated pushbutton switches spdt, red led clear/white lens

YB215CWCKW01/CUL-5C-JB Parametric

Parameter Name	Attribute value
Manufacture	NKK Switches
Product Category	Illuminated Pushbutton Switches
RoHS	Yes
Contact Form	SPDT
Switch Functi	ON - (ON)
Current Rating	3 A
Voltage Rating AC	125 V
Mounting Style	Panel
Illuminati	LED
Illumination Col	Red
Termination Style	Solder Lug
Actu	Plunger, with C
Cap Col	Clear, White
Contact Plating	Silve
Flammability Rating	UL 94 V-0
Housing Material	Polyamide, Glass Fiber Reinforced
IP Rating	IP 65
LED Size	T-1 Bi-pi
Factory Pack Quantity	50
Terminal Seal	Epoxy

Preview

Download Datasheet

View All

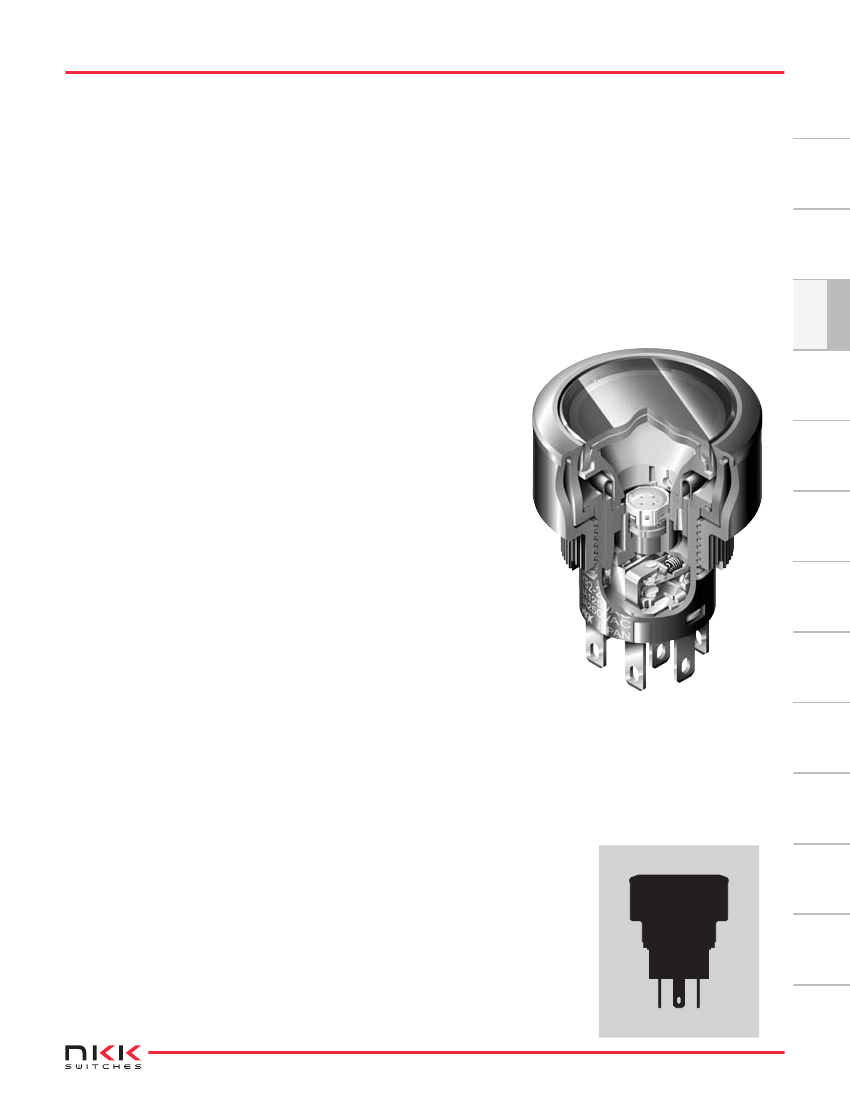

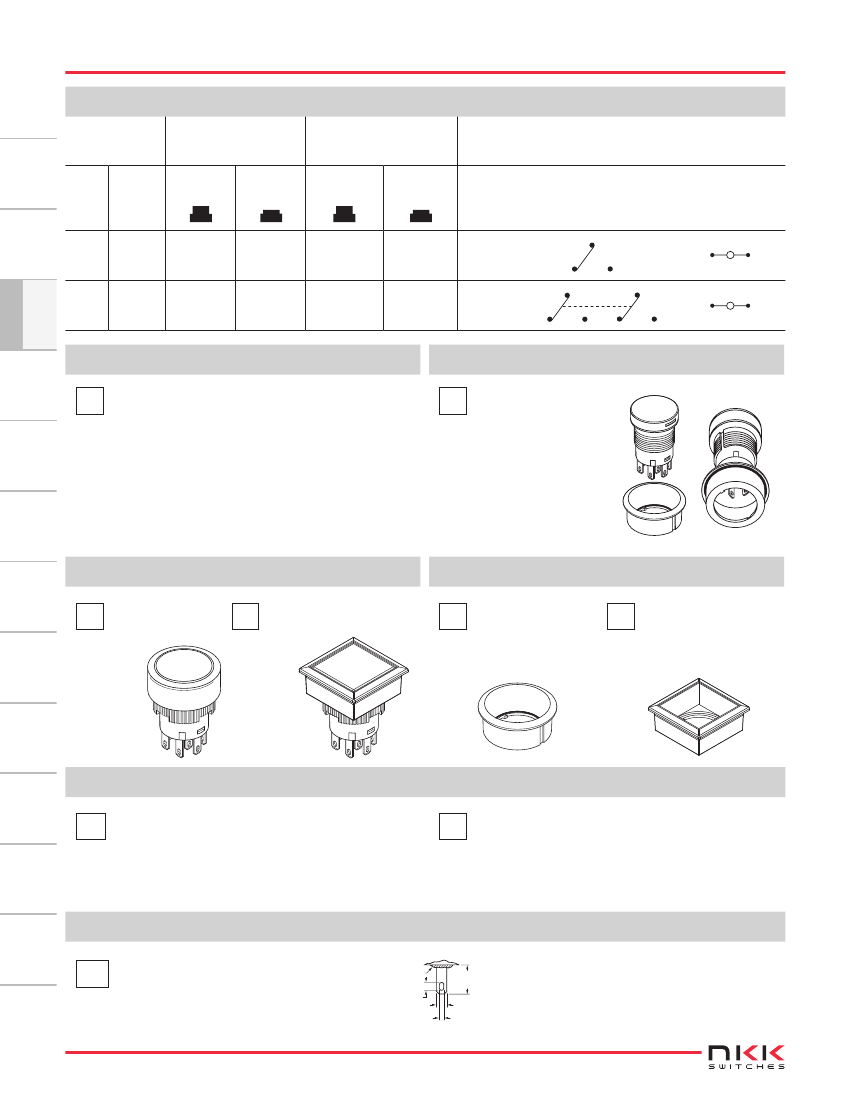

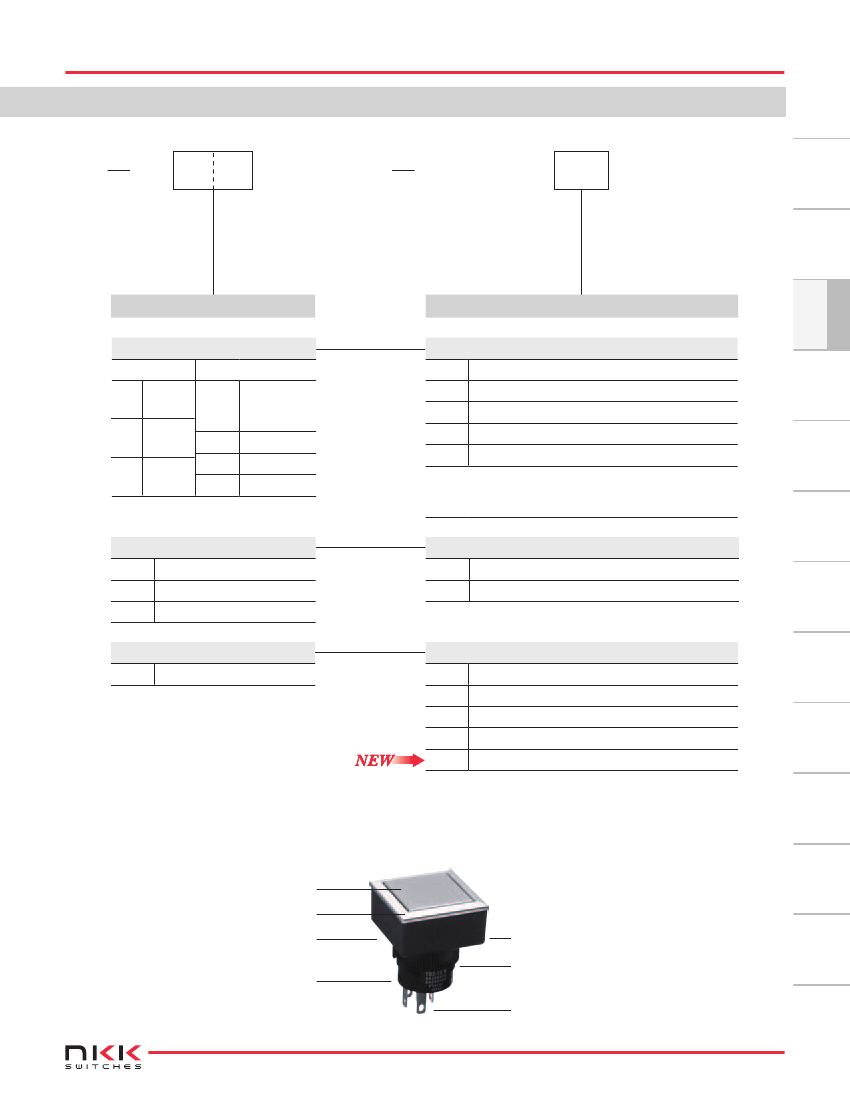

Series YB2

Toggles

Panel Seal Pushbuttons

General

Specifications

Electrical Capacity (Resistive Load)

Power Level (silver):

Logic Level (gold):

3A @ 125V AC or 3A @ 250V AC or 3A @ 30V DC

0.4VA maximum @ 28V AC/DC maximum

(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)

Pushbuttons

Rockers

Other Ratings

Programmable

Illuminated PB

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Mechanical Life:

Electrical Life:

Nominal Operating Force:

Contact Timing:

Travel:

Keylocks

50 milliohms maximum for silver; 100 milliohms maximum for gold

200 megohms minimum @ 500V DC

1,000V AC minimum between contacts for 1 minute minimum;

1,500V AC minimum between contacts & case for 1 minute minimum

1,000,000 operations minimum for momentary circuit

200,000 operations minimum for maintained circuit

100,000 operations minimum

Single pole: 1.5N

Double pole: 3.0N

Nonshorting (break-before-make)

Pretravel .059” (1.5mm); Overtravel .059” (1.5mm); Total Travel .118” (3.0mm)

Materials & Finishes

Rotaries

Bezel:

Housing:

Base:

Movable Contactor:

Movable Contacts:

Stationary Contacts:

Switch Terminals:

Lamp Terminals:

Black: Glass fiber reinforced polyamide (UL94V-0); Chrome plated: Chrome plating over ABS

resin (UL94V-2)

Glass fiber reinforced polyamide (UL94V-0)

Phosphor bronze with silver or gold plating

Silver alloy or copper with gold plating

Phosphor bronze with tin plating

Tactiles

Slides

Environmental Data

Operating Temperature Range:

Humidity:

Vibration:

Shock:

Sealing:

–25°C through +50°C (–13°F through +122°F) for Illuminated

–25°C through +70°C (–13°F through +158°F) for Nonilluminated

90 ~ 95% humidity for 240 hours @ 40°C (104°F)

10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning

in 1 minute; 3 right angled directions for 2 hours

50G (490m/s

) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)

IP65 of IEC60529 standard

Touch

Tilt

Installation

Indicators

Mounting Torque:

Soldering Time & Temperature:

0.785Nm (6.95 lb

•

in) maximum

Manual Soldering: See Profile A in Supplement section.

Standards & Certifications

Supplement

Accessories

Flammability Standards:

UL:

UL94V-0 housing, base & black bezel

File No. E44145 - Recognized only when ordered with marking on switch.

Add “/CUL” before first dash in part number to order cULus marking on switch.

All solder lug models recognized at 3A @ 125/250V AC or 0.4VA @ 28V AC/DC maximum.

D114

www.nkk.com
