E-Box modular
Housing for RAFIX 22 FS+ control components
The RAFIX 22 FS+ E-Box is an elegant, extremely well-
designed housing for control components. It can be
used wherever individual control component units are
required in remote places. Very typical, for example, for
Emergency-Stop applications along a production line or
on the safety fence.
The dimensions of the RAFIX 22 FS+ E-Box and also the
assembly concept are based on the edge dimension of
a 40 mm profile rail.
Instructional video for assembly: see
www.rafix22fs.de

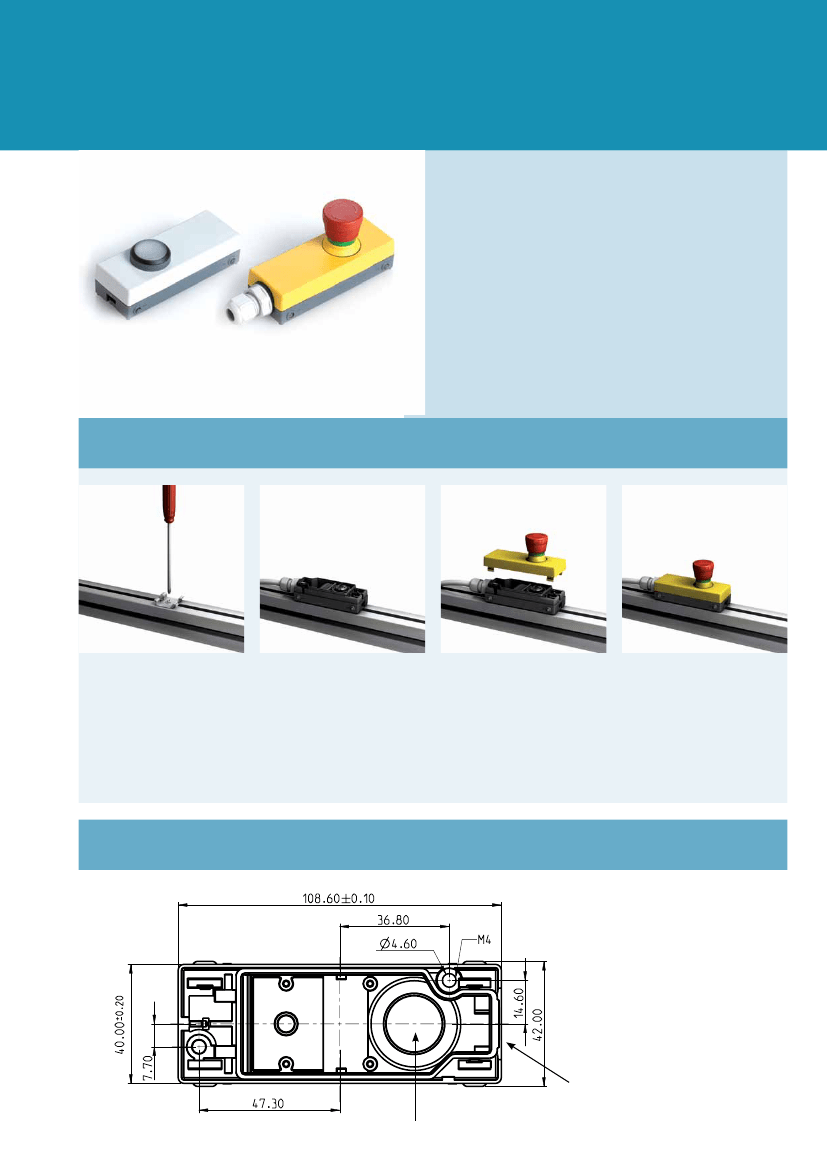

Simple assembly concept, based on 40 mm profile rails
■
Insert metal clip in profile
rail slot (locating noses on
the clip ensure precise
adjustment, fix with only
one screw)
The metal clip can also be
screwed onto other surfaces.
■
■
■
■
Mount housing bottom part
Attach contact module
Insert the wires
Connect the terminals
■
(e.g. E-Stop) into
housing top part
■
Insert
RAFIX 22 FS+ actuator
■
Snap housing top part onto
bottom part. Done!
Fix actuator with a ring nut
■
Drilling pattern for direct mounting with screws
■
As an alternative to mount-
ing with the metal clip, the
bottom of the housing can
be attached directly with M4
screws.
Cable inlet
on bottom
Cable inlet
on side
2
E-Box modular
Housing for RAFIX 22 FS+ control components

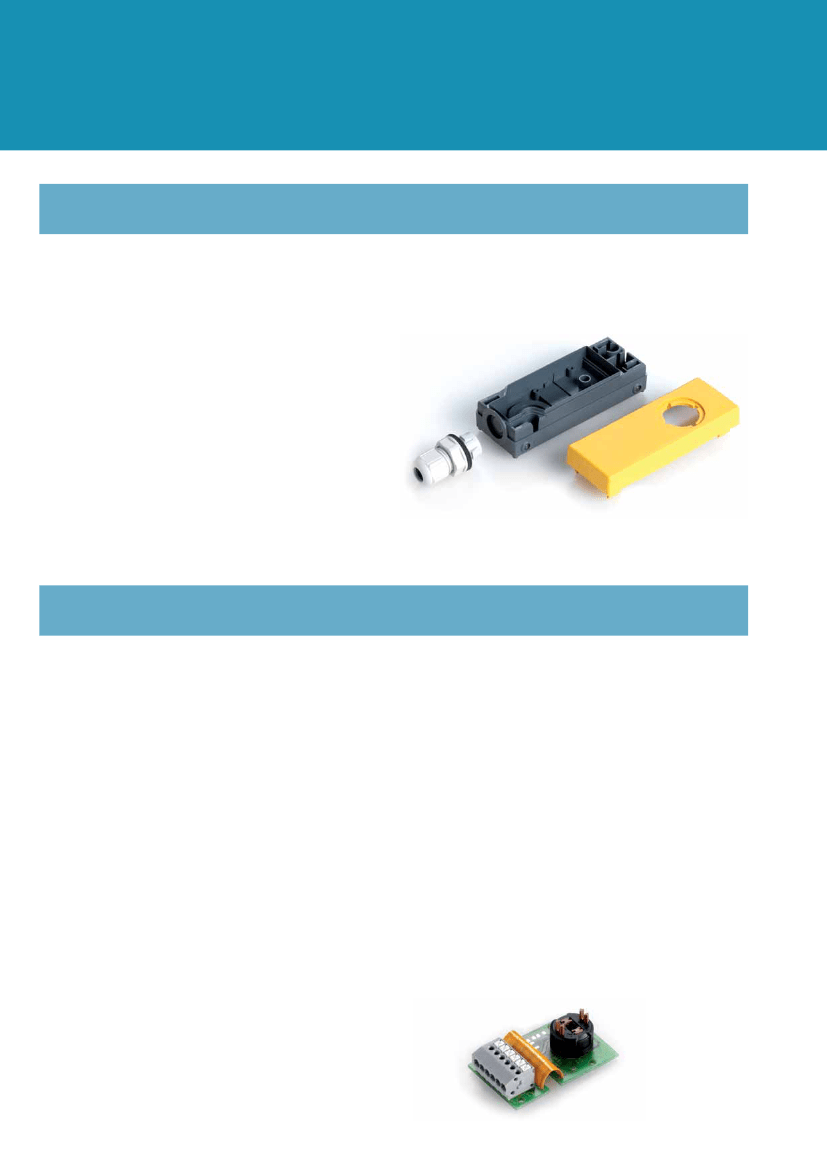

Housing
■
■
■
■
■
■
Extremely compact (dimensions 109 x 40 x 27 mm)
Suitable for actuators from the RAFIX 22 FS+ control
unit range (ø 22.3 mm)
With yellow housing cap for E-Stop actuator
With grey housing cap for standard actuators (such as
pushbuttons)
Fixing
■
with the timesaving one-hole screw attachment me-
thod, particularly suitable for aluminium profile rails
■
or alternatively by direct attachment with M4 screws
Includes cable lead-in for direct cabling
■
side: M16
■
bottom: M20
Technical data
■
Protection as per EN 60529: IP65
■
Protection class II
■
Temperature range as per IEC 60947-5-1¹
¹ Depending on actuators used
Contact module
■
■
■
■
With RAFIX 22 FS+ contact block for
■
E-Stop actuator or
■
Standard actuator
Contact block with 2 contact cavities
(for E-Stop “PLUS 1” with 3 contacts)
Option with LED for illuminated actuator components
Line connection (max. 1.5 mm²)
■
in bottom of housing
■
with spring clamp (rigid wire, wire with or without
cable end sleeve)
General information: contact modules
■
Working temperature: -25 °C – +70 °C
■
Storage temperature: -40 °C – +85 °C
■
Shock resistance as per EN 60068-2-27
■
Vibration resistance as per EN 60068-2-6
■
Resistance to environmental conditions as per
EN 60068-2
Technical data
Contact module with gold contact blocks
■
Electrical characteristics:
■
operating voltage AC / DC min. 5 V
■
operating voltage AC / DC max. 35 V
■
operating current AC / DC min. 1 mA
■
operating current AC / DC max. 100 mA
■
switching capacity max. 250 mW
■
Life cycle at 10 mA / 24 V DC 1,000,000
(Emergency-Stop “PLUS 1”: 50,000)
Technical data
Contact module with silver contact blocks
■
Electrical characteristics as per IEC 60947, AC-15, DC-13:
■
rated insulation voltage AC / DC min. 250 V
■
rated impulse voltage 2.500 V
■
rated operating current
•
IE, AC15 B300 3 A / 120 V; 1,5 A / 240 V
•
I
the
: 5 A
■
rated operating current
•
IE, DC13 Q300 550 mA/120 V; 270 mA / 240 V
•
I
the
: 2,5 A
■
Life cycle (min.)
■
1.000.000 at 250 V / 1 A
■
100.000 at 250 V / 2 A
■
30.000 at 250 V / 4 A
3
E-Box modular
Housing for E-Stop applications

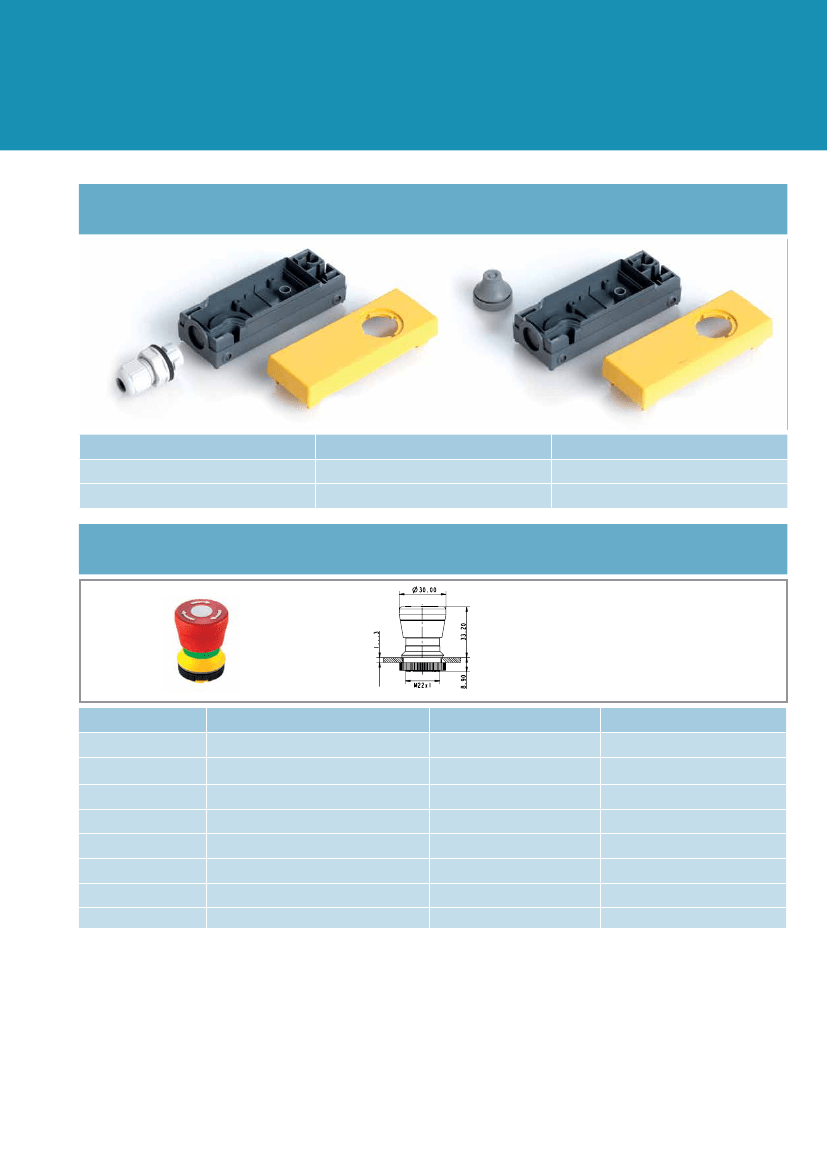

E-Box, yellow housing
Cable attachment side
Cable attachment bottom
Cable attachment
side M16
bottom M20
Colour of top
yellow
yellow
Order no.
1.20.810.302/0000
1.20.810.304/0000
RAFIX 22 FS+, E-Stop pushbutton
Reset
by turning clockwise
by turning clockwise
by turning clockwise
by pulling
by pulling
by pulling
by turning clockwise
by pulling
Illuminability
no
yes, window transparent uncoloured
yes, window transparent red
no
yes, window transparent uncoloured
yes, window transparent red
no
no
IP protection on front side
IP65
IP65
IP65
IP65, IP69K
IP65, IP69K
IP65, IP69K
IP65
IP65, IP69K
Order no.
1.30.273.501/0300
1.30.273.001/1000
1.30.273.001/0300
1.30.273.601/0300
1.30.273.101/0300
1.30.273.101/1300
1.30.273.502/0300 „PLUS 1“
1.30.273.602/0300 „PLUS 1“
For details see RAFI brochure RAFIX 22 FS+.
4
