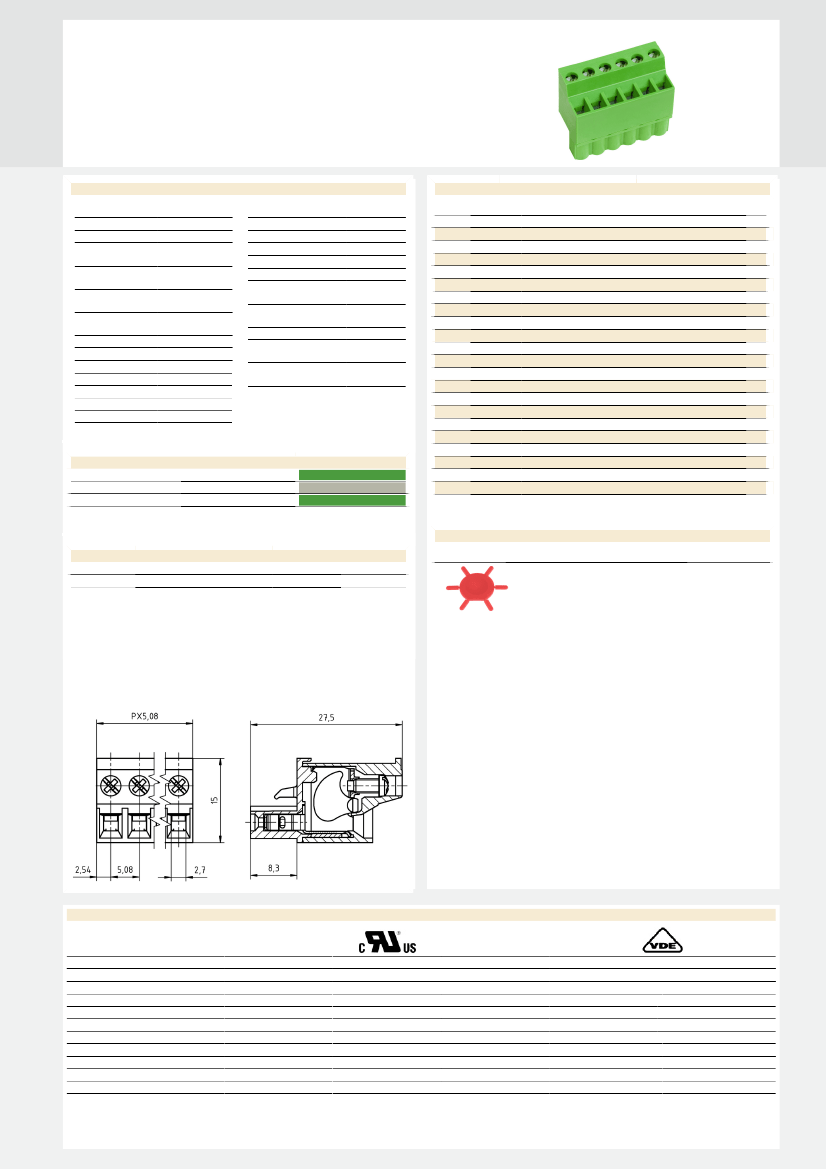

Excenter |
Spacing 5.08 mm
AKZ1200/..-5.08-GREEN
Technical Data
Wire Sizes
Solid min
solid max
Stranded (flexible)
min
Stranded (flexible)
max
0.2 mm²
4.0 mm²
0.2 mm²
2.5 mm²
Insulating Material
Material
Flammability Class
Temperatures
Operating Temperature
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Leere Zeile
-
-
-
-
-30 °C - 105 °C
PA 6.6
UL 94 V-0
Order Data (Spacing mm)
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Width (mm)
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
Article Designation
AKZ1200/2-5.08-GREEN
AKZ1200/3-5.08-GREEN
AKZ1200/4-5.08-GREEN
AKZ1200/5-5.08-GREEN
AKZ1200/6-5.08-GREEN
AKZ1200/7-5.08-GREEN
AKZ1200/8-5.08-GREEN
AKZ1200/9-5.08-GREEN
AKZ1200/10-5.08-GREEN
AKZ1200/11-5.08-GREEN
AKZ1200/12-5.08-GREEN
AKZ1200/13-5.08-GREEN
AKZ1200/14-5.08-GREEN
AKZ1200/15-5.08-GREEN
AKZ1200/16-5.08-GREEN
AKZ1200/17-5.08-GREEN
AKZ1200/18-5.08-GREEN
AKZ1200/19-5.08-GREEN
AKZ1200/20-5.08-GREEN
AKZ1200/21-5.08-GREEN
AKZ1200/22-5.08-GREEN
AKZ1200/23-5.08-GREEN
AKZ1200/24-5.08-GREEN
Article Number
51200020021D
51200030021D
51200040021D
51200050021D
51200060021D
51200070021D
51200080021D
51200090021D
51200100021D
51200110021D
51200120021D
51200130021D
51200140021D
51200150021D
51200160021D
51200170021D
51200180021D
51200190021D
51200200021D
51200210021D
51200220021D
51200230021D
51200240021D
PU
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
Stranded with Ferrule 0.25 mm²
min
Stranded with Ferrule 2.5 mm²
max
Dimensions
Stripped Length
Materials
Screw
Contact Spring
Clamp Cage
Excenter
Steel
Bronze
Stahl
Steel
10.0 mm
Colours
GREEN
PEBBLE GREY
LIGHT GREEN
21
RAL6018
RAL7032
similar RAL 6018
RAL6018
22
23
24
RAL7032
similar RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Accessories
Counterparts (Spacing 5.08 mm)
Pin Strip/Terminal Blocks
STLZ990
AK950-INV
STLZ950
Figure
STLZ970
AKZS950
Designation
Coding star CS1-5.0/5.08-RED
Article Number
50000000021
Ratings
Usegroup
Rated Voltage
Rated Current
Overvoltage Category
Rated Wire Size
solid
stranded
Torque
Screw Size
Test Voltage
Pollution Degree
B
300 V
15 A
C
150 V
15 A
D
300 V
10 A
min
0.5 mm² (5 A)
0.5 mm² (5 A)
250 V
12 A
III
max
2.5 mm² (12 A)
2.5 mm² (12 A)
0.50 Nm
M2.5
4.0 kV
3
AWG 22-12
AWG 22-12
0.80 Nm
M2.5
1.6 kV
AWG 22-12
AWG 22-12
0.80 Nm
M2.5
1.6 kV
AWG 22-12
AWG 22-12
0.80 Nm
M2.5
1.6 kV
