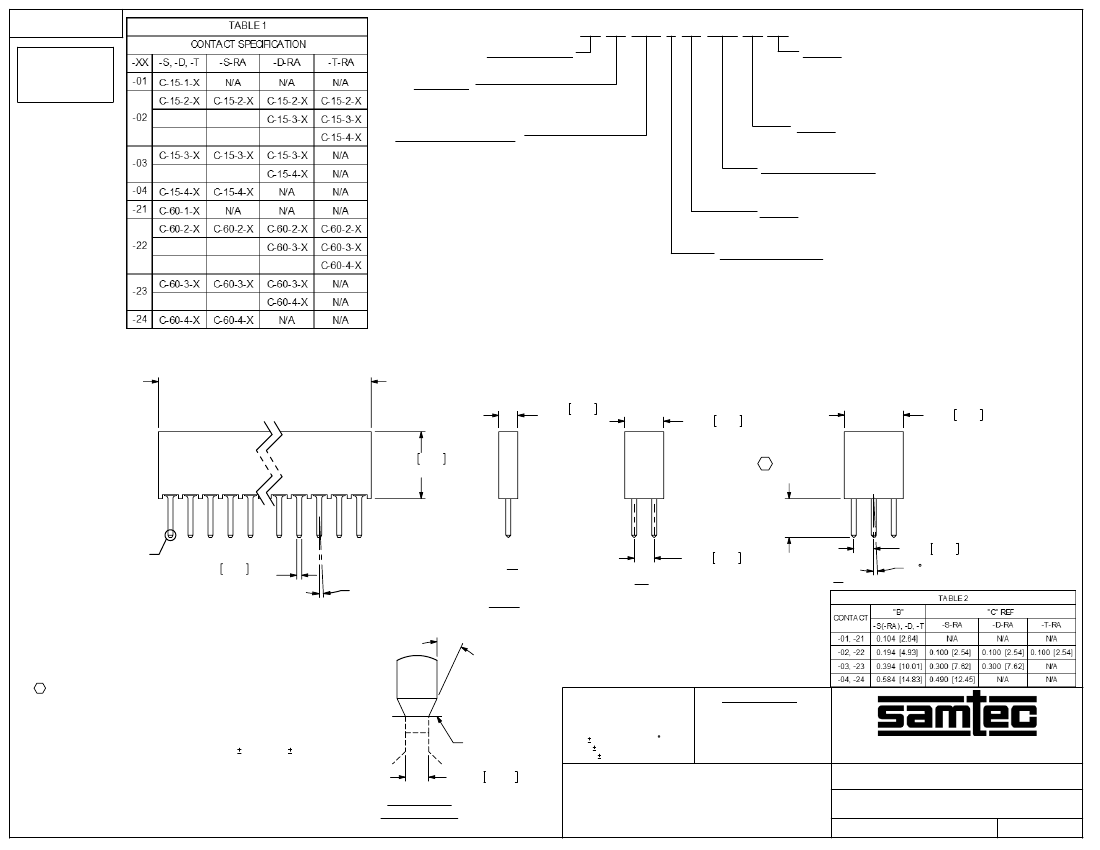

REVISION AY
DO NOT
SCALE FROM
THIS PRINT
SSQ-1XX-XX-XXX-X-XX-XXX-XX-XX
LEAD STYLE
(SEE TABLE 1)
-01 THRU -04: STANDARD INSERTION FORCE
-21 THRU -24: LOW INSERTION FORCE
PLATING SPECIFICATION
-G: 20µ" GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL
-T: MATTE TIN ON ENTIRE PIN
(NOT AVAILABLE FOR -21 THROUGH -24 LEAD STYLES)
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30µ" GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-TL: TIN/LEAD (90/10±5%) ON ENTIRE PIN
(AVAILABLE ONLY ON LEAD STYLE -01)
-TM: MATTE TIN ON ENTIRE PIN
(NOT AVAILABLE FOR -21 THROUGH -24 LEAD STYLES)
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA,
TIN/LEAD (90/10±5%) ON TAIL
(AVAILABLE ONLY ON LEAD STYLE -01)
.095 2.41
REF
.335 8.51
REF
No OF POSITIONS
-01 THRU -50
(PER ROW)
OPTION
**-MW: METAL WASHER (SEE FIG 7, SHT 3)
(N/A WITH -LL OR -RA)
(N/A WITH -T)
(AVAILABLE ON -01, -02, -21, & -22 STYLES ONLY)
(AVAILABLE ON POS -02 THRU -30 ONLY)
OPTION
-LL: LOCKING LEAD (SEE FIG 6, SHT 2)
(N/A WITH SINGLE ROW, 1 OR 2 POS)
POLARIZATION OPTION
INDICATE POS (SEE FIG 8, SHT 3)
OPTION
-RA: RIGHT ANGLE (SEE FIG 2, SHT 2)
(N/A ON LEAD STYLE -01)
ROW SPECIFICATION
-S: SINGLE, USE SSW-XX-S
-D: DOUBLE, USE SSW-XX-D
-T: TRIPLE, USE SSW-XX-T
-Q: TRIPLE (SEE FIG 4, SHT 2) USE SSW-XX-T
(-T WITH ONLY 2 OUTER ROWS FILLED)
-P: POLARIZED,
USE SSW-XX-P (SEE FIG 5, SHT 2)
(NO OF POS x .100[2.54] + .020[0.51])
±.010[0.25]
(SEE NOTE 7 & 10)
** - MW OPTION, DO NOT DESIGN IN.
SAMTEC WILL ONLY SUPPORT EXISTING
BUSINESS AS OF 02/12/2002
.295 7.49 REF
.195 4.95 REF
C
"B"
(FOR MACHINE FILL,
SEE NOTE 11)
'A'
.025 0.64 SQ
REF (TYP)
-S
(SEE NOTE 4)
.100 2.54
.100 2.54
-D
-T
2 MAX SWAY
(EITHER DIRECTION)
SSQ-1XX-XX-X SHOWN
25°
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 1.5 LB.
3. MAXIMUM ALLOWABLE BOW: .003[.08] INCH/INCH.
4. MAXIMUM ALLOWABLE SWAY: HAND FILL 4° (TYP).
MACHINE FILL 1° (TYP).
5. MAXIMUM VARIATION BETWEEN PIN ROWS: .010[0.25].
6. END WALLS AFTER CUTTING SHOULD BE .020 .003 [0.51 .08]
7. MAXIMUM CUT FLASH: .010[0.25].
8. SHEAR LOCATION TO BE WITHIN .001[0.03] OF THE
BREAK OFF CENTER LOCATION FOR MACHINE FILL.
9. NOTCH ON -P-RA OPTION TO BE ORIENTED AS SHOWN.
10. NO FLASH IS ALLOWED BELOW LEADS OR IN HOLES OF BODY.
11.
+.000[0.00]
FOR MACHINE FILL ONLY, SSQ-1XX-XX-X-S, SSQ-1XX-XX-X-D,
SSQ-1XX-XX-X-T (IN-PROCESS), SSQ-1XX-XX-X-S-RA.
-.005[0.13]
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
FIG 1
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
(SEE NOTE 8)
.0145 0.368 REF
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
DETAIL 'A'
SCALE 16 : 1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE
ASSEMBLY, SOCKET STRIP .025[0.64] SQ TAIL
SSQ-1XX-XX-XXX-X-XX-XXX-XX-X
06/12/1987
SHEET
1
OF
3
F:\DWG\MISC\MKTG\SSQ-1XX-XX-XXX-X-XX-XXX-XX-X-MKT.SLDDRW
BY:
PURVIS
REVISION AY
C

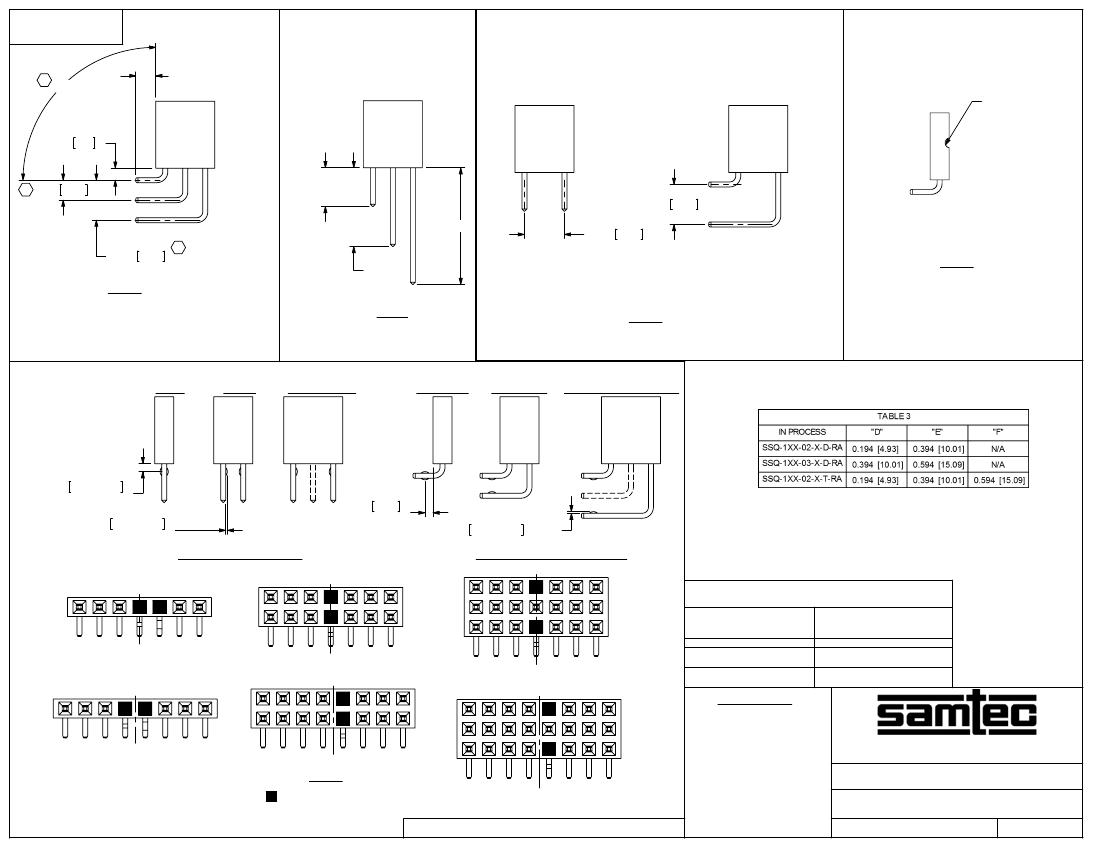

90°
"C" REF
(SEE TABLE 2, SHT 1)
SEE NOTE 9
.06 1.5
C .100 2.54
"D"
.200 5.08
"F"
.200 5.08
C
"E"
.200 5.08
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
SSQ-1XX-X-S-RA
SSQ-1XX-X-D-RA
SSQ-1XX-X-T-RA
SSQ-1XX-X-P-RA
FIG 2
IN PROCESS RIGHT ANGLE
FIG 3
SSQ-1XX-XXX-X-RA-P SHOWN
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 2)
SSQ-1XX-XXX-X-Q-RA SHOWN
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1, FIG 2)
FIG 5
FIG 4
-S-LL
-D-LL
-T-LL/-Q-LL
-S-RA-LL
-D-RA-LL
-T-RA-LL/-Q-RA-LL
.040±.010 1.02±0.25
(TYP)
.008±.002 0.20±0.05
(TYP)
.040 1.02
(TYP)
.008±.002 0.20±0.05 (TYP)
STRAIGHT VERSION
RIGHT ANGLE VERSION
CRITICAL DIMENSION INSPECTION INSTRUCTION
TABLE
ASSEMBLY OPERATION
IN-PROCESS INSPECTION
C
L
C
L
FILL C-15-XX-XX
C1
C2, C3, C4
C
L
FORM C-15-XX-XX
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
-LL: LOCKING LEAD
= CRIMP LOCATION
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
FIG 6
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
ASSEMBLY, SOCKET STRIP .025[0.64] SQ TAIL
SSQ-1XX-XX-XXX-X-XX-XXX-XX-X
BY:
PURVIS
F:\DWG\MISC\MKTG\SSQ-1XX-XX-XXX-X-XX-XXX-XX-X-MKT.SLDDRW
06/12/1987
SHEET
2
OF
3
REVISION AY

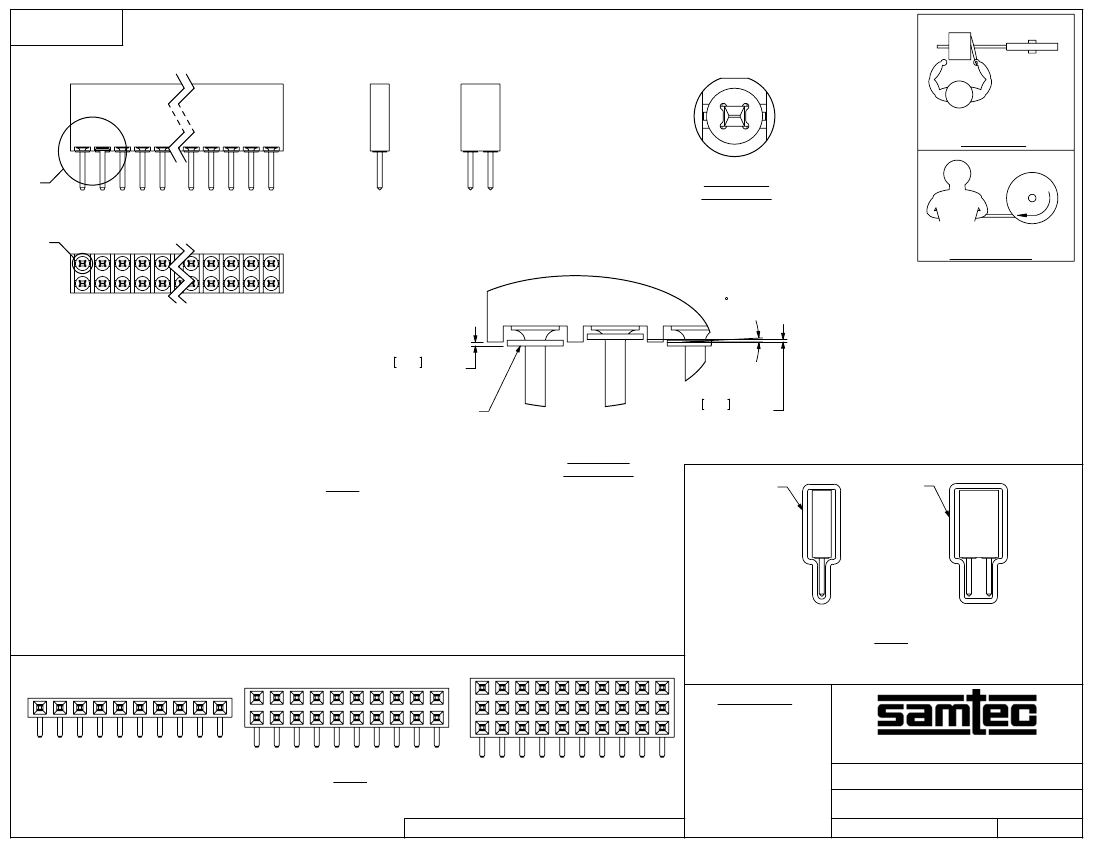

TOOLING
REEL
OPERATOR
TOP VIEW
'B'
DETAIL 'C'
SCALE 8 : 1
OPERATOR
REEL
'C'
FRONT VIEW
WASHER REEL ASSEMBLY
ORIENTAION VIEW
3 MAX SWAY
(EITHER DIRECTION)
.005 0.13 MAX
(MEASURE AT TAIL)
ESQ-04-MW-T
.003 0.08 MAX
(MEASURE AT TAIL)
SSQ-1XX-XXX-X-MW SHOWN
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS FIG 1)
**-MW: METAL WASHER
(ONE PER POSITION)
(N/A ON -LL OR -RA OPTION OR TRIPLE ROW)
(STYLE -01, -02, -21 AND -22 ONLY)
(AVAILABLE ON POS -02 THRU -30 ONLY)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
** - MW OPTION, DO NOT DESIGN IN. SAMTEC WILL
ONLY SUPPORT EXISTING BUSINESS AS OF 02/12/2002
FIG 7
DETAIL 'B'
SCALE 8 : 1
PT-1-24-01-53
PT-1-24-02-53
-S
03
FOR METAL WASHERS ONLY
(ALL OTHER OPTIONS BULK PACKAGED)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 9
-D
01 02 03
02
03 01
POLARIZATION LOCATION
INSERT PK-06-N INTO SPECIFIED POS
AND BREAK OFF TAB
FIG 8
04 01
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
ASSEMBLY, SOCKET STRIP .025[0.64] SQ TAIL
SSQ-1XX-XX-XXX-X-XX-XXX-XX-X
BY:
PURVIS
F:\DWG\MISC\MKTG\SSQ-1XX-XX-XXX-X-XX-XXX-XX-X-MKT.SLDDRW
06/12/1987
SHEET
3
OF
3
