2764564 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 2764564

2764564: DescriptionPower/Signal Relay, DPDT, Momentary, 5000mW (Coil), 0.5A (Contact), 24VDC (Contact), AC Input, AC/DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size152KB，5 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric View All

2764564 Overview

Power/Signal Relay, DPDT, Momentary, 5000mW (Coil), 0.5A (Contact), 24VDC (Contact), AC Input, AC/DC Output, Panel Mount

2764564 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	WHEN GOLD LAYER IS DESTROYED THEN CONTACT SWITCHING VOLTAGE SHOULD BE CONSIDERED AS: 250VAC/DC
body width	45 mm
body height	108 mm
Body length or diameter	75 mm
Coil current (AC) maximum value	10 A
Coil power	5000 mW
Maximum coil voltage (AC)	230 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	.5A@24VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@24VDC
Maximum contact voltage (AC)	24 V
Maximum contact voltage (DC)	24 V
Contact/Output Power Type	AC/DC
Manufacturer's serial number	2764564
Installation features	PANEL MOUNT
operating hours	10000 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
method of packing	BULK
physical size	75mm X 45mm X 108mm
Guideline	DIN; IEC; UL; VDE
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	200 ms
surface mount	NO
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

Extract from the online

catalog

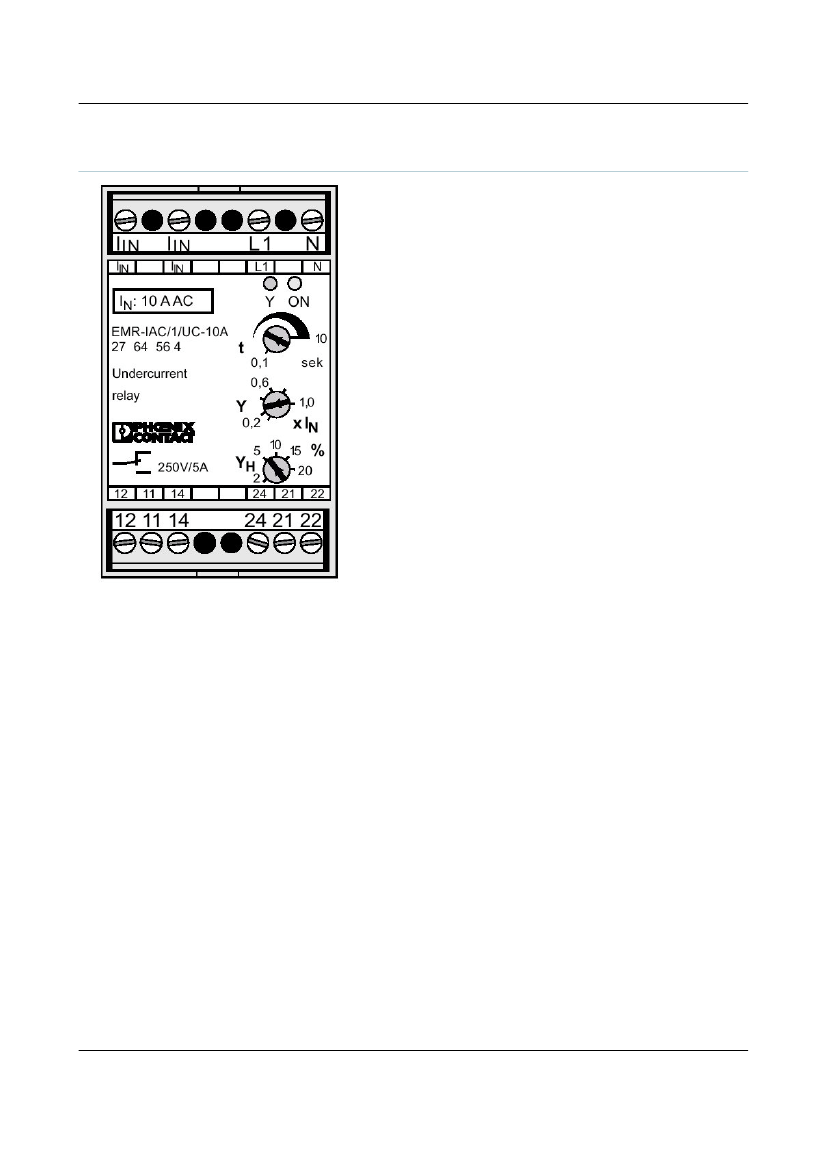

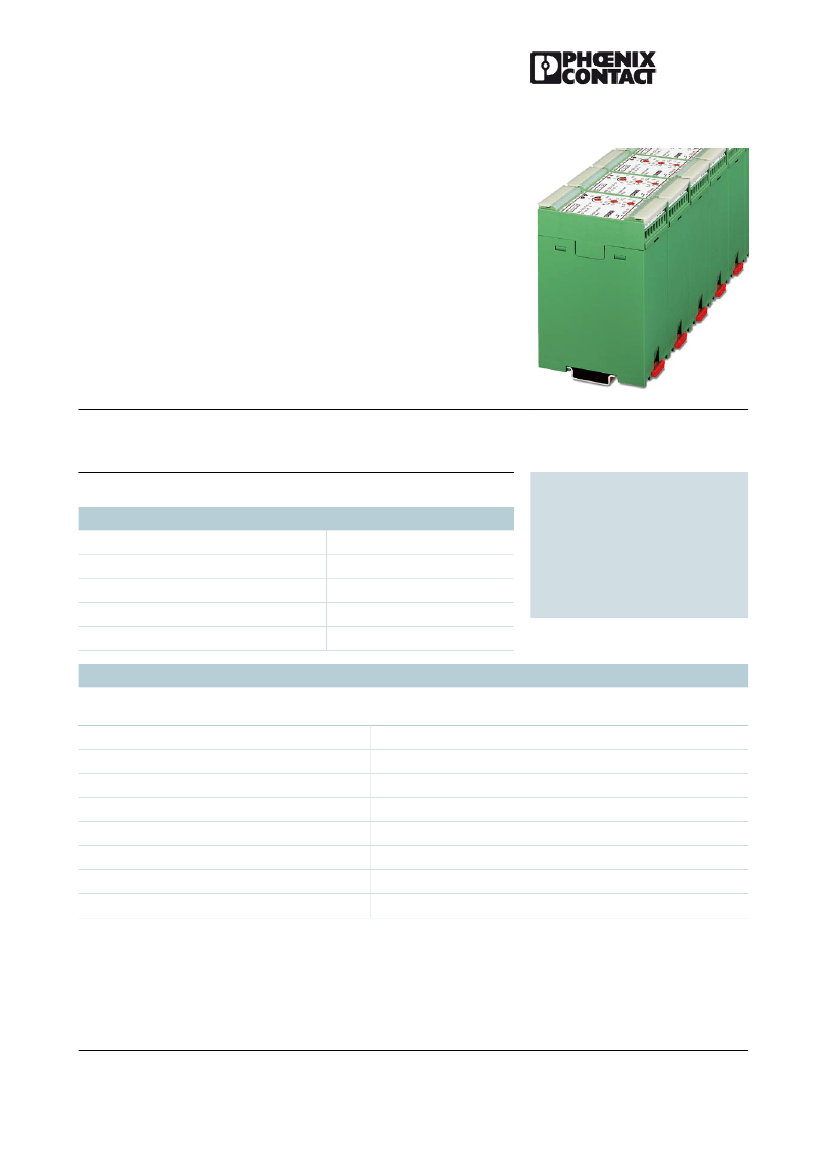

EMR-IAC/1/UC-10A

This product has been replaced by a newer version.

Order No.: 2764564

The illustration shows version EMR-IAC/1/UC-10 A

http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2764564

Electronic monitoring relay EMR, for undercurrent detection, with

adjustable hysteresis and relay output, nominal current 10 A AC

Commercial data

EAN

Pack

Customs tariff

Weight/Piece

Catalog page information

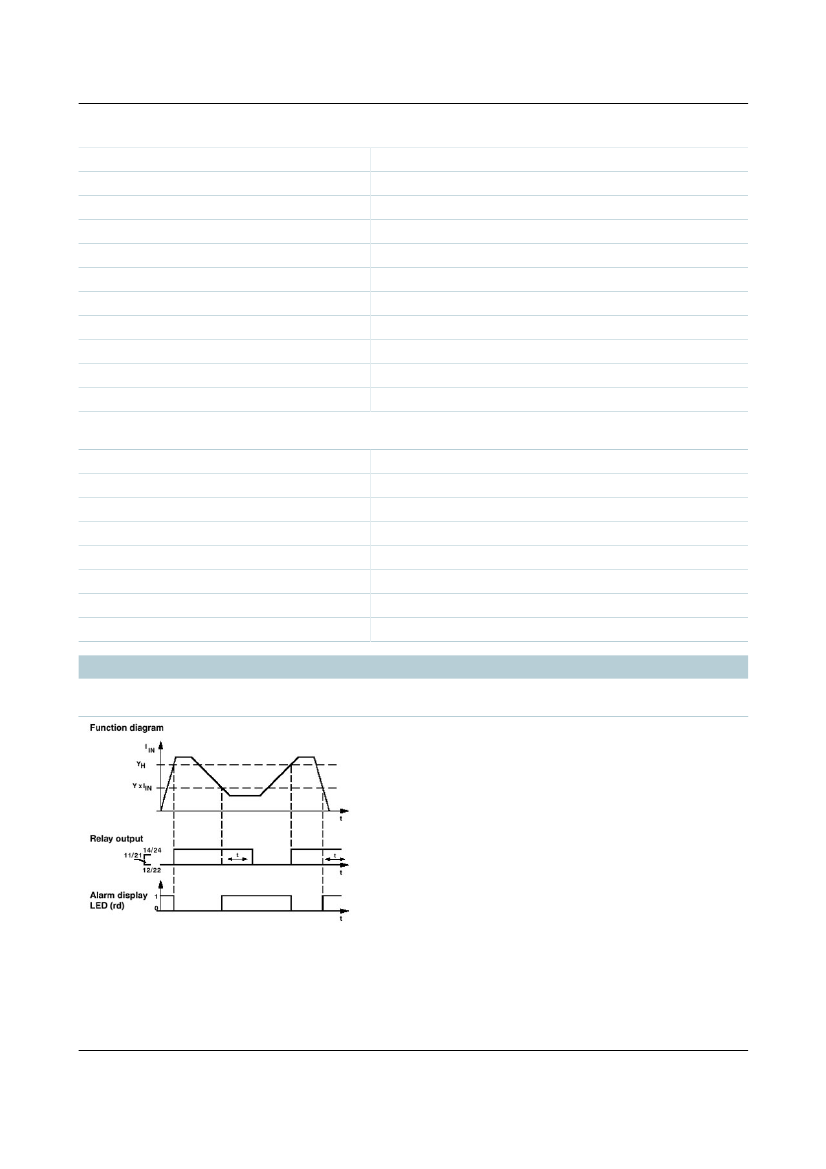

Technical data

Input data

Nominal current I

Max. input current

Overload capacity

Setting range of the nominal value

Maximum temperature coefficient

Setting range of the hysteresis

Response delay

Release delay

10 A AC

12 A AC

24 A (10 s)

4017918066017

1 pcs.

85364900

0.2909 KG

Page 421 (IF-2002)

http://

www.download.phoenixcontact.com

Please note that the data given

here has been taken from the

online catalog. For comprehensive

information and data, please refer

to the user documentation. The

General Terms and Conditions of

Use apply to Internet downloads.

10 % ... 100 % (with reference to IN)

< 0.1 %

2 % ... 20 % (with reference to the setpoint)

0.1 s ... 10 s

200 ms

PHOENIX CONTACT GmbH & Co. KG

http://www.phoenixcontact.com

Page 1 / 5

Jul 12, 2009
