TMM-129-01-L-D-SM datasheet, PDF

Datasheet> All Categories > The connector> The connector> TMM-129-01-L-D-SM

TMM-129-01-L-D-SM: DescriptionBoard Connector, 58 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT; CategoryThe connector The connector; File Size275KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TMM-129-01-L-D-SM Overview

Board Connector, 58 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, ROHS COMPLIANT

TMM-129-01-L-D-SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1660374250
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Samacsys Description	58 Position, Low Profile Tiger Eye™ Header Strips, 2.00 mm Pitch
Samacsys Manufacturer	SAMTEC
Samacsys Modified On	2021-05-12 06:28:42
YTEOL	8.4
Other features	LOW PROFILE
body width	0.155 inch
subject depth	0.059 inch
body length	2.291 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.27 mm
Plating thickness	10u inch
Rated current (signal)	3.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	58
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

LOW-PROFILE

SMT HEADER

TMM

Board Mates:

CLT, SQT, SQW, ESQT,

TLE, SMM, MMS

Cable Mates:

TCSD

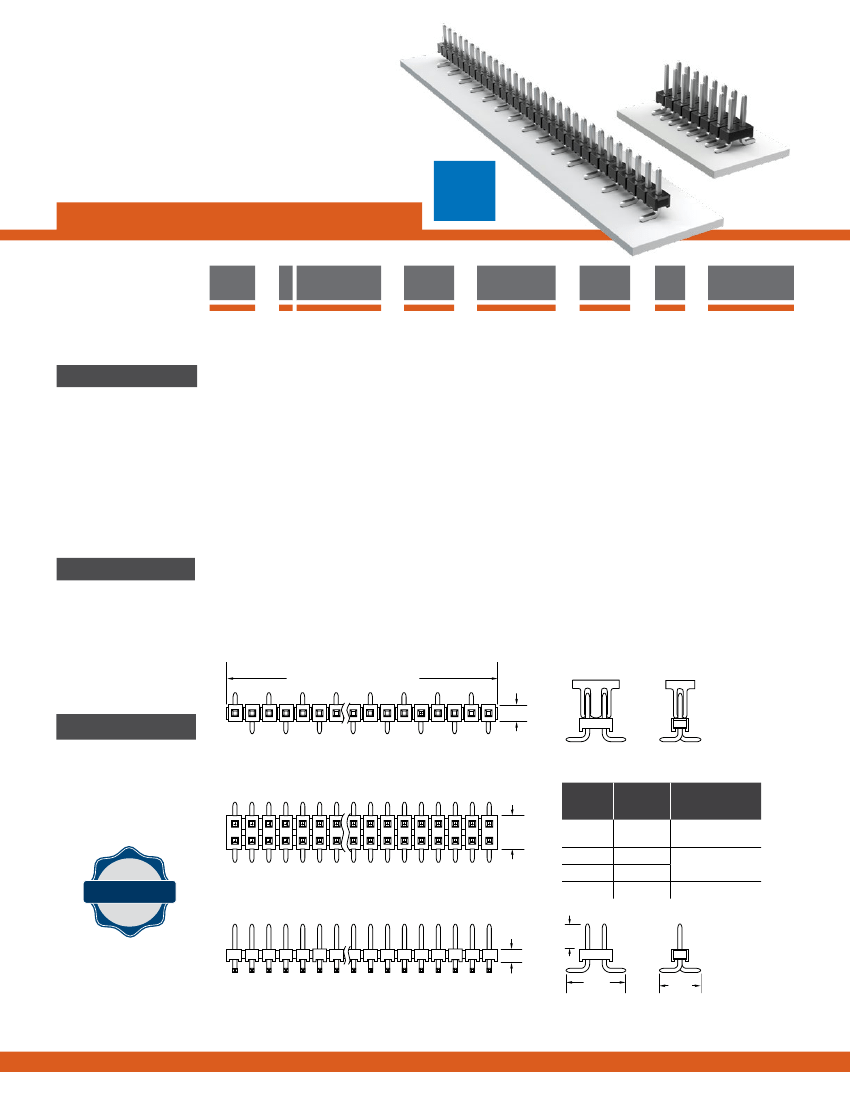

(2.00 mm) .0787" PITCH • TMM SERIES

TMM

G b p s

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

02 thru 40

= Gold flash

on post,

Matte Tin on tail

= 10 µ" (0.25 µm)

Gold on post,

Matte Tin on tail

= 30 µ" (0.76 µm)

Gold on post,

Matte Tin on tail

= Matte Tin

–F

–L

= Single

Row

= Double

Row

–S

SPECIFICATIONS

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Current Rating:

3.2 A per pin

(2 pins powered)

Operating Temp Range:

-55 °C to +105 °C with Tin;

-55 °C to +125 °C with Gold

Voltage Rating:

281 VAC mated with SQW;

250 VAC mated with SQT

–D

= Alignment Pin

(Metal or plastic

at Samtec’s

discretion)

(5 positions

minimum)

(–D only)

= Polarized

Position

(Specify

position of

omitted pin)

= Pick &

Place Pad

(3 positions

minimum)

= Tape & Reel

(3 thru 36

positions only)

= Full Reel

Tape & Reel

(must order max.

quantity per reel;

contact

Samtec for

quantity breaks)

(3 thru 36

positions only)

–A

–S

–T

–“XXX”

–P

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.15 mm) .006" max*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

No. of positions x (2.00) .0787

(1.97)

.078

–TR

–FR

ALSO AVAILABLE

Other plating

(MOQ Required)

LEAD

STYLE

(3.94)

.155

10 YEAR MFG

WITH 30 µ" GOLD

–P

(3.20) .126

(1.91) .075

(1.65) .065

(4.27) .168

MATES

WITH

SQT, SQW, ESQT,

TLE, SMM, MMS, TCSD

CLT

CLT-BE

–01

–04

–05

–06

EXTENDED LIFE

PRODUCT

HIGH MATING

CYCLES

(1.50)

.059

(7.06)

.278

(4.83)

.190

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

–D

–S

samtec.com?TMM

F-221

Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice.
