23TL4A2

Description
basic / snap action switches 2 door interlock SW
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size211KB,4 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

23TL4A2 Online Shopping

Suppliers Part Number Price MOQ In stock
23TL4A2 - - View Buy Now

23TL4A2 Overview

basic / snap action switches 2 door interlock SW

23TL4A2 Parametric

Parameter NameAttribute value
ManufactureC&K Components
Product CategoryBasic / Snap Action Switches
RoHSYes
Contact FormSPDT
Switch FunctiON - (OFF), OFF - (ON)
ActuPlunger, Pi
Current Rating15 A
Voltage Rating AC250 V
Voltage Rating DC250 V
Termination StyleQuick Connect Terminal
MountingPanel
C&K TL Series
Door Interlock Switches
Features/Benefits
Push/pull motion
Multiple mounting configurations
Wide variety of termination options
Ratings up to 15 AMPS
Typical Applications
Computer enclosures
Panel builders
Industrial enclosures
Specifications
CONTACT RATING: 15 AMPS @ 125 & 250 V AC; 0.25 AMP @
250 V DC; 0.5 AMP @ 125 V DC; 1/2 HP @ 125 & 250 V AC;
3 AMPS @ 125 V AC “L”.
ELECTRICAL LIFE: 150,000 cycles at 15 AMPS @ 250 V AC.
INSULATION RESISTANCE: 1,000 M
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: –67ºF to 302ºF (–55ºC to 150ºC).
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Materials
SWITCH HOUSING: Thermoplastic or general purpose
phenolic (UL 94V-0).
MOUNTING BRACKET: Stainless steel.
PLUNGER: Stainless steel.
ACTUATOR BUTTON: Thermoplastic (UL 94V-0).
SPRING: Copper alloy.
PIVOT: Brass alloy.
MOVABLE CONTACT: Fine silver.
STATIONARY CONTACTS: Fine silver.
TERMINALS: Copper alloy.
J
Snap-acting

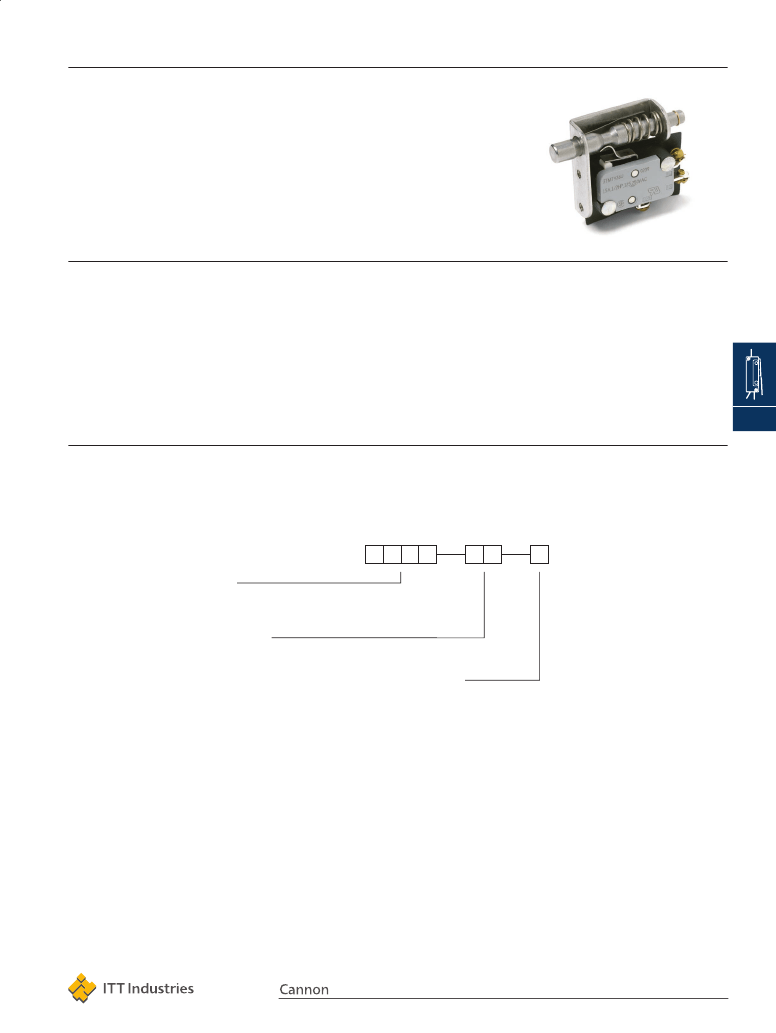

Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages J-42 and J-43. For additional options not shown in catalog, consult Customer Service Center.
Model
11TL
(STD.) One TM Series SPDT switch
12TL
One TM Series SPDT switch
23TL
Two TM Series SPDT switches
Terminations
60
(STD.) Screw
40
.187" Quick connect
4A
.250" Quick connect
Plunger
2
(STD.) Stainless steel, not tapped
4
Stainless steel, tapped

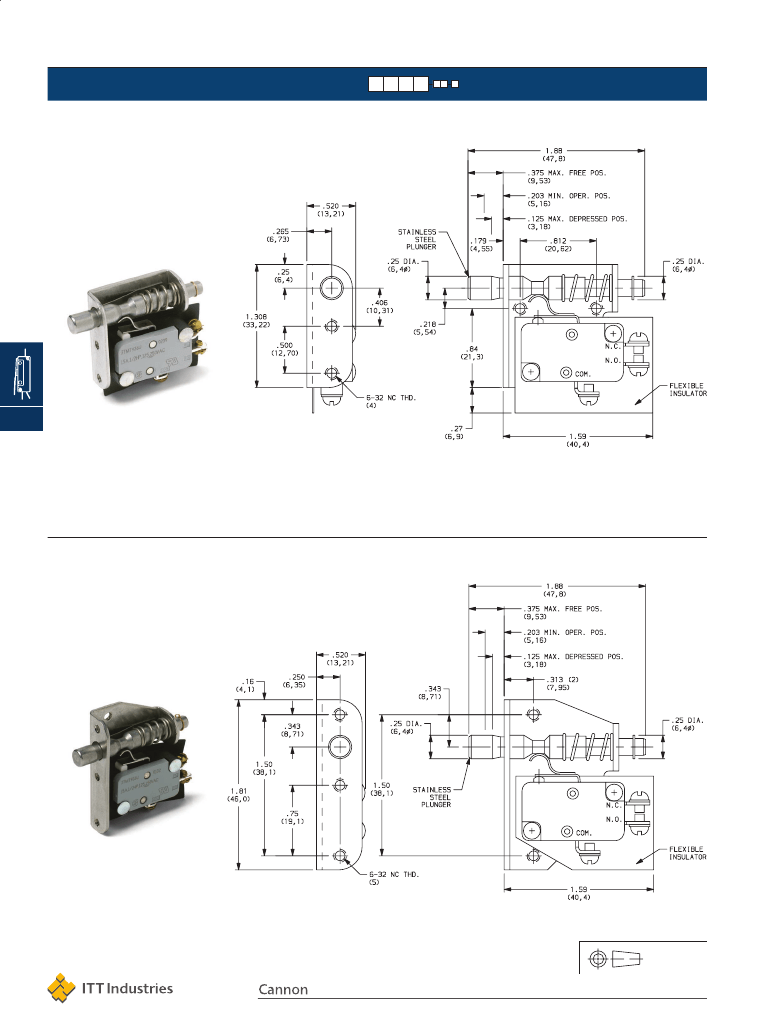

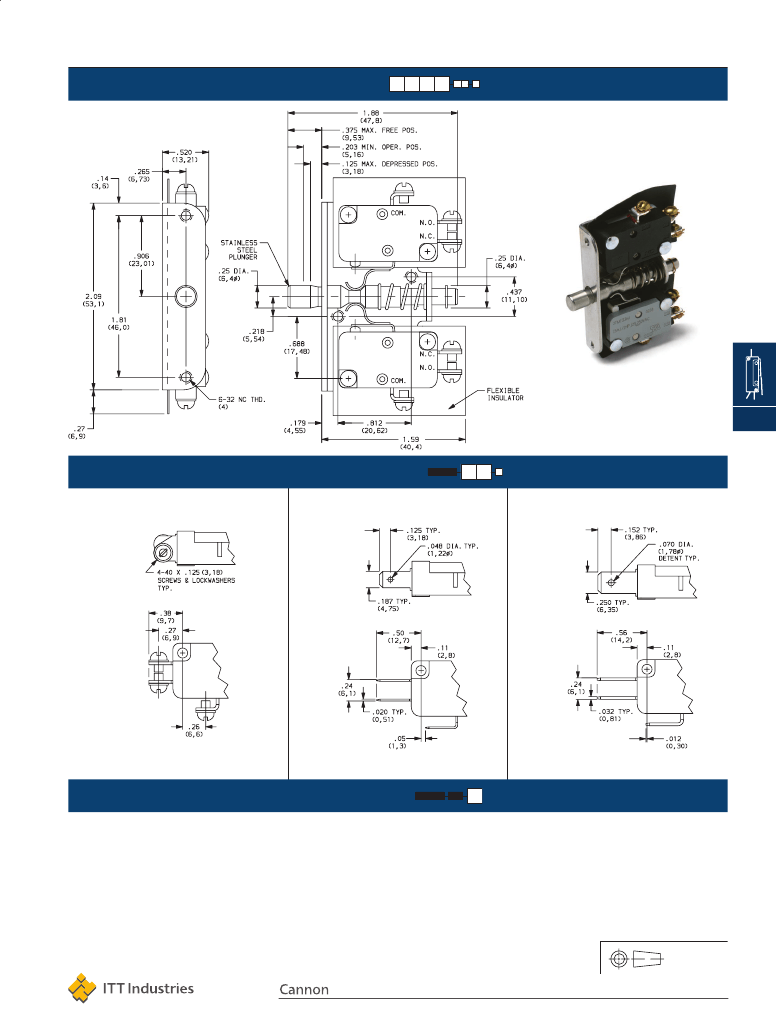

Dimensions are shown: IN (mm)
Dimensions subject to change
J-41
www.ittcannon.com

23TL4A2 Related Products

23TL4A2 12TL604 23TL402 12TL402 11TL4A2 11TL602 23TL604 23TL602 23TL4A4 11TL604
Description basic / snap action switches 2 door interlock SW basic / snap action switches spdt 15a screw term. basic / snap action switches 2 door interlock SW basic / snap action switches spdt 15a screw term. basic / snap action switches spdt door interlock basic / snap action switches spdt 15a screw term. basic / snap action switches spdt 15a screw term. basic / snap action switches spdt 15a screw term. basic / snap action switches 2 door interlock SW basic / snap action switches spdt 15a screw term.
Manufacture C&K Components C&K Components C&K Components C&K Components C&K Components C&K Components C&K Components C&K Components C&K Components C&K Components
Product Category Basic / Snap Action Switches Basic / Snap Action Switches Basic / Snap Action Switches Basic / Snap Action Switches Basic / Snap Action Switches Basic / Snap Action Switches Basic / Snap Action Switches Basic / Snap Action Switches Basic / Snap Action Switches Basic / Snap Action Switches
RoHS Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Contact Form SPDT SPDT SPDT SPDT SPDT SPDT SPDT SPDT SPDT SPDT
Switch Functi ON - (OFF), OFF - (ON) ON - (OFF), OFF - (ON) ON - (OFF), OFF - (ON) ON - (OFF), OFF - (ON) ON - (OFF), OFF - (ON) ON - (OFF), OFF - (ON) ON - (OFF), OFF - (ON) ON - (OFF), OFF - (ON) ON - (OFF), OFF - (ON) ON - (OFF), OFF - (ON)
Actu Plunger, Pi Plunger, Pi Plunger, Pi Plunger, Pi Plunger, Pi Plunger, Pi Plunger, Pi Plunger, Pi Plunger, Pi Plunger, Pi
Current Rating 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A 15 A
Voltage Rating AC 250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V
Voltage Rating DC 250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V
Termination Style Quick Connect Terminal Screw Quick Connect Terminal Quick Connect Terminal Quick Connect Terminal Screw Quick Connect Terminal Quick Connect Terminal Quick Connect Terminal Screw
Factory Pack Quantity - 1 1 1 1 1 1 1 1 1
Type - - Standard Standard Standard Standard Standard - Standard Standard
