TR3B157M004T0900

Description
Tantalum Capacitor, Tantalum (dry/solid),
CategoryPassive components    capacitor
File Size526KB,29 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

TR3B157M004T0900 Overview

Tantalum Capacitor, Tantalum (dry/solid),

TR3B157M004T0900 Parametric

Parameter NameAttribute value
Objectid7329150916
package instruction, 1411
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL6.95
Other featuresESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance150 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR900 mΩ
high1.9 mm
leakage current0.006 mA
length3.5 mm
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTR, EMBOSSED PLASTIC, 7 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)4 V
ripple current124 mA
size code1411
surface mountYES
Delta tangent0.14
Terminal shapeJ BEND
width2.8 mm

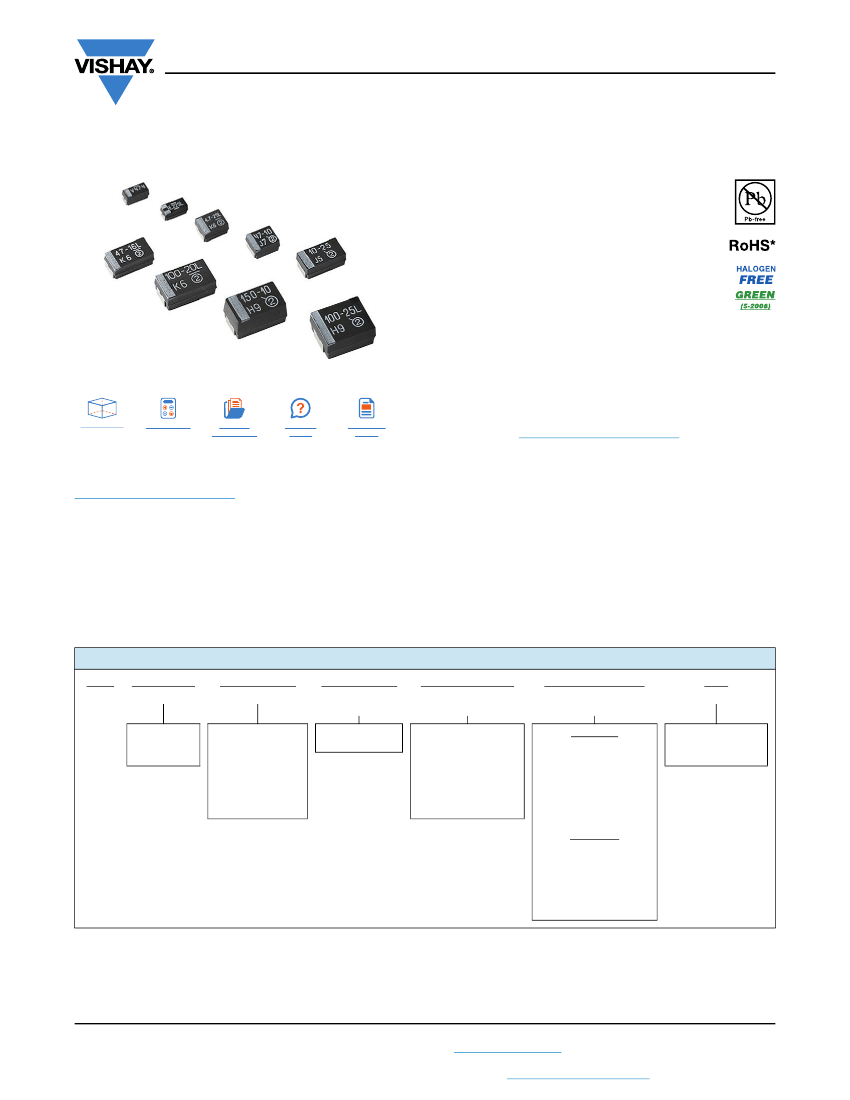

TR3
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Chip Capacitors
T
ANTAMOUNT
™, Molded Case, Low ESR
FEATURES
• Low ESR
• 100 % surge current tested
Available
(C, D, and E case sizes)
• Qualified to EIA-717
Available
• Molded case available in seven case codes
• High ripple current carrying capability
• Terminations: 100 % matte tin standard,
tin / lead available
Available
• Compatible with “high volume” automatic pick
and place equipment
• Compliant terminations
• Meets EIA-535-BAAC mechanical and performance
requirements
• Moisture sensitivity level 1
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
LINKS TO ADDITIONAL RESOURCES
D
D
3
3
3D Models
Calculators
T
Related
Documents
Did You
Know
Technical
Notes
PERFORMANCE / ELECTRICAL
CHARACTERISTICS
www.vishay.com/doc?40192
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
0.47 μF to 1000 μF
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 75 V
DC
Note
• For recommended voltage derating guidelines see “Typical
Performance Characteristics”
APPLICATIONS
Industrial
Telecom infrastructure
Consumer
Computer
General purpose
ORDERING INFORMATION
TR3
TYPE
D
CASE CODE
107
CAPACITANCE
K
CAPACITANCE
TOLERANCE
K = ± 10 %
M = ± 20 %
010
DC VOLTAGE
RATING AT +85 °C
This is expressed
in V. To complete
the three-digit
block, zeros precede
the voltage rating.
A decimal point is
indicated by an “R”
(6R3 = 6.3 V).
C
TERMINATION AND
PACKAGING
Matte tin
C
= 7" (178 mm) reel
D
= 13" (330 mm) reel
V
= 7" (178 mm) reel,
dry pack
U
= 13" (330 mm) reel,
dry pack
Tin / lead
E
= 7" (178 mm) reel
F
= 13" (330 mm) reel
T
= 7" (178 mm) reel,
dry pack
W
= 13" (330 mm) reel,
dry pack
Notes
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Voltage substitutions will be marked with the higher voltage rating.
Low ESR solid tantalum chip capacitors allow delta ESR of 1.25 times the datasheet limit after mounting
• Dry pack as specified in J-STD-033
0100
ESR
See Ratings
and Case
Codes table
This is expressed
in picofarads.
The first two
digits are the
significant figures.
The third is the
number of zeros
to follow.
Maximum 100 kHz
ESR in mΩ.
See note below.
Revision: 15-Jul-2020
Document Number: 40080
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
