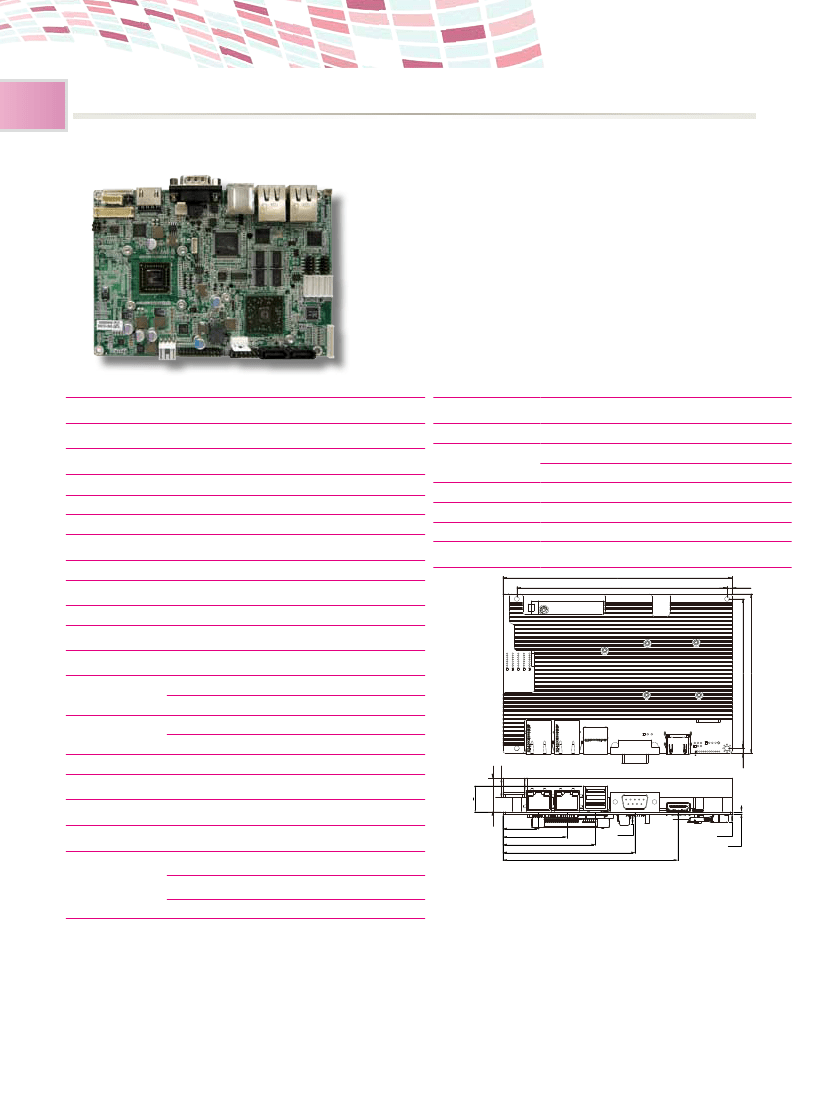

EmCORE-a55E1
AMD G-series G-T56N / G-T40N 3.5" Compact Board
Features
•
•
•
•
•
Soldered Onboard AMD Fusion G-Series Processor
Dual Gigabit Ethernet Ports
HDMI, Analog RGB and Dual Channels 24-bit LVDS
Dual Independent Displays
Integrate SIM Socket to Support Mobile Telecommunication
System
CPU
Memory
Chipset
BIOS
Watchdog Timer
Soldered onboard AMD G-series G-T56N 1.65GHz, or
G-T40N 1.0GHz processor
1 x 204-pin DDR3 SO-DIMM socket, supporting
800/1066/1333MHz SDRAM up to 4GB
AMD FCH A55E
AMI UEFI BIOS
1~255 levels reset
Mechanical & Environmental
Power Connector
Power Consumption
Operating Temp.
Dimensions (L x W)
12V DC only with Aux. ATX power connector
1.75A@+12V with G-T56N (Typical)
1.2A@+12V with G-T40N (Typical)
0 ~ 70°C (32 ~158°F)
Operating Humidity
10 ~ 95% @ 70ºC (non-condensing)
146 x 102 mm (5.75" x 4.00")
I/O
I/O Chip
Serial Port
USB Port
KB/MS
Digital I/O
Expansion Bus
Storage
Ethernet Chipset
Audio Interface
Fintek F81866
6 x COM ports (5 x RS-232, 1 x RS-232/422/485
selectable)
6 x USB 2.0 ports
1 x 6-pin wafer connector for keyboard and mouse
(PS/2 interface via Y-cable)
8-bit programmable Digital Input/Output, shared with LPT
port connector
1 x Mini-card socket
1 x SIM socket
2 x Serial ATA ports with 600MB/s HDD transfer rate
1 x CFast socket
Dimensions
146.1
184.0
3.2
21.5
Display
Graphics Chipset
Integrated AMD Radeon HD 6320 w/ G-T56N, HD 6250 w/
G-T40N
Analog RGB supports resolution up to 2560 x 1600
@60Hz
LCD: Dual Channels support 18/24-bit LVDS, resolution up
to 1920 x 1600
Support HDMI 1.3a
16.50 + 0.38
Realtek ALC662 5.1 Channel HD Audio Codec, Mic-in/
Line-in/ Line-out
12.5
2 x Intel
®
82583V PCIe GbE controllers
22.61
40.74
59.01
84.07
111.48
6.60
5.20
1.60
Unit: mm
Graphics Interface
90
All specifications are subject to change without notice.
