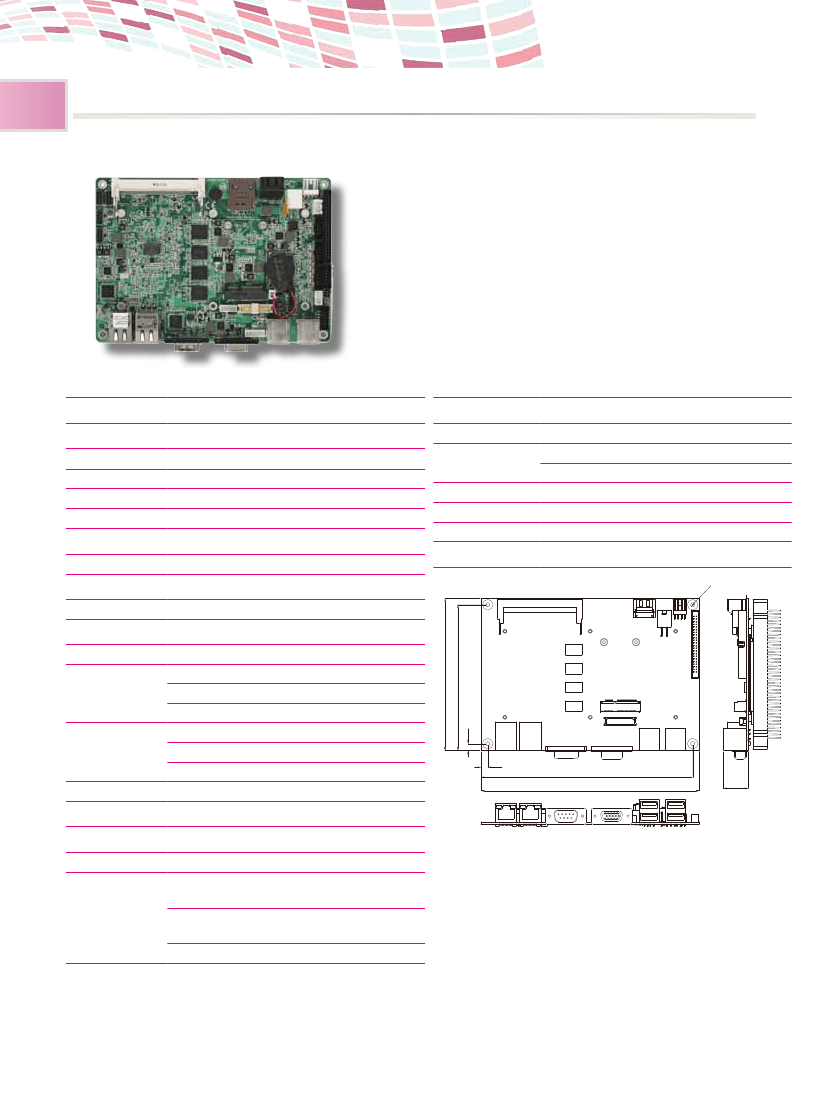

EmCORE-i290H
Intel® Atom™ N455/D525 EPIC Compact Board
Features
•
•
•
•
•
•
Soldered Onboard Intel® Atom™ N455/D525 Processor
Dual Gigabit Ethernet Ports
Analog RGB and Single Channel 18-bit LVDS Display
Support Dual Independent Displays
Integrate SIM Socket to Support Mobile Telecommunication
Extended Range Operating Temp.: -20 ~ 70°C
System
CPU
Memory
Chipset
BIOS
Watchdog Timer
Soldered onboard Intel Atom
1.8GHz processor
Intel
®
ICH8M
AMI PnP Flash BIOS
1~255 levels reset
®
TM
Mechanical & Environmental
N455 1.6GHz, or D525
Power Connector
Power Consumption
Operating Temp.
Dimensions (L x W)
4-pin Aux. ATX power connector
1.52A@+12V with D525 CPU (Typical)
1.29A@+12V with N455 CPU (Typical)
-20 ~ 70°C (-4 ~158°F)
Soldered onboard 2GB DDR3 SDRAM
Operating Humidity
10 ~ 95% @ 70ºC (non-condensing)
165 x 115 mm (6.5" x 4.5")
I/O
I/O Chip
Serial Port
USB Port
KB/MS
Digital I/O
Expansion Bus
Winbond 83627UHG
5 x COM ports (4 x RS-232, 1 x RS-232/422/485
selectable)
8 x USB 2.0 ports
1 x 6-pin wafer connector for keyboard and mouse
(PS/2 interface via cable)
8-bit programmable Digital Input/Output
1 x Mini PCI socket
1 x Mini-card socket
1 x SIM socket
1 x Ultra ATA, supporting 2 IDE devices
Dimensions
ø3
114.98
109.98
5.08
5.08
159.88
164.98
18.40
Unit: mm
Storage
Ethernet Chipset
Audio Interface
2 x SATA ports at 300MB/s HDD transfer rate
Soldered on board 2GB NANDrive (optional)
2 x Realtek RTL8111 PCIe GbE controllers
Realtek ALC886 7.1 Channel HD Audio Codec, Mic-in/
Line-out
Display
Graphics Chipset
Integrated Intel
®
Graphics Media Accelerator 3150
Analog RGB supports resolution up to:
- 1400 x 1050 @60Hz (N455)
- 2048 x 1536 @60Hz (D525)
Single channel 18-bit LVDS supports resolution up to:
- 1280 x 800 or 1366 x 768 (N455)
- 1366 x 768 (D525)
Support Dual Independent Displays
Graphics Interface
106
All specifications are subject to change without notice.
.2

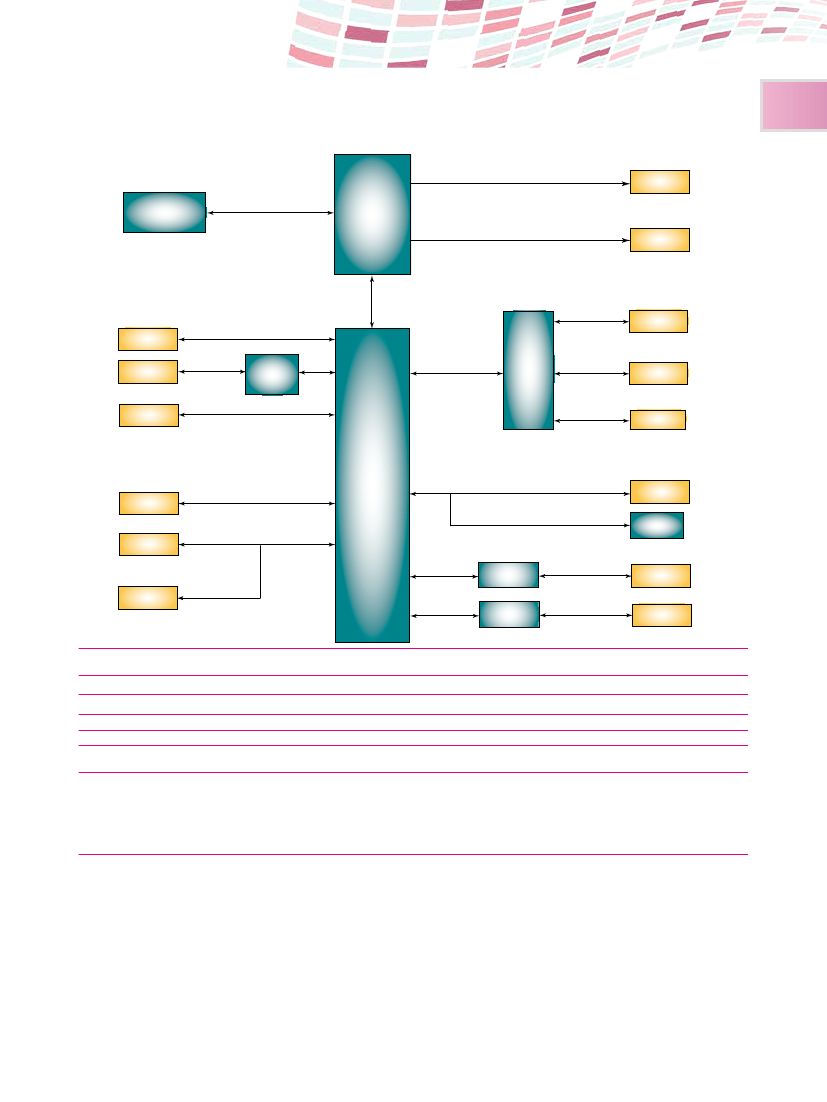

Block Diagram
Intel®
Atom
N455 1.6GHz
D525 1.8GHz
Analog R.G.B.
VGA
Soldered on board
DDR3 2GB SDRAM
Single Channel DDR3
667MHz
Single Channel 18-bit LVDS
LVDS
DF13-30
DMIx4
8 x USB ports
USB I/F
USB
COM1 ~ COM5
COM1,3,5: RS-232
COM2: RS-232/422/485 port selectable
HD Link
LPC I/F
Super IO
W83627UHG
KB, MS
COM1~ COM5
Audio
Audio
HD
CODEC
ALC886
KB/ MS
2 x SATA
Serial ATA I/F
8-bit Digital I/O
Intel®
ICH8M
IDE ATA I/F
Digital I/O
Mini-PCI Socket
PCI Bus
IDE
NANDrive
Mini-Card Slot
PCIex1
PCIex
SIM Socket
PCIex
RLT8111E GbE
controller
RLT8111E GbE
controller
GbE
1 x RJ-45
GbE
1 x RJ-45
Ordering Information
EmCORE-i290H-N4
EmCORE-i290H-D5
EmCORE-i290HD-N4
EmCORE-i290HD-D5
Intel
®
Atom™ N455 EPIC Compact Board
Intel
®
Atom™ D525 EPIC Compact Board
Intel
®
Atom™ N455 with 2GB NANDrive EPIC Compact Board
Intel
®
Atom™ D525 with 2GB NANDrive EPIC Compact Board
Optional Accessories
CBK-11-2902-00
Cable kit
1 x IDE cable
1 x audio cable
2 x SATA cables
2 x USB cables
4 x COM port cables
1 x KB/MS cable
•
•
•
•
•
•
All specifications are subject to change without notice.
107
