LRA32L2EBBNN: Descriptionrocker switches switch 10a 125vac LR series; CategoryTopical application Mechanical and electrical/engineering/automation; File Size644KB，2 Pages; ManufacturerCHERRY; Websitehttp://www.cherry-semi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LRA32L2EBBNN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LRA32L2EBBNN	-	-	View	Buy Now

LRA32L2EBBNN Overview

rocker switches switch 10a 125vac LR series

LRA32L2EBBNN Parametric

Parameter Name	Attribute value
Manufacture	CHERRY
Product Category	Rocker Switches
RoHS	Yes
Contact Form	DPDT
Switch Functi	ON - OFF
Current Rating	10 A
Voltage Rating AC	250 V
Termination Style	Solder Pi
Actu	Rocke
Col	Black
Mounting Style	Through Hole
Contact Plating	Ti
Contact Rating	10 A at 125 V, 8 A at 250 V

Preview

Download Datasheet

View All

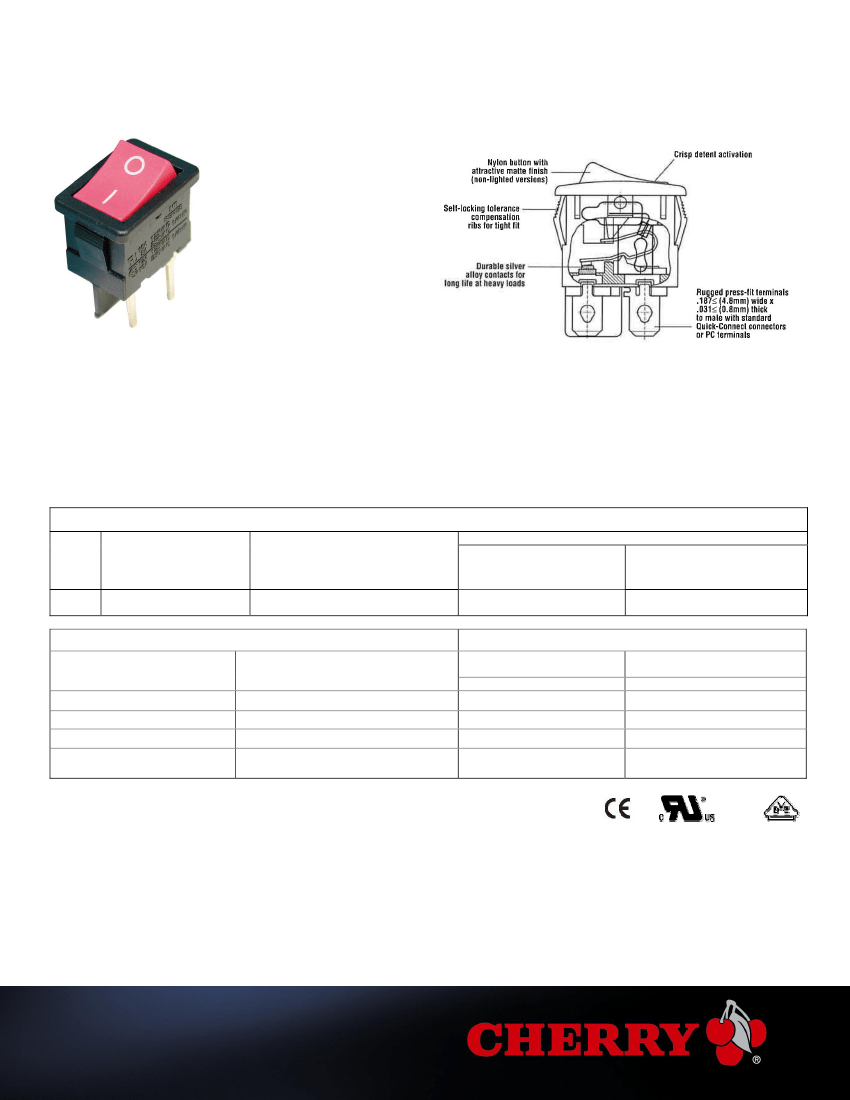

Double-Pole Rocker Switch

LR Series

Features



Single-throw and double-throw options

Lighted and non-lighted options

Industry standard mounting dimensions

Mechanical life: min. 100,000 operations

Electrical Ratings

Electrical Life at Rated Load

Switch

Series

LR

EN61058 Rating

UL1054 Rating

10A 125VAC 1/4HP,

8A 250VAC; 1/4HP

According to VDE

(Min. Operations)

10,000

Material Specifications

10A 125VAC 1/4HP

8A 250VAC 1/4HP (cULus)

10(4)A, 250V~ T125/55 (VDE)

1000VAC for 1 minute

100M ohms min at 500VDC

0.020 ohms max

-20°C to + 65°C

Actuator: (non-lighted)

(lighted)

Base:

Spring:

Contacts:

Movable Arm:

Terminals:

Nylon 66 94V-2

Polycarbonate

Nylon 66 94V-2

Steel Wire

Silver Alloy

Copper Alloy

Tin-Plated Copper Alloy

According to UL

(Min. Operations)

6,000

10(4)A, 250V~T125/55

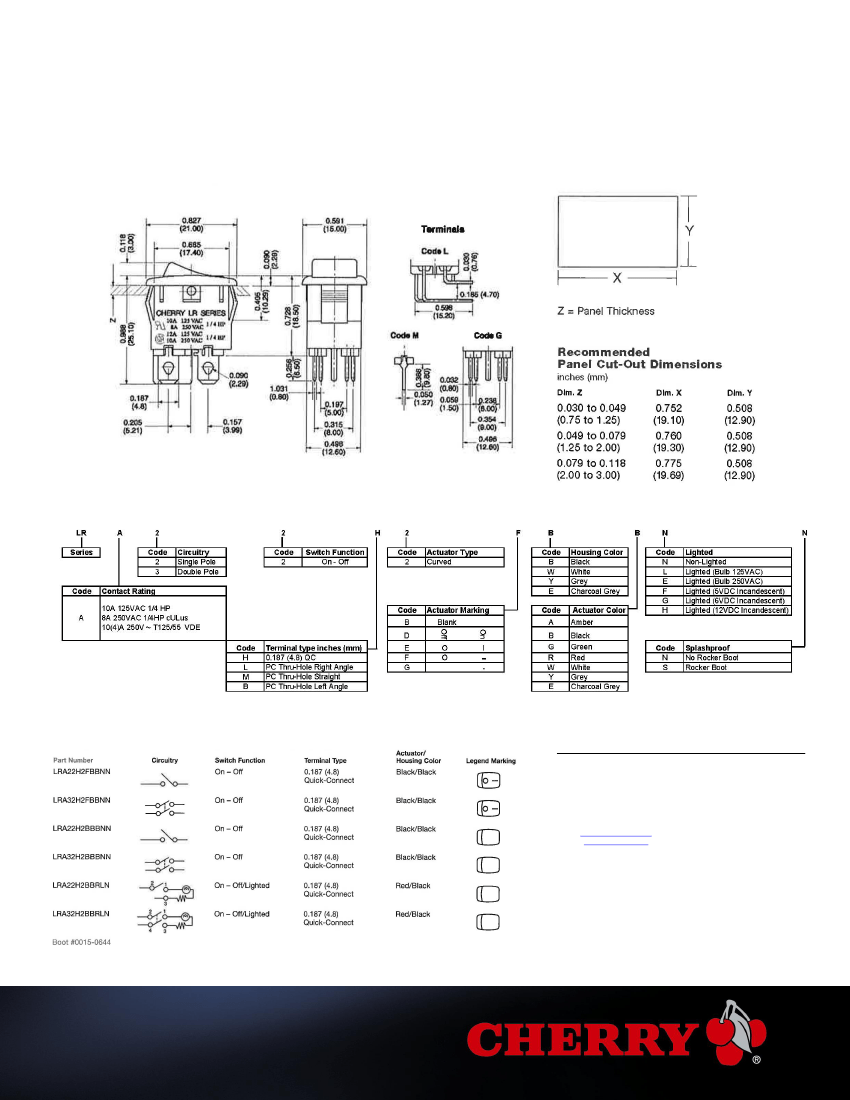

Electrical Specifications

Ratings:

Dielectric Strength:

Insulation Resistance:

Initial Contact Resistance:

Temperature Range:

RoHS Compliant

UL File No: E23301
