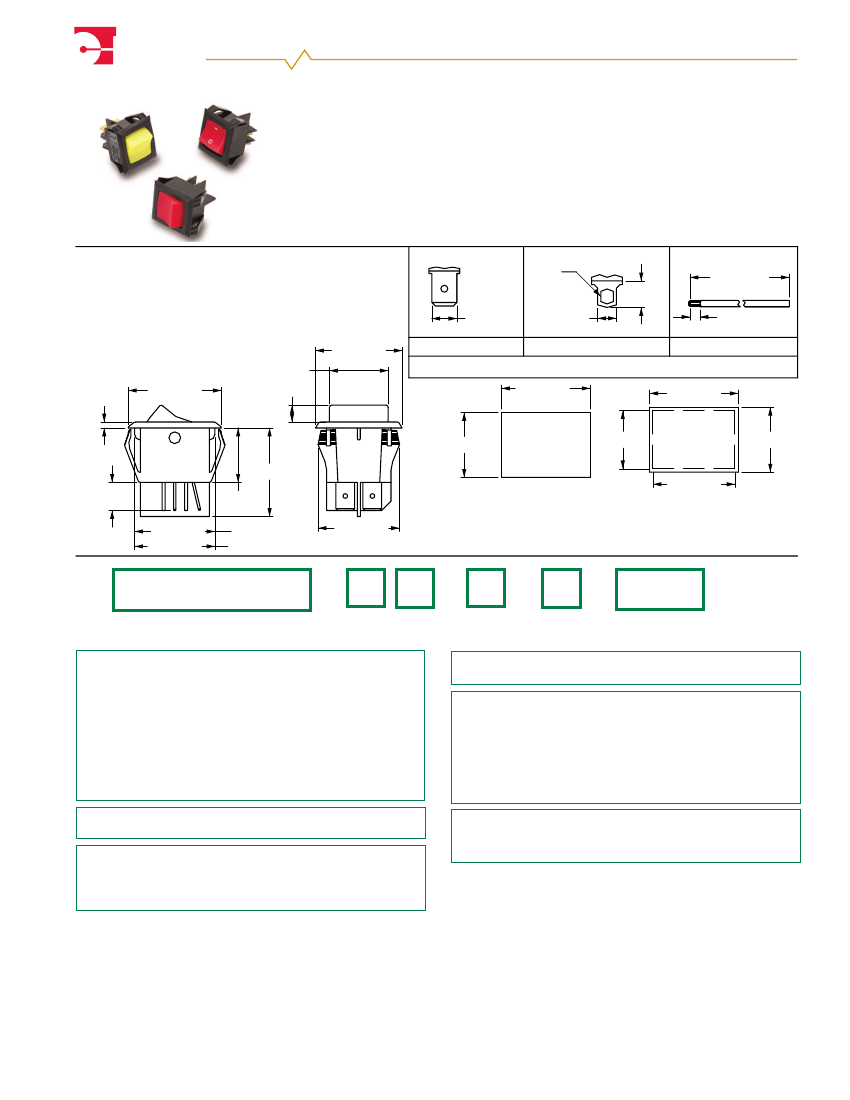

LRG-Series Double Pole Rocker & Paddle Switches
™
LRG-Series Double Pole Rocker & Paddle Switches
The double pole version of the R-Series incorporates the
same sleek lines as the original Curvette, in a double pole
envelope. This illuminated version features silver-plated
butt-action contacts with ratings to 20A/125, 15A 250VAC
and withstand peak inrush currents up to 100 amps.
Clear or translucent style rocker actuators and a choice of
solder lug, .250 Tab and wire lead terminations enable
this switch to adapt to high current applications within the
Power Supply, Appliance, Exercise Equipment and Music
Equipment Industries.
.125[3.18]
X
.150[3.81]
Dielectric Strength
UL/CSA:
1000V - live to dead
metal parts & opposite polarity
Electrical Life
50,000 cycles
Mechanical Life
100,000 cycles
Operating Temperature
-40°F to 185°F (-40°C to 85°C)
6.000[152.40]
.275[6.99]
.250[6.35]
.250 TAB (Q.C.)
.187[4.75]
SOLDER LUG
.500[12.70]
1.145[29.08]
.784[19.91]
.080[2.03]
1.240[31.50]
.215[5.46]
WIRE LEAD
TERMINAL TYPE
1.181[30.00]
+.000[.00]
-.004[.10]
1.125[28.58]
+.004[.10]
-.000[.00]
.866[22.00]
1.180[29.97]
TEST CUT
HOLE IN
ACTUAL
MATERIAL
.872[22.15]
TEST CUT
HOLE IN
ACTUAL
MATERIAL
1.000[25.4]
1.072[27.23]
.375[9.53]
.725[18.42]
LRGSE
MOUNTING HOLE
Panel Thickness: .025 min - .187 max.
Specific cutout dimension range dependent
on panel thickness and material.
LRGSC
1.070[27.17]
1.176[29.87]
RGSC
RGSE
1.086[27.58]
LRGSCK611
-
R S
-
B
-
B
/
250N
1
Base Part Number
2
Actuator
Style
3
Actuator
Color
4
Bezel
Color/Style
5
Rocker
Legend
6
Lamp Voltage
1 BASE PART NUMBER: SERIES/CIRCUITRY/RATING
1
/TERMINATION
15A 250 VAC, 20A 125 VAC, 3/4 HP 125-250 VAC
Solder Lugs .250 Tabs
Wire Leads
Standard Base
OFF-NONE ON
LRGSCK610 LRGSCK611 LRGSCK615
European Base
(22 x 30 mm cutout)
OFF-NONE ON (Single Pole)
LRGSEK610 LRGSEK611 LRGSEK615
15A 6-24 V
3
Standard Base
OFF-NONE ON
LRGSCK510 LRGSCK511 LRGSCK515
European Base
(22 x 30 mm cutout)
OFF-NONE ON (Single Pole)
LRGSEK510 LRGSEK511 LRGSEK515
2 ACTUATOR STYLE
R
rocker (translucent)
3 ACTUATOR COLOR
A
amber
B
3,5
blue
white/clear
C
4
green
G
5
4 BEZEL COLOR
1
B
black
5 ROCKER LEGEND
hot stamp
NO LEGEND
0
OFF-ON vertical
A
OFF-ON horizontal
B
I-O horizontal
D
I-O vertical
E
DUAL OFF-ON , I-O vertical
H
DUAL OFF-ON , I-O horizontal
J
6 LAMP VOLTAGE
2
006V
6V incandescent
012V
12V incandescent
018V
18V incandescent
W
white
C
L
3
P
R
S
W
rocker (clear)
lime green
yellow
red (clear)
red
pale red
024V
24V incandescent
125N
125V neon
250N
250V neon
NOTES
1
2
3
4
5
Additional ratings, colors and clear style actuators are available. Consult factory.
Incandescent lamps must specify 15A 24V rating only.
Available with incandescent lamps only.
Clear color provided where specified with clear style rocker.
Available with clear style rocker only.
