NuPRO-730/LV

Description
single board computers picmg 1.0 sbc core 2 duo / celeron
CategoryModule/solution
File Size448KB，1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

NuPRO-730/LV Overview

single board computers picmg 1.0 sbc core 2 duo / celeron

NuPRO-730/LV Parametric

Parameter NameAttribute value
ManufactureADLINK Technology
Product CategorySingle Board Computers
RoHSYes
Form FacPICMG 1.0
Processor BrandIntel
Processor TypeIntel Core 2 Duo/Celeron M
Frequency2 GHz, 2.2 GHz
Memory Size4 GB
Memory TypeDDR2, L2 Cache
Interface TypeEthernet, IDE, Parallel, SATA, Serial, USB
Operating Supply Voltage5 V
Maximum Operating Temperature+ 70 C
Dimensions338 mm x 122 mm
Backup BatteryYes
Cache Memory1 MB, 4 MB
ChipsetsGME965, ICH8M Express
Description/FunctiPICMG 1 full size SBC, Mobile Core 2 Duo/Celeron (Socket P), GME965/ICH8M, VGA/LVDS, GbE, SATA II, IDE and Floppy
Minimum Operating Temperature- 20 C
Power Consumpti27 W, 35 W
Processor SeriesIntel Core 2 Duo, Intel Celeron M

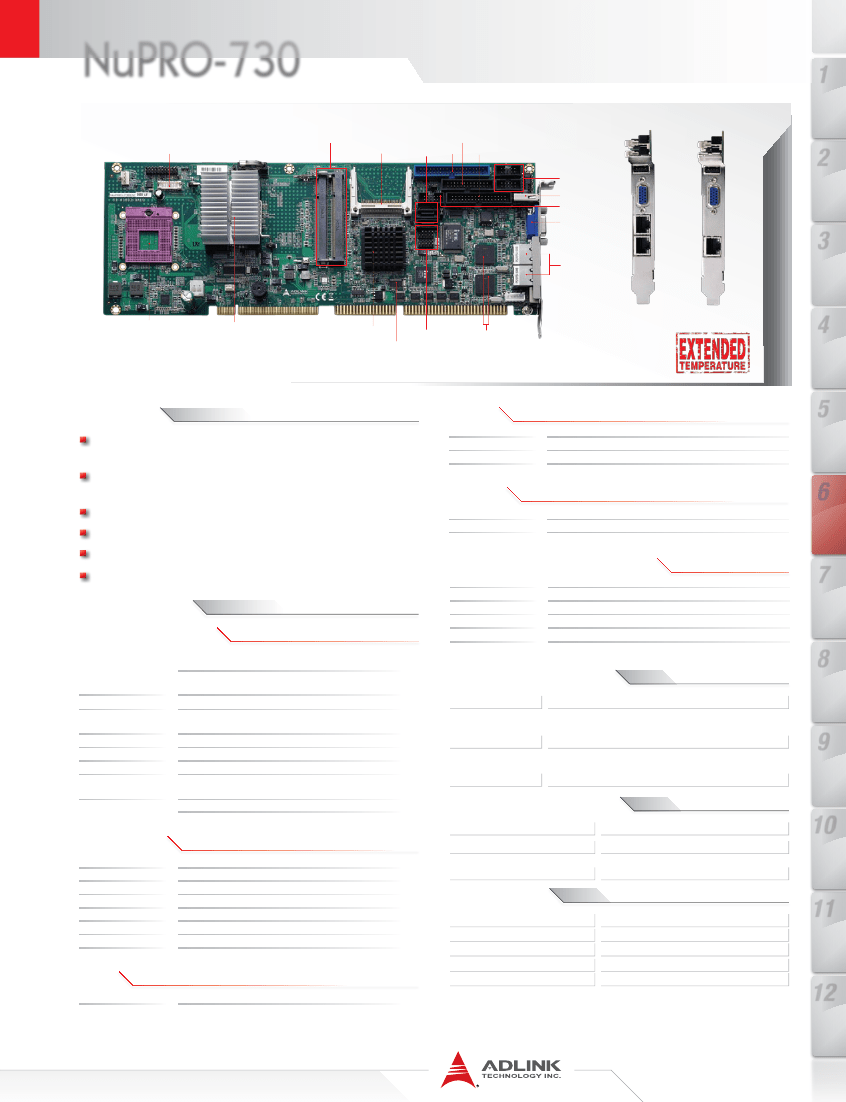

Preview

Download Datasheet
NuPRO-730
LVDS
Two DDRII
SO-DIMMs
Intel
®
Core™2 Duo Mobile PICMG
®
1.0 SBC
1
AdvancedTCA
Products
Parallel
CompactFlash SATA IDE Floppy
COM
USB
Audio
VGA
2
3
6U cPCI
Platforms
6U cPCI
Blades
RJ-45
Socket P for Intel
®
Core™2 Duo processor
Intel
®
GME965
NuPRO-730DV
Intel
®
ICH8M
USB
TPM (DV)
Intel
®
82573L GbE
NuPRO-730LV
4
5
3U cPCI
Platforms
3U cPCI
Blades
Features
Intel
®
Core™2 Duo/Celeron
®
Mobile processors in
Micro-FCPGA package (Socket P)
Integrated Graphics Controller, supports Dual
Independent Display on VGA/LVDS
Trusted Platform Module
Dual Intel
®
Gigabit Ethernet controllers
Optional High Definition Audio kit
Extended temperature support (-20°C to 70°C)
Display
Graphics
VRAM
CRT
LVDS
Intel
®
GMA X3100 Integrated in Intel
®
GME965 GMCH
Shared with system memory up to 384 MB
External Dsub-15 connector, up to 2048x1536 @ 75 Hz
Single channel 24-bit LVDS
Ethernet
Controller
Interface
Wake On LAN
Dual Intel
®
82573L (optional)
Two 10/100/1000Mbps Ethernet ports
Yes
6
Industrial
SBCs & MBs
Mechanical and Environmental
Form Factor
Dimensions
Operating Temp.
Storage Temp.
Certifications
Relative Humidity
Full-Size PICMG
®
1.0 SBC
338 mm x 122 mm (L x W)
-20°C to 70°C
-40°C to 80°C
CE, FCC Class A
10% to 90%, non-condensing
7
Industrial
Chassis
Specifications
Processor & System
CPU
Intel
®
Core™2 Duo Mobile T7500, 2.2 GHz, FSB 800MHz,
4MB L2 Cache, 65nm, 35W TDP
Mobile Intel
®
Celeron
®
M 550, 2 GHz, FSB 533MHz,
1MB L2 Cache, 65nm, 27W TDP
Intel
®
GME965 + ICH8M Express Chipset
2 x 200-pin SO-DIMM sockets supporting dual-channel
DDR2-667 SDRAM, up to 4 GB
Infineon SLB9635 TT 1.2 (optional)
AMI BIOS/ SPI Flash ROM 16 Mb
1-255 sec. or min. software programmable
CPU/System temperature, fan speed and onboard DC
voltages
Windows
®
XP, Vista
Fedora™ 8, Red Hat Enterprise Linux 5
Ordering Information
Model Number
NuPRO-730DV
8
IPC
Accessories
Chipset
Memory
TPM
BIOS
Watchdog Timer
Hardware Monitor
Operating Systems
Description/Configuration
PICMG
®
1.0 Full-size SBC, Mobile Core™2 Duo/Celeron
®
(Socket P), GME965/ICH8M, TPM, VGA/LVDS, Dual GbE,
SATA II, IDE and Floppy
PICMG
®
1.0 Full-size SBC, Mobile Core™2 Duo/Celeron
®
(Socket P), GME965/ICH8M, VGA/LVDS, GbE, SATA II, IDE
and Floppy
NuPRO-730LV
9
Computer-
On-Modules
Optional Accessories
Model Number
Socket-M 1U CPU Cooler
DB-Audio2
Description/Configuration
1U CPU cooler with backplate
High Definition Audio daughter board
supports Line-in, Line-out, and Mic-in
I/O Interfaces
IDE (PATA)
CompactFlash
Serial ATA
USB
KB/MS
Floppy
Parallel Port
Serial Port
1x UltraATA 66/100/133 supports up to 2 devices
1x CompactFlash type II socket (share with IDE)
2x SATA 3 Gb/s ports
5x USB 2.0 ports (1 x faceplate, 4 x onboard pin headers)
Internal pin header for keyboard
1x Floppy
1x LPT
1x RS-232, 1x RS-232/422/485/485+
10
Ampro by ADLINK
Extreme Rugged
Packing List
NuPRO-730
2x SATA data cables
1x dual-plug SATA power cable
Driver DVD
User’s manual
1x COM+Parallel port cables with bracket
1x UltraATA 100 IDE cable
1x Floppy cable
1x USB 2.0 cable with bracket
1x COM port cable with bracket
11
Smart Panels
Audio
Audio Codec
Interface
Realtek ALC262 on DB-Audio2 daughter board
Pin header for High Definition Audio interface
12
SSDs

NuPRO-730/LV Related Products

NuPRO-730/LV NuPRO-730/DV
Description single board computers picmg 1.0 sbc core 2 duo / celeron single board computers picmg 1.0 sbc core 2 duo / celeron
Manufacture ADLINK Technology ADLINK Technology
Product Category Single Board Computers Single Board Computers
RoHS Yes Yes
Form Fac PICMG 1.0 PICMG 1.0
Processor Brand Intel Intel
Processor Type Intel Core 2 Duo/Celeron M Intel Core 2 Duo/Celeron M
Frequency 2 GHz, 2.2 GHz 2 GHz, 2.2 GHz
Memory Size 4 GB 4 GB
Memory Type DDR2, L2 Cache DDR2, L2 Cache
Interface Type Ethernet, IDE, Parallel, SATA, Serial, USB Ethernet, IDE, Parallel, SATA, Serial, USB
Operating Supply Voltage 5 V 5 V
Maximum Operating Temperature + 70 C + 70 C
Dimensions 338 mm x 122 mm 338 mm x 122 mm
Backup Battery Yes Yes
Cache Memory 1 MB, 4 MB 1 MB, 4 MB
Chipsets GME965, ICH8M Express GME965, ICH8M Express
Description/Functi PICMG 1 full size SBC, Mobile Core 2 Duo/Celeron (Socket P), GME965/ICH8M, VGA/LVDS, GbE, SATA II, IDE and Floppy PICMG 1 full size SBC, Mobile Core 2 Duo/Celeron (Socket P), GME965/ICH8M, TPM, VGA/LVDS, Dual GbE, SATA II, IDE and Floppy
Minimum Operating Temperature - 20 C - 20 C
Power Consumpti 27 W, 35 W 27 W, 35 W
Processor Series Intel Core 2 Duo, Intel Celeron M Intel Core 2 Duo, Intel Celeron M
