5962-01-253-9112 datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-01-253-9112

5962-01-253-9112: DescriptionBinary Counter, Synchronous, Bidirectional, CMOS, CDIP16,; Categorylogic logic; File Size293KB，7 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5962-01-253-9112 Overview

Binary Counter, Synchronous, Bidirectional, CMOS, CDIP16,

5962-01-253-9112 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP16,.3
Reach Compliance Code	compli
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDIP-T16
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Su	2000000 Hz
Operating mode	SYNCHRONOUS
Humidity sensitivity level	2A
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5/15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

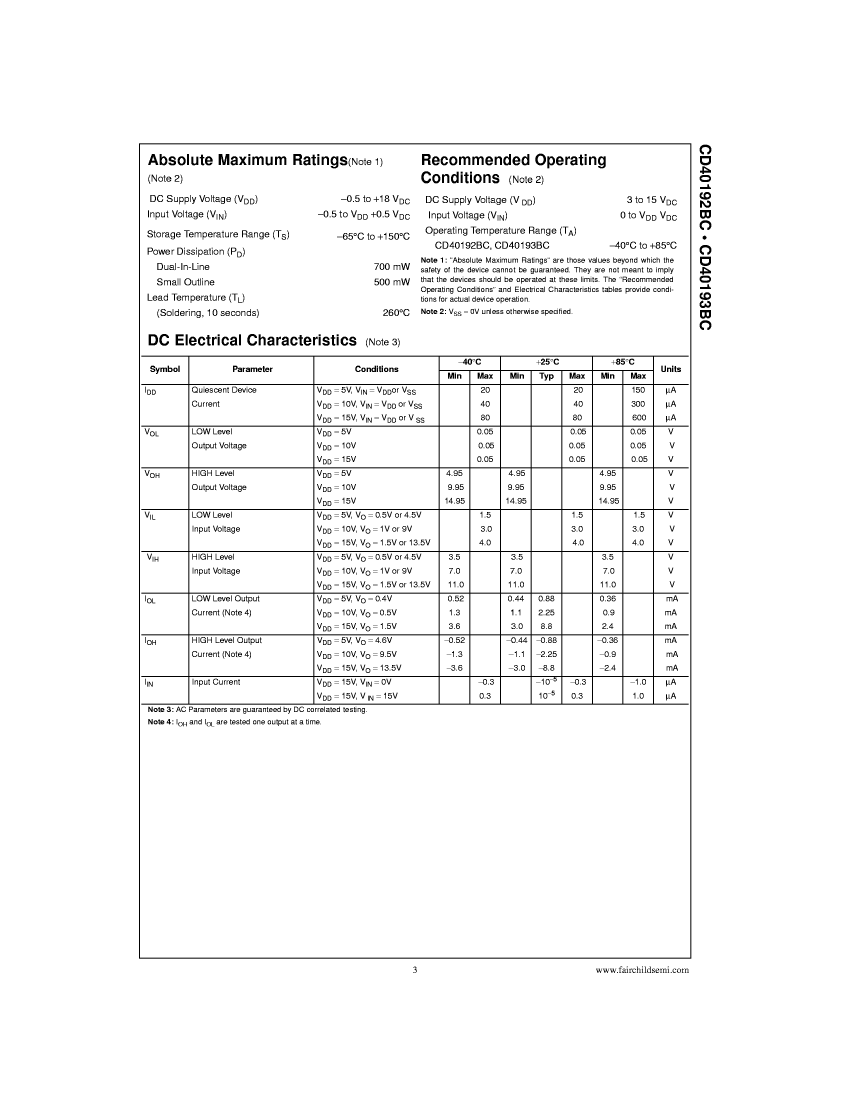

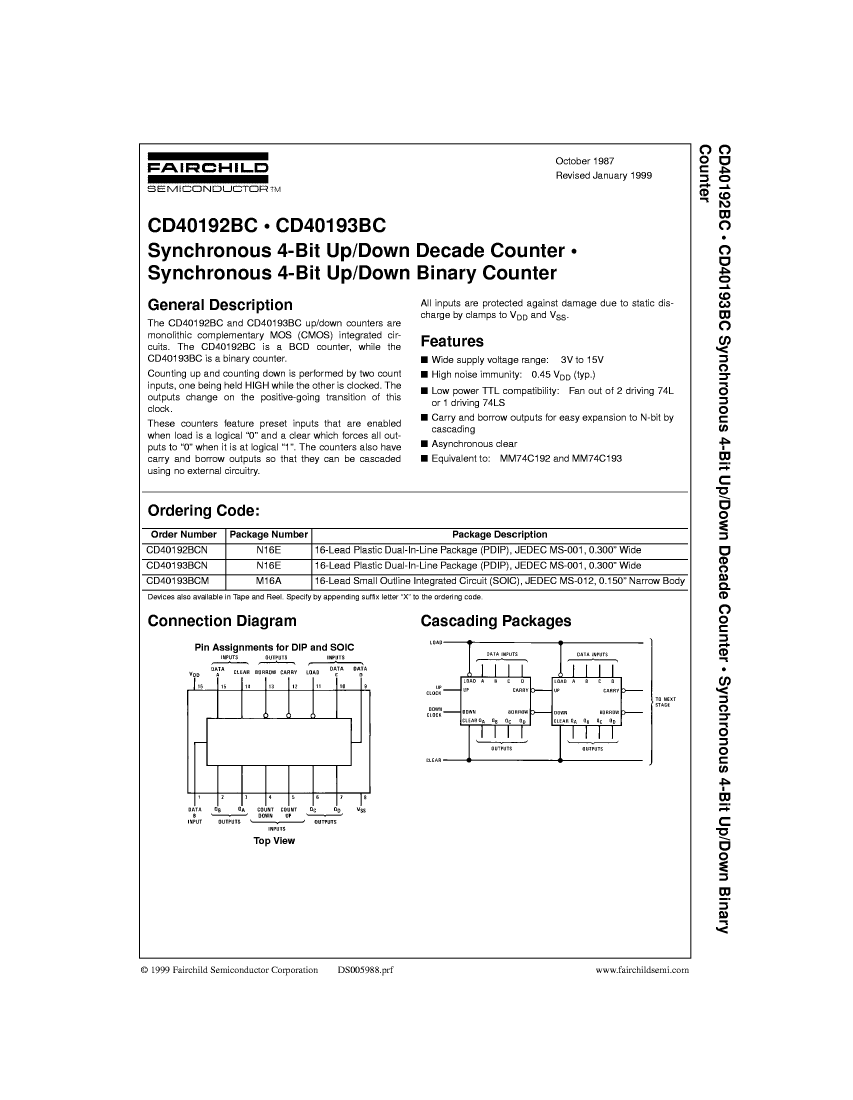

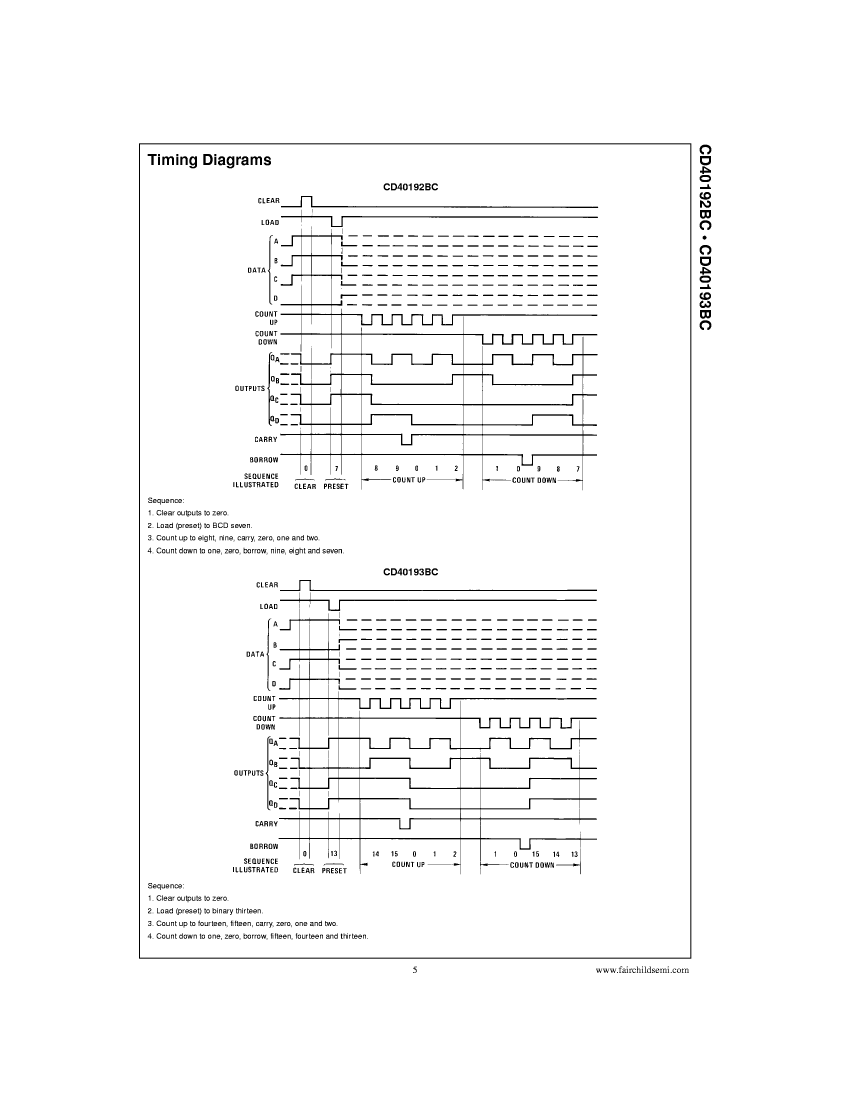

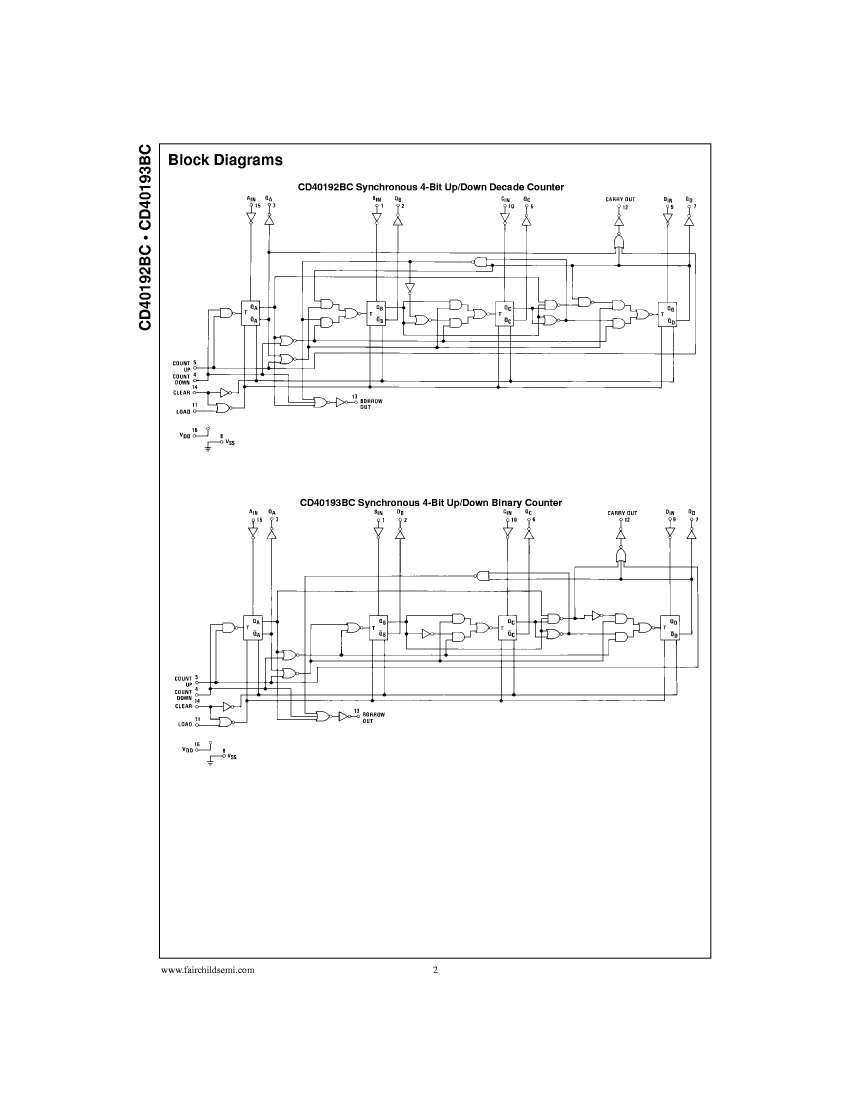

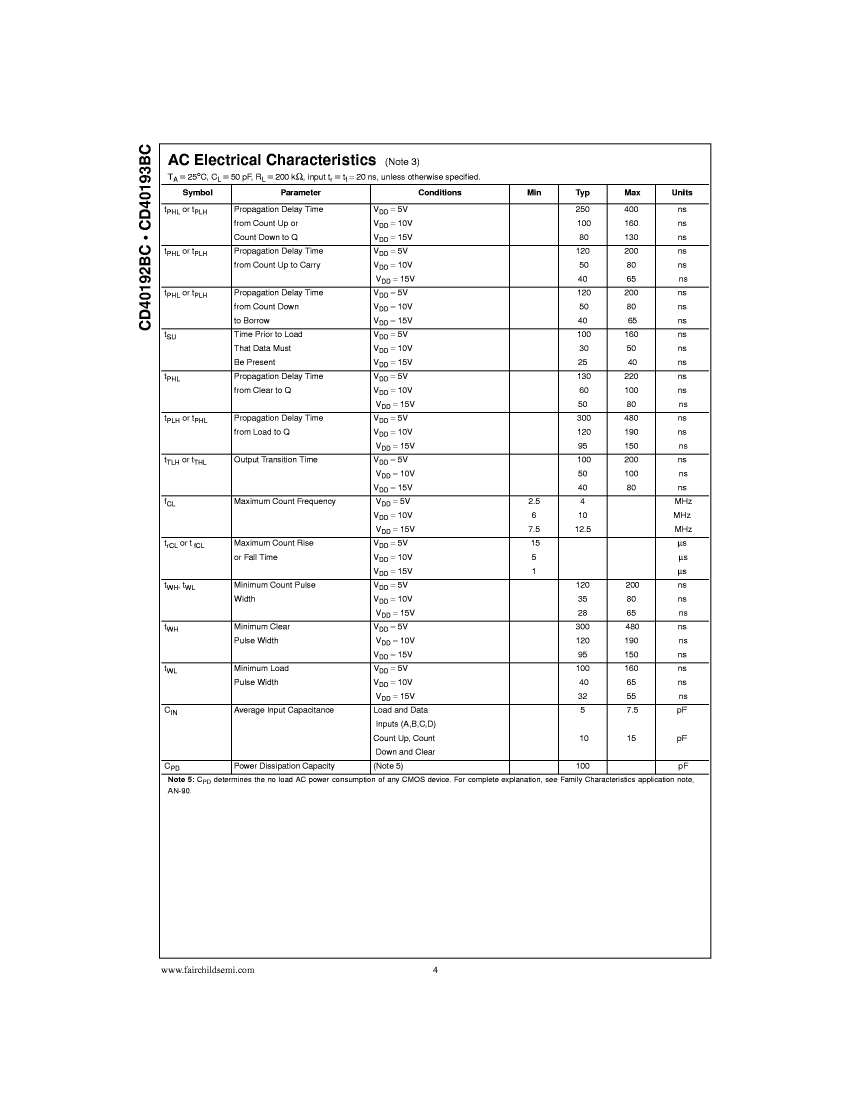

Preview

Download Datasheet

View All

5962-01-253-9112 Related Products

	5962-01-253-9112	40193BDCQR	40193BDMQB	40193BDM	40193BDC	40193BDCQM	40192BFCQM
Description	Binary Counter, Synchronous, Bidirectional, CMOS, CDIP16,	Binary Counter, Synchronous, Bidirectional, CMOS, CDIP16,	Binary Counter, Synchronous, Bidirectional, CMOS, CDIP16	Binary Counter, Synchronous, Bidirectional, CMOS, CDIP16,	Binary Counter, Synchronous, Bidirectional, CMOS, CDIP16,	Binary Counter, Synchronous, Bidirectional, CMOS, CDIP16,	Decade Counter, Synchronous, Bidirectional, CMOS, CDFP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compli	compliant	unknown	compliant	compliant	compliant	compli
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDFP-F16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	DECADE COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	85 °C	125 °C	125 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DFP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	FL16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	250	250	NOT SPECIFIED	250	250	250	250
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
surface mount	NO	NO	NO	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	NOT SPECIFIED	30	30	30	30
Humidity sensitivity level	2A	2A	-	2A	2A	2A	2A
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Base Number Matches	1	1	1	1	1	1	-
JESD-609 code	-	e0	e0	e0	e0	e0	e0
Maximum Frequency@Nom-Sup	-	2000000 Hz	2000000 Hz	2000000 Hz	2000000 Hz	2000000 Hz	-
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
