Internal Power Dissipation ......................................................... 1.5W
Max Case Temperature ..........................................................+100°C
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
WPO6RC.C01
Page 2 of 4
WP06RC
5-6 Watt High Density, Wide Input Range DC/DC Converter

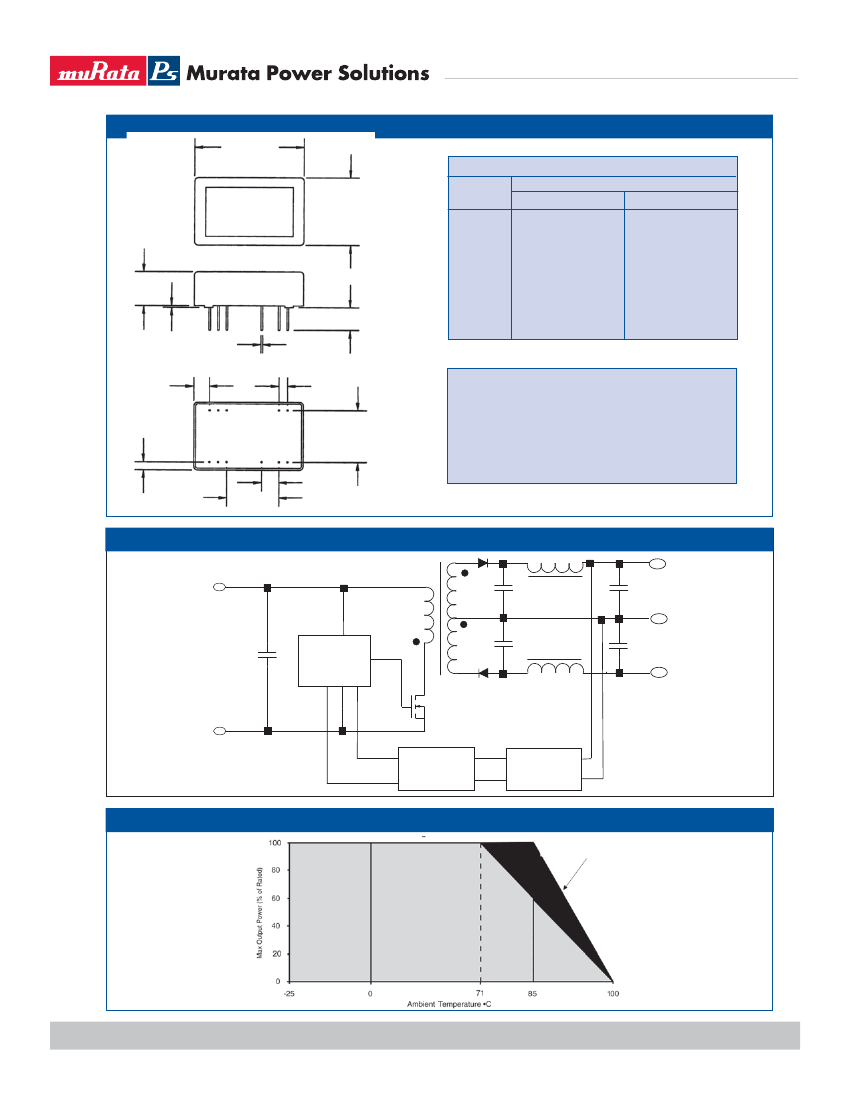

MECHANICAL
1.260”
(32.00)
TOP
VIEW
0.787”
(20.00)
Number
2
3
5
9
10
11
14
15
16
22
23
PIN CONNECTIONS
Pin Function
Singles
-Vin
-Vin
On/Off (Optional)
No Connection
No Connection
No Connection
+Vout
No Connection
+Vin
+Vin
Duals
-Vin
-Vin
On/Off (Optional)
Com
No Connection
-Vout
+Vout
No Connection
-Vout Com
+Vin
+Vin
WP06RC
0.394”
(10.00)
SIDE
VIEW
0.256” (6.50)
0.020”
(0.50)
0.180”
(4.57)
0.093”
(2.36)
0.020”
(0.50)
0.100”
(2.54)
14 15 16
22 23
BOTTOM
VIEW
0.600”
(15.24)
11 10 9
5
3 2
NOTES:
1) All dimensions in inches (mm).
2) MATERIAL: Units are encapsulated in a low thermal resistance
molding compound which has excellent chemical resistance, wide
operating temperature range, and good electrical properties under
high humidity environments. The encapsulant and outer shell of
the unit have UL94V-0 ratings. Lead material is UNS C36000
brass plated with matte tin 100 micro-inches min., over nickel,
40-80 micro-inches.
0.600”
(15.24)
0.200”
(5.08)
SIMPLIFIED CIRCUIT SCHEMATIC
+Vo
+Vin
Com
Control
-Vo
-Vin
Optical
Isolation
Voltage
Reference
THERMAL DERATING CURVE
Extended operating area
For extended temperature operation,
a forced air flow 500 LFM is required.
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
WPO6RC.C01
Page 3 of 4
WP06RC
5-6 Watt High Density, Wide Input Range DC/DC Converter
THROUGH-HOLE SOLDERING INFORMATION
These devices are intended for wave soldering or manual soldering.
They are not intended to be subject to surface mount processes under any circumstances.
The normal wave soldering process can be used with these devices where the device is subjected to a maximum wave temperature of 260°C for a period of
no more than 10 seconds. Within this time and temperature range, the integrity of the device’s body will not be compromised and internal temperatures within
the converter will not exceed 175°C. Care should be taken to control manual soldering limits identical to that of wave soldering.
