561-FSTP375: Descriptionstandoffs & spacers ckt brd pst F S-thrd; CategoryTopical application Mechanical and electrical/engineering/automation; File Size77KB，1 Pages; ManufacturerEagle Plastic Devices; Environmental Compliance

Download Datasheet Parametric Compare View All

561-FSTP375 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	561-FSTP375	-	-	View	Buy Now

561-FSTP375 Overview

standoffs & spacers ckt brd pst F S-thrd

561-FSTP375 Parametric

Parameter Name	Attribute value
Manufacture	Eagle Plastic Devices
Product Category	Standoffs & Spacers
RoHS	Yes
Board Thickness	2 mm
Type	PCB Hardware
Length	9.53 mm
Material	Nyl
Mounting Hole Size	3.96 mm

Preview

Download Datasheet

View All

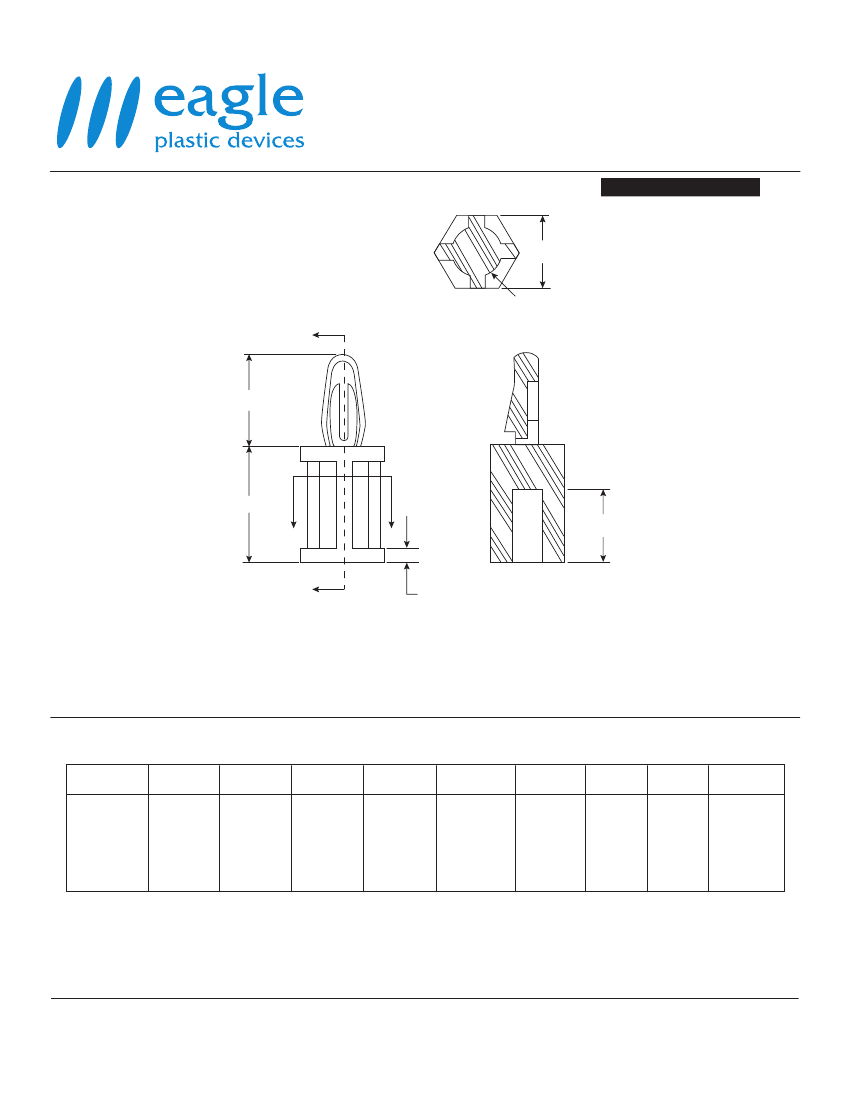

Female Circuit Board Posts -

Self Threading

561-FSTP250, 561-FSTP375, 561-FSTP500,

561-FSTP625, 561-FSTP750, 561-FSTP875,

561-FSTP1000

Date Last Revised: 5-12-09

HOLE SIZE - .156

PANEL THICKNESS - 1/16”

HEX OD

POST DIAMETER

A

LOCK LENGTH

CORE DEPTH

B

A

WASHER THICKNESS

NOTE: Self Threading Posts are designed for use with a #6 self-tapping screw.

RoHS Compliant

Specifications

Head Dia. A

561-FSTP250

561-FSTP375

561-FSTP500

561-FSTP625

561-FSTP750

561-FSTP875

561-FSTP1000

Description

FSTP 250

FSTP 375

FSTP 500

FSTP 625

FSTP 750

FSTP 875

FSTP 1000

Hex OD

.312 (+/- .015)

Washer

Lock Length Post Diameter Core Depth

Thickness

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

.062 (+/-.015) .400*(ref.)

.218(+/-.015)

.312

Hole Size

.156

Panel

Body Length

Thickness

.062

.250(+/-.015)

.620

.375(+/-.015)

.062

.500(+/-.015)

.062

.625(+/-.015)

.062

.750(+/-.015)

.062

.875(+/-.015)

.062

1.000(+/-.015)

Description

• Material - molded in natural nylon 6/6

Available from Mouser Electronics

1-800-346-6873 / www.mouser.com

EPD-200795

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
