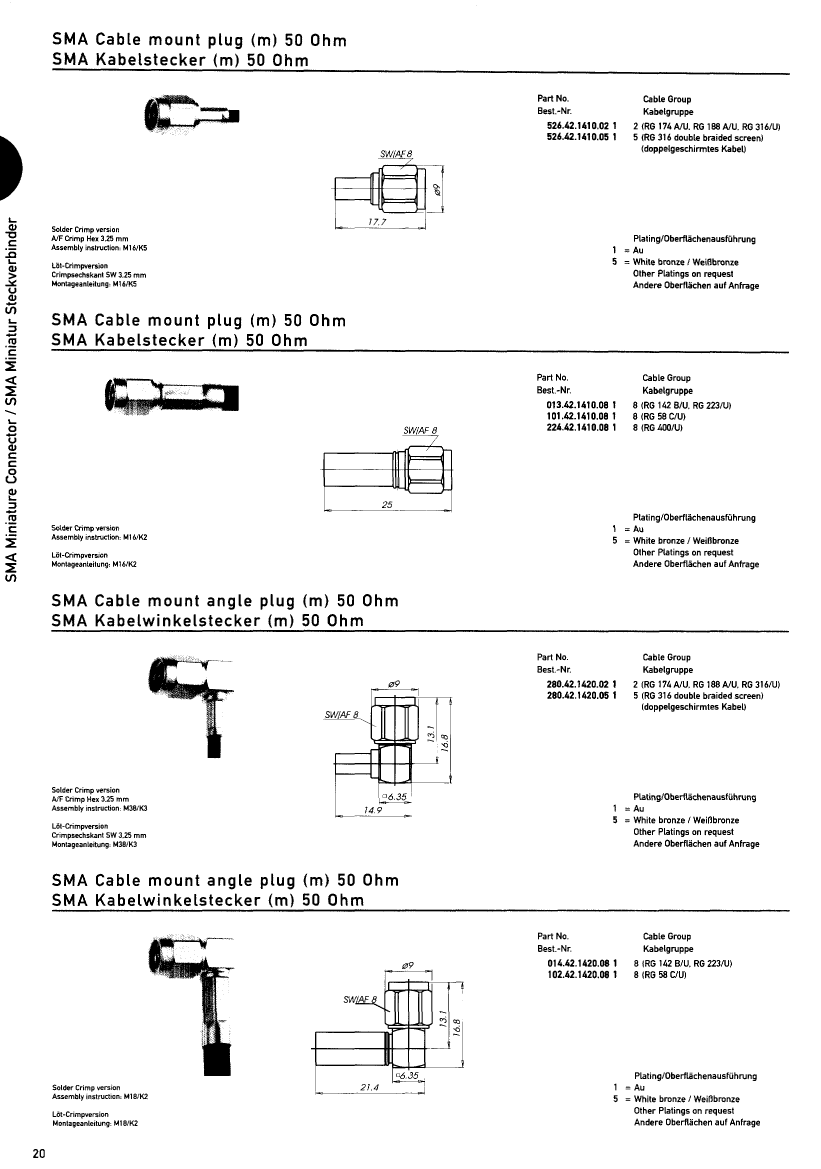

280.42.1420.021: DescriptionRF SMA Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric Compare View All

280.42.1420.021 Overview

RF SMA Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Locking, Plug

280.42.1420.021 Parametric

Parameter Name	Attribute value
Maker	IMS Connector Systems Gmbh
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: MIL-C-39012; IEC 169-15, APPLICABLE CABLES: RG-174A/U; RG-188A/U; RG-316/U
subject depth	0.661 inch
Body diameter	0.354 inch
Body/casing type	PLUG
Cable type	RG-174
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact resistance	3 mΩ
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
Insertion loss	0.25 dB
Insulation resistance	10000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	SMA
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	12.4 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Rated current (signal)	2 A
Termination type	CRIMP SOLDER
Total number of contacts	1
voltage standing wave ratio	1.42
Base Number Matches	1

Preview

Download Datasheet

View All

280.42.1420.021 Related Products

	280.42.1420.021	101.42.1410.081	102.42.1420.081	224.42.1410.081	280.42.1420.051	526.42.1410.051	526.42.1410.021	013.42.1410.081	014.42.1420.081
Description	RF SMA Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Locking, Plug	RF SMA Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Locking, Plug	RF SMA Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Locking, Plug	RF SMA Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Locking, Plug	RF SMA Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF SMA Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF SMA Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Plug	RF SMA Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF SMA Connector, Male, Cable Mount, Crimp Solder Terminal, Plug
Reach Compliance Code	compli	compli	compli	compli	unknow	unknown	compliant	unknown	unknown
Other features	STANDARDS: MIL-C-39012; IEC 169-15, APPLICABLE CABLES: RG-174A/U; RG-188A/U; RG-316/U	STANDARDS: MIL-C-39012; IEC 169-15, APPLICABLE CABLE: RG-58C/U	STANDARDS: MIL-C-39012; IEC 169-15, APPLICABLE CABLE: RG-58C/U	STANDARDS: MIL-C-39012; IEC 169-15, APPLICABLE CABLE: RG-400/U	STANDARDS: MIL-C-39012; IEC 169-15, APPLICABLE CABLE: RG-316	STANDARDS: MIL-C-39012; IEC 169-15, APPLICABLE CABLE: RG-316	STANDARDS: MIL-C-39012; IEC 169-15, APPLICABLE CABLES: RG-174A/U; RG-188A/U; RG-316/U	STANDARDS: MIL-C-39012; IEC 169-15, APPLICABLE CABLES: RG-142B/U; RG-223/U	STANDARDS: MIL-C-39012; IEC 169-15, APPLICABLE CABLES: RG-142B/U; RG-223/U
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES
Insertion loss	0.25 dB	0.11 dB	0.25 dB	0.11 dB	0.25 dB	0.11 dB	0.11 dB	0.11 dB	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP/SOLDER	CRIMP/SOLDER	CRIMP SOLDER	CRIMP SOLDER
voltage standing wave ratio	1.42	1.15	1.42	1.15	1.42	1.15	1.15	1.15	1.42
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	IMS Connector Systems Gmbh	-	-	-	-	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh
ECCN code	EAR99	EAR99	EAR99	EAR99	-	-	EAR99	-	EAR99
subject depth	0.661 inch	0.965 inch	0.661 inch	0.984 inch	-	0.697 inch	0.354 inch	-	-
Cable type	RG-174	RG-58	RG-58	RG-142B/U	-	RG 316	RG 174 A/U, RG 188A/U, RG 316/U	-	-
Contact resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ	-	-	3 mΩ	-	-
Contact style	COAX	COAX	COAX	COAX	-	-	COAX	-	-
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	-	-	500 Cycles	-	-
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	-	-	10000000000 Ω	-	-
Manufacturer's serial number	SMA	SMA	SMA	SMA	SMA	-	-	SMA	SMA
Number of ports	1	1	1	1	-	1	1	-	-
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	-	-	125 °C	-	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-	-55 °C	-	-
Rated current (signal)	2 A	2 A	2 A	2 A	-	-	2 A	-	-
Total number of contacts	1	1	1	1	-	1	1	-	-
