BFS-15W02 Overview

embedded box computers atom d2550 cpu, 15.6" panel with 5-wires resistive touch

BFS-15W02 Parametric

Parameter Name	Attribute value
Manufacture	ADLINK Technology
Product Category	Embedded Box Computers
RoHS	Yes
Operating Supply Voltage	24 V

Preview

Download Datasheet

View All

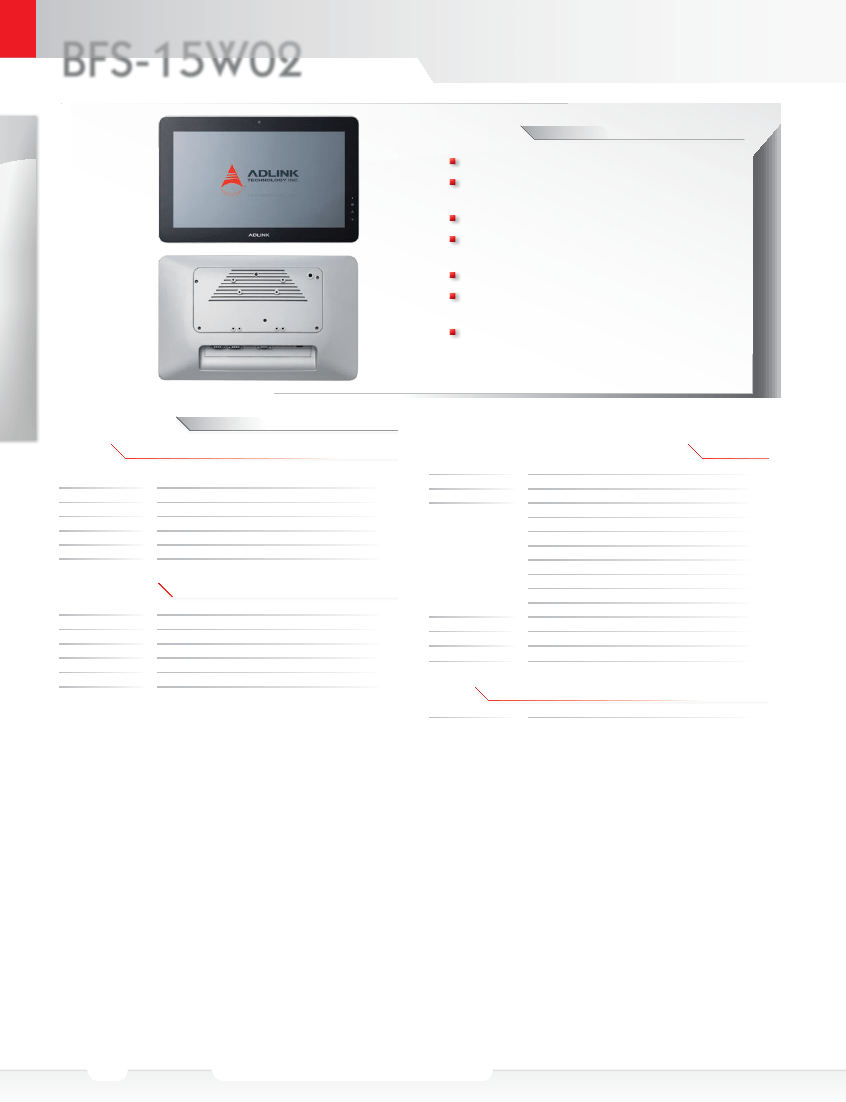

BFS-15W02

Intel

®

Atom™ Processor D2550

15.6’’ Smart Touch Computer

Features

Intel

®

new generation CPU - Cedar View D2550

15.6’’ 16:9 Color Active Matrix TFT flat panel

display with LED backlight

Easy to clean, full-flat touch panel

Front panel complies with IP54 protection

standard

Low power consumption and fanless

VESA 75 mm/ 100 mm mounting holes for

varied mounting demands

VGA output for 2nd monitor

Specifications

Display

Display Description

Display Size

Resolution 1

Brightness

Contrast Ratio

Touch Screen

Chassis

Color Active Matrix TFT flat panel display with LED

backlight

15.6 inch, 16:9

366 x 768, 18-bit

200 nits

400:1 typical

5-wire resistive antiglare

Die-cast aluminum

Motherboard and System Components

Processor

Main Memory

Storage Drive

I/O Port

Intel

®

Atom™ Processor D2550 with NM10 Express Chip

4GB (DDR3 SO-DIMM)

320GB HDD (2.5’’ SATA-II)

2x Gigabit Ethernet LAN port

2x USB 2.0 ports (USB HUB)

2x USB 2.0 ports

1x RS-232 port (RJ45 connector)

1x RS-232/422/485 port (RJ45 connector, BIOS-selectable)

1x VGA output for 2nd monitor

1x 4-pin mini-DIN for DC-IN

1x power button

2x built-in 1W stereo speakers

Front: 2M FF, 2.0M pixels

802.11 b/g/n

Windows Embedded Standard 7 Premium pre-loaded

Environmental

Operating Temperature 0 °C to 50 °C

Nonoperating Temperature -20 °C to 60 °C

Relative Humidity

10% to 90% @ 40°C (non-condensing)

Vibration, Operating

1G random 5 to 500Hz

Shock, Operating

10G peak acceleration 11ms duration

Ratings

IEC IP54 on the front and top

Certifications & Compliance CE, CB, UL, FCC ClassB, VCCI & RoHS/Reach

Speaker

Webcam

WiFi

Operating Systems

Power

Input Voltage

Power Consumption

24VDC

20W

http://www.adlinktech.com
