BB2-770-S500A-55

Description
Board Connector, 70 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,
CategoryThe connector    The connector
File Size151KB,1 Pages
ManufacturerE-tec Interconnect Ltd.
Environmental Compliance
Download Datasheet Parametric View All

BB2-770-S500A-55 Overview

Board Connector, 70 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,

BB2-770-S500A-55 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8287225794
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD FLASH
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts70
UL Flammability Code94V-0

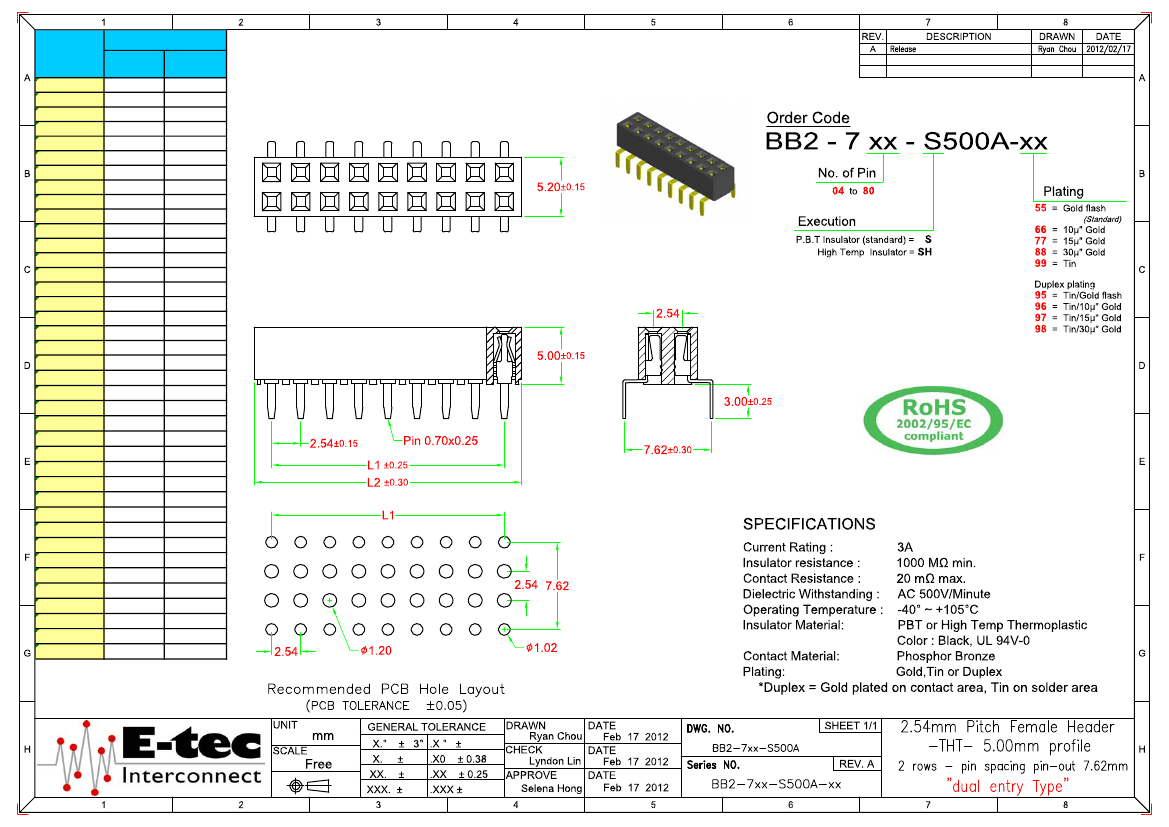

No. of
Contacts
04
06
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
Dimension(mm)
L1
2.54
5.08
7.62
10.16
12.70
15.24
17.78
20.32
22.86
25.40
27.94
30.48
33.02
35.56
38.10
40.64
43.18
45.72
48.26
50.80
53.34
55.88
58.42
60.96
63.50
66.04
68.58
71.12
73.66
76.20
78.74
81.28
83.82
86.36
88.90
91.44
93.98
96.52
99.06
L2
5.58
8.12
10.66
13.20
15.74
18.28
20.82
23.36
25.90
28.44
30.98
33.52
36.06
38.60
41.14
43.68
46.22
48.76
51.30
53.84
56.38
58.92
61.46
64.00
66.54
69.08
71.62
74.16
76.70
79.24
81.78
84.32
86.86
89.40
91.94
94.48
97.02
99.56
102.10
