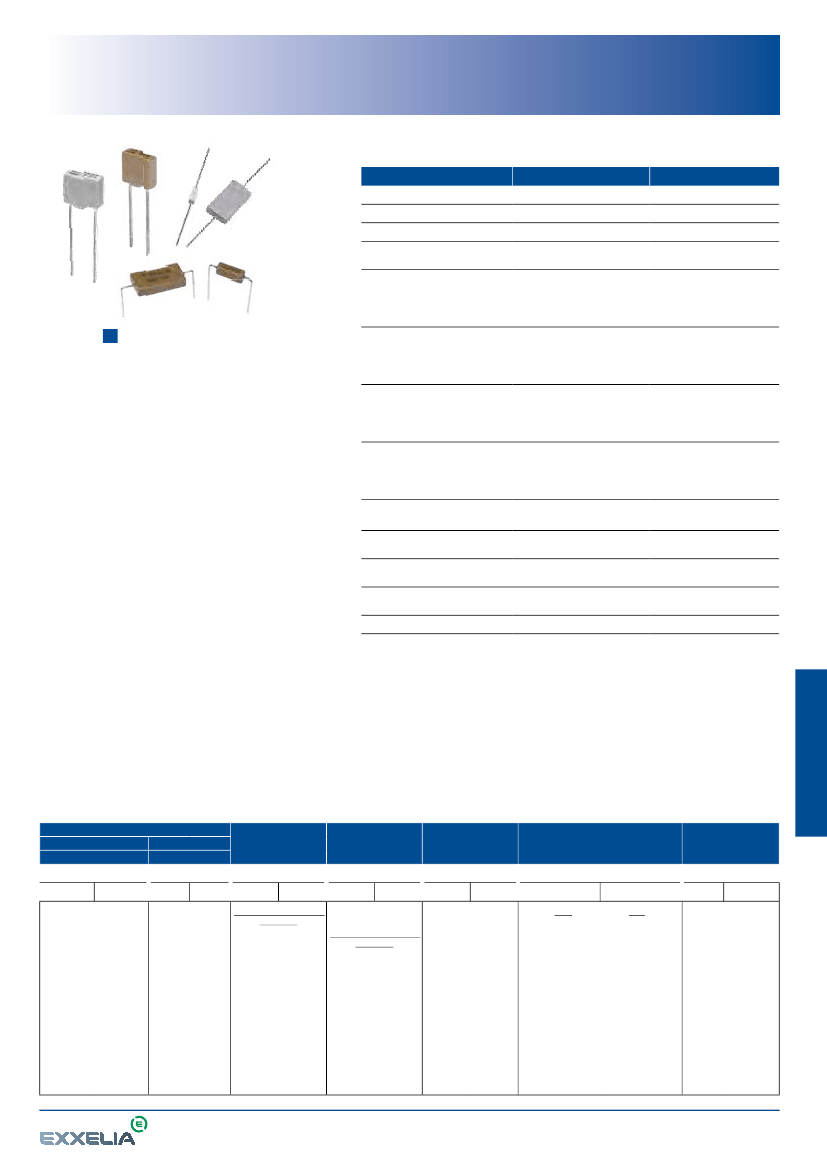

• Multilayer Chips Ceramic Capacitors for operating
temperature up to 250°C
• NPO and X7R dielectrics
• Capacitance range: 10pF to 3.3µF
• Voltage range at 20°C: 25 V
DC
to 500 V
DC
Dissipation factor at 200°C
≤1.5% at 1MHz for C ≤ 100pF
≤1.5% at 1kHz for C > 100pF
Dissipation factor at 220°C
≤0.5% at 1MHz for C ≤ 100pF
≤0.5% at 1kHz for C > 100pF
PHYSICAL CHARACTERISTICS
CONSTRUCTION
Selfprotected radial or axial leaded chips capacitors for
through-hole circuits. Mechanical stress is eliminated by
replacement of epoxy by selfprotected ceramic.
MARKING
(clear or coded)
Series, capacitance value, tolerance, voltage, date code.
Dissipation factor at 250°C
≤0.5% at 1MHz for C ≤ 100pF
≤0.5% at 1kHz for C > 100pF
≥ 100,000MΩ or ≥ 1,000MΩ.µF
(whichever is less)
≥ 1,000MΩ or ≥ 10MΩ.µF
(whichever is less)
≥ 200MΩ or ≥ 4MΩ.µF
(whichever is less)
≥ 100MΩ or ≥ 2MΩ.µF
(whichever is less)
≤ 2.5% per decade hour
Insulation resistance at 20°C
under U
RC
Insulation resistance at 200°C
under U
RC
Insulation resistance at 220°C
under U
RC
Insulation resistance at 250°C
under U
RC
Ageing
HOW TO ORDER
TCN2
TCN2X
TCN5X
Series
64
64
64
Exxelia size code
2
Leads spacing code
W
RoHS compliant
180pF
Capacitance
10%
Tolerance
100 V
Rated voltage at20°C
Operating temperature
Up to 200°C
TCE2
= NPO
TCN2
= X7R
Up to 220°C
TCE2X
= NPO
TCN2X
= X7R
Up to 250°C
TCE5X
= NPO
TCN5X
= X7R
12
13
14
15
16
62
63
64
65
66
Available on sizes 62, 63,
-
= No RoHS
64, 65, 66:
-
Available on sizes 62, 63,
2
64, 65, 66:
3
W =
RoHS compliant
Lead free version available
for operating temperature
up to 175°C (contact your
sales representative)
Capacitance value
in clear
NPO:
cap. value ≤ 12pF
±0.25pF
cap. value ≤ 8.2pF
±0.5pF
±1pF
cap. value > 22pF
±1%
cap. value > 12pF
±2%
cap. value > 8.2pF
±5%
±10%
cap. value > 3.9pF
±20%
X7R:
±10%
±20%
25 V
50 V
100 V
500 V
www.exxelia.com
109
info@exxelia.com
Page revised 06/20
HIGH TEMPERATURE
CERAMIC CAPACITORS
TCE / TCN Self-Protected Series
Taping : dimensions
DIMENSIONS in inches (mm)
L
≥ 0.472
(≥ 12)
High Temperature Self-Protected Capacitors
L
T
W
W
≥ 0.472
(≥ 12)
Ø
X
14
-
0.315 ± 0.012
(8 ± 0.3)
0.315 ± 0.012
(8 ± 0.3)
0.15
(3.8)
0.2 ± 0.008
(5.08 ± 0.2)
0.031
(0.8)
NPO
X7R
270pF
15nF
15
-
0.559 ± 0.012
(14.2 ± 0.3)
0.417 ± 0.012
(10.6 ± 0.3)
0.099
(2.5)
0.4 ± 0.008
(10.16 ± 0.2)
0.039
(1)
NPO
X7R
680pF
22nF
16
-
0.559 ± 0.012
(14.2 ± 0.3)
0.417 ± 0.012
(10.6 ± 0.3)
0.15
(3.8)
0.4 ± 0.008
(10.16 ± 0.2)
0.039
(1)
NPO
X7R
680pF
39nF
-
Ø
X
STANDARD RATINGS
Exxelia size code
Leads spacing code
L
Dimensions
inches (mm)
W
T max.
X
Ø ± 10%
Dielectric
Min. Capacitance value
20°C 200°C 220°C 250°C
Rated voltage (U
RC
)
25V
50V
100V
12V
25V
50V
8V
16V
25V
125V
5V
10V
16V
63V
-
6.8nF
3.9nF
-
-
390nF
180nF
-
-
12nF
6.8nF
-
-
680nF
330nF
-
-
22nF
15nF
-
-
1.2µF
680nF
-
-
33nF
22nF
-
12
-
0.284 ± 0.012
(7.2 ± 0.3)
0.244 ± 0.012
(6.2 ± 0.3)
0.099
(2.5)
0.2 ± 0.008
(5.08 ± 0.2)
0.024
(0.6)
NPO
X7R
10pF
3.3nF
13
-
0.315 ± 0.012
(8 ± 0.3)
0.315 ± 0.012
(8 ± 0.3)
0.099
(2.5)
0.2 ± 0.008
(5.08 ± 0.2)
0.024
(0.6)
NPO
X7R
270pF
6.8nF
T
63
2
0.267 max
(6.85 max)
0.1 max
(2.54 max)
0.1
(2.54)
0.5 ± 0.02 0.6 ± 0.02
(12.7 ± 0.5) (15.24 ± 0.5)
0.024
(0.6)
NPO
X7R
1pF
100pF
-
1.8µF
1µF
-
-
56nF
39nF
-
-
3.9µF
1.8µF
-
8.2nF
4.7nF
3.3nF
330pF
180nF
120nF
47nF
-
500V 250V
Exxelia size code
Leads spacing code
L
Dimensions
inches (mm)
W
T max.
X
Ø ± 10%
Dielectric
Min. Capacitance value
Rated voltage (U
RC
)
20°C 200°C 220°C 250°C
25V
50V
100V
12V
25V
50V
8V
16V
25V
5V
10V
16V
27nF
15nF
10nF
NPO
100pF
0.6 ± 0.02
(15.24 ± 0.5)
-
64
2
0.4 max
(10.16 max)
0.15 max
(3.8 max)
0.15
(3.8)
0.7 ± 0.02
(17.78 ± 0.5)
0.024
(0.6)
3
65
-
0.517
(13.2 max)
0.264 max
(6.7 max)
0.158
(4)
0.7 ± 0.02
(17.78 ± 0.5)
0.024
(0.6)
NPO
390pF
X7R
390pF
-
66
2
0.717
(18.2 max)
0.37 max
(9.4 max)
0.158
(4)
0.95 ± 0.02
(24.13 ± 0.5)
0.024
(0.6)
3
1 ± 0.02
(25.4 ± 0.5)
0.9 ± 0.02
(22.86 ± 0.5)
1 ± 0.02
(25.4 ± 0.5)
X7R
180pF
NPO
820pF
X7R
820pF
560nF
330nF
120nF
68nF
39nF
22nF
1.8µF
1µF
330nF
150nF
100nF
56nF
3.3µF
1.8µF
820nF
Available capacitance values:
NPO: E6, E12, E24 (see page 14). Specific values upon request.
X7R: E6, E12 (see page 14). Specific values upon request.
Exxelia can delivery axial leads on size code 262, 263, 264, 265, 266 to allow the customer to obtain the leads spacing needed (leads spacing code = 9). In that case we recommend to bend the connections at a
distance from the ceramic body of 5mm minimum.
The above table defines the standard products, other components may be built upon request.
www.exxelia.com
110
info@exxelia.com
Page revised 06/20
CERAMIC CAPACITORS
General Information
Taping : dimensions
High temperature capacitors are made of class 1 or class 2 ceramic dielectrics
featuring special compositions based upon high purity oxides to reduce ionic
conduction inherent to the presence of atoms such as sodium.
In addition, all quality controls carried out at intermediate and final production
stages (lot acceptance test under U
RC
and insulation resistance measurement
at operating temperature) are the assurance of enhanced reliability.
High temperature capacitors include :
• chip class 1 (CEC 203 to CEC 233) and class 2 (CNC 203 to 233),
• encapsulated radial leads class 1 and 2 (TCE / TCN 201 to 204),
• encapsulated axial leads class 1 and 2 (TCE / TCN 252 to 254),
• selfprotected radial leads class 1 and 2 (TCE / TCN 212 to 216)
and radial leads class 1 and 2 (TCE / TCN 263).
Mechanical stress is eliminated with replacement of epoxy by selfprotected
ceramic. This also allows the increase of the capacitance ranges and improves
the reliability.
• high voltage varnished capacitors (TCH 279 to 285)
• high capacitance value SCT Series.
They are highly recommended for operation at temperatures of up to 200°C.
Capacitors specifically designed for higher operating temperatures (e.g. TCE /
TCN 212 to 216 and TCE / TCN 263 to 266) are also available.
High temperature capacitors are made of class 1 or class 2 ceramic dielectrics
featuring special compositions based upon high purity oxides to reduce ionic
conduction inherent to the presence of atoms such as sodium.

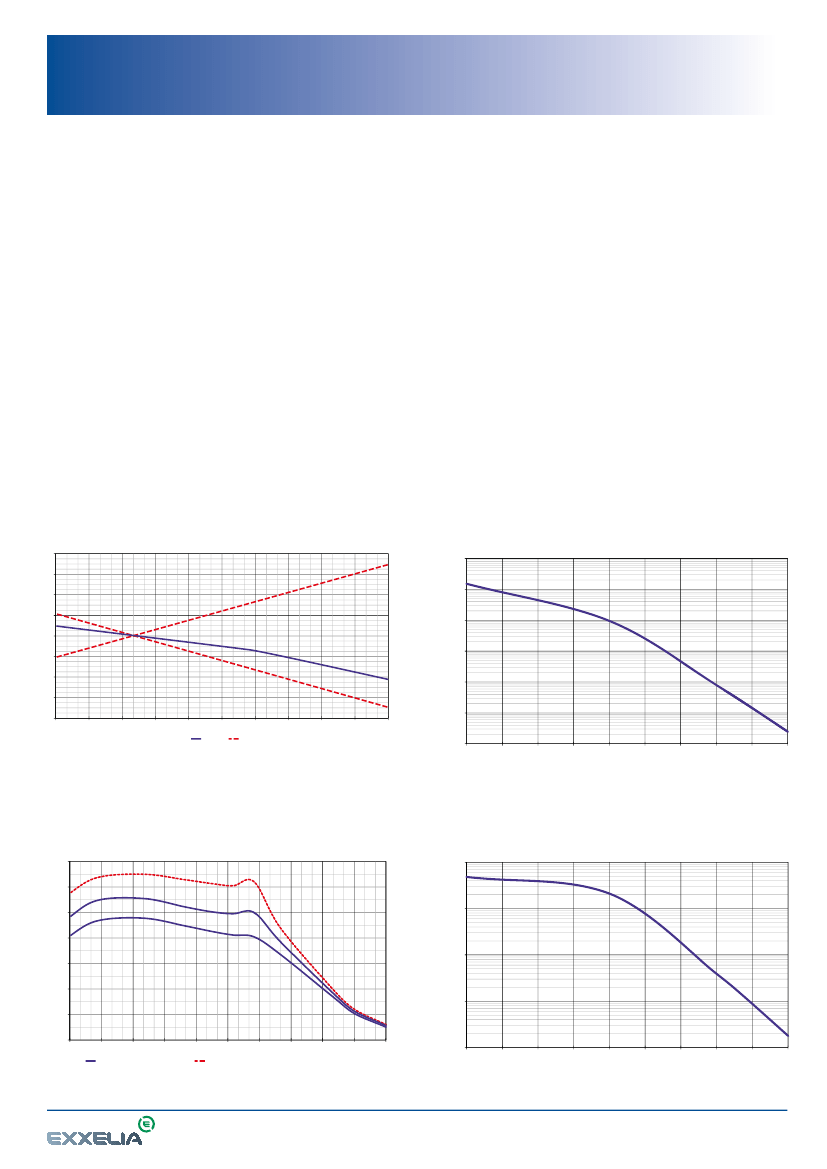

TYPICAL CURVES: CE / CN Series, TCE / TCN Series, TCH Series
NPO: TYPICAL CAPACITANCE VARIATION VERSUS TEMPERATURE
∆C/C (%)
0.8
0.6
100000
1000000
NPO: TYPICAL INSULATION RESISTANCE VERSUS TEMPERATURE
Insulation
resistance (M .µF)
0.4
0.2
10000
0
–0.2
–0.4
1000
100
–0.6
–0.8
–50
–20
10
40
70
100
Typical
130
Limit
160
190
220
250
1
25
50
75
100
125
150
175
200
225
250
10
Temperature (°C)
Temperature (°C)
X7R: TYPICAL CAPACITANCE VARIATION VERSUS TEMPERATURE
∆C/C (%)
X7R: TYPICAL INSULATION RESISTANCE VERSUS TEMPERATURE
Insulation
resistance (M .µF)
10000
5
–5
–15
1000
–25
100
–35
–45
10
–55
–65
–50
–20
10
40
70
100
130
160
190
220
250
1
25
50
75
100
125
150
175
200
225
250
Temperature coefficient without voltage
Temperature coefficient at full rated voltage
Temperature (°C)
Temperature (°C)
www.exxelia.com
98
info@exxelia.com
Page revised 06/20
CERAMIC CAPACITORS
General characteristics
General Information

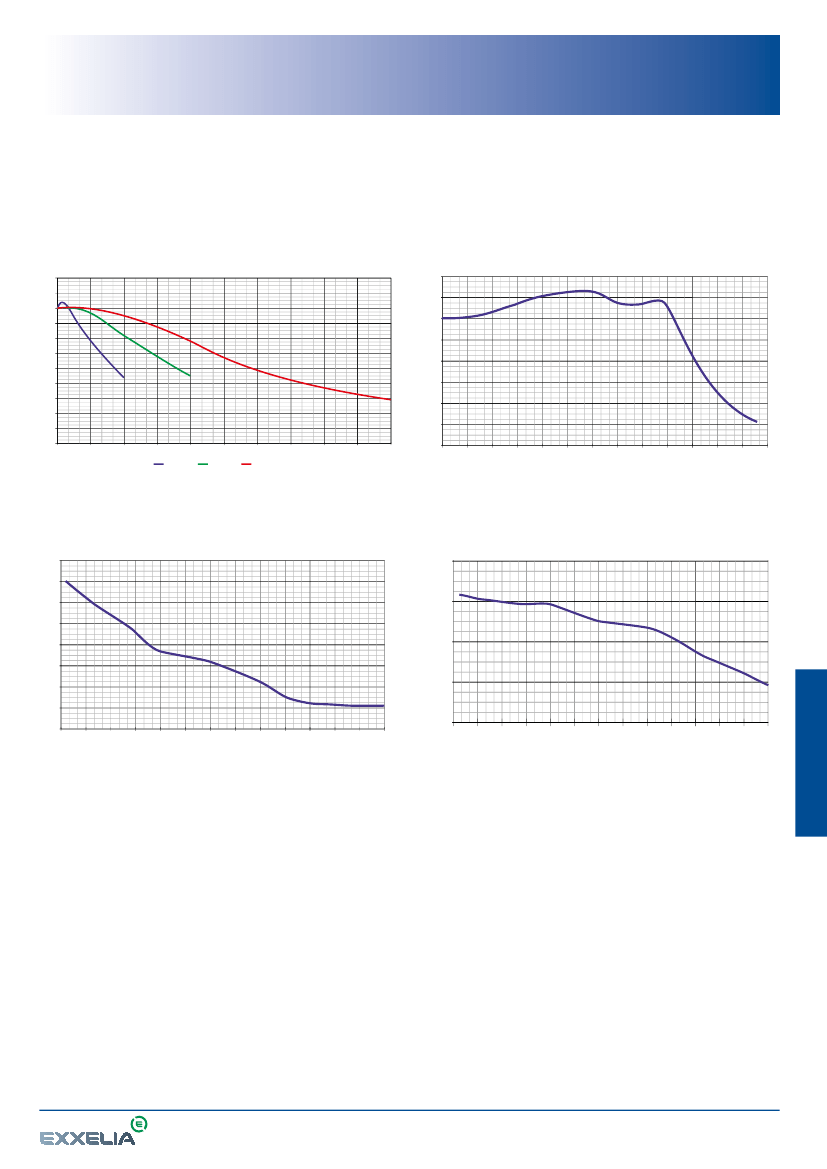

TYPICAL CURVES: SCT Series
∆C/C VERSUS APPLIED VOLTAGE AND RATED VOLTAGE (U
R
)
∆C/C (%)
CAPACITANCE VERSUS TEMPERATURE
∆C/C (%)
10
0
–10
–20
–30
–40
–50
–60
20
10
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
0
50
100
150
200
U
R
= 100V
250
U
R
= 200V
300
U
R
= 500V
350
400
450
500
–70
–60
–40
–20
0
20
40
60
80
100
120
140
160
180
200
Voltage (V)
Temperature (°C)
DIELECTRIC LOSSES VERSUS TEMPERATURE
DF (%)
3,5
3
2.5
2
1.5
1
0.5
0
–0.5
–60
–40
–20
0
20
40
60
80
100
120
140
160
180
200
INSULATION RESISTANCE VERSUS TEMPERATURE
RI ( .F)
100000
10000
1000
100
10
–60
–40
–20
0
20
40
60
80
100
120
140
160
180
200
Temperature (°C)
Temperature (°C)
www.exxelia.com
99
info@exxelia.com
Page revised 06/20
HIGH TEMPERATURE
CERAMIC CAPACITORS
General Information
Taping : dimensions
MATERIALS EXPERT
For 50 years and as a market leader, EXXELIA’s comprehensive knowledge of
the materials properties and performances have enabled us to design capaci-
tors in Porcelain, NPO, BX, 2C1, BP, X7R and –2200ppm/°C ceramics.
ENVIRONMENT
EXXELIA is committed to applying a robust environmental policy, from product
design through to shipment. To control its environmental footprint and recon-
cile this with the company’ functional imperatives, our environmental policy
provides for the reduction or elimination of hazardous substances. We also
focus on compliance with European Union directives and regulations, notably
REACH and RoHS.
CUSTOM DESIGNS
Our catalog products don’t meet your application?
Based on the valuable experience accumulated over the design of 2,000+ spe-
cific ceramic capacitors, you can trust EXXELIA to define a qualitative custom
solution in a time effective manner.
RoHS COMPLIANCY
SMD CAPACITORS
The capacitor terminations are generally protected by a nickel barrier formed
by electrolytic deposit. This barrier gives chip capacitors leaching performance
far exceeding the requirements of all applicable standards. The nickel barrier
guarantees a minimum resistance to soldering heat for a period of 1 minute at
260°C in a tin-lead (60/40) or tin-lead-silver (62/36/2) bath without noticeable
alteration to the solderability. It also allows repeated soldering-unsoldering
and the longer soldering times required by reflow techniques.
However nickel barrier amplifies thermal shock and is not recommended for
chip sizes equal or greater than CNC Y (30 30) - (C 282 to C 288 - CNC 80 to
CNC 94).
Metallization
Silver-Palladium (or Silver)
CerUflex
(polymer)
Nickel barrier
Tinning:
Tin-Lead
No RoHs
Pure Tin
RoHS (W)
2 - 3 µm
3 - 8 µm
10 - 60 µm
NO OBSOLESCENCE
Choosing a standard or custom EXXELIA product means you won’t have to wor-
At some point, I talked with my friends about the advantages and disadvantages of building a library for electronic engineers! A: How do you ensure the correctness of your library? B: It is built by s...
The official website of the development board is http://www.fpgadev.com/BeijingWeishirui Technology Co., Ltd. provides you withDesign of LED display screen controller based on Nios_Design of LED virtu...
Recently, I saw that many friends in the group were looking for download resources for the official IDE and other materials. I uploaded all the resources downloaded from the official website to Baidu ...
justd0onsemi and Avnet IoT Innovation Design Competition
FPGA/CPLD
京公网安备 11010802033920号
EEWORLD
