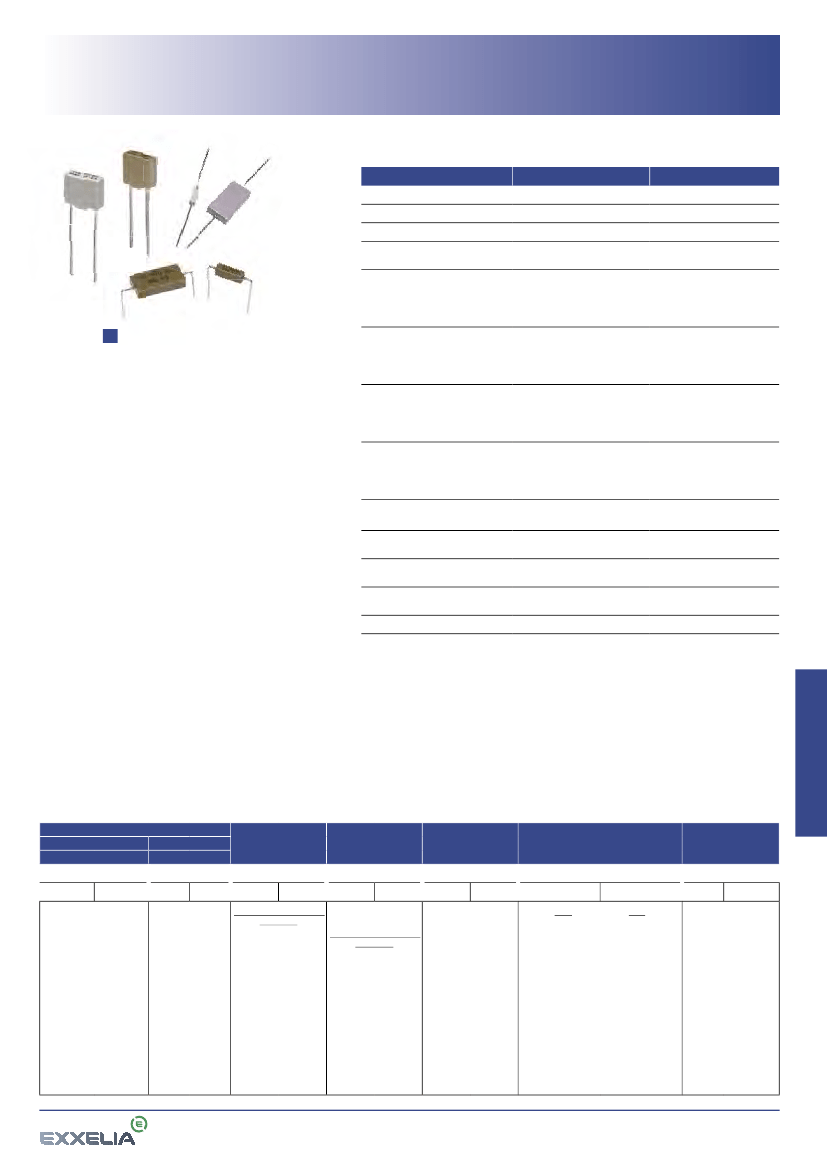

• Multilayer Chips Ceramic Capacitors for operating
temperature up to 250°C
• NPO and X7R dielectrics
• Capacitance range: 10pF to 3.3µF
• Voltage range at 20°C: 25 V
DC
to 500 V
DC
Dissipation factor at 200°C
≤1.5% at 1MHz for C ≤ 100pF
≤1.5% at 1kHz for C > 100pF
Dissipation factor at 220°C
≤0.5% at 1MHz for C ≤ 100pF
≤0.5% at 1kHz for C > 100pF
PHYSICAL CHARACTERISTICS
CONSTRUCTION
Selfprotected radial or axial leaded chips capacitors for
through-hole circuits. Mechanical stress is eliminated by
replacement of epoxy by selfprotected ceramic.
MARKING
(clear or coded)
Series, capacitance value, tolerance, voltage, date code.
Dissipation factor at 250°C
≤0.5% at 1MHz for C ≤ 100pF
≤0.5% at 1kHz for C > 100pF
≥ 100,000MΩ or ≥ 1,000MΩ.µF
(whichever is less)
≥ 1,000MΩ or ≥ 10MΩ.µF
(whichever is less)
≥ 200MΩ or ≥ 4MΩ.µF
(whichever is less)
≥ 100MΩ or ≥ 2MΩ.µF
(whichever is less)
≤ 2.5% per decade hour
Insulation resistance at 20°C
under U
RC
Insulation resistance at 200°C
under U
RC
Insulation resistance at 220°C
under U
RC
Insulation resistance at 250°C
under U
RC
Ageing
HOW TO ORDER
TCN2
TCN2X
TCN5X
Series
64
64
64
Exxelia size code
2
Leads spacing code
W
RoHS compliant
180pF
Capacitance
10%
Tolerance
100 V
Rated voltage at20°C
Operating temperature
Up to 200°C
TCE2
= NPO
TCN2
= X7R
Up to 220°C
TCE2X
= NPO
TCN2X
= X7R
Up to 250°C
TCE5X
= NPO
TCN5X
= X7R
12
13
14
15
16
62
63
64
65
66
Available on sizes 62, 63,
-
= No RoHS
64, 65, 66:
-
Available on sizes 62, 63,
2
64, 65, 66:
3
W =
RoHS compliant
Lead free version available
for operating temperature
up to 175°C (contact your
sales representative)
Capacitance value
in clear
NPO:
cap. value ≤ 12pF
±0.25pF
cap. value ≤ 8.2pF
±0.5pF
±1pF
cap. value > 22pF
±1%
cap. value > 12pF
±2%
cap. value > 8.2pF
±5%
±10%
cap. value > 3.9pF
±20%
X7R:
±10%
±20%
25 V
50 V
100 V
500 V
www.exxelia.com
115
info@exxelia.com
Page revised 02/21
HIGH TEMPERATURE
CERAMIC CAPACITORS
TCE / TCN Self-Protected Series
Taping : dimensions
DIMENSIONS in inches (mm)
L
≥ 0.472
(≥ 12)
High Temperature Self-Protected Capacitors
L
T
W
W
≥ 0.472
(≥ 12)
Ø
X
14
-
0.315 ± 0.012
(8 ± 0.3)
0.315 ± 0.012
(8 ± 0.3)
0.15
(3.8)
0.2 ± 0.008
(5.08 ± 0.2)
0.031
(0.8)
NPO
X7R
270pF
15nF
15
-
0.559 ± 0.012
(14.2 ± 0.3)
0.417 ± 0.012
(10.6 ± 0.3)
0.099
(2.5)
0.4 ± 0.008
(10.16 ± 0.2)
0.039
(1)
NPO
X7R
680pF
22nF
16
-
0.559 ± 0.012
(14.2 ± 0.3)
0.417 ± 0.012
(10.6 ± 0.3)
0.15
(3.8)
0.4 ± 0.008
(10.16 ± 0.2)
0.039
(1)
NPO
X7R
680pF
39nF
-
Ø
X
STANDARD RATINGS
Exxelia size code
Leads spacing code
L
Dimensions
inches (mm)
W
T max.
X
Ø ± 10%
Dielectric
Min. Capacitance value
20°C 200°C 220°C 250°C
Rated voltage (U
RC
)
25V
50V
100V
12V
25V
50V
8V
16V
25V
125V
5V
10V
16V
63V
-
6.8nF
3.9nF
-
-
390nF
180nF
-
-
12nF
6.8nF
-
-
680nF
330nF
-
-
22nF
15nF
-
-
1.2µF
680nF
-
-
33nF
22nF
-
12
-
0.284 ± 0.012
(7.2 ± 0.3)
0.244 ± 0.012
(6.2 ± 0.3)
0.099
(2.5)
0.2 ± 0.008
(5.08 ± 0.2)
0.024
(0.6)
NPO
X7R
10pF
3.3nF
13
-
0.315 ± 0.012
(8 ± 0.3)
0.315 ± 0.012
(8 ± 0.3)
0.099
(2.5)
0.2 ± 0.008
(5.08 ± 0.2)
0.024
(0.6)
NPO
X7R
270pF
6.8nF
T
63
2
0.267 max
(6.85 max)
0.1 max
(2.54 max)
0.1
(2.54)
0.5 ± 0.02 0.6 ± 0.02
(12.7 ± 0.5) (15.24 ± 0.5)
0.024
(0.6)
NPO
X7R
1pF
100pF
-
1.8µF
1µF
-
-
56nF
39nF
-
-
3.9µF
1.8µF
-
8.2nF
4.7nF
3.3nF
330pF
180nF
120nF
47nF
-
500V 250V
Exxelia size code
Leads spacing code
L
Dimensions
inches (mm)
W
T max.
X
Ø ± 10%
Dielectric
Min. Capacitance value
Rated voltage (U
RC
)
20°C 200°C 220°C 250°C
25V
50V
100V
12V
25V
50V
8V
16V
25V
5V
10V
16V
27nF
15nF
10nF
NPO
100pF
0.6 ± 0.02
(15.24 ± 0.5)
-
64
2
0.4 max
(10.16 max)
0.15 max
(3.8 max)
0.15
(3.8)
0.7 ± 0.02
(17.78 ± 0.5)
0.024
(0.6)
3
65
-
0.517
(13.2 max)
0.264 max
(6.7 max)
0.158
(4)
0.7 ± 0.02
(17.78 ± 0.5)
0.024
(0.6)
NPO
390pF
X7R
390pF
-
66
2
0.717
(18.2 max)
0.37 max
(9.4 max)
0.158
(4)
0.95 ± 0.02
(24.13 ± 0.5)
0.024
(0.6)
3
1 ± 0.02
(25.4 ± 0.5)
0.9 ± 0.02
(22.86 ± 0.5)
1 ± 0.02
(25.4 ± 0.5)
X7R
180pF
NPO
820pF
X7R
820pF
560nF
330nF
120nF
68nF
39nF
22nF
1.8µF
1µF
330nF
150nF
100nF
56nF
3.3µF
1.8µF
820nF
Available capacitance values:
NPO: E6, E12, E24 (see page 14). Specific values upon request.
X7R: E6, E12 (see page 14). Specific values upon request.
Exxelia can delivery axial leads on size code 262, 263, 264, 265, 266 to allow the customer to obtain the leads spacing needed (leads spacing code = 9). In that case we recommend to bend the connections at a
distance from the ceramic body of 5mm minimum.
The above table defines the standard products, other components may be built upon request.
www.exxelia.com
116
info@exxelia.com
Page revised 02/21
CERAMIC CAPACITORS
General Information
Taping : dimensions
High temperature capacitors are made of class 1 or class 2 ceramic dielectrics
featuring special compositions based upon high purity oxides to reduce ionic
conduction inherent to the presence of atoms such as sodium.
In addition, all quality controls carried out at intermediate and final production
stages (lot acceptance test under U
RC
and insulation resistance measurement
at operating temperature) are the assurance of enhanced reliability.
High temperature capacitors include :
• chip class 1 (CEC 203 to CEC 233) and class 2 (CNC 203 to 233),
• encapsulated radial leads class 1 and 2 (TCE / TCN 201 to 204),
• encapsulated axial leads class 1 and 2 (TCE / TCN 252 to 254),
• selfprotected radial leads class 1 and 2 (TCE / TCN 212 to 216)
and radial leads class 1 and 2 (TCE / TCN 263).
Mechanical stress is eliminated with replacement of epoxy by selfprotected
ceramic. This also allows the increase of the capacitance ranges and improves
the reliability.
• high voltage varnished capacitors (TCH 279 to 285)
• high capacitance value SCT Series.
They are highly recommended for operation at temperatures of up to 200°C.
Capacitors specifically designed for higher operating temperatures (e.g. TCE /
TCN 212 to 216 and TCE / TCN 263 to 266) are also available.
High temperature capacitors are made of class 1 or class 2 ceramic dielectrics
featuring special compositions based upon high purity oxides to reduce ionic
conduction inherent to the presence of atoms such as sodium.

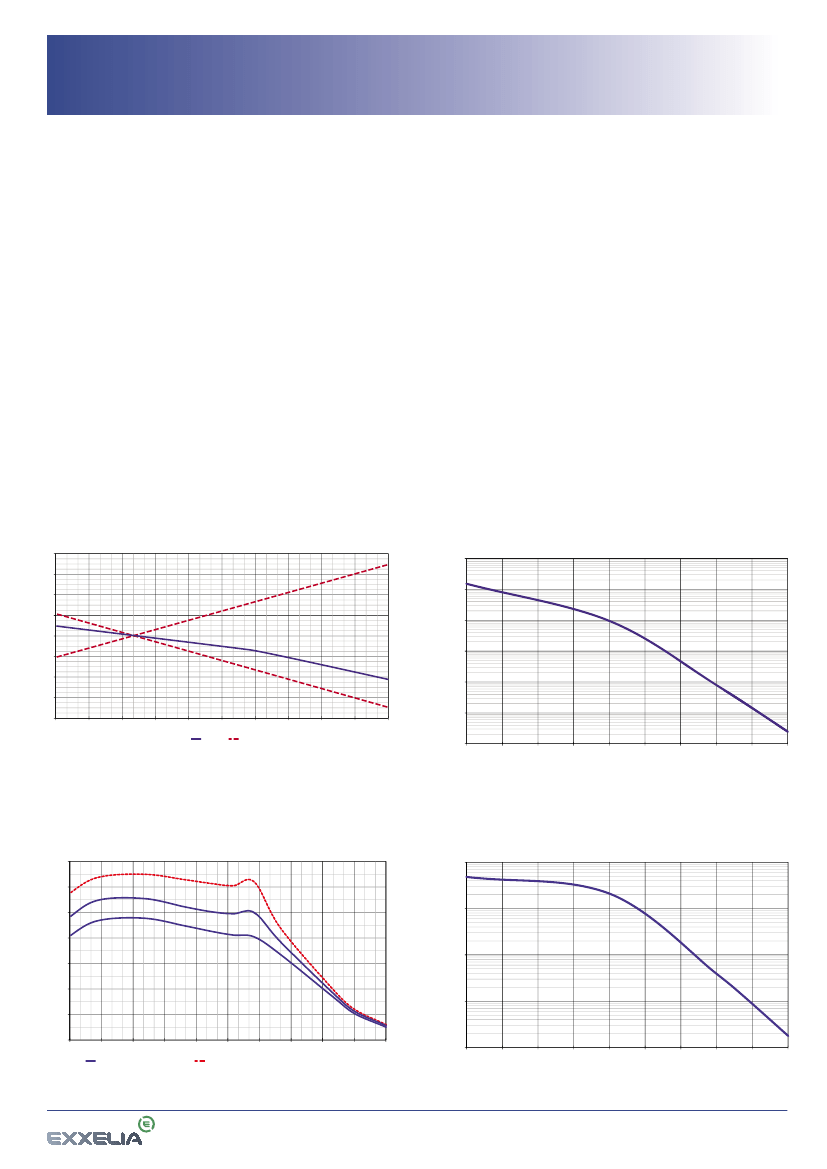

TYPICAL CURVES: CE / CN Series, TCE / TCN Series, TCH Series
NPO: TYPICAL CAPACITANCE VARIATION VERSUS TEMPERATURE
∆C/C (%)
0.8
0.6
100000
1000000
NPO: TYPICAL INSULATION RESISTANCE VERSUS TEMPERATURE
Insulation
resistance (M .µF)
0.4
0.2
10000
0
–0.2
–0.4
1000
100
–0.6
–0.8
–50
–20
10
40
70
100
Typical
130
Limit
160
190
220
250
1
25
50
75
100
125
150
175
200
225
250
10
Temperature (°C)
Temperature (°C)
X7R: TYPICAL CAPACITANCE VARIATION VERSUS TEMPERATURE
∆C/C (%)
X7R: TYPICAL INSULATION RESISTANCE VERSUS TEMPERATURE
Insulation
resistance (M .µF)
10000
5
–5
–15
1000
–25
100
–35
–45
10
–55
–65
–50
–20
10
40
70
100
130
160
190
220
250
1
25
50
75
100
125
150
175
200
225
250
Temperature coefficient without voltage
Temperature coefficient at full rated voltage
Temperature (°C)
Temperature (°C)
www.exxelia.com
104
info@exxelia.com
Page revised 02/21
CERAMIC CAPACITORS
General characteristics
General Information

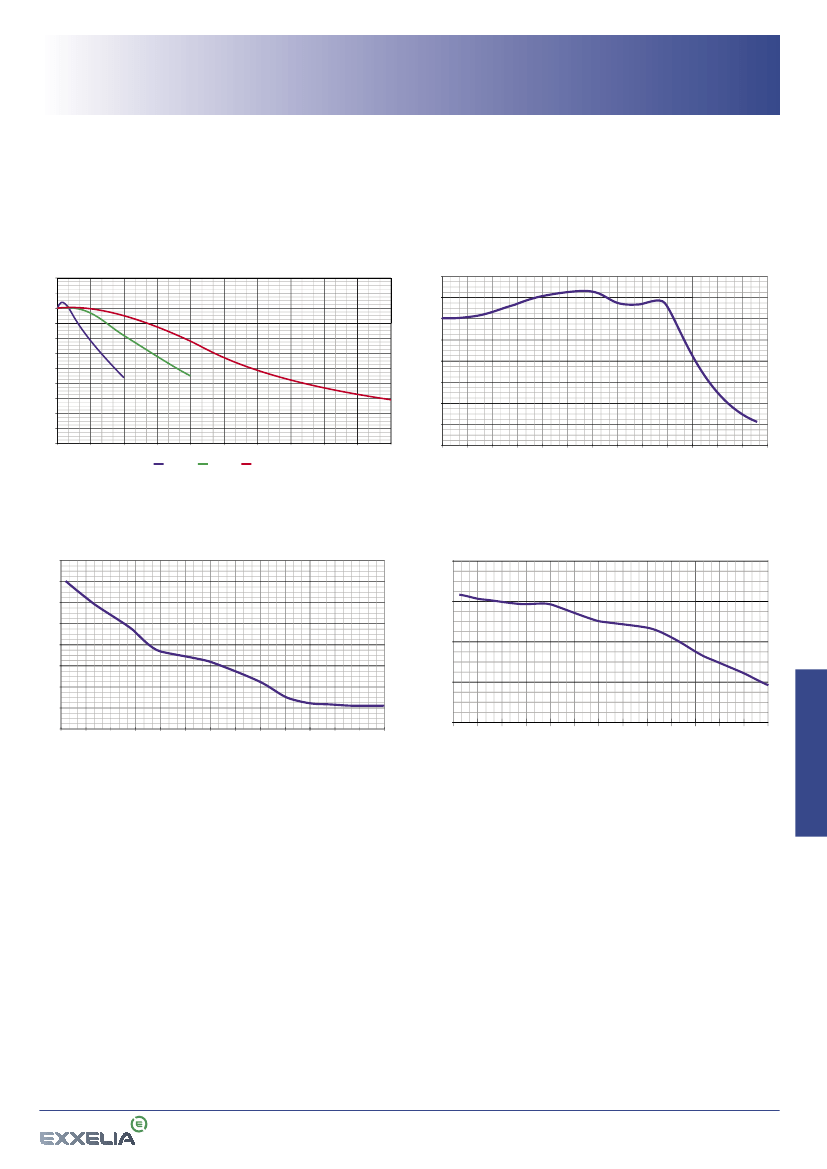

TYPICAL CURVES: SCT Series
ΔC/C VERSUS APPLIED VOLTAGE AND RATED VOLTAGE (U
R
)
∆C/C (%)
CAPACITANCE VERSUS TEMPERATURE
∆C/C (%)
10
0
–10
–20
–30
–40
–50
–60
20
10
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
0
50
100
150
200
U
R
= 100V
250
U
R
= 200V
300
U
R
= 500V
350
400
450
500
–70
–60
–40
–20
0
20
40
60
80
100
120
140
160
180
200
Voltage (V)
Temperature (°C)
DIELECTRIC LOSSES VERSUS TEMPERATURE
DF (%)
3,5
3
2.5
2
1.5
1
0.5
0
–0.5
–60
–40
–20
0
20
40
60
80
100
120
140
160
180
200
INSULATION RESISTANCE VERSUS TEMPERATURE
RI ( .F)
100000
10000
1000
100
10
–60
–40
–20
0
20
40
60
80
100
120
140
160
180
200
Temperature (°C)
Temperature (°C)
www.exxelia.com
105
info@exxelia.com
Page revised 02/21
HIGH TEMPERATURE
CERAMIC CAPACITORS
Ceramic Capacitors
Taping : dimensions Technology

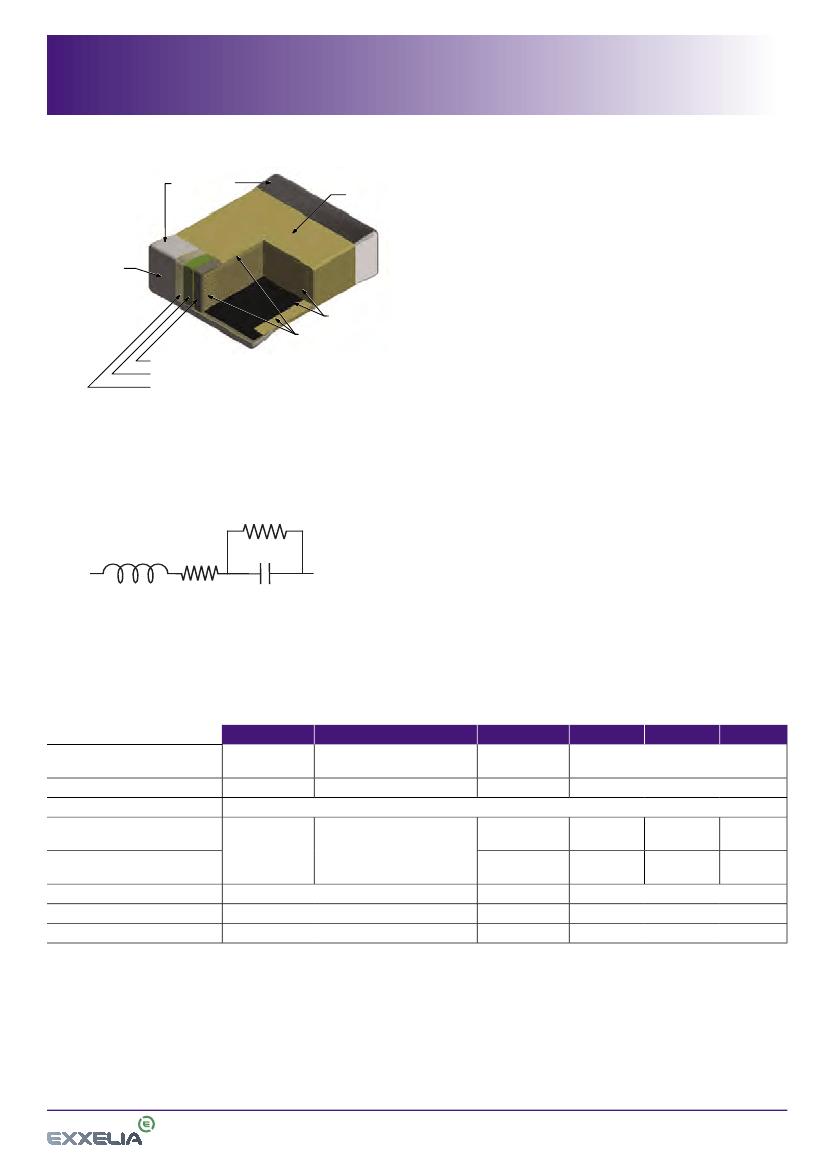

MLCC STRUCTURE
Terminations
Ceramic
DIELECTRIC CHARACTERISTICS
Insulation Resistance (IR)
is the resistance measured under DC voltage
across the terminals of the capacitor and consists principally of the parallel
resistance shown in the equivalent circuit. As capacitance values and hence
the area of dielectric increases, the IR decreases and hence the product (C x
IR) is often specified in Ω.F or MΩ.µF.
The Equivalent Series Resistance (ESR)
is the sum of the resistive terms
which generate heating when capacitor is used under AC voltage at a given
frequency (f).
Tin
Tin / Lead
Gold
(Solderable layer)
Electrodes
Margins
Silver or Silver / Palladium (electrodes contact layer)
Polymer (crack protection layer)
Nickel or Copper barrier (leaching protection layer)
Dissipation factor (DF)
is the ration of the apparent power input will turn to
heat in the capacitor:
DF = 2π f C ESR
When a capacitor works under AC voltage,
heat power loss (P),
expressed in
Watt, is equal to:
P = 2π f C Vrms
2
DF
EQUIVALENT CIRCUIT
Capacitor is a complex component combining resistive, inductive and capaci-
tive phenomena. A simplified schematic for the equivalent circuit is:
The series inductance (Ls)
is due to the currents running through the elec-
trodes. It can distort the operation of the capacitor at high frequency where the
impedance (Z)
is given as:
Z = Rs + j (Ls.q - 1⁄(C.q)) with
q
= 2πf
IR
Ls
Rs
C
When frequency rises, the capacitive component of capacitors is gradually
canceled up to the resonance frequency, where :
Z = Rs and LsC.q
2
= 1
Above this frequency the capacitor behaves like an inductor.
Hello everyone! I added an SDHC folder under the BSP driver folder, which contains SDHC and SDHCBASE subfolders. The source files in the two subfolders are as follows: SOURCES = SDIOController.cpp \ S...
/ Where _timer_ must be either 3 or 4
// Macro for initialising timer 3 or 4
#define TIMER34_INIT(timer)\do {\T##timer##CTL= 0x06; \T##timer##CCTL0 = 0x00; \T##timer##CC0= 0x00; \T##timer##CCTL1 = 0x0...
The default pins are occupied by LEDs, so I want to map the PWM output pins of the three channels of T1 to the alternative pins, PB0-PB2, but setting the option bytes is invalid. After setting, the de...
I have been very busy recently and have not had time to share new maintenance experiences and methods with you on the forum. Today, I finally took some time out of my busy schedule to visit the forum ...
[p=30, null, left][font=宋体][font=Verdana][size=4][color=#000000][b]In the design of optical transmitter module, using laser driver to drive high-speed laser diode to emit light is the core of the whol...
In early 2002, I started to write a working program for an IC card prepaid electricity meter. The meter used Philips' 8-bit 51-expanded single-chip microcomputer
87LPC764
, and wa...[Details]
1. Introduction
This design was made for participating in an electronic design competition. It effectively solved the problem of the operation and control of an electric car on a seesaw. The s...[Details]
Remote keyless entry (RKE) systems have become popular with users, with more than 80% of new cars in North America and more than 70% in Europe equipped with RKE systems. In addition to the obvious ...[Details]
With the advent of increasingly powerful processors, image sensors, memory, and other semiconductor devices, as well as the algorithms that enable them, computer vision can be implemented in a wide...[Details]
In recent years, lighting has become an important area that countries around the world are targeting to promote energy conservation and environmental protection. According to statistics, about 20% ...[Details]
At very low temperatures, certain metals and alloys lose their resistance to electric
current
and become
superconductors
. Two parameters that are often measured are the transition ...[Details]
As people's requirements for safety and comfort in the process of driving cars continue to increase, automotive radars are widely used in the car's adaptive cruise system, collision avoidance syste...[Details]
Abstract: The output of high-range acceleration sensor is less than 10 mV under the excitation of small signal. The noise of traditional test system may cover such small voltage signal, so that hig...[Details]
Only a small number of LED manufacturers can produce high-quality LEDs. For applications that are only used for simple indication, low-quality LEDs are sufficient. However, high-quality LEDs must...[Details]
1. Overview
At present, an information revolution is in the ascendant around the world, led by microelectronics, computers and communication technologies, and centered on information technolog...[Details]
1 Introduction
With the improvement of people's quality of life, lamps are no longer just basic indoor lighting tools, but also a kind of practical art for architectural decoration. When ther...[Details]
1. Introduction
With the increasing popularity of fully automatic washing machines, consumers have higher and higher requirements for their environmenta...[Details]
Overview
By transmitting ultrasonic energy into the human body and receiving and processing the returning reflected signals, phased array ultrasound systems can generate images of organs and s...[Details]
Currently, the commonly used solar cell technologies include monocrystalline silicon solar cells and polycrystalline silicon thin-film solar cells. Production process: Monocrystalline silicon solar...[Details]
introduction
The core features of mobile value-added service products are mobility, immediacy and personalization. Mobile value-added services are a new service mode that is rapidly developing...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
