Hardened Compact
Media Converter

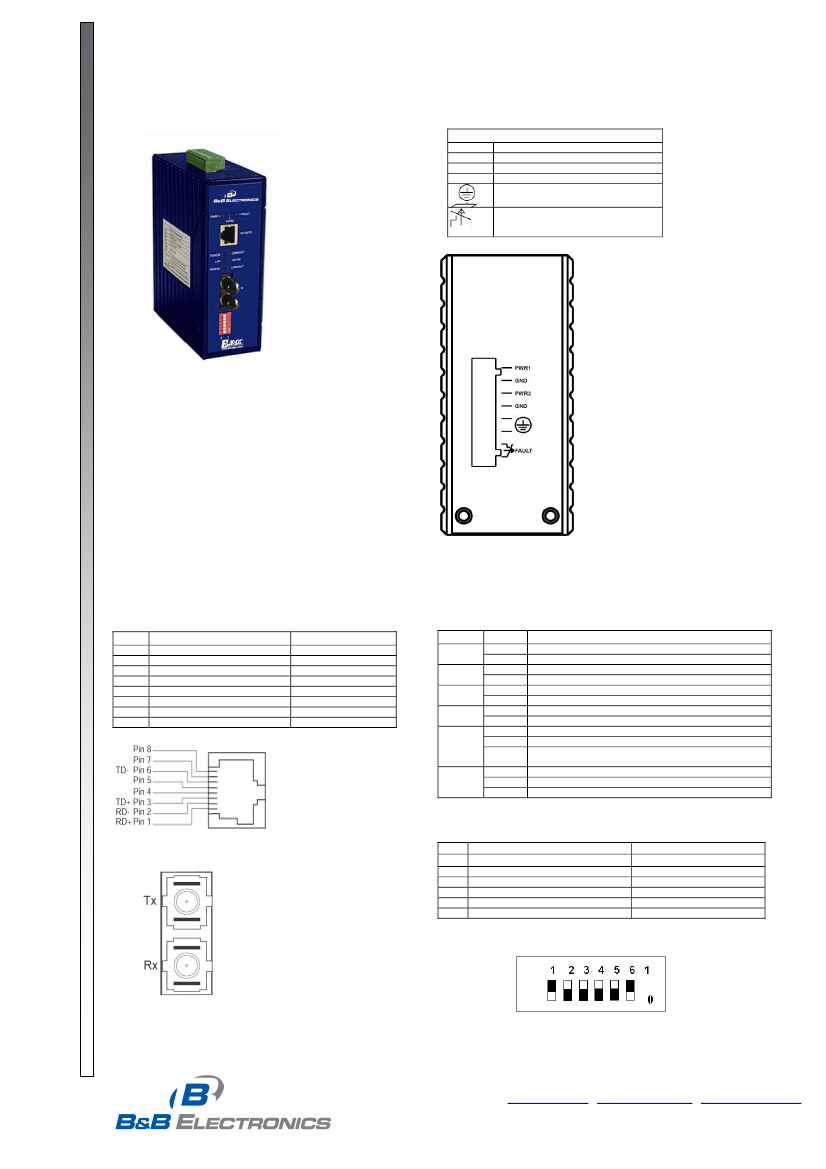

Physical Description
Terminal Block and Power Inputs
Terminal Block Assignment
PWR1
GND
PWR2
GND
Power Input 1 (10 to 48VDC)
Power Ground
Power Input 2 (10 to 48VDC)
Power Ground
Earth Ground
1. The relay opens if PWR1 or PWR2 fails
2. The relay opens if the Port Link is Down
(When the Link Down Alarm is Enabled)
FAULT
While only one power source is
required to power up the media
converter, two power sources offer
redundancy for those mission critical
applications. (PWR1 and PWR2)
The terminals labeled Fault are
connected to a dry contact. The dry
contact is normally closed when either
power source is connected and active.
When no power is applied, the dry
contact is normally open.
This This quick installation guide describhow to install and
quick installation guide describes d compact Media
Converter.
Capable of operating at temperature
use the hardened compact Media Converter.
Capable of
extremes of -34 to +74°C, this is the media converter
operating at temperature extremes of -40 to +75°C, this
choice for harsh environments constrained by space.
is the media converter of choice for harsh environments
constrained by space.
10/100BaseTX and 100BaseFX Connectors
10/100BaseTX Connections:
Pin
Regular Ports
1
2
3
4
5
6
7
8
Receive Data + (input)
Receive Data – (input)
Transmit Data + (output)
NC
NC
Transmit Data – (output)
NC
NC
LED’s and DIP Switch
LED Status:
LEDs
FAULT
PWR1
PWR2
10/100
LFP
LNK/ACT
Uplink Port
Transmit Data + (output)
Transmit Data – (output)
Receive Data + (input)
NC
NC
Receive Data – (input)
NC
NC
State
Steady
Off
Steady
Off
Steady
Off
Steady
Off
Steady
Flashing
Off
Steady
Flashing
Off
Indication
Power or ports function abnormally
Power and ports function normally
Power on
(PWR stands for POWER)
Power off
100Mbps network connection
10Mbps network connection
LFPT function enabled
LFPT function disabled
Network connection established(LNK
stands for LINK)
Transmitting or receiving data(ACT
stands for ACTIVITY)
Neither a network connection established nor
transmitting/receiving data
Connection in full duplex mode(FDX
stands for FULL-DUPLEX)
Collision occurred(COL
stands for COLLISION)
Connection in half-duplex mode
PRODUCT INFORMATION
FDX/COL
DIP Switch Settings:
100BaseFX Connections:
The Tx (transmit) port
of device 1 is connected to the Rx
(receive) port of device 2, and the
Rx (receive) port of device 1 to
the Tx (transmit) port of device 2.
Pos.
1
2
3
4
5
6
Down(0)
Disable Link-fault-pass-through
RJ45 Auto Negotiation Enabled
RJ45 Forced to 100Mbps
RJ45 Forced to Full Duplex
Fiber Forced to Full Duplex
Disable Link Down Alarm
Up(1)
Enable Link-fault-pass-through
RJ45 Forced Mode
RJ45 Forced to 10Mbps
RJ45 Forced to Half Duplex
Fiber Forced to Half Duplex
Enable Link Down Alarm
International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
www.bb-elec.com orders@bb-elec.com support@bb-elec.com
EIR-x-Sx series-1012 - 2/2

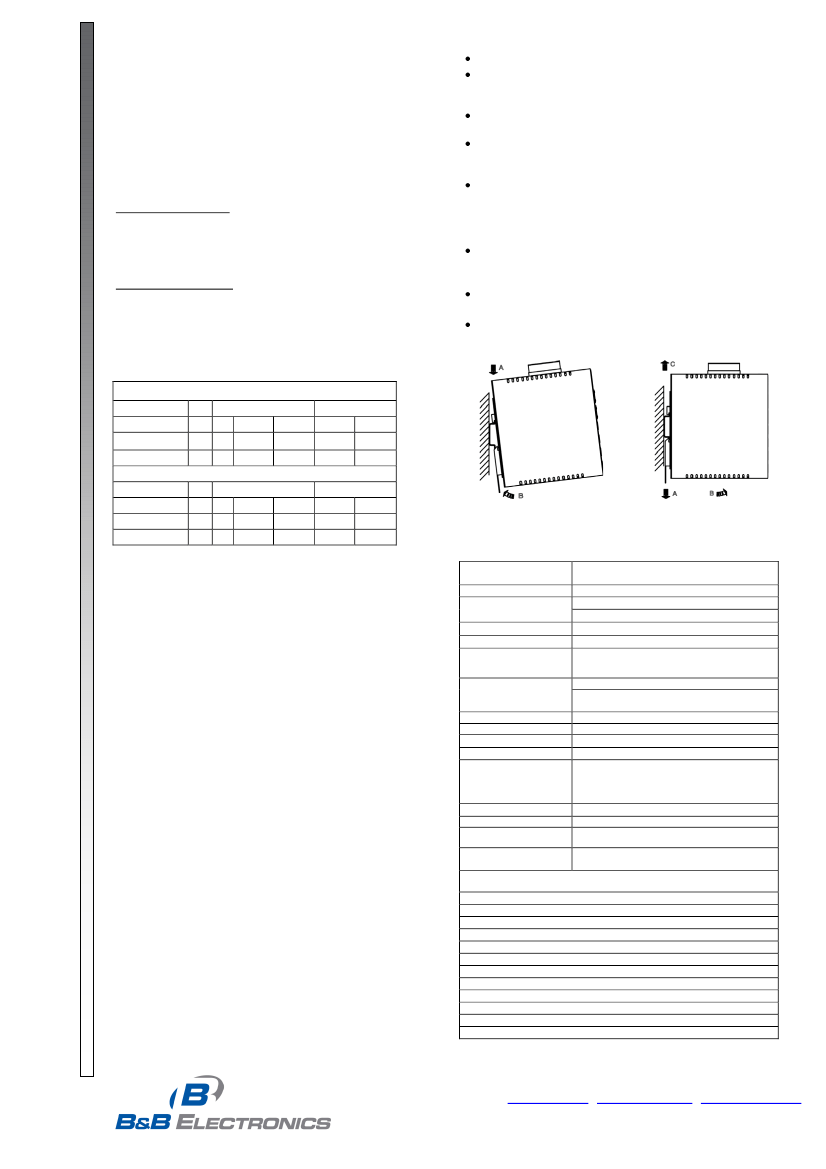

Link-fault-pass-through
B&B ELECTRONICS
Link-Fault-Pass-Through Overview
When two Media Converters are connected via their
fiber ports
Link Fault of the FX port:
A Link Fault condition will be sensed on the RJ45 port
whenever the media converter detects a Link Fault
condition on the Fiber port.
(The 10/100, LNK/ACT, and
FDX/COL LED’s will be off.)
Link Fault of the TX port:
The Media Converter A: A Link Fault condition will be
sensed on the FX port whenever the media converter
detects a Link Fault condition on the TX port. Thus, the
100, LNK/ACT, and FDX/COL LEDs of the TX port of the
Media Converter A would be off.
The Media Converter B: A Link Fault condition will be
informed to the FX port of the Media Converter B. Then
a Link Fault condition will be sensed on the TX port of
the Media Converter B whenever the Media Converter B
detects a Link Fault condition on the FX port. Thus, the
100, LNK/ACT, and FDX/COL LEDs of the Media
Converter B would be off.
Link Fault of the FX Port
TX Port
LEDs
FX Port
PWR 100 LNK/ACT FDX/COL LNK/ACT FDX/COL
OFF OFF
OFF OFF
OFF
OFF
OFF
OFF
OFF
OFF
Supports DIN-rail or Panel Mounting installation.
UL1604 Class I, Division 2 Classified for use in hazardous
locations (Applicable to versions with Terminal Block power
option).
This equipment is suitable for use in Class I, Division 2,
Groups A, B, C and D OR non-hazardous locations only.
WARNING – EXPLOSION HAZARD – Do not disconnect
equipment unless power has been removed or the area is
known to be non-hazardous.
WARNING – EXPLOSION HAZARD – Substitution of
components may impair suitability for Class I, Division 2.
Assembly, Startup, and Dismantling
Assembly: Place the media converter on the DIN rail from
above using the slot. Push the front of the media converter
toward the mounting surface until it audibly snaps into place.
Startup: Connect the supply voltage to start up the media
converter via the terminal block.
Dismantling: Pull out the lower edge and then remove the
media switch from the DIN rail.
Media Converter A ON
Media Converter B ON
Link Fault of the TX port of the Media Converter A
TX Port
LEDs
FX Port
PWR 100 LNK/ACT FDX/COL LNK/ACT FDX/COL
OFF OFF
OFF OFF
OFF
OFF
ON
OFF
ON
OFF
Media Converter A ON
Media Converter B ON
Specifications
Applicable Standards
IEEE 802.3 10BaseT,
IEEE 802.3u 100BaseTX & 100BaseFX
(1) TX port, (1) FX port
10/20Mbps for half/full-duplex
100/200Mbps for half/full-duplex
Store-and-Forward
14,880/148,800pps for 10/100Mbps
2-pair UTP/STP Cat. 3, 4, 5 up to 100m
2-pair UTP/STP Cat. 5 up to 100m
MMF (50 or 62.5µm), SMF (9 or 10µm)
Per Unit - PWR1, PWR2, FAULT, LFP
Per Port - TX: LNK/ACT, FDX/COL, 100
FX: LNK/ACT, FDX/COL
2 x 4.3 x 5.4 in. (5 x 11 x 13.6cm)
0.6 Kg
Terminal Block: 200mA @ 24VDC, 10-48VDC
4.8W Max.
-40°C to 75°C. Tested for functional operation at
-40°C to 85°C. UL1604 Industrial Control
Equipment certified Maximum Surrounding Air
Temperature @ 74°C.
-45°C to 93°C
10 to 95%, non-condensing
Hazardous locations: Class I, Division 2
group A, B, C & D
UL 60950, EN60950,
FCC Part 15, Class A IEC60950
EN61000-6-3, EN61000-6-2
Fixed Ports
Speed 10BaseT
100BaseTX/FX
Switching Method
Forwarding rate
Cable 10BaseT
100BaseTX
100BaseFX
LED Indicators
Functional Description
• Meets NEMA TS1/2 Environmental requirements
such as temperature, shock, and vibration for traffic
control equipment.
• Meets IEC61000-6-2 EMC Generic Standard
Immunity for industrial environment.
• One channel media converter between
10/100BaseTx and 100BaseFx
• Support 802.3/802.3u/802.3x. Auto-negotiation:
10/100Mbps, Full/half-duplex; Auto MDI/MDIX.
• 100BaseFX: Multi mode SC or ST type; Single mode
SC type.
• DIP switch for configuring link-fault-pass-through,
fixed speed, full/half duplex and link down alarm
• Store-and-forward mechanism
• Non-blocking full wire-speed forwarding rate
• Support broadcast storm filtering
• Back-pressure & IEEE 802.x compliant flow control
• Alarms for power failure by relay output.
• Redundant 10-48 VDC terminal block power inputs.
• Supports DIN-rail mounting installation.
• Front panel LED status.
• Field Wiring Terminal: Use Copper Conductors
Only, 60/75℃, 12-24 AWG torque value 7 lb-in.
• -40℃ to 75℃ (-40℉ to 167℉) operating
temperature range. Tested for functional operation
@ -40℃ to 85℃ (-40℉ to 185℉). UL1604 Industrial
Control Equipment certified Maximum Surrounding
Air Temperature @ 74℃ (165℉).
Dimensions
Weight
Power
Power Consumption
Operating Temperature
PRODUCT INFORMATION
Storage Temperature
Humidity
Safety
Emissions
Standards
ESD Standard (EN61000-4-2)
Radiated FRI Standards (EN61000-4-3)
Burst Standards (EN61000-4-4)
Surge Standards (EN61000-4-5)
Induced RFI Standards (EN61000-4-6)
Magnetic Field Standards (EN61000-4-8)
Voltage Dips Standards (EN61000-4-11)
Environmental Test Compliance:
Vibration Resistance (IEC 60068-2-6 Fc)
Shock (IEC 60068-2-27 Ea)
Free Fall (IEC 60068-2-32 Ed)
NEMA TS1/2 Environmental requirements for traffic control equipment
