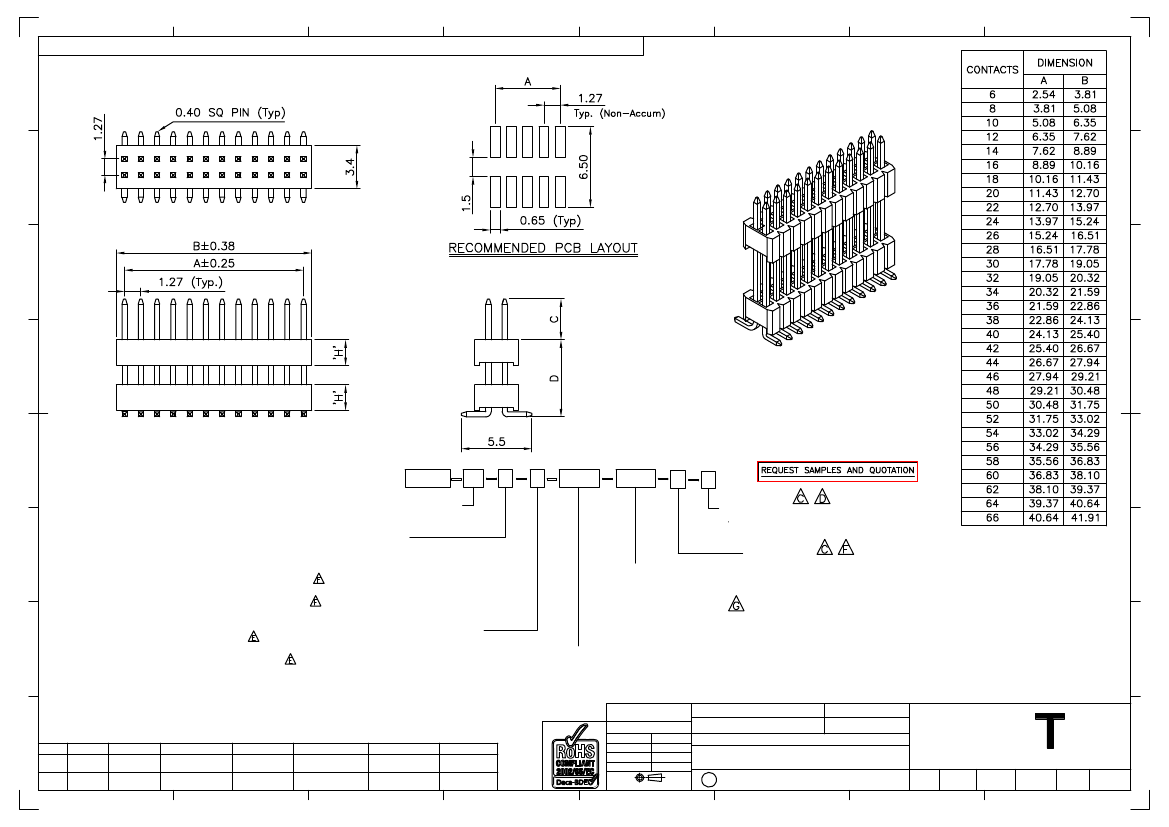

Global Connector Technology Ltd. - BD040: 1.27mm PITCH ELEVATED PIN HEADER, DUAL ROW, SURFACE MOUNT, VERTICAL
A
5
6
7
8
A
B
B
C
C
D
D
E
SPECIFICATIONS
规格:
Ordering Grid
E
F
G
H
CURRENT RATING
电流额定值：
1 AMP
INSULATOR RESISTANCE
绝缘电阻值：
1000 MEGOHMS MIN.
No. of Contacts
DIELECTRIC WITHSTANDING
耐电压：
AC 300 V
06 to 66
CONTACT RESISTANCE
接触电阻值：
20m
Ω
Max.
OPERATING TEMPERATURE
工½温度：
-40°C TO +105°C
Contact Plating
CONTACT MATERIAL
端子物料：
COPPER ALLOY
A = Gold Flash All Over
INSULATOR MATERIAL
绝缘½物料
:
B = Selective Gold Flash Contact Area/
Tin On Tail
OPTIONS
可选物料
: POLYESTER
聚酯
,
C = Tin All Over
LCP, UL 94-V0 (INSULATOR HEIGHT/
塑胶高度
H = A, B, L, E)
G = 10µ" Gold Contact Area/Tin On Tail
OPTIONS
可选物料
: POLYAMIDE
聚醯胺
,
I = 30µ" Gold Contact Area/Tin On Tail
NYLON 6T, UL 94-V0 (INSULATOR HEIGHT/
塑胶高度
H = K)
Standard = Gold Flash All Over
SOLDERING PROCESS
可焊性
:
LCP (OPTION
可选物料
) -
Insulator Height 'H'
IR REFLOW
回流焊
: 260°C for 10 sec.
K = 1.00mm
WAVE
波峰焊
: 250°C for 5-10 sec
A = 1.50mm
MANUAL SOLDER
人工焊接
: 350°C for 3-5 sec
B = 2.00mm
NYLON 6T (OPTION
可选物料
) -
L = 2.50mm
IR REFLOW
回流焊
: 260°C for 10 sec.
E = 2.54mm
WAVE
波峰焊
: 230°C for 5-10 sec.
Standard = 2.54mm
MANUAL SOLDER
人工焊接
: 350°C for 3-5sec
MATES WITH
配套之母座
(SUBJECT TO PIN LENGTH
在端子长度适合的条件下
):
BD050
BD055
BD060
BD064
BD065
BD067
BD091
BD092
By
VJ
PN
PN
CB
AE
AE
SA
DRAWING DIMENSION
DETAIL RELEASE TABLE ADDED
REV
A
B
17/04/09
DATE 21/12/07
STANDARD INSULATOR
PACKING OPTIONS SOLDER TEMP & MATES
INSULATOR MATERIAL
DIMENSION TABLE
UPDATED FOR SPECIFIC
MATERIAL & PACKING
WITH INFO. UPDATED
CHANGED
REV B REMOVED
OPTIONS CHANGED
INSULATOR HEIGHTS
BD040
XX
X
X
XXXX
XXXX
X
X
Packing Options
B = Tape and Reel with Cap (Standard)
D = Tube (Standard - where total height exceeds 25mm)
E = Tube with Cap
Insulator Material
L = LCP (Insulator H = A, B, L, E)
N = Nylon 6T (Insulator H = K)
F
Dimension D (1/100mm)
(Stack Height)
Minimum = 2 x 'H'
Please Specify Dimension D
e.g. 2.5mm = 0250
Tol +/- 0.2mm
Dimension C (1/100mm)
(Post Height)
Standard - 1.65mm = 0165
or specify Dimension C
e.g. 2.50mm = 0250
Tol +/- 0.2mm
Tolerances
(Except as noted)
G
Part Number:-
Date:-
Dimensions in mm
X.°±5°
X.X ± 0.20
.X°±2°
X.XX ± 0.15 .XX°±1°
X.XXX ± 0.10 .XXX°±0.5°
Third Angle Projection
X. ± 0.30
BD040
Description:-
21 DEC 07
1.27mm PITCH ELEVATED PIN HEADER, DUAL ROW,
SURFACE MOUNT, VERTICAL
www.globalconnectortechnology.com
Scale
NTS
GC
Material
See Note
H
C
27/04/09
D
20/05/09
E
27/07/09
F
07/08/09
G
18/08/10
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
G
Drawn by
VJ
E & OE
Sheet No.
1/1
