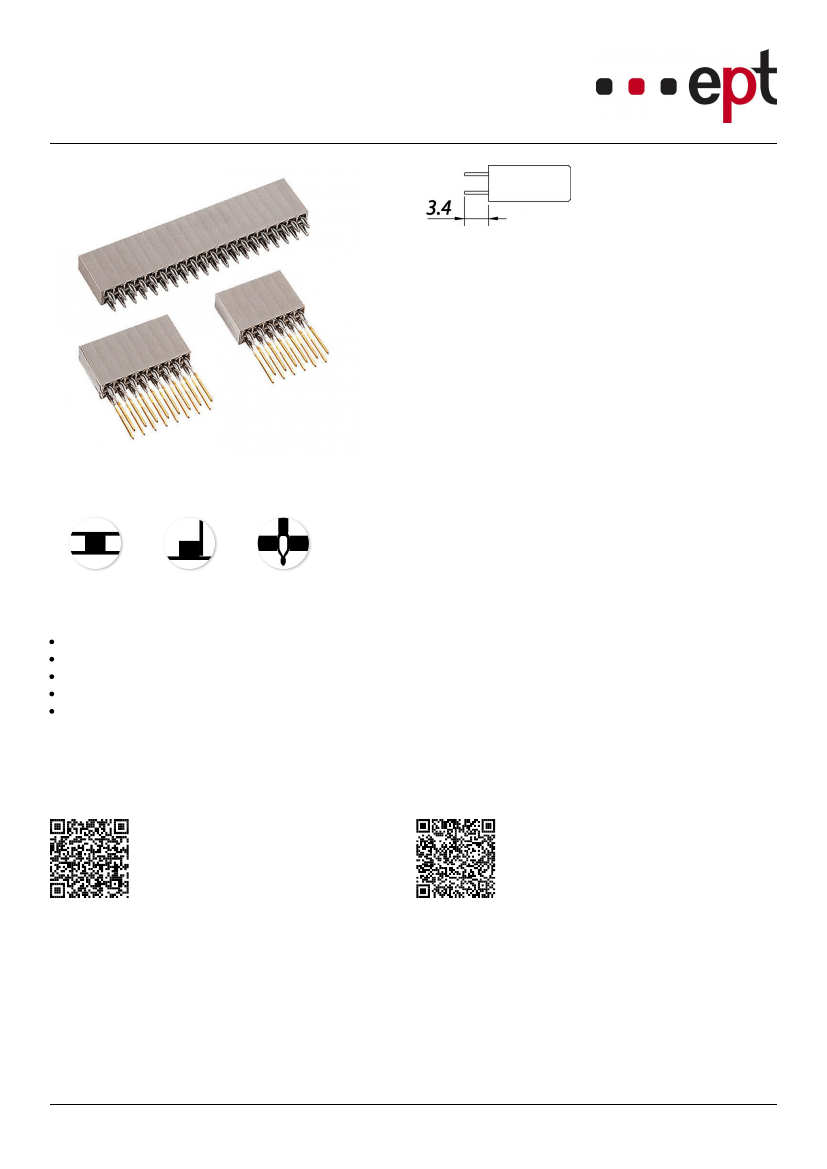

Product Data Sheet
VarPol Female connector 2-row,
Part No. 962-60nn2-03
Illustration similar
Parallel
Perpendicular
Press-fit
Performance Level 3
Press-fit
termination length 3.4 mm
2 - 108 contacts (nn in part number = pins / row)
2-row
» to product on www.ept.de
» to product group Varpol connectors
Version from 12.02.2018, 13:21 - subject to change without notice
ept GmbH
| Bergwerkstr. 50 | 86971 Peiting | Tel. +49 (0) 8861 / 25 01 0 | Fax +49 (0) 8861 / 55 07 | sales@ept.de |
www.ept.de
Page 1
Product Data Sheet
VarPol Female connector 2-row,
Part No. 962-60nn2-03
Technical Specifications
Basics
Performance Level
No. of Contacts
Termination Technology
Termination Length
Board-to-Board Distance
Operating Temperature Range
Material
Insulator Material
Contact Material
Mechanical
Pitch
Mating Force per Pin
Separating Force per Pin
Electrical
Operational Current
Operational Voltage
Contact Resistance
Clearance and Creepage
Insulation Resistance
Approval / Compliance
UL file
Environment
UL (file: E130314)
RoHS compliant
max. 1.9 A
150 V
< 20 mΩ
1.2 mm
>10
6
MΩ
2.54 mm
max. 0.9 N
min 0.6 N
PBT glass filled, UL 94 V-0
Copper alloy
3
2 - 108
Press-fit
3.4 mm
11.45 mm - 23.35 mm
-55°C to +125°C
Version from 12.02.2018, 13:21 - subject to change without notice
ept GmbH
| Bergwerkstr. 50 | 86971 Peiting | Tel. +49 (0) 8861 / 25 01 0 | Fax +49 (0) 8861 / 55 07 | sales@ept.de |
www.ept.de
Page 2
Product Data Sheet
VarPol Female connector 2-row,
Part No. 962-60nn2-03
Hole Specifications
Plated through-hole according to IEC 60352-5
Material
Nominal Hole
A PCB Thickness
B Plated Hole
C Drill Hole
D Cu Plating
E Surface
F Annular Ring
Material
Nominal Hole
A PCB Thickness
B Plated Hole
C Drill Hole
D Cu Plating
E Surface
F Annular Ring
Material
Nominal Hole
A PCB Thickness
B Plated Hole
C Drill Hole
D Cu Plating
E Surface
F Annular Ring
Material
Nominal Hole
A PCB Thickness
B Plated Hole
C Drill Hole
D Cu Plating
E Surface
F Annular Ring
imm. Sn printed circuit boards
Ø 1.0 mm
min 1.44 mm
Ø 1.0 +0.09 / -0.06 mm
1.15 ±0.025 mm
min. 25 µm
imm. Sn plating, max. 1.5 µm
min. 0.1 mm
Ni, Au printed circuit boards
Ø 1.0 mm
min 1.44 mm
Ø 1.0 +0.09 / -0.06 mm
1.15 ±0.025 mm
min. 25 µm
Ni, Au plating, 0.05 - 0.2 µm Au over 2.5 - 5
µm Ni
min. 0.1 mm
pure Cu printed circuit boards
Ø 1.0 mm
min 1.44 mm
Ø 1.0 +0.09 / -0.06 mm
1.15 ±0.025 mm
min. 25 µm
OSP*, z.B. GLICOAT-SMD (F2) with 0.12 -
0.15 µm
min. 0.1 mm
HAL Sn printed circuit boards
Ø 1.0 mm
min 1.44 mm
Ø 1.0 +0.09 / -0.06 mm
1.15 ±0.025 mm
min. 25 µm
HAL Sn, 5 - 15 µm
min. 0.1 mm
Version from 12.02.2018, 13:21 - subject to change without notice
ept GmbH
| Bergwerkstr. 50 | 86971 Peiting | Tel. +49 (0) 8861 / 25 01 0 | Fax +49 (0) 8861 / 55 07 | sales@ept.de |
www.ept.de
Page 3
Product Data Sheet
VarPol Female connector 2-row,
Part No. 962-60nn2-03
Drawings
Component data in 2D and 3D format you can download here:
» PDF
» 3D IGES
» 3D STEP
» 3D PDF
