W153254-2020TB datasheet, PDF - EEWORLD Datasheet

W153254-2020TB: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,54 CONTACTS,SKT,0.079 PITCH; CategoryThe connector The connector; File Size134KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

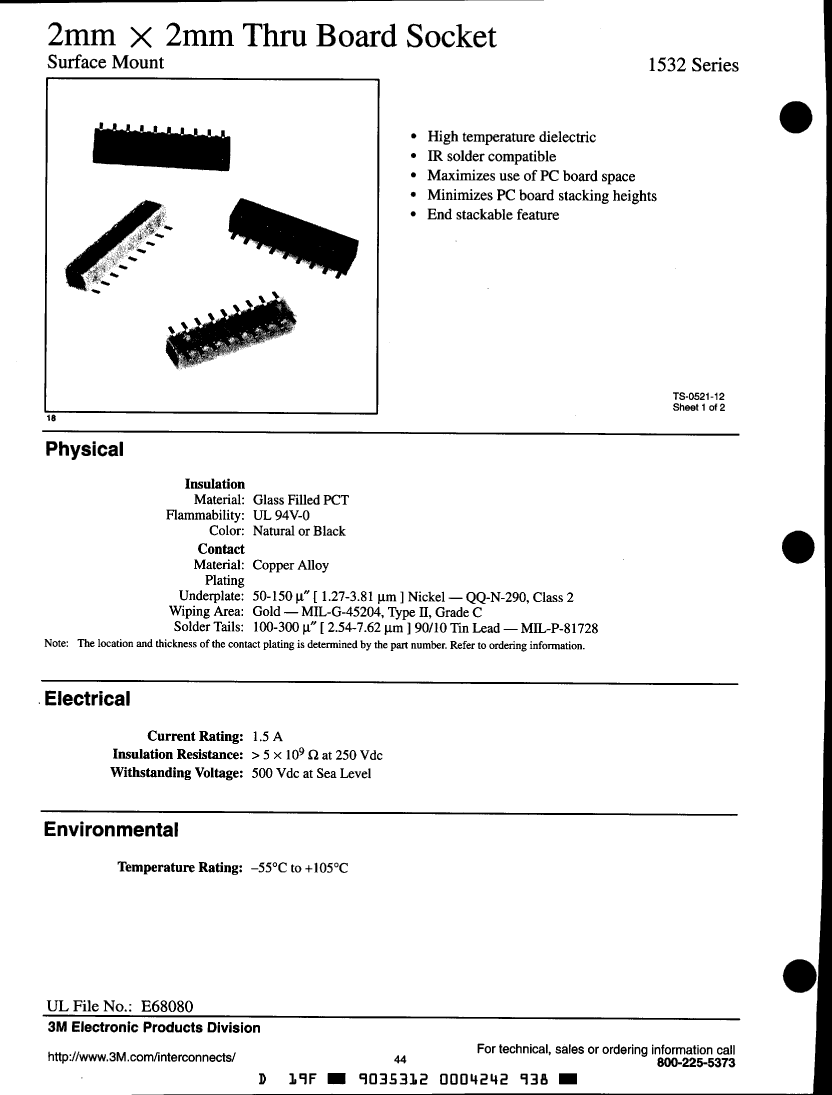

W153254-2020TB Overview

HEADER CONNECTOR,PCB MNT,PLUG,54 CONTACTS,SKT,0.079 PITCH

Parameter Name	Attribute value
Objectid	301222759
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PACKAGING-TAPE AND REEL
Board mount options	LOCATING POSTS

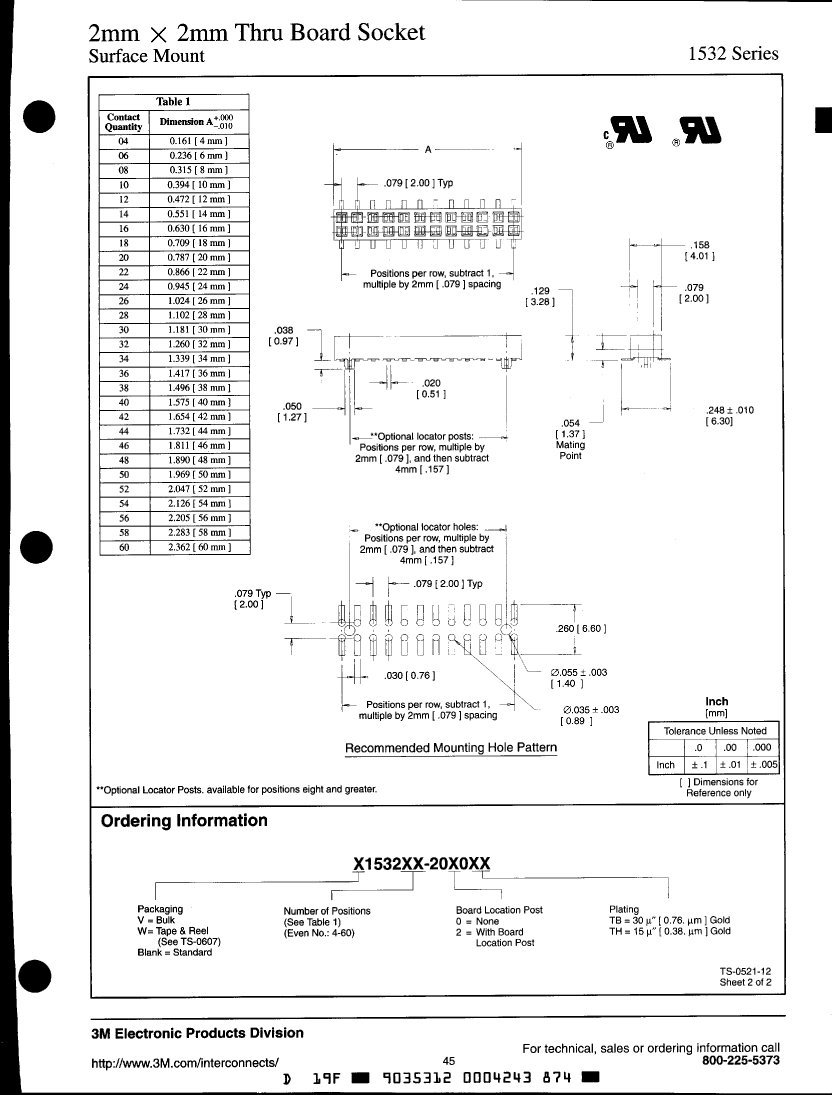

body width	0.158 inch
subject depth	0.129 inch
body length	2.126 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE
Manufacturer's serial number	1532
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Total number of contacts	54
