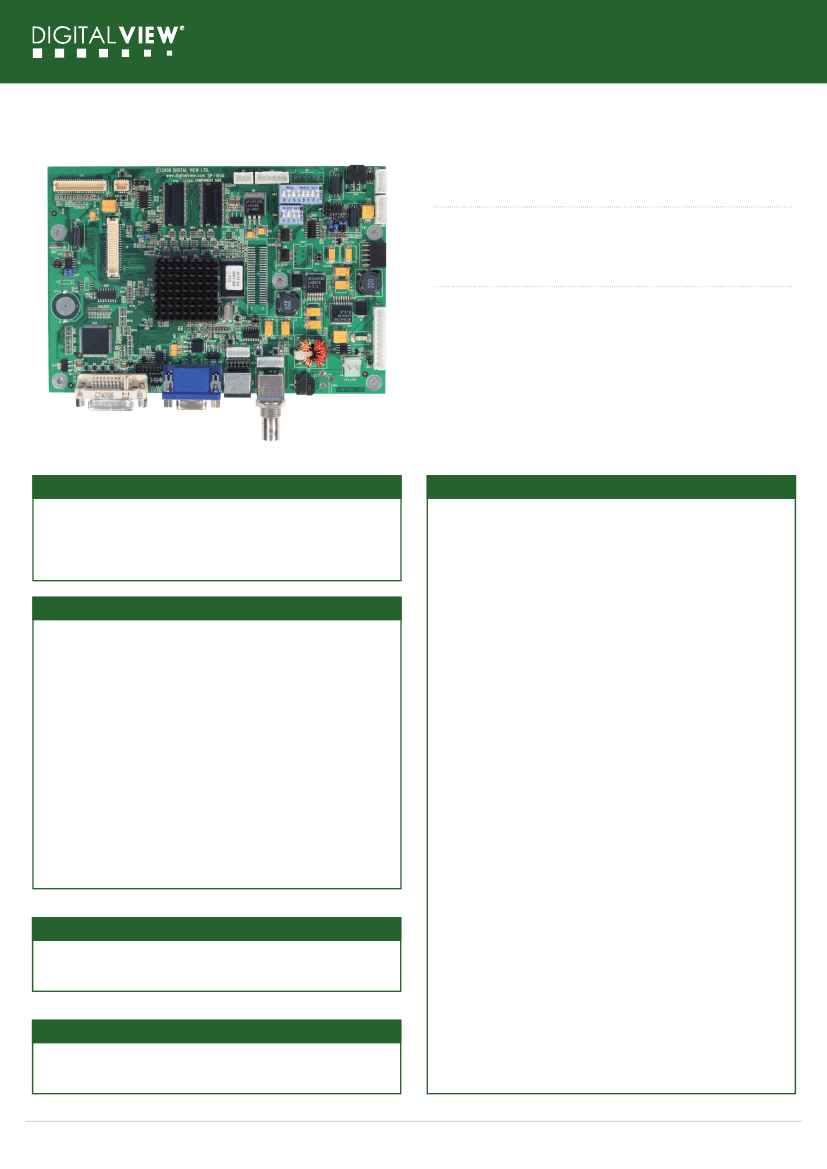

HE-1600
Harsh Environment LCD Controller Board
Key Features :
> VGA to UXGA resolutions
> Dual S-Video and Dual Composite inputs
> Harsh Environment Features
> PAL, NTSC, SECAM support
The HE-1600 is a fully buffered, multi-sync interface controller providing direct
analog and digital connection to a wide range of TFT LCD panels up to UXGA
resolution. Key features include a flexible port architecture that provides inputs
for DVI, dual VGA channels, Composite, S-Video and Component Video across
both 4:3 and 16:9 format panels. The HE-1600 supports the Digital View serial
protocol allowing all controller functions and parameters to be controlled via the
built-in serial port.
Panel Connectivity
1680 x 1050
1400 x 1050
1280 x 800
800 x 600
1600 x 1200
1366 x 768
1280 x 768
640 x 480
1440 x 900
1280 x 1024
1024 x 768
Features
Colors :
Functions :
Function Controls :
Up to 8-bit per color, 16.7 million colors.
On Screen Display (OSD) menu.
External buttons, Infra-Red Controls,
Serial Port Control.
Input
Analog RGB:
60Hz at UXGA
75Hz at SXGA, WXGA, XGA, SVGA, VGA
1152 x 900 @66Hz
1152 x 900 @76Hz
1280 x 1024 @76Hz
With auto detect of Digital Separate Sync, Sync-
On-Green & Composite Sync. Auto detects VGA-
UXGA, interlaced & non-interlaced.
DVI-I
60Hz at UXGA
75Hz at SXGA, WXGA, XGA, SVGA, VGA
NTSC/PAL/SECAM (Interlaced)
Composite Video, S-video,
Component Video (YCbCr)
Image Scaling :
Up / Down scaling to fit input to panel
resolution.
Image Control :
Auto configuration, Brightness, Contrast,
Clock, Phase, Color temperature, Image
position, Saturation, Hue, Gamma.
Other Features :
Auto picture setup, Auto color gain, Auto
power, OSD timeout position and
transparency, Programmable hot keys.
Dimensions :
Form Factor :
Power Requirements :
Panel Power :
Panel Signal
:
Inverter Support :
179mm x 120.4mm (7” x 4.74”)
DV standard & mounting holes.
+12VDC ±25%, 10w (controller only)
Supports 3.3V, 5V, 12V panels.
TTL (single pixel) & LVDS.
DPMS, Analog or PWM brightness
control via serial port controll brightness
Video:
Reliability
Calculated Mean Time Between Failures In excess of 100,000 hours.
Warranty: 3 years.
Plug & Play:
Status Indicator :
Operating Temperature:
Storage Temperature:
DDC 1,2/b compatible
Dual color LED support.
-40°C to +80°C**
-40°C to 85°C
Silicone resin conformal coating.
(MOD) DEF-STAN 59/47 Issue 4 &
UL QMJU2 compliant
Custom Engineering Services
Custom input timing, panel timing, splash screen, OSD Menu, conformal
coatings, layouts etc
Coating:
© Digital View 2011 | www.digitalview.com
Harsh Environment LCD Controller Board

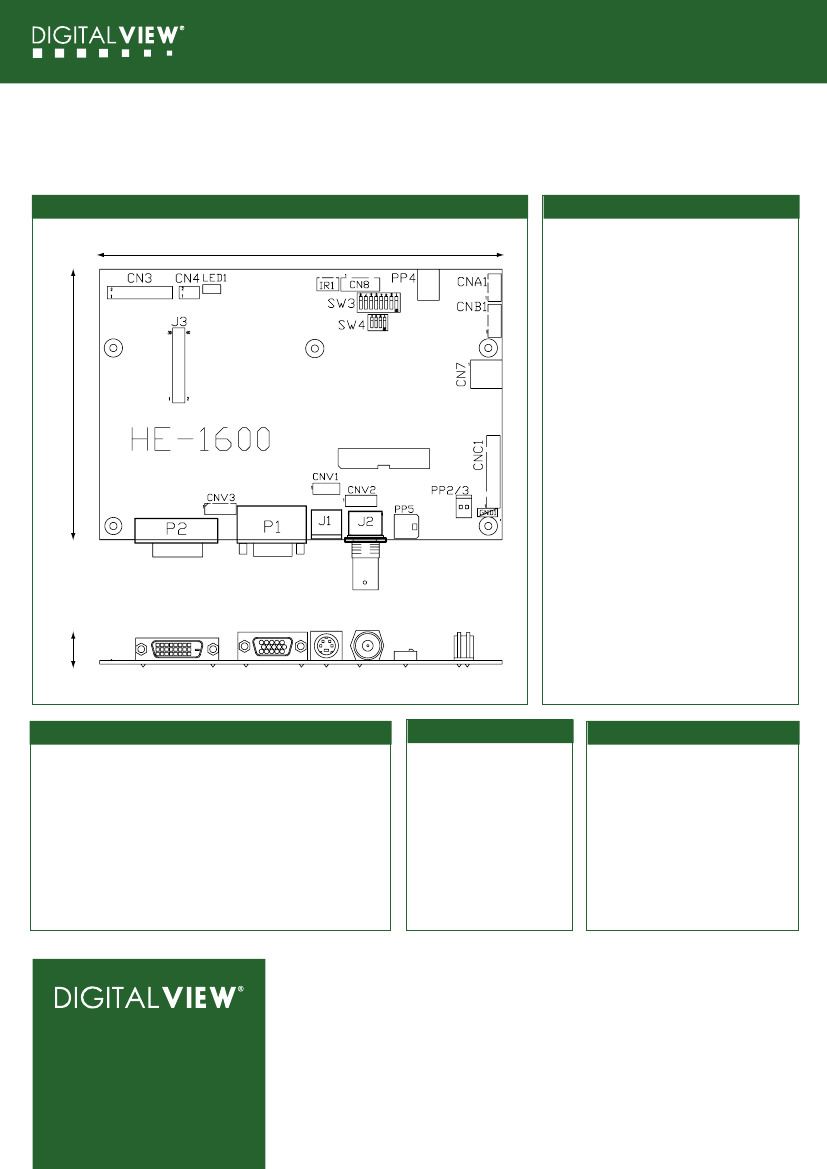

Mechanical Drawing
179.07mm [7.05]
HE-1600
Connector Definitions
CN3
CN4
CN7
CN8
CNA1
CNB1
CNC1
CNV1
CNV2
CNV3
J1
J2
J3
IR1
LED1
P1
P2
PP4
PP5
PP2
TTL Panel Signal
TTL Panel Signal
Audio board connector
RS-232 serial control
Auxiliary power output
Backlight inverter
OSD Function controls
Alternate Video-In
Component Video-In
ARGB 2 Input
S-Video In
Composite Video-In
Panel Signal for LVDS Panel
Infra-Red Sensor Connector
Dual color LED connector
VGA analog input
DVI-I input
External Panel Power Input
Main Power Input ##
Power Input (alternative)
16mm [.630]
120.4mm [4.74]
Ordering Options
HE-1600 Controller
OSD Digital Button Board
OSD Vertical Membrane
OSD Horizontal Membrane
Inverter Interface Board
Audio Amplifier
IR Remote Control
P/N 4169901xx-3
Kit 60110-3
Kit 60121-3
Kit 60125-3
P/N 416040010-3
P/N 416940020-3
P/N 559000106-3
3D Drawings (SLDPRT)
Save time and effort for your
system volumetric analysis de-
sign.
Includes jpg file previews.
Please download at
www.digitalview.com/products/
he-1600-lcd-controller
Available Resources
> Instruction Manual
> Revision Control Documentation**
> Firmware Upgrade Manual**
> Mechanical Drawing
** Available on Request
Controller Solution Generator
A web based resource matching controllers
& panels with connection diagrams
for download. Please go to
http://www.digitalview.com/csg
