Prepare Hardware
1. Choose suitable power adapter from selection provided
in the evaluation kit
2. Attach adapter to power supply and plug in to mains
supply but do not plug into the board yet
3. Plug USB cable into computer but do not plug into
board yet
4. Check jumper and DIP switch settings match the
8EBV89316 hardware configuration shown on the next
page

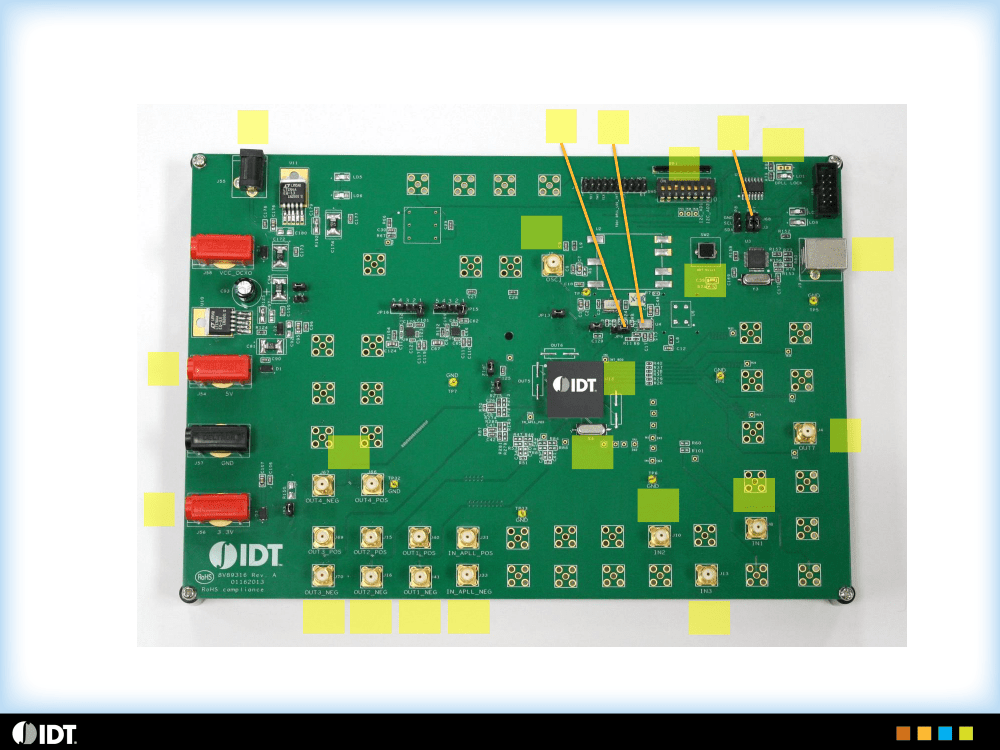

8EBV89316 Hardware Configuration
[1] JP9 jumper. Leave at factory set position for normal
operation (linking center and right pins)
[2] JP6 and JP7 jumpers. Leave at factory set position
for normal operation (linking center and lower pins)
[3] LVCMOS Output clock
[4] IDT8V89316 chip
[5] Switch SW5: The function of this switch is described
in Table 1
[6] Crystal oscillator Master Clock
[7] +5 V DC power supply
[8] +3.3 V power supply for test purpose
[9] +5 V power supply for test purpose
[10] Crystal oscillator for APLL
[11] OSCI: master clock input
[12] Output clock 4 (differential)
[13] Output clock 3 (differential)
[14] Output clock 2 (differential)
[15] Output clock 1 (differential)
[16] Input clock to APLL (differential)
[17] Input clock 1, 2 and 3
[18] USB communication port
[19] DPLL lock indicator
[20] Reset button: Press to reset all devices on the
board. Restart the management API following a
reset to reconnect the host computer to the board.
Table 1: Switch SW5 Functions
Switch
SW5-1
SW5-2
SW5-3
SW5-4
SW5-5
SW5-6
SW5-7
SW5-8
Not used
Not used
Must be set on for normal operation
Not used
Not used
Not used
I2C_AD1
Set off for normal operation
I2C_AD2
Set off for normal operation
Off: “0”
On: “1”
Off: “0”
On: “1”
Off: “0”
On: “1”
Function
Note: Evaluation board GUI expects a fixed I2C address
of 0x51. SW5-7 and SW5-8 should be set to 0 (off) for
normal operation.
Install 8EBV89316 Software
1. Unzip the 8EBV89316 and 8EBV89317 combined GUI zip file and
copy contents to a new folder on the Windows®-based computer
(for example C:\Users\...\Desktop\PLL _GUI_Files)
2. If Java® is not already installed on the computer, install it from
http://www.oracle.com/technetwork/java/javase/downloads/jre8-downloads-2133155.html
3. If Visual Studio® C++ Redistributable Package is not already
installed on the computer, install it from
http://www.microsoft.com/en-ca/download/details.aspx?id=5555
4. Click on
http://www.ftdichip.com/Drivers/D2XX.htm
5. Click on “set executable” in table, this launches the following
executable:
http://www.ftdichip.com/Drivers/CDM/CDM%20v2.10.00%20WHQL%20Certified.exe
6. For manual installation using Windows® device manager, follow
procedure in [1] on the “Useful Information and Links” page at the
end of this guide
