2311200002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 2311200002

2311200002: DescriptionElectric Fuse, Very Fast Blow, 2A, 500VAC, 1000A (IR), Inline/holder, 3AB, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size70KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

2311200002 Overview

Electric Fuse, Very Fast Blow, 2A, 500VAC, 1000A (IR), Inline/holder, 3AB, ROHS COMPLIANT

2311200002 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Fusing characteristics	VERY FAST
body height	32 mm
Body length or diameter	6.3 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	3AB
Joule integral nominal
Installation features	INLINE/HOLDER
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
method of packing	BULK
physical size	6.3mm x 32mm
Pre-discharge time - minutes	1 ms
Rated breaking capacity	1000 A
Rated current	2 A
Rated voltage	500 V
Rated voltage (AC)	500 V
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

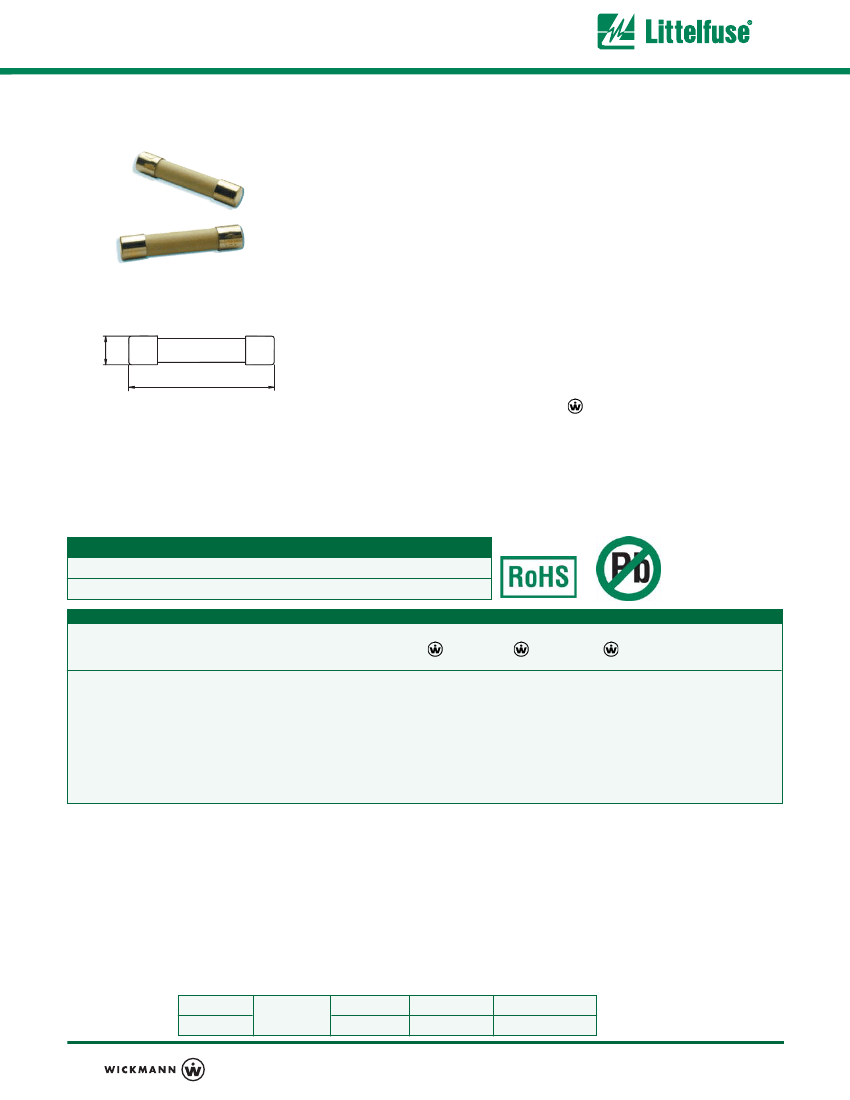

INIATURE

USES

6.3x32 mm / No. 231

Leadfree

Type,

Special Type, 500 V, FF

T ime-Current

Standard

None

Very Quick Acting (FF)

Specifications

Packaging

002: Pack (100 pcs.)

Tube:

End Caps:

Ceramic

Nickel-plated brass

Characteristic

Materials

Approvals

Temperature

Operating Temperature

Climatic Category

Stock Conditions

Features

Dimensions (mm)

Designed for semiconductor protection

For high voltage applications

High breaking capacity

Pluggable into clips or shocksafe holders

-25 ºC to +70 ºC (consider de-rating)

-25 ºC/+70 ºC/21 days (EN 60068-1..3)

+10 ºC to +60 ºC

relative humidity

≤

75 % yearly average,

without dew, maximum value for 30 days-95 %

24 cycles at 15 min. each (EN 60068-2-6)

10 - 60 Hz at 0.75 mm amplitude

60 - 2000 Hz at 10 g acceleration

, FF, Current Rating, 500 V

Vibration Resistance

∅

6,3

Marking

Unit Weight

2.5 g (approx.)

Limits for Pre-arcing Time

Rated Current

2.00 A ... 16.00 A

1.0 x I

>1h

1.5 x I

< 30 min

2.75 x I

4 x I

10 x I

< 3 ms

2 ms ... 100 ms 1 ms ... 25 ms

80%

Permissible continuous operating current is

≤

80% at ambient temperature of 23ºC (73.4ºF).

Rated

Amp

Voltage

Breaking

Voltage Drop Power Dissipation Melting Integral

Current

Code

Rating

Capacity

1.0 x I

10 x I

max. (mV)

max. (W)

max. (A

2.00 A

2.50 A

3.15 A

4.00 A

5.00 A

6.30 A

8.00 A

10.00 A

12.50 A

16.00 A

1,2

1200

1250

1315

1400

1500

1630

1800

2100

2125

2160

500 V

800

700

600

500

480

3.0

3.6

5.2

6.3

0.35

0.44

0.75

1.6

2.5

Approvals

1000A / 500VAC

50-60Hz

cos

= 1.0

None

1 16.00 A: 0.9 x I > 1 h

2 Depending on the application and mounting, the fuse heating at max. ambient temperature in a closed fuseholder should be considered.

Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

Order

Information

012006

Qty.

Order-

Number

Series

231

Amp Code

Packaging

Specifications are subject

to change without notice

www.littelfuse.com
