204491: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Hole .125-.137, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

204491 Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Hole .125-.137, Plug, ROHS COMPLIANT

204491 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.524 inch
body length	1.212 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	YES
maximum insertion force	14.6784 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	YES
Mixed contacts	NO
Installation option 1	HOLE .125-.137
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	6 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	.3614 N
Base Number Matches	1

Preview

Download Datasheet

View All

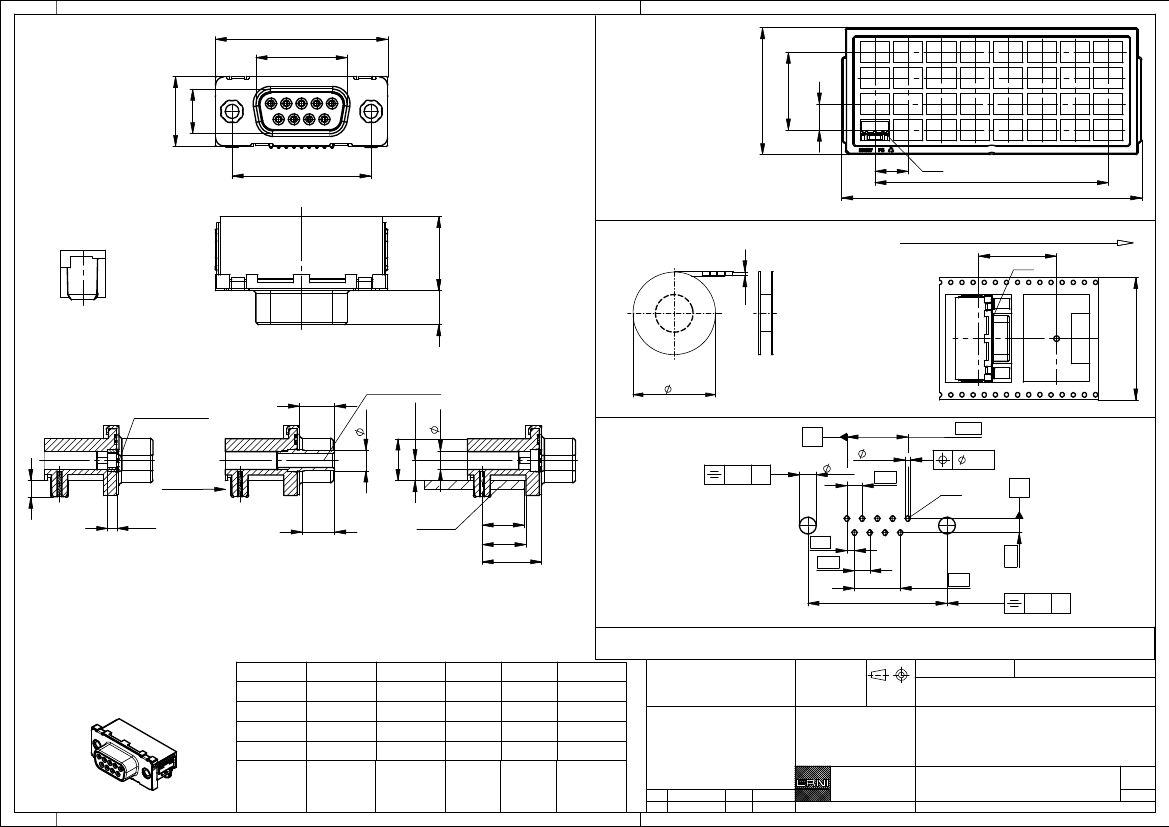

31

-0,4

+0,2

16,4

-0,2

12,6

±0,3

8

-0,2

Ansicht X

M 5:1

Bestückung kraftlos

28

tray packaging

packaging unit 32 pcs

3 x 28 = 84

138

max.

Verpackt in Tray

Verpackungseinheit 32 Stück

25

±0,2

36

Pin 1

7 x 36 = 252

325

max.

powerless assembly

Sonstige Angaben siehe Zeichnung 204630 /

additional indications according to drawing 204630

Verpackt in Gurtverpackung

-

Tape on Reel Packaging

Verpackungseinheit: 125 Stück -

Packaging unit: 125 pcs

Abspulrichtung -

Reel off Direction

28

Pin 1

13,3

6,3

-0,25

14

Mutter /

nut

Gewinde /

thread

M3 /

#4-40

Bolzen /

bolt

6,4

3,7

Gewinde /

thread

M3 /

#4-40

3,6

±0,1

3,2

ohne / without

330

Sonstige Angaben siehe Zeichnung 204656 /

additional indications according to drawing 204656

Layoutvorschlag

7,5

recommended layout

0,05

B

A

3

±0,1

4 x 2,74 = 10,96

1

-0,06

+0,09

0,05 (9x)

Pin 1

B

3

Ansicht X

7,6

7,9

10,7

2,74

1,65

Gewindetiefe /

depth of thread

6

Gewindetiefe /

depth of thread

LP /

PCB

2,74

3 x 2,74 = 8,22

25

±0,05

Anschlussbereich verzinnt

2,54

1,37

terminal area tin plating

Anforderungsstufe: 2

0,05

A

Sonstige Angaben siehe Zeichnung 204627 /

additional indications according to drawing 204627

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to production documentation

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

class: 2

364460

204742

Ident-Nr.

204491

204490

204489

204488

204487

Ident-Nr.

Ø

3,2

#4-40

M3

#4-40

M3

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

part-no.

Gurt

part-no.

Tray

tape on reel

tray

without

ohne

Mutter

nut

Bolzen

bolt

Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

d

Index

25.11.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S-09-THR OM-Euro-BA8

remark

www.ERNI.com

Class

204486

TMCS

44

I

A3
