6EB1ABB153JAG050BA datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 6EB1ABB153JAG050BA

6EB1ABB153JAG050BA: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 100V, 0.015uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size24KB，1 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/

Download Datasheet Parametric View All

6EB1ABB153JAG050BA Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 100V, 0.015uF, THROUGH HOLE MOUNT, RADIAL LEADED

6EB1ABB153JAG050BA Parametric

Parameter Name	Attribute value
Objectid	2032458758
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.015 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	AMMO PACK
positive tolerance	5%
Rated (AC) voltage (URac)	63 V
Rated (DC) voltage (URdc)	100 V
surface mount	NO
Terminal shape	WIRE

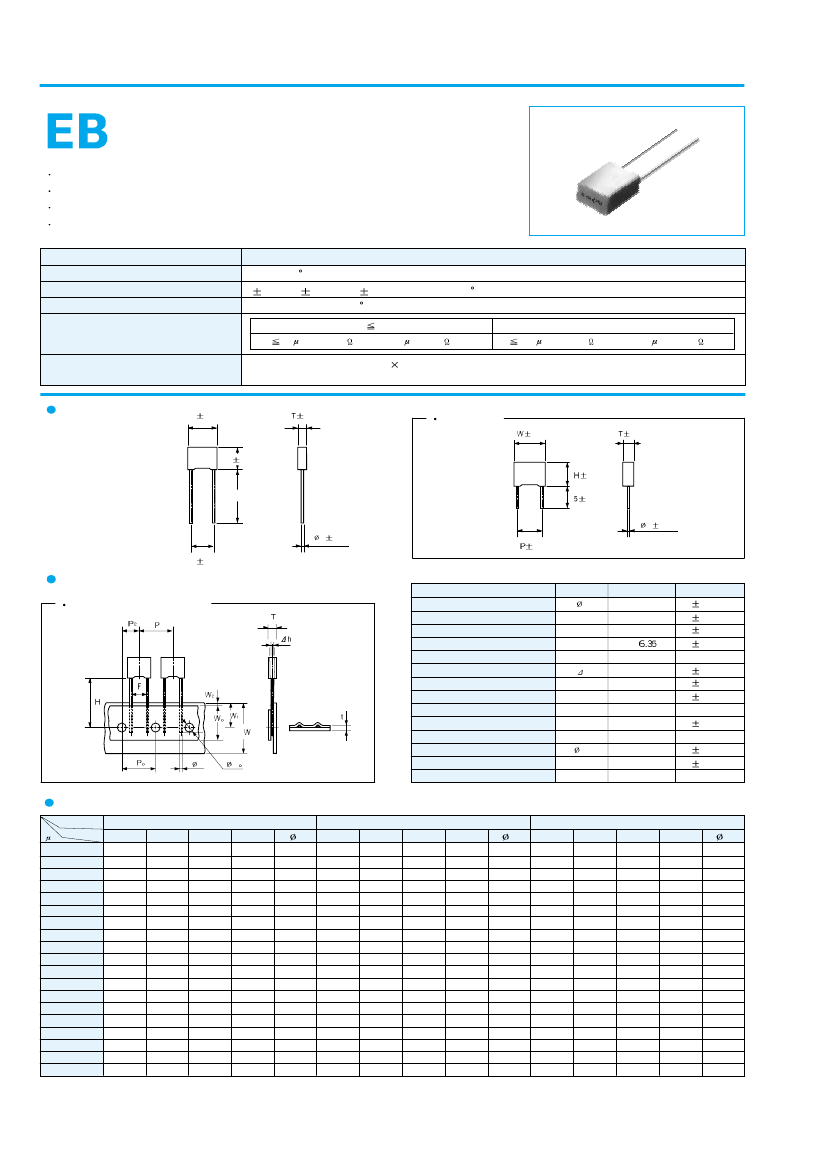

6EB1ABB153JAG050BA Preview

PLASTIC FILM CAPACITORS

Non-Inductive Metallized Polyester Film

Series

Non-inductive construction

Flame retardant resin case

Small sized and available for automatic insertion

Applications : VTR and automotive electronics

Item

Operating temperature range

Capacitance tolerance

Dissipation factor

Insulation resistance

Withstand voltage

(Terminal to terminal)

Characteristics

-40 ~ +85 C

5% (J), 10% (K), 20% (M) at 1kHz, 20 C

0.01 max. at 1kHz, 20 C

WV 100

C 0.1 F : 10000M min., C

0.1 F : 1000 F min.

100

C 0.33 F : 30000M min., C

0.33 F : 10000 F min.

Test voltage : Rated voltage 1.6 (VDC)

Test time

: 2s

Unit : mm

0.2

DRAWING

Lead cut

0.2

H 0.2

0.2

15 min

0.5

d 0.05

P 0.4

0.05

0.4

Lead Taping Capacitors for Automatic Insertion

LEAD SPACE : 5mm

Description

Lead wire diameter

Body pitch

Feeding hole pitch

Feeding hole off alignment

Lead center spacing

Body inclination

Length from seating plane

Tape width

Adhesive tape width

Feeding hole off alignment

Adhesive tape margin

Feeding hole diameter

Total tape thickness

Taping code

Symbol

Ammo

Drawing

0.6

12.7

5.0

18.5

18.0

6.0

9.0

2.0

4.0

0.7

Unit : mm

Tolerance

0.05

1.0

0.3

1.0

+0.6,-0.2

2.0

0.75

0.5

min.

0.5

max.

0.2

DIMENSIONS

VDC(VAC)

Code

Unit : mm

50 (30)

63 (40)

0.001

0.0015

0.0022

0.0033

0.0047

0.0068

0.01

0.015

0.022

0.033

0.047

0.068

0.1

0.15

0.22

0.33

0.47

0.68

1.0

3.0

3.5

4.5

5.0

6.0

7.2

6.5

7.5

9.5

10.0

11.0

5.0

0.6

3.0

3.5

5.0

7.2

6.5

7.5

10.0

5.0

0.6

3.0

3.5

4.5

7.2

100 (63)

6.5

7.5

9.5

5.0

0.6

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
