Q-SERIES 22mmØ Panel Mounting LED Indicator
Product Specification
Distinctive Features and Specifications
•
•
•
•
•
•
•
•
•
22mm panel mounting LED indicator
18mm coloured diffused epoxy lens
Bright chrome, black chrome and satin grey, plated brass bezel finish
Bright chrome, satin grey, gold and black ABS plastic bezel finish
Prominent and flush bezel styles
5.5VDC – 220VAC
(2.8 x 0.8) terminals, pins or (200mm long) wire terminations
IP67 sealing option (EN60529)
Supplied with fixing nut and spring washer

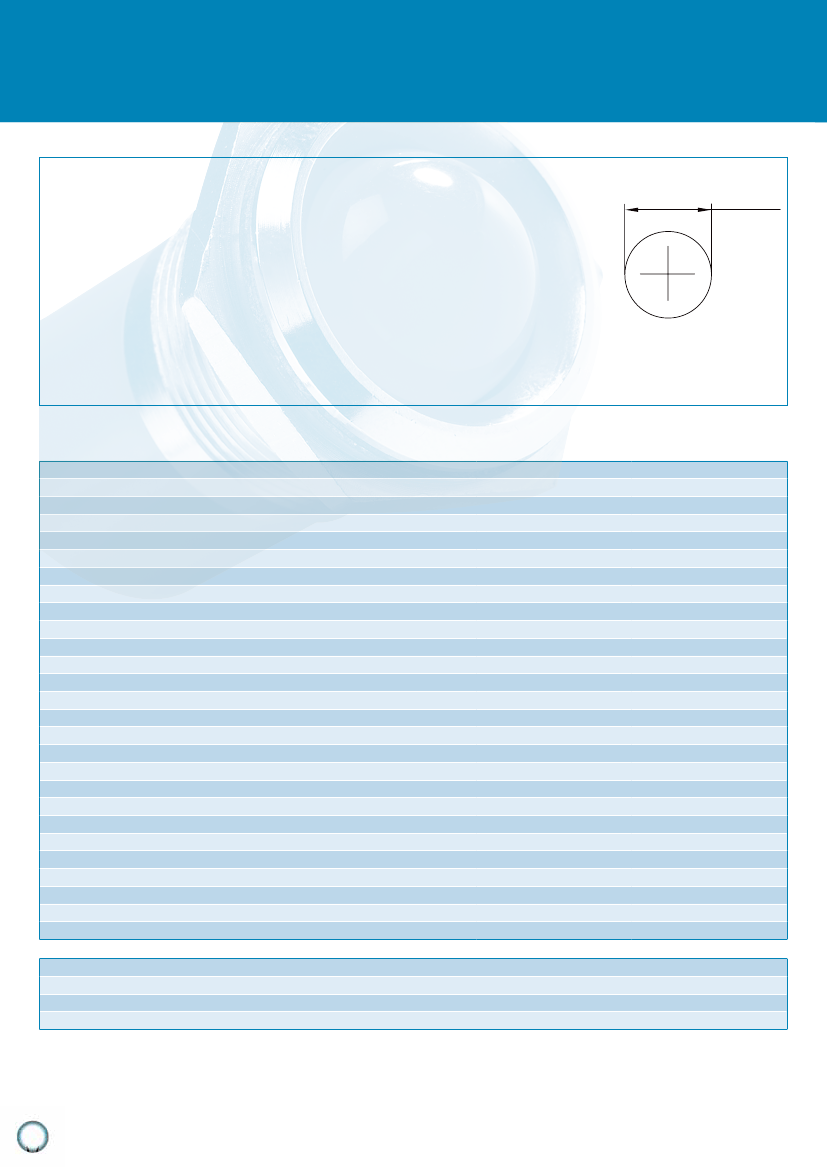

Ø 22,00 ±0,1
PANEL CUTOUT
NB: UL Recognised Component
TECHNICAL SPECIFICATIONS
Switch Voltage
5.5VDC (No Resistor)
12VDC
24VDC
28VDC
110VAC
230VAC
Intensity (Typical) at |op Standard
Operating Voltage Vop
(Min to Max)
5.0 to 6.0VDC
10.8 to 13.2VDC
21.6 to 26.4VDC
25.2 to 30.8VDC
99 to 121VAC
207 to 253VAC
Operating Current |op
(Typical All Types)
40mA
40mA
40mA
40mA
5mA
3mA
Prominent
Flush
Forward Voltage
(all voltages)
(all voltages)
HE Red
80mcd
70mcd
5.7V
Green
95mcd
70mcd
5.9V
Yellow
60mcd
60mcd
5.9V
Blue
120mcd
100mcd
9.9V
White
350mcd
200mcd
3.6V
Bi-colour (Typical) (Red/Green)
80/50mcd
80/50mcd
2.0V/2.2V
Tri-colour (Typical) (Red/Green/Yellow)
80/50/50mcd
80/50/50mcd
2.0V/2.2V/2.1V
Bi-colour - The colour is changed by reversing the polarity of the supply voltage.
Tri-colour - The indicator has red and green LEDs, when both connected yellow is produced.
Super Bright
HE Red
Green
Yellow
Prominent
Flush
(all voltages)
(all voltages)
1,230mcd
885mcd
1,060mcd
980mcd
1,780mcd
1,250mcd
Luminous intensity will be reduced with lower operating current.
Forward Voltage
5.85V
9.0V
6.0V
Max Reverse Voltage:
5V
Viewing Angle:
100° (dependant on model)
Life Expectancy:
100,000 hours
Operating Temperature Range:
–40 to +85°C
Note: The operating voltage must not be exceeded by more that 10% as this will result in reduced life expectancy.
The company reserves the right to change specifications without notice.
www.apem.com
19

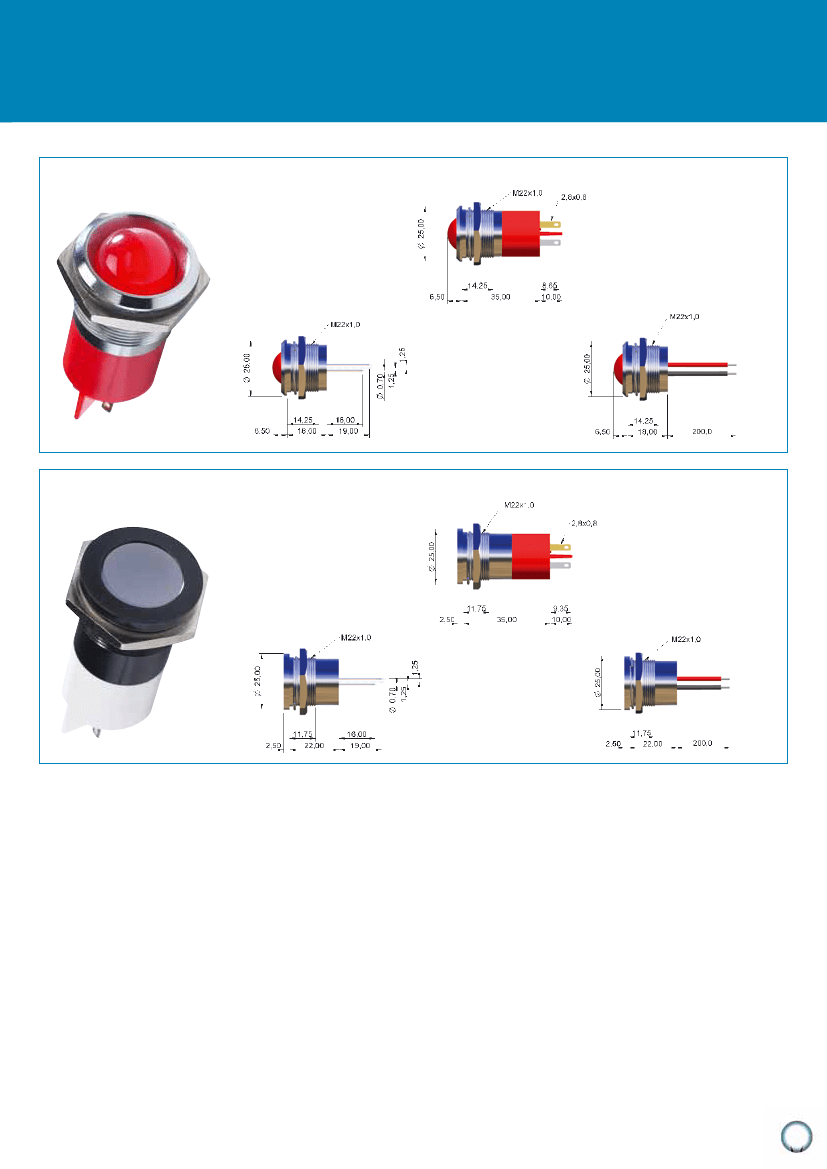

Q-SERIES 22mmØ Panel Mounting LED Indicator
Ordering Overview
STANDARD OPTIONS
The Q22 Series is available with a range of standard options, to specify your LED, simply choose one option from each column.
An example is shown below.
Q
SERIES
Q
22
MOUNTING
HOLE
22 = Ø22mm
F
BEZEL
STYLE
Metal
P = Prominent
F = Flush
Plastic
PP = Prominent
FP = Flush
1
TERMINALS
1 = Solder
Lugs/Fastons
(2.8 x 0.8)
4 = Pins
5 = Wires
BP
BEZEL FINISH
Metal
C = Bright Chrome
B = Black Chrome
G = Satin Grey
Plastic
CP = Bright Chrome
BP = Black
GP = Satin Grey
AU = Gold
XX
TYPE OF
ILLUMINATION
XX = Fixed Light
KK = Flashing Light
(only up to 12VDC)
YY = Bi-colour
ZZ = Tri-colour
W
LED COLOUR
R = Red
G = Green
Y = Yellow
B = Blue
W = White
28
VOLTAGE
05 = 5VDC*
12 = 12VDC
12A = 12VAC/DC
24 = 24VDC
24A = 24VAC/DC
28 = 28VDC
E
SEALING
(Blank) = Unsealed
E = IP67
DL
OPTIONS
DL = Daisy Chain
LT = Lamp Test
SR = Super Bright
Red
SG = Super Bright
Green
SY = Super Bright
Yellow
28A = 28VAC/DC
110 = 110VAC
220 = 220VAC
*Supplied without
a resistor
Example Q22FP1BPXXW28EDL
Ø22mm, flush bezel, solder lug
terminals, black plastic finish,
fixed light, white, 28volt DC LED,
IP67 Panel Seal, Daisy Chain
RG = Red/Green
RY = Red/Yellow
GY = Green/Yellow
RYG = Red/Yellow/
Green
• Gold Faston terminal denotes Anode (+), silver terminal denotes Cathode (-)
• Standard wire length is 200mm, 22AWG, red wire denotes Anode (+), black wire denotes Cathode (-)
for other wire lengths consult APEM
• For LEDs with alternate voltages consult APEM
• Bi-colour LEDs, by connecting the gold Faston (+) one colour is produced,
by reversing the supply voltage another colour is produced – Bi-colours are available up to 28VDC
• Take care when soldering to the Faston terminals
• Pin and Wire options are epoxy sealed at the rear of the bezels
• The Tri-colour LED has red and green LEDs when both are connected yellow is produced
• Standard Tri-colour Faston terminals are two Anodes (+) and one Cathode (-)
• Tri-colour wires are one red (+) and one green (+) Anode and one black (-) Cathode
• Tri-colour pins are centre (–) cathode, shortest (+) anode pin green, longest (+) anode pin red
• Maximum panel thickness: Prominent = 12mm, Flush = 10mm
• Plastic bezel material: ABS
• Daisy chaining option - has negative (Cathode) terminals linked (3 x Fastons), solder lugs only
• Lamp test facility option (4 x Faston), solder lugs only
• We recommend using Superbright LEDs for use at 220VAC
• For resistorless versions (05) please pay attention to the forward voltage
• For multi-voltage options please consult Apem
www.apem.com
21
