Description
RESISTOR, THIN FILM, 0.1 W, 0.1 %, 15 ppm, 51100 ohm, SURFACE MOUNT, 0603, CHIP, ROHS COMPLIANT
CategoryPassive components    The resistor
File Size147KB，11 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

231220275113 Overview

RESISTOR, THIN FILM, 0.1 W, 0.1 %, 15 ppm, 51100 ohm, SURFACE MOUNT, 0603, CHIP, ROHS COMPLIANT

231220275113 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid2009290315
package instruction, 0603
Reach Compliance Codeunknown
Country Of OriginGermany, Israel
ECCN codeEAR99
YTEOL8
Other featuresLASER TRIMMABLE; PRECISION; RATED AC VOLTAGE: 75V
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, CARDBOARD
Rated power dissipation(P)0.1 W
Rated temperature70 °C
resistance51100 Ω
Resistor typeFIXED RESISTOR
size code0603
surface mountYES
technologyTHIN FILM
Temperature Coefficient15 ppm/°C
Terminal surfaceTin (Sn)
Terminal shapeWRAPAROUND
Tolerance0.1%
Operating Voltage75 V

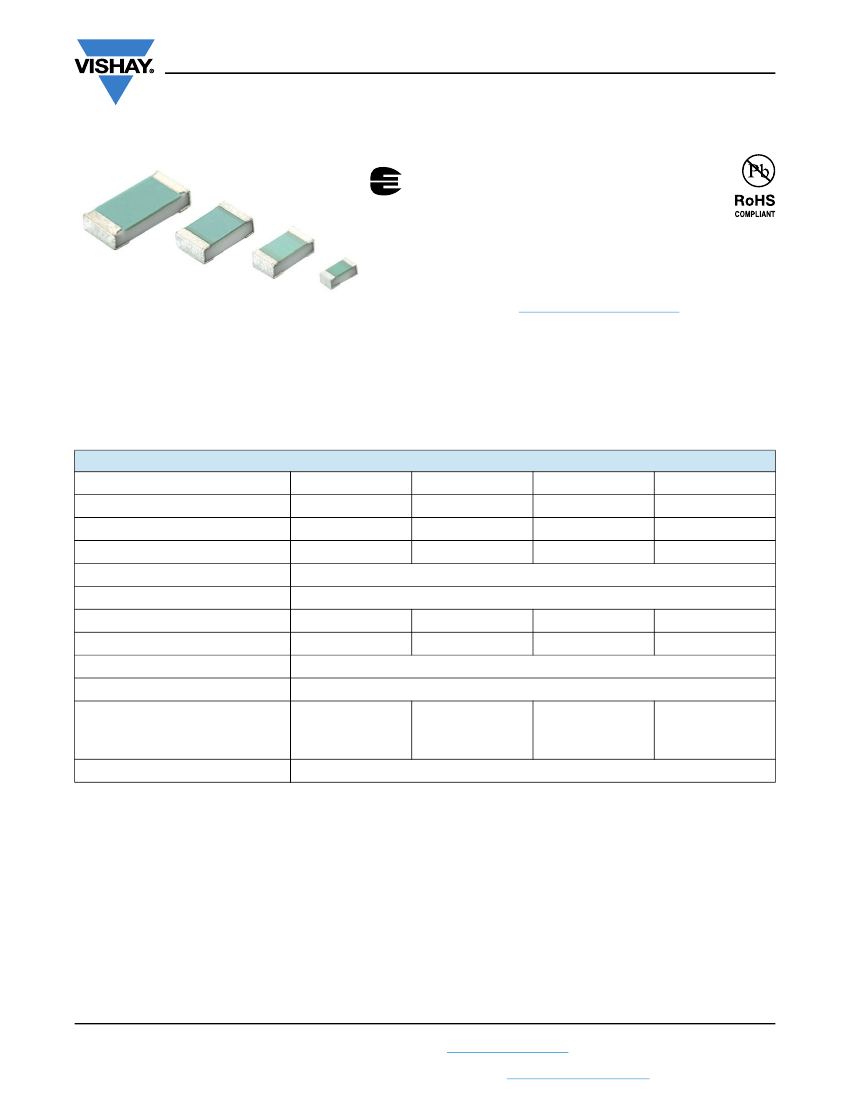

231220275113 Preview

MCS 0402, MCT 0603, MCU 0805, MCA 1206 - Precision
www.vishay.com
Vishay Beyschlag
Precision Thin Film Chip Resistors
FEATURES
• Approved to EN 140401-801
• Low TCR: ± 10 ppm/K to ± 25 ppm/K
• Precision tolerance of resistance:
± 0.1 % and ± 0.25 %
• Superior overall stability: class 0.1 and 0.25
• Sulfur resistance verified according to ASTM B 809
Thin film flat chip resistors combine the proven reliability of
the professional products with an advanced level of
precision and stability. Therefore they are perfectly suited
for applications in the fields of test and measurement
equipment together with industrial and medical electronics.
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Automotive
• Test and measuring equipment
• Medical equipment
• Industrial equipment
TECHNICAL SPECIFICATIONS
DESCRIPTION
Imperial size
Metric size code
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation,
P
70 (1)
Operating voltage,
U
max.
AC
RMS
/DC
Permissible film temperature,
F max. (1)
Operating temperature range
Permissible voltage against ambient
(insulation):
1 min;
U
ins
Failure rate: FIT
observed
Note
(1)
Please refer to APPLICATION INFORMATION below.
75 V
100 V
0.1 x 10
-9
/h
200 V
300 V
0.063 W
50 V
MCS 0402
0402
RR1005M
100
to 221 k
MCT 0603
0603
RR1608M
39
to 511 k
MCU 0805
0805
RR2012M
39
to 1.5 M
MCA 1206
1206
RR3216M
39
to 2 M
± 0.25 %; ± 0.1 %
± 25 ppm/K; ± 15 ppm/K; ± 10 ppm/K
0.100 W
75 V
125 °C
-55 °C to 125 °C
0.125 W
150 V
0.250 W
200 V
APPLICATION INFORMATION
When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal
resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted
film temperature is not exceeded.
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift
increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a
functional lifetime.
Revision: 16-Aug-16
Document Number: 28700
1
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MCS 0402, MCT 0603, MCU 0805, MCA 1206 - Precision
www.vishay.com
Vishay Beyschlag
PRECISION
MCS 0402
0.016 W
0.032 W
0.050 W
0.100 W
12.5 V
25 V
35 V
50 V
-10 °C to 85 °C
85 °C
MCS 0402
MCT 0603
MCU 0805
100
to 221 k
39
to 511 k
39
to 1.5 M
39
to 2 M
0.05 %
0.1 %
0.25 %
MCT 0603
MCU 0805
MCA 1206
MCS 0402
MCT 0603
MCU 0805
MCA 1206
STANDARD
0.063 W
0.100 W
0.125 W
0.250 W
50 V
75 V
150 V
200 V
-55 °C to 125 °C
125 °C
100
to 221 k
39
to 511 k
39
to 1.5 M
39
to 2 M
0.1 %
0.25 %
0.5 %
MAXIMUM RESISTANCE CHANGE AT RATED DISSIPATION
OPERATION MODE
Rated dissipation,
P
70
Operating voltage,
U
max.
AC
RMS
/DC
Operating temperature range
Permissible film temperature,
F max.
Max. resistance change at
P
70
for resistance range,
|R/R| after:
MCA 1206
1000 h
8000 h
225 000 h
Note
• The presented operation modes do not refer to different types of resistors, but actually show examples of different loads, that lead to
different film temperatures and different achievable load-life stability (drift) of the resistance value. A suitable low thermal resistance of the
circuit board assembly must be safeguarded in order to maintain the film temperature of the resistors within the specified limits. Please
consider the application note “Thermal Management in Surface-Mounted Resistor Applications” (www.vishay.com/doc?28844) for
information on the general nature of thermal resistance.
TEMPERATURE COEFFICIENT AND RESISTANCE RANGE
TYPE / SIZE
TCR
± 25 ppm/K
MCS 0402
± 15 ppm/K
± 10 ppm/K
± 25 ppm/K
MCT 0603
± 15 ppm/K
± 10 ppm/K
± 25 ppm/K
MCU 0805
± 15 ppm/K
± 10 ppm/K
± 25 ppm/K
MCA 1206
± 15 ppm/K
± 10 ppm/K
TOLERANCE
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
± 0.25 %
± 0.1 %
RESISTANCE
100
to 221 k
100
to 221 k
100
to 150 k
100
to 150 k
100
to 130 k
100
to 130 k
39
to 511 k
47
to 511 k
39
to 332 k
47
to 332 k
39
to 221 k
47
to 221 k
39
to 1.5 M
47
to 1.5 M
39
to 1 M
47
to 1 M
39
to 511 k
47
to 511 k
39
to 2 M
47
to 2 M
39
to 1.5 M
47
to 1.5 M
39
to 1 M
47
to 1 M
E24; E192
E-SERIES
Note
• Resistance ranges printed in bold are preferred TCR / tolerance combinations with optimized availability.
Revision: 16-Aug-16
Document Number: 28700
2
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MCS 0402, MCT 0603, MCU 0805, MCA 1206 - Precision
www.vishay.com
Vishay Beyschlag
PACKAGING
TYPE / SIZE
CODE
E1
MCS 0402
E5
E0
P1
MCT 0603
P5
PW
P1
MCU 0805
P5
PW
P1
MCA 1206
P5
5000
QUANTITY
1000
5000
10 000
1000
Ø 180 mm/7"
5000
20 000
1000
4 mm
5000
20 000
1000
Ø180 mm/7"
Ø 330 mm/13"
Ø 180 mm/7"
Paper tape acc.
IEC 60286-3,
Type 1a
8 mm
Ø 330 mm/13"
2 mm
Ø 180 mm/7"
PACKAGING STYLE
WIDTH
PITCH
PACKAGING
DIMENSIONS
PART NUMBER AND PRODUCT DESCRIPTION
Part Number: MCT06030D4641BPW00
M
C
T
0
6
0
3
0
D
4
6
4
1
B
P
W
0
0
TYPE / SIZE
MCS0402
MCT0603
MCU0805
MCA1206
VERSION
0
= neutral
TCR
F
= ± 10 ppm/K
E
= ± 15 ppm/K
D
= ± 25 ppm/K
RESISTANCE
3 digit value
1 digit
multiplier
Multiplier
9
= *10
-1
0
= *10
0
1
= *10
1
2
= *10
2
3
= *10
3
4
= *10
4
TOLERANCE
B
= ± 0.1 %
C
= ± 0.25 %
PACKAGING
E1
E5
E0
P1
P5
PW
Product Description: MCT 0603-25 0.1 % PW 4K64
MCT
TYPE
MCS
MCT
MCU
MCA
0603
SIZE
0402
0603
0805
1206
-25
TCR
±
10
ppm/K
±
15
ppm/K
±
25
ppm/K
0.1 %
TOLERANCE
±
0.1 %
±
0.25 %
PW
PACKAGING
E1
E5
E0
P1
P5
PW
4K64
RESISTANCE
4K64
= 4.64 k
50R1
= 50.1
Note
• Products can be ordered using either the PART NUMBER or PRODUCT DESCRIPTION.
Revision: 16-Aug-16
Document Number: 28700
3
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MCS 0402, MCT 0603, MCU 0805, MCA 1206 - Precision
www.vishay.com
DESCRIPTION
Production is strictly controlled and follows an extensive
set of instructions established for reproducibility. A
homogeneous film of metal alloy is deposited on a high
grade ceramic substrate (Al
2
O
3
) and conditioned to achieve
the desired temperature coefficient. Specially designed
inner contacts are deposited on both sides. A special laser
is used to achieve the target value by smoothly fine trimming
the resistive layer without damaging the ceramics. A further
conditioning is applied in order to stabilize the trimming
result. The resistor elements are covered by a protective
coating designed for electrical, mechanical and climatic
protection. The terminations receive a final pure tin on nickel
plating.
The result of the determined production is verified by an
extensive testing procedure and optical inspection
performed on 100 % of the individual chip resistors. This
includes full screening for the elimination of products with
potential risk of early field failures. Only accepted products
are laid directly into the paper tape in accordance with
IEC 60286-3 Type 1a
(1)
.
Vishay Beyschlag
The products do not contain any of the banned substances
as per IEC 62474, GADSL, or the SVHC list, see
www.vishay.com/how/leadfree.
Hence the products fully comply with the following
directives:
• 2000/53/EC End-of-Life Vehicle Directive (ELV) and
Annex II (ELV II)
• 2011/65/EU Restriction of the Use of Hazardous
Substances
Directive
(RoHS)
with
amendment
2015/863/EU
• 2012/19/EU Waste Electrical and Electronic Equipment
Directive (WEEE)
Vishay pursues the elimination of conflict minerals from its
supply chain, see the Conflict Minerals Policy at
www.vishay.com/doc?49037.
APPROVALS
The resistors are approved within the IECQ-CECC Quality
Assessment System for Electronic Components to the detail
specification
EN 140401-801
which refers to
EN 60115-1,
EN 60115-8
and the variety of environmental test
procedures of the
IEC 60068
(1)
series.
Conformity is attested by the use of the
CECC
logo (
the mark of conformity on the package label.
) as
ASSEMBLY
The resistors are suitable for processing on automatic SMD
assembly systems and for automatic soldering using wave,
reflow or vapor phase. The encapsulation is resistant to all
cleaning solvents commonly used in the electronics
industry, including alcohols, esters and aqueous solutions.
The suitability of conformal coatings, potting compounds
and their processes, if applied, shall be qualified by
appropriate means to ensure the long-term stability of the
whole system.
The resistors are RoHS-compliant, the pure tin plating
provides
compatibility
with
lead
(Pb)-free
and
lead-containing soldering processes. Solderability is
specified for 2 years after production or requalification. The
permitted storage time is 20 years. The immunity of the
plating against tin whisker growth has been proven under
extensive testing.
Vishay
Beyschlag
has
achieved
“Approval
of
Manufacturer”
in accordance with
IECQ 03-1.
The release
certificate for
“Technology Approval Schedule”
in
accordance with
CECC 240001
based on
IECQ 03-3-1
is
granted for the Vishay Beyschlag manufacturing process.
RELATED PRODUCTS
Resistors are available with established reliability in
accordance with EN 140401-801 version E. Please refer to
the special datasheet (www.vishay.com/doc?28744) for
information on failure rate level, available resistance ranges
and order codes.
For more information about products with higher rated
power and higher operation temperature please refer to the
Professional Thin Film Chip Resistor datasheet
(www.vishay.com/doc?28705).
Precision chip resistor arrays may be used in voltage
divider applications or precision amplifiers where close
matching between multiple resistors is necessary.
Please refer to the ACAS 0612 - Precision datasheet
(www.vishay.com/doc?28751).
MATERIALS
Vishay acknowledges the following systems for the
regulation of hazardous substances:
• IEC 62474, Material Declaration for Products of and for the
Electrotechnical Industry, with the list of declarable
substances given therein
(2)
• The Global Automotive Declarable Substance List
(GADSL)
(3)
• The REACH regulation (1907/2006/EC) and the related list
of substances with very high concern (SVHC)
(4)
for its
supply chain
Notes
(1)
The quoted IEC standards are also released as EN standards with the same number and identical contents.
(2)
The IEC 62474 list of declarable substances is maintained in a dedicated database, which is available at
http://std.iec.ch/iec62474.
(3)
The Global Automotive Declarable Substance List (GADSL) is maintained by the American Chemistry Council and available at
www.gadsl.org.
(4)
The SVHC list is maintained by the European Chemical Agency (ECHA) and available at
http://echa.europa.eu/candidate-list-table.
Revision: 16-Aug-16
Document Number: 28700
4
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MCS 0402, MCT 0603, MCU 0805, MCA 1206 - Precision
www.vishay.com
FUNCTIONAL PERFORMANCE
Power Dissipation
P
0.3
W
0.2
MCS 0402
MCT 0603
MCU 0805
MCA 1206
Vishay Beyschlag
0.1
0
-50
0
50
70
100
°C
150
Ambient Temperature
ϑ
amb
Derating - Standard Operation
Power Dissipation
P
0.3
W
0.2
MCS 0402
MCT 0603
MCU 0805
MCA 1206
0.1
0
-50
0
50
70
100
Derating - Precision Operation
Ambient Temperature
ϑ
amb
°C
150
Current Noise Voltage Ratio
10
µV/V
MCS 0402
MCT 0603
MCU 0805
MCA 1206
1
0.1
0.01
100
Ω
1 kΩ
10 kΩ
100 kΩ
1 MΩ
Resistance Value
R
In accordance with IEC 60195
Current Noise Voltage Ratio
Revision: 16-Aug-16
Document Number: 28700
5
For technical questions, contact:
thinfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

DC 12v converter working principle circuit diagram

Third harmonic thyristor automatic excitation device circuit b

Solar water heater water supply circuit

Infrared transmitting circuit using Darlington transistor

Variable filter circuit with cut-off frequency 1HZ-1KHZ

Current loading isolation amplifier circuit

There is a serial communication protocol that needs to be analyzed and cracked, and I am looking for help from experts
There is a serial communication protocol that needs to be analyzed and cracked. I am looking for help from experts! Thank you! to:hawking20001981 (Dongdong VC++ Primer) Please contact me as soon as po...
bb8224575 Embedded System
Multimeter to measure transistor
1. Judging whether it is good or bad: Basic idea: For NPN type, there are ① whether the P in the middle to the N on both sides (P→N) are all forward biased; ② whether the N on both sides to the P in t...
youganw Talking
msp430 serial port transceiver program
I want to use the serial port of msp430 to develop a transceiver program, but I don't know how much data the other party sends at a time? How can I receive it completely? I feel that using the interru...
chibimm008 Embedded System
A novice wants to know why there are two lines behind the schematic diagram of DB9 in AD software
Why are there two lines behind the schematic diagram of DB9 in AD software as shown in the picture? Shouldn't there be no lines on a normal DB9? How can I remove them? ? Newbie needs answers...
qisefengye PCB Design
Read and write IC card speed problem under wince
Tested on PC, serial port reading and writing only takes 3s. Tested on wince, it takes 10s. How to solve it? ? What to do? ? Help...
segi Embedded System
How to measure the embedded resistor if it cannot be touched?
How to measure embedded resistors if you can't touch them? [color=#222222]Suppose there is a T-type resistor network in a potting material that cannot be penetrated, how to directly measure the resist...
依诺儿 Programming Basics
Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. EX71622-24B
  2. SMDJ51.0CA-HR
  3. BJ389-305-0628
  4. JTPQ00RE-24-1PC(009LC)
  5. LP319208
  6. LP49-44-30.0M-30J1CB
  7. UCR1206M2491Q-T1
  8. FP20216159311FFEFW
  9. KP6010H
  10. MMBZ5251BTW
  11. SB260_B0_10001
  12. P4SMA600CAF6

Popular Articles

  1. Ninestar: Acquisition of 100% equity of BenTu approved, effectively improving market competitiveness
  2. MathWorks Releases New Products for MATLAB and Simulink Version 2021b
  3. LG Electronics and Tinno Mobile Sign Global LTE Communications Standard Patent License Agreement
  4. The new generation of Snapdragon 8 mobile platform helps Honor Magic V usher in the era of foldable screen flagship phones
  5. Meizu PANDAER tide electric series new products officially announced, will be released on January 12
  6. Using a separate keyboard
  7. EDOM Technologies becomes agent for ArkX Labs' contactless voice solution to expand business in Asia and India
  8. Rainfall digital tube display design based on AT89C51 microcontroller
  9. Design of networked intelligent temperature sensor system
  10. OPPO Find X6 Pro sales increased by 129% year-on-year compared to the previous generation product

Technical ResourceMore

  1. \"Circuit Fundamentals\" edited by Wang Huiling
  2. LabVIEW Beverage Machine Design
  3. 0603 Resistor Code Table
  4. Application of FPGA in Evolvable Hardware
  5. Design of Carbon Monoxide Gas Measurement and Control System in Cars Based on Single Chip Microcomputer
  6. CCD camera technical parameters
  7. Research on signal filtering and denoising based on wavelet transform
  8. 2.4-inch LCD screen data and 51 single-chip microcomputer code
  9. Controlling AC Signal Offset and Amplitude Using a Dual-Channel Multiplying DAC and a Single IV Converter
  10. Chapter 5_VHDL_State Machine

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1435  213  441  1167  2792  29  5  9  24  57
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
